Description

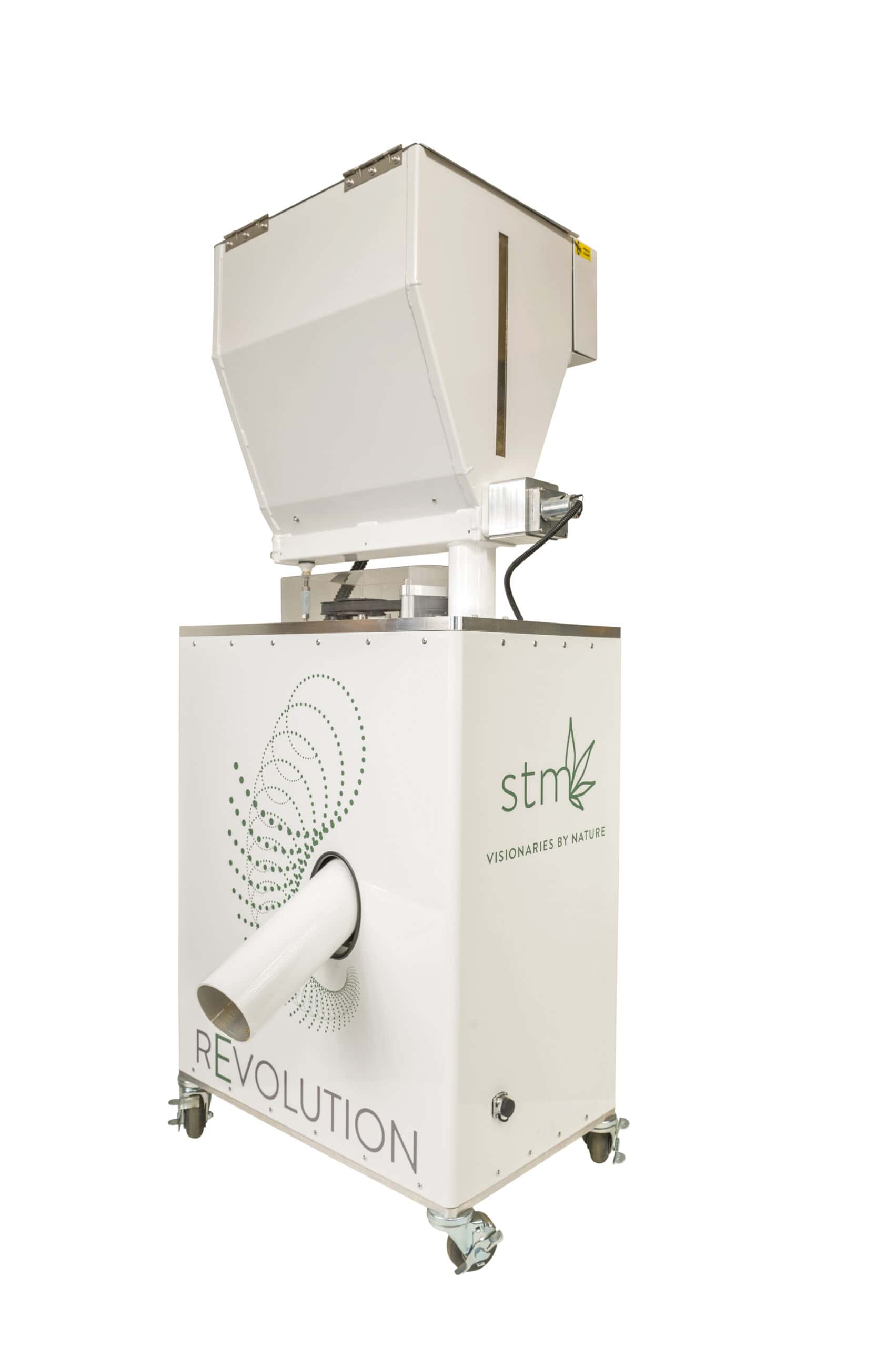

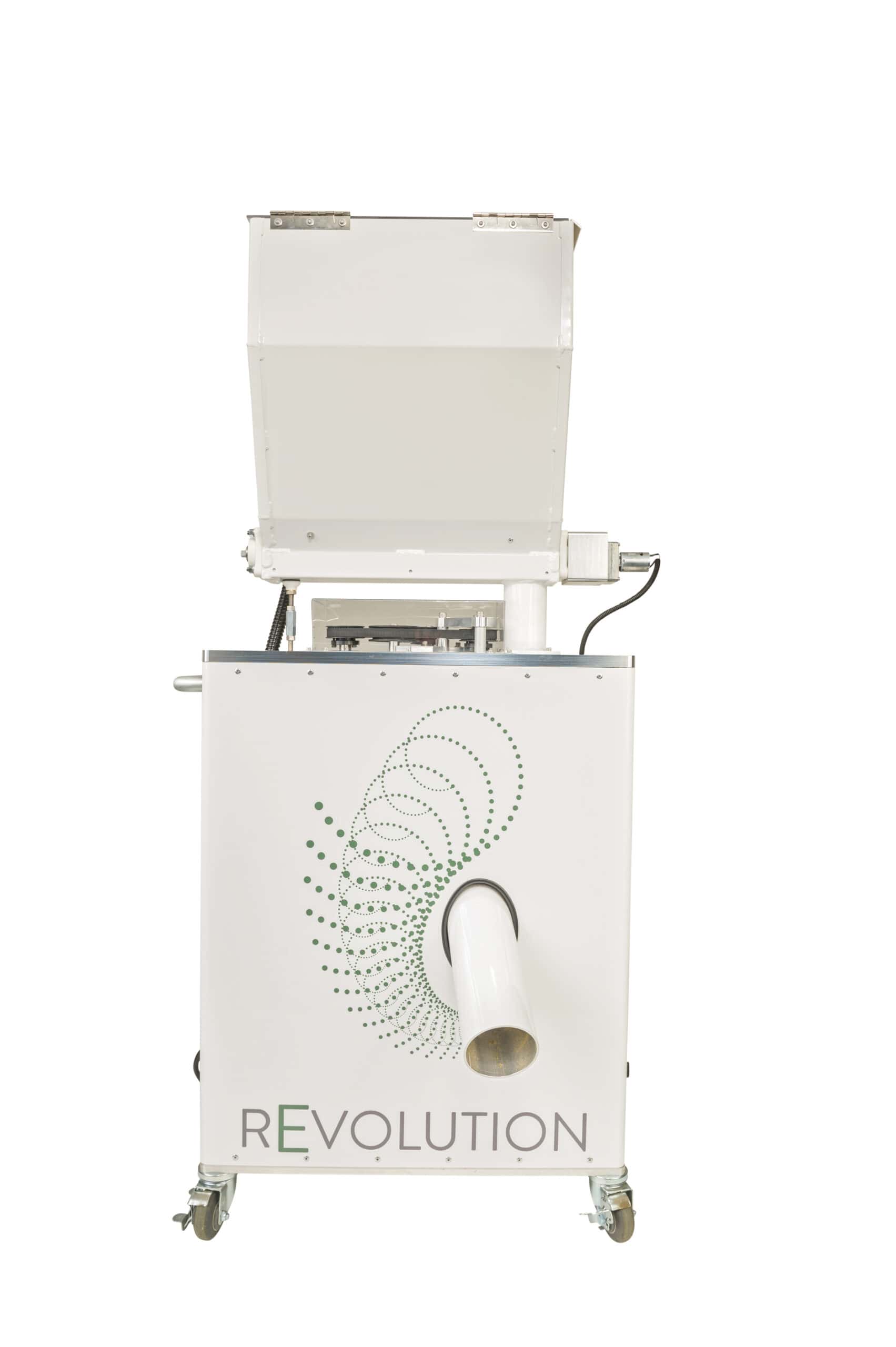

The Revolution 2.0 Industrial Grinder is a high-output, commercial-grade grinding solution engineered for continuous operation, precision particle consistency, and preservation of delicate plant material structure.
Designed for professional agricultural and botanical processing facilities, the Revolution 2.0 replaces manual grinding with a single, high-efficiency workstation capable of handling large daily volumes while maintaining consistent results.
Industrial Performance Without Compromise
High-Output Throughput
Process 15–30 lbs of dried plant material per hour under optimal conditions, with some applications achieving higher throughput depending on material characteristics and workflow design. This enables facilities to reduce labor requirements, increase daily output, and maintain uniform particle size across batches.
Operator-Focused Safety & Compliance
The Revolution 2.0 features a fully enclosed, dent-resistant 304 stainless steel housing and a multi-point safety interlock system designed to protect operators while supporting uninterrupted production. The industrial design supports safe operation in demanding production environments.
Intelligent, Self-Regulating Operation
A proprietary closed-loop monitoring system continuously evaluates motor load to prevent clogs and mechanical downtime. When elevated load is detected, the system automatically pauses material feed, clears the cutting chamber, and alternates blade direction to maintain smooth, continuous operation with minimal operator intervention.
Precision Cutting with Minimal Heat & Friction

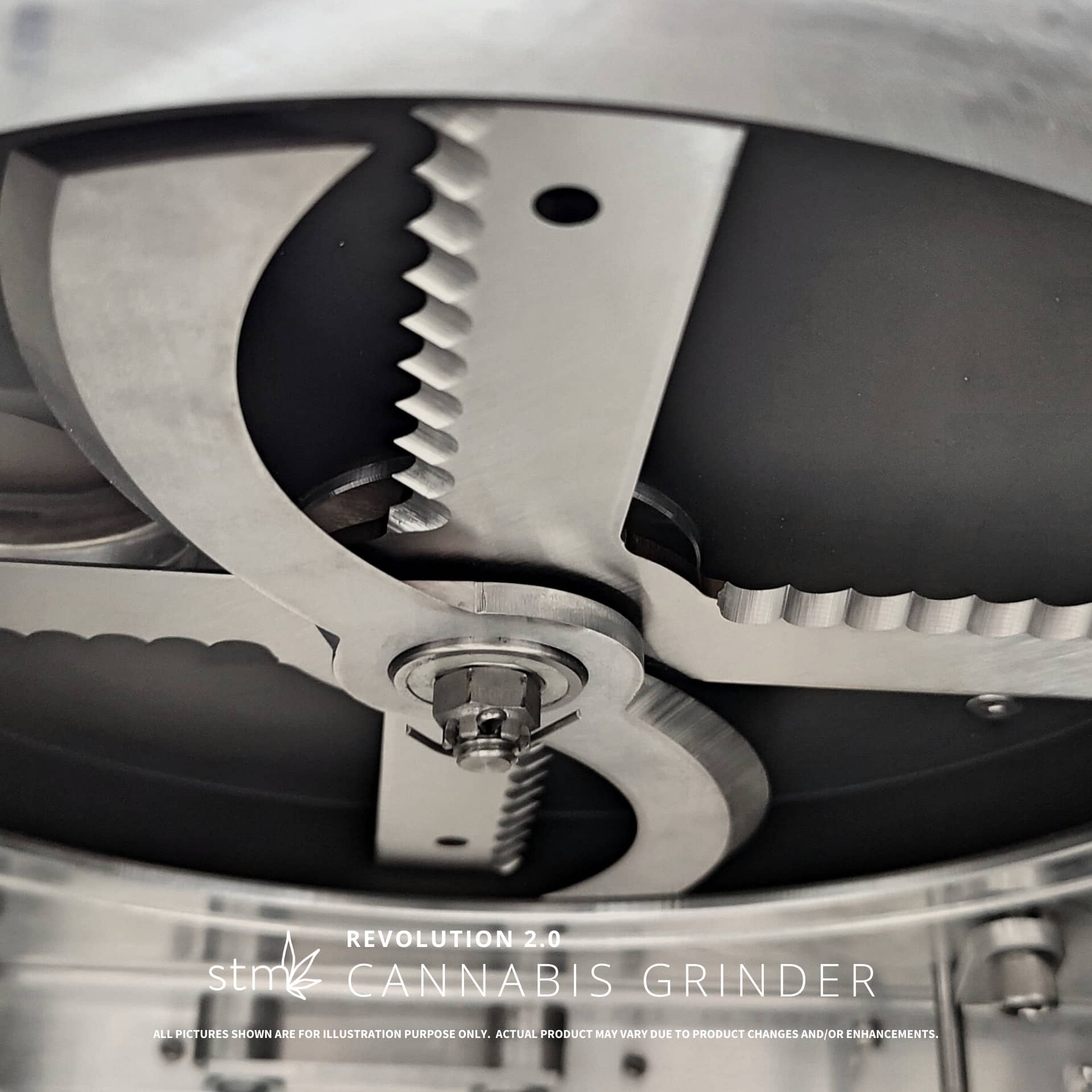

Unlike traditional crushing or impact-based grinders, the Revolution 2.0 uses a proprietary dual-blade cutting system that slices plant material cleanly. This approach minimizes heat generation and mechanical stress, resulting in a uniform, high-quality grind suitable for downstream processing applications.
Independent testing has demonstrated:
-
Low thermal impact
-
Minimal compound degradation
-
Consistent particle distribution
Modular Particle Size Control

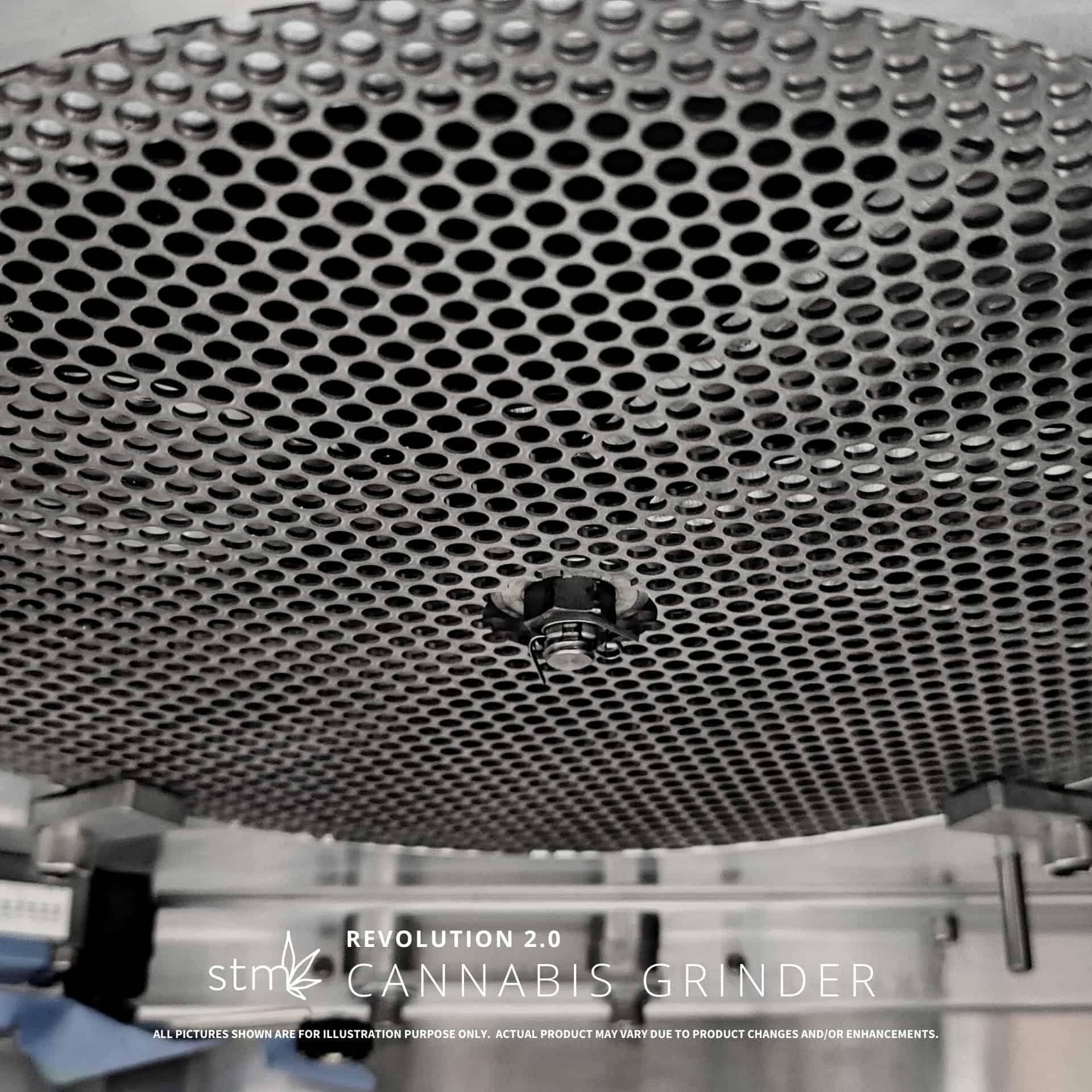

Interchangeable fine and coarse particle screens are included, allowing operators to tailor output to specific processing requirements. Optional screen sizes are available for additional customization.
Easy Cleaning & Sanitation
Designed with sanitation efficiency in mind, the Revolution 2.0 supports GMP-aligned workflows through:
-
Quick-release access to blades and screens
-
Smooth stainless steel surfaces
-
Rapid disassembly and reassembly
This minimizes downtime between production runs and simplifies routine cleaning procedures.
Technical Specifications
-
Throughput: 15–30 lbs/hr (higher throughput possible depending on application)
-
Daily Capacity: Up to 400 lbs/day
-
Dimensions: 30″ L × 65″ H × 22.25″ W
-
Weight: Approx. 220 lbs
-
Power: 220V, 18 load amps, 2860W
-
Plug Type: L6-30, 25 Amp
-
Motor: 3 HP, UL-compliant, Made in USA
-
Materials: Food-grade SAE 304 stainless steel
-
Blade System: Proprietary dual-blade cutting system
-
Screens: Interchangeable fine & coarse (included)
