Description

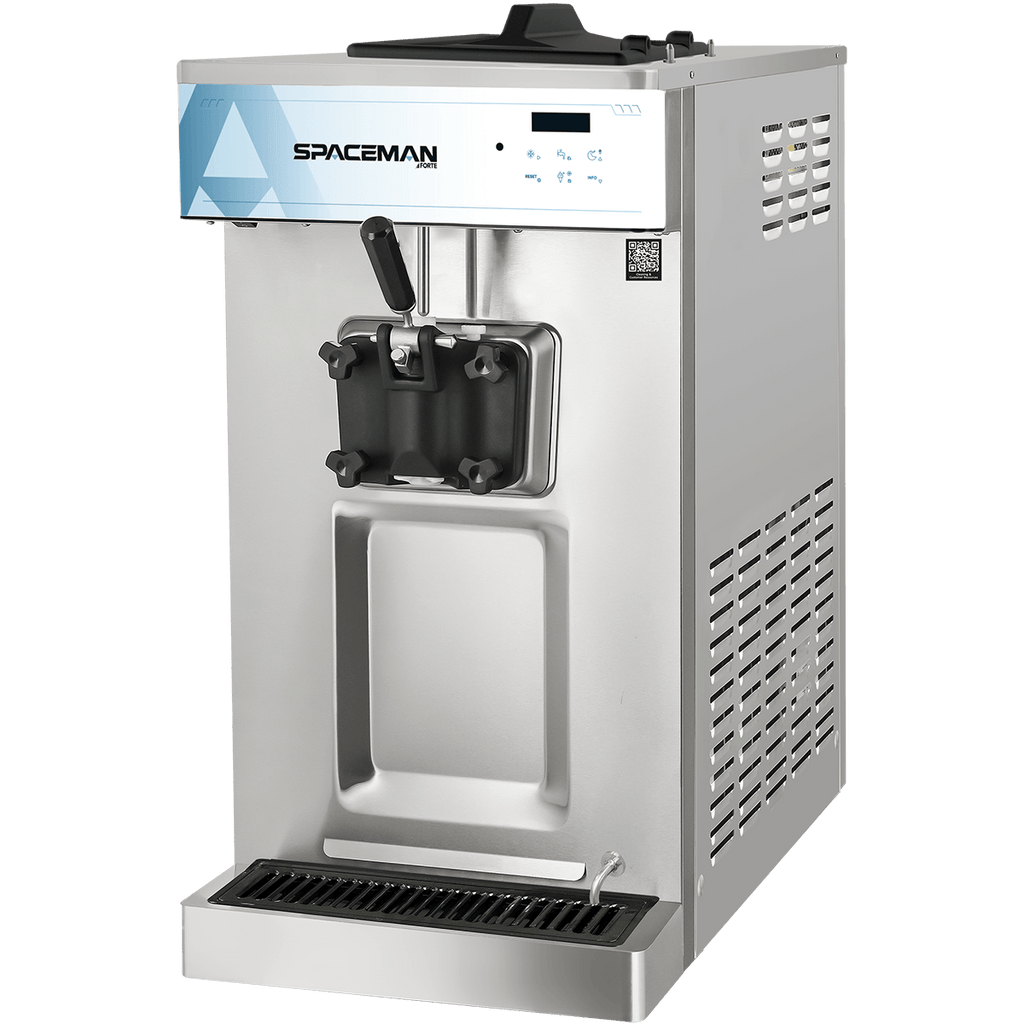

The 6236-C is a high-volume single flavor countertop, gravity-fed soft serve machine designed to outperform any competitor’s single flavor countertop model in initial freeze time, recovery time, and servings per hour. Ideal for high-volume operations with servings up to 12oz, the 6236-C is capable of producing a variety of soft serve products including ice cream, frozen yogurt, custards, and sorbets. An easy-to-use digital user interface and control system maintains excellent product consistency, hopper temperature, and high-performance parameters. Hopper refrigeration and sleep/standby features keep product fresh and are approved for both dairy and non-dairy products, while hopper agitators stir product throughout the day, saving operator time and ensuring consistent dairy-safe cooling. With patented freezing technology on the 3.4qt cylinders, the 6236-C achieves super-fast recovery times and can produce over 350 4oz servings per hour, making it one of the most efficient countertop machines available.
The 6236-C incorporates Spaceman’s patented 100% Controlled Contact Flooded Evaporator, designed for maximum efficiency and delivering the industry’s fastest freeze-down and recovery times with smaller ice crystals and the smoothest, creamiest mouthfeel. Continuous improvements in design, driven by field feedback and R&D, enhance operational efficiency, structural integrity, and serviceability. The advanced V5 single-piece auger ensures full evaporator wall contact, eliminates unnecessary parts, reduces cleaning time, and enhances consistency with the smallest ice crystals in the industry. Smart safety controls and independent standby modes maintain hopper and cylinder temperatures below 4.4ºC (40ºF), optimizing energy efficiency and product quality during non-use. The dual-system gravity-fed air inlet works in tandem with the V5 auger to deliver the most consistent overrun, ensuring long-term texture and superior product quality. The increased 5-gallon hopper capacity allows for larger batch mixing and reduced refill time, improving both efficiency and ease of operation. Finally, inverter motor control enables the use of three-phase motors with single-phase power input, reducing torque and strain by controlling start-up speed—dramatically minimizing gearbox and drivetrain failures caused by operational errors or freeze-ups.
Key Features:
- Over 350 4 oz servings per hour with 3.4 qt cylinder
- Patented Controlled Contact Flooded Evaporator
- V5 single-piece auger
- Dual-system gravity-fed air inlet
- Digital user interface with viscosity control

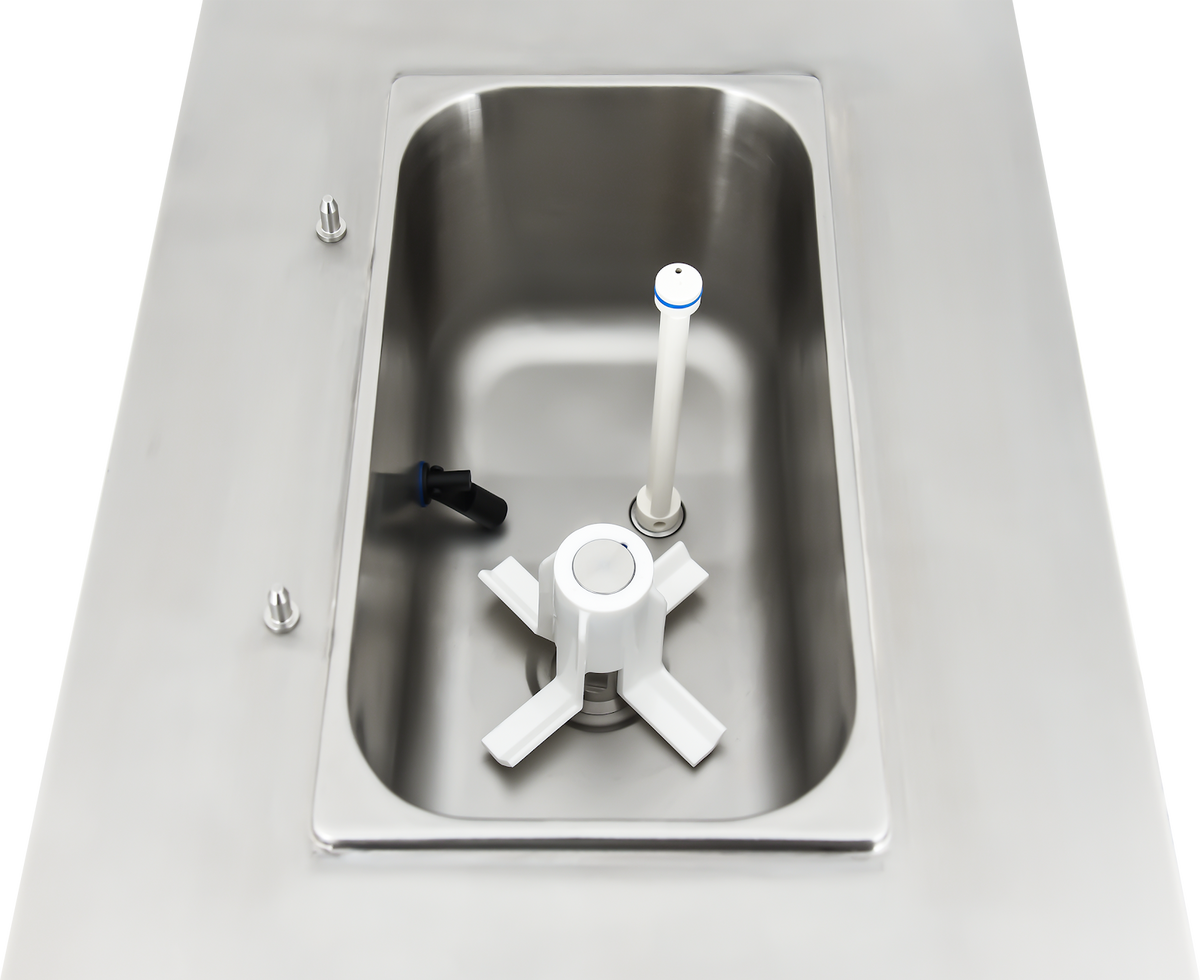

- Refrigerated hopper with agitator
- Independent standby for hopper and cylinder maintaining below 40°F
- Approved for dairy and non-dairy
- Increased 5-gallon hopper capacity
- Inverter motor control for reduced drivetrain strain
- Continuous design improvements
- Reduced cleaning parts with easy installation
Sizing Guide – Servings per Minute (per flavor):
- 4 oz: 6
- 8 oz: 3
- 12 oz: 2
Not sure which machine fits your volume? Compare every Spaceman soft serve and frozen beverage model side by side:
📏 View the Spaceman Sizing Guide (PDF)
Specifications:
Gravity model (6236-C):
- Flavors: 1
- Cylinder volume: 3.4 qt
- Hopper volume: 20 qt
- Electrical: 208-230V, 1 phase, L6-20 plug
- Main compressor: 6500 BTU
- Pre-cooling compressor: 480 BTU
- Beater motor: 1.0 HP
- Dimensions: 17.9"W x 26.8"D x 38"H
- Weight: 313 lbs
- Ships from: Houston, TX

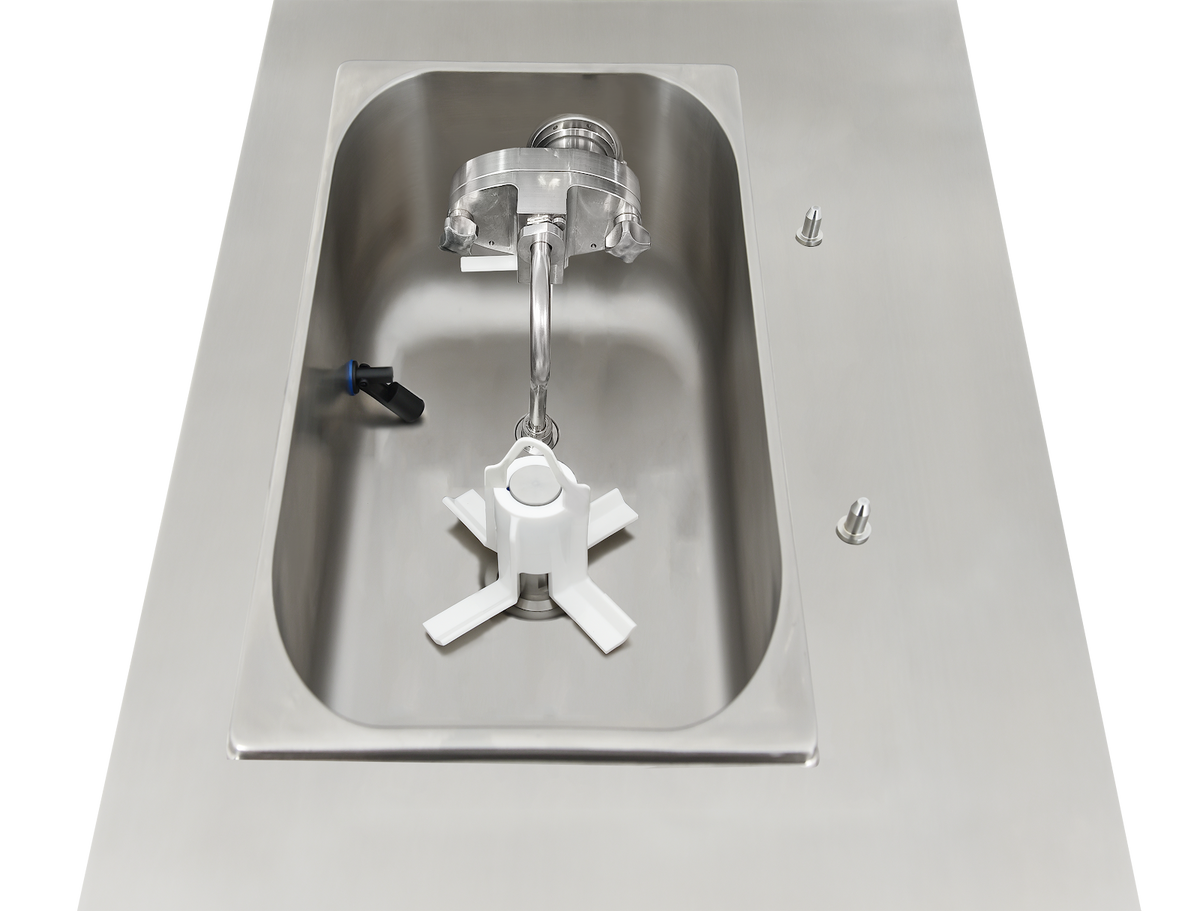

Pressurized model (6236A-C):
- Flavors: 1
- Cylinder volume: 3.4 qt
- Hopper volume: 13.7 qt
- Electrical: 208-230V, 1 phase, L6-20 plug
- Main compressor: 6500 BTU
- Pre-cooling compressor: 480 BTU
- Beater motor: 1.0 HP
- Dimensions: 17.9"W x 26.8"D x 38"H
- Weight: 326 lbs
- Ships from: Houston, TX
Gravity vs. Pressurized – Pricing:
- Gravity (6236-C): $12,097 $24,194 – mix is gravity-fed into the freezing cylinder, with a dual-system air inlet for consistent overrun.
- Pressurized (6236A-C): $13,362 $26,724 – an advanced pressurized air pump with six overrun settings and anti-starvation control lets you dial in product texture.
Delivery, Setup & Training Options:
- Free freight is included on every machine.
- Start-Up: +$375
- Installation (includes Start-Up): +$625
- Factory On-Site Training: +$900
Select your preferred option above before adding to cart.
Downloads:
- Sizing Guide (PDF)
- Spec Sheet – Gravity (PDF)
- Spec Sheet – Pressurized (PDF)
- Warranty (PDF)
- Operator Manual (PDF)
- Cleaning Guide (PDF)
Warranty:
- 1 Year Parts & Labor
- 5 Years Compressor/Hopper/Shell
- Remote Training
- Fastest Average Nationwide Service Response
