Description

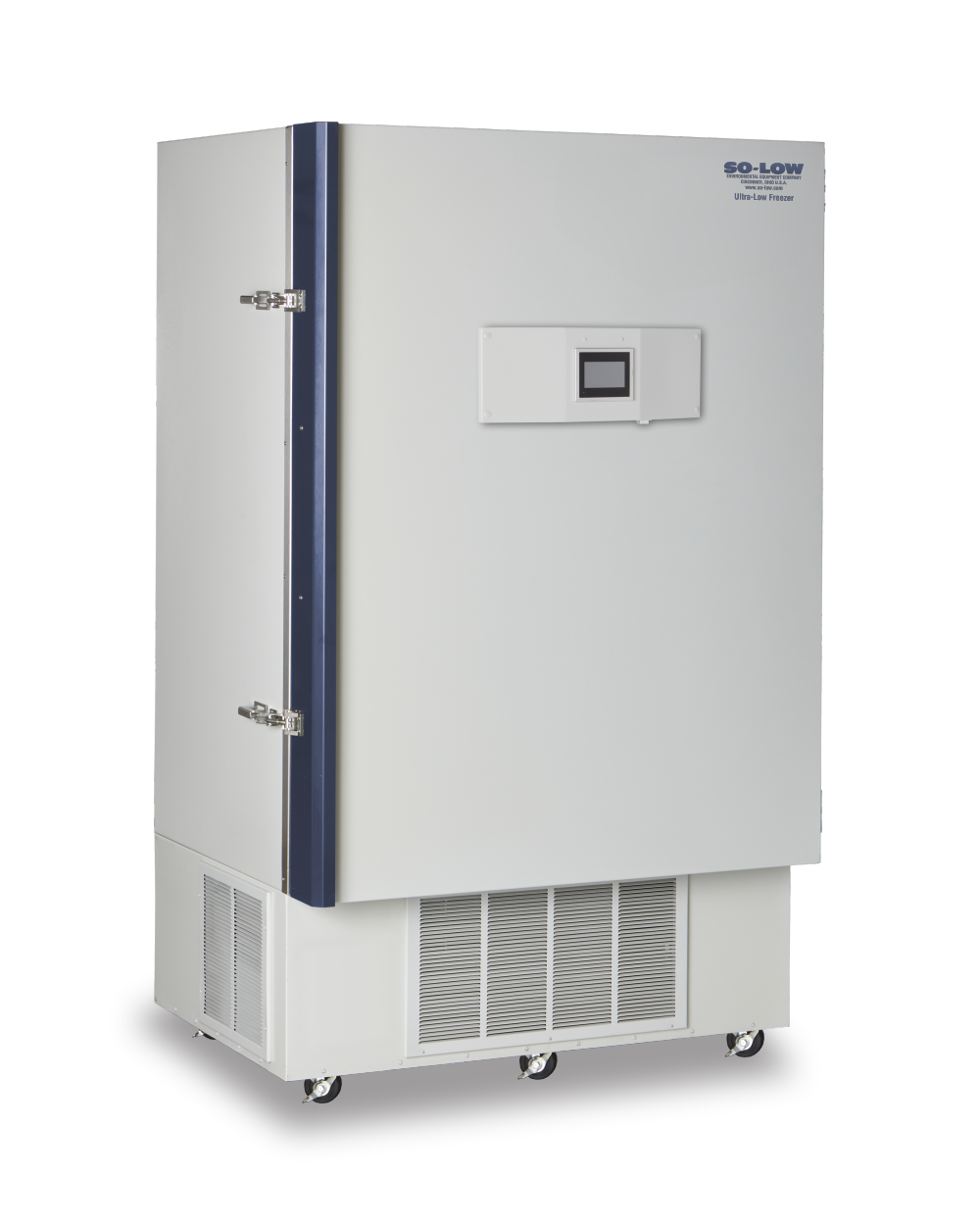

Smart Extra-Large -85°C Ultra-Low Freezer with Data Logging & Network Connectivity
This 25 cubic foot ultra-low temperature freezer delivers dependable -85°C performance while integrating advanced touchscreen controls, remote monitoring, and comprehensive data recording. Designed for laboratories requiring regulatory compliance, secure access control, and alarm redundancy, this unit is ideal for pharmaceutical, biotech, and clinical research facilities.
Key Features & Benefits
-
Ultra-Low Temperature Performance: Adjustable from -40°C to -85°C (-40°F to -120°F)
-
Extra-Large Storage Capacity: 25 cu. ft. (710 liters) for high-density sample storage
-
Touchscreen Dual Display Controller: Intuitive interface for precise control and real-time monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph with historical trend tracking
-
Data Export Options: Download temperature logs via USB or FTP
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User access management for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Cascade Refrigeration System: Hermetic compressor design for consistent ultra-low temperatures
-
Environmentally Responsible Refrigeration: CFC & HCFC-free refrigerants
Capacity & Dimensions
Storage Capacity
-
25 Cubic Feet (710 Liters)
Exterior Dimensions
-
48.75" W x 37" D x 79.5" H
-
124 x 93 x 201 cm
Interior Dimensions
-
34" W x 25" D x 51.25" H
-
86 x 63 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-
Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 30 inventory racks
-
Casters: 6 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
GMP / GLP environments
-
Vaccine and biological sample storage
-
Universities and research institutions
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
