Description

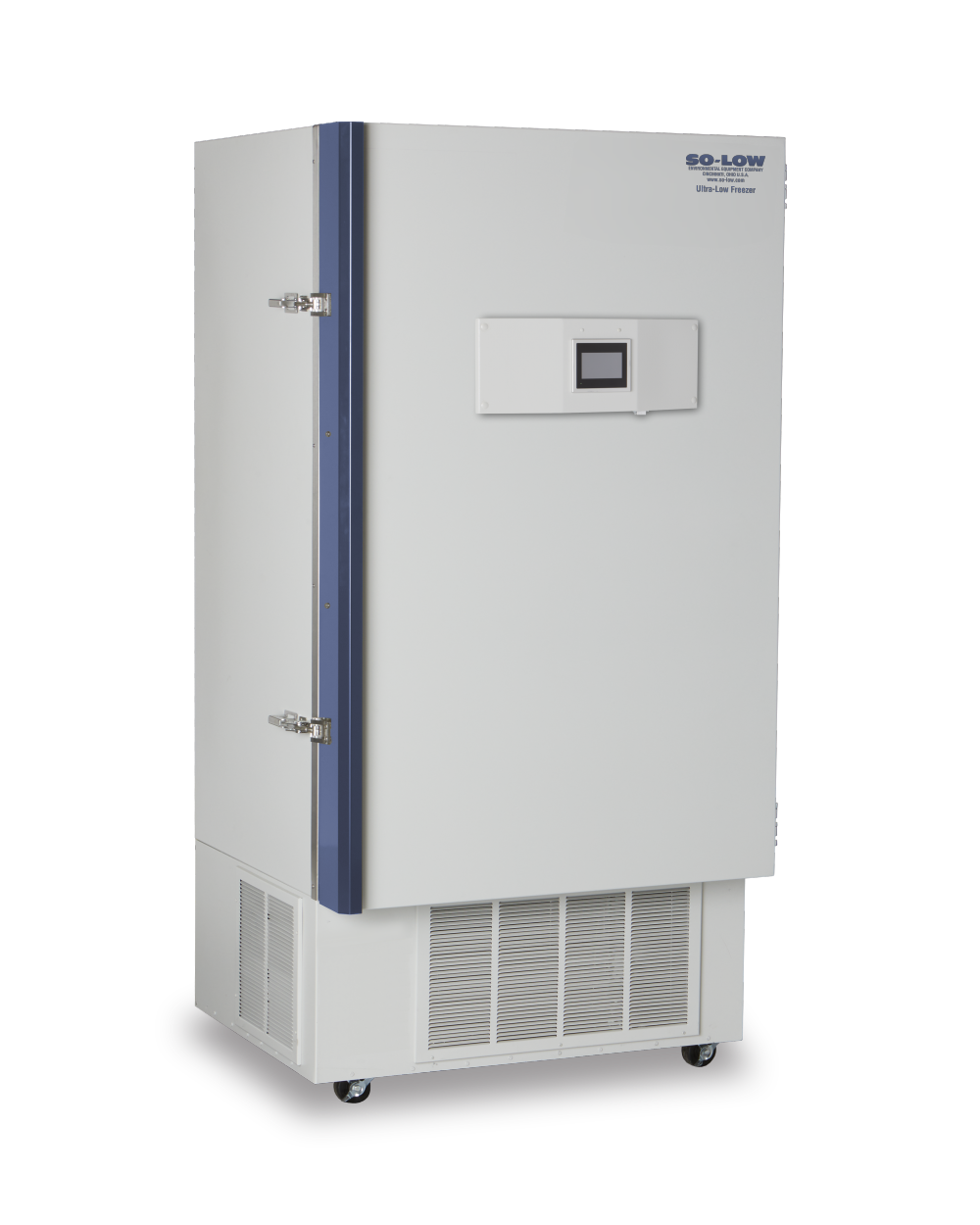

Smart High-Capacity -85°C Ultra-Low Freezer with Data Logging & Network Connectivity
This 18 cubic foot ultra-low temperature freezer delivers reliable -85°C performance combined with advanced touchscreen controls, remote monitoring, and temperature data recording. Designed for laboratories that require traceability, alarm redundancy, and secure user access, this unit is ideal for pharmaceutical, biotech, and clinical research environments.
Key Features & Benefits
-
Ultra-Low Temperature Performance: Adjustable from -40°C to -85°C (-40°F to -120°F)
-
Large Storage Capacity: 18 cu. ft. (505 liters) for mid- to high-volume sample storage
-
Touchscreen Dual Display Controller: Intuitive interface for precise control and monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph with historical tracking
-
Data Export Options: Download records via USB or FTP
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User access management for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms plus power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring functions during power interruptions*
-
Cascade Refrigeration System: Hermetic compressor design for consistent ultra-low temperatures
-
Environmentally Responsible Refrigeration: CFC & HCFC-free refrigerants
Capacity & Dimensions
Storage Capacity
-
18 Cubic Feet (505 Liters)
Exterior Dimensions
-
36" W x 36" D x 79.5" H
-
91 x 91 x 200 cm
Interior Dimensions
-
23" W x 26" D x 51.25" H
-
58 x 66 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-
Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 20 inventory racks
-
Casters: 4 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
GMP / GLP environments
-
Vaccine and biological sample storage
-
Universities and research institutions
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
