Description

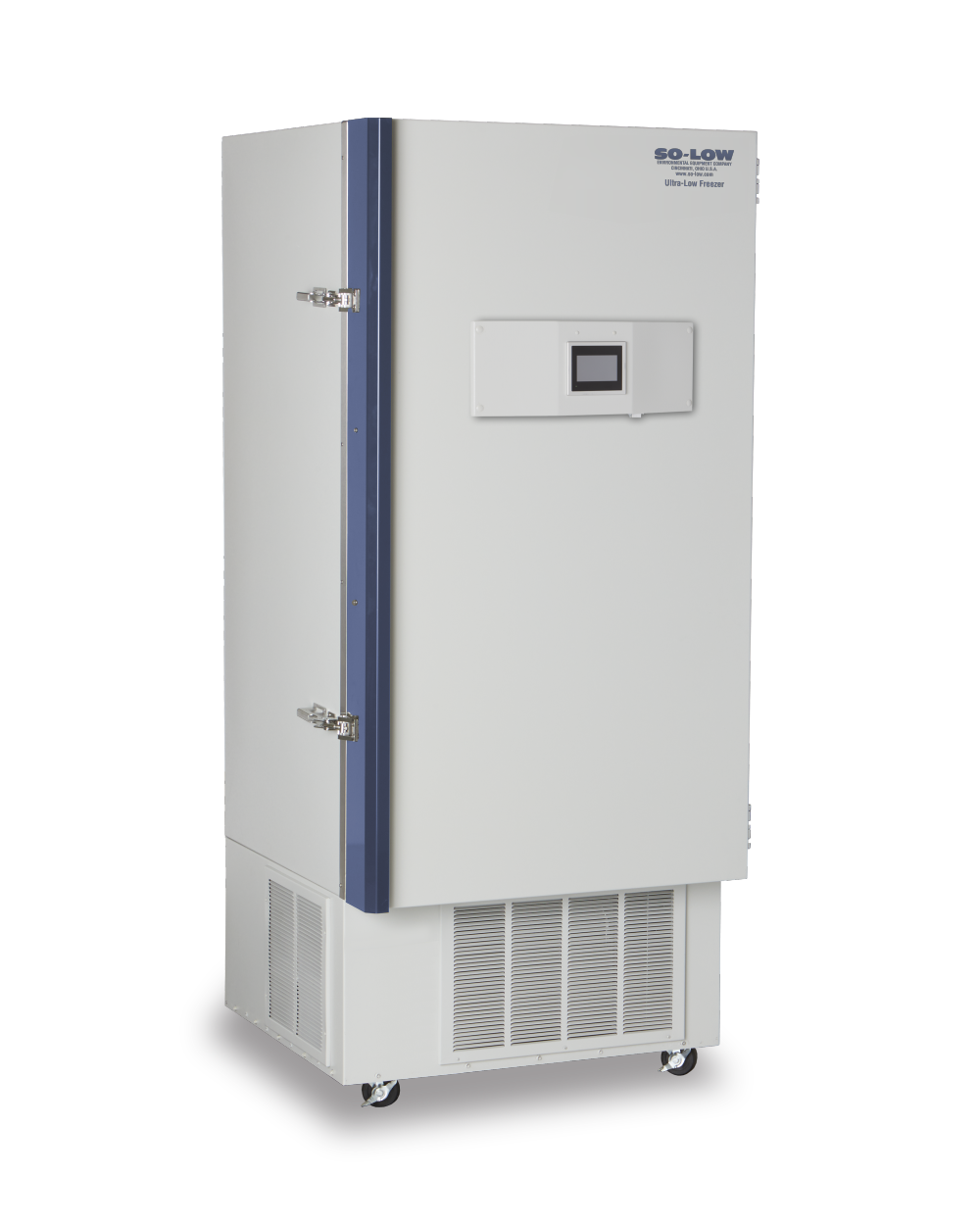

Smart -85°C Ultra-Low Freezer with Data Logging, Alarms & Network Connectivity
This 13 cubic foot ultra-low temperature freezer combines reliable -85°C performance with advanced touchscreen controls, remote monitoring, and data recording, making it ideal for laboratories requiring regulatory compliance, traceability, and real-time alerts. Designed with a cascade refrigeration system and robust alarm protections, this unit ensures secure long-term storage of critical biological and pharmaceutical materials.
Key Features & Benefits
-
Ultra-Low Temperature Performance: Adjustable range from -40°C to -85°C (-40°F to -120°F)
-
Touchscreen Dual Display Controller: Intuitive interface for precise temperature control and monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graphing with historical data
-
Data Export Capability: Download temperature data via USB or FTP
-
Network Connectivity: Hardwired Ethernet (RJ45) connection
-
Advanced Control Security: Multi-level user access for compliance environments
-
Comprehensive Alarm Protection: Audible high/low alarms, power failure alerts, and low-battery warnings
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Cascade Refrigeration System: Hermetic compressor design for consistent ultra-low temperatures
-
Environmentally Responsible Refrigeration: CFC & HCFC-free refrigerants
Capacity & Dimensions
Storage Capacity
-
13 Cubic Feet (370 Liters)
Exterior Dimensions
-
35" W x 34.5" D x 79.5" H
-
88 x 87 x 201 cm
Interior Dimensions
-
20" W x 22" D x 51.25" H
-
50 x 55 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: On-screen graph display
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-
Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 15 inventory racks
-
Casters: 4 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
GMP and GLP environments
-
Vaccine and biological sample storage
-
Universities and research institutions
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
