Description

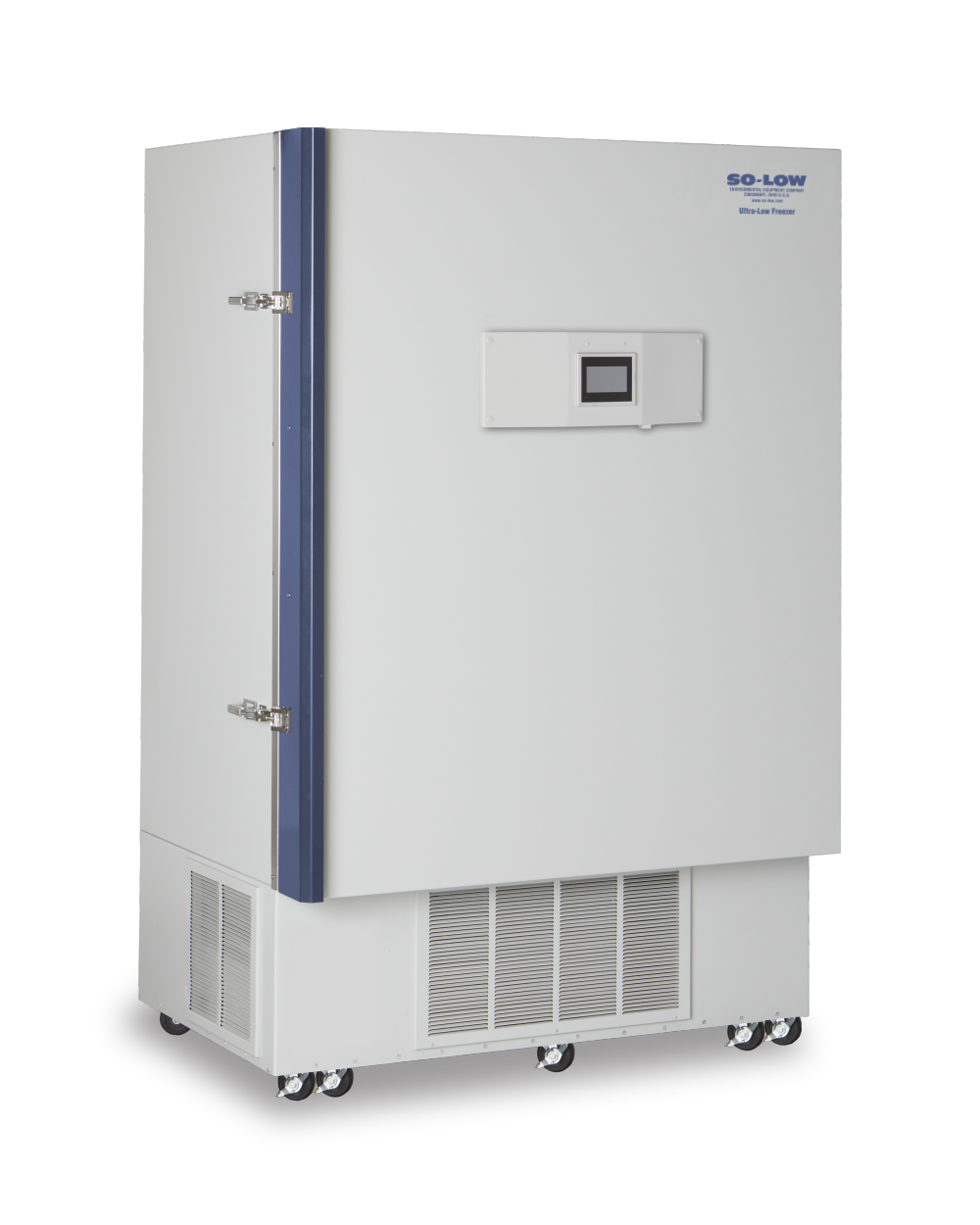

Maximum-Capacity Smart -80°C Ultra-Low Freezer with Data Logging & Network Connectivity
This 31 cubic foot ultra-low temperature freezer is engineered for laboratories requiring maximum storage capacity, stable -80°C performance, and advanced compliance-ready monitoring. Featuring touchscreen dual-display controls, remote alarm notifications, and integrated temperature recording, this unit is ideal for pharmaceutical, biotech, and high-volume research environments.
Key Features & Benefits
-
Ultra-Low Temperature Range: Adjustable from -40°C to -80°C (-40°F to -112°F)
-
Maximum Storage Capacity: 31 cu. ft. (877 liters) for large-scale sample inventories
-
Touchscreen Dual Display Controller: Intuitive interface for precise temperature control and real-time monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph with historical data tracking
-
Data Export Options: Download temperature logs via USB or FTP
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User-based access for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Cascade Refrigeration System: Hermetic compressor design for stable ultra-low performance
-
Environmentally Responsible Refrigeration: CFC & HCFC-free refrigerants
Capacity & Dimensions
Storage Capacity
-
31 Cubic Feet (877 Liters)
Exterior Dimensions
-
59.25" W x 37" D x 79.5" H
-
150.5 x 93 x 201 cm
Interior Dimensions
-
42" W x 25" D x 51.25" H
-
106 x 63 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-
Inner Doors: 5 stainless steel inner doors
-
Shelving: 5 fixed shelves
-
Rack Capacity: Up to 35 inventory racks
-
Casters: 10 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
GMP / GLP compliant environments
-
Vaccine and biological sample storage
-
Universities and government research institutions
-
High-volume life science laboratories
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
