Description
Extra-Large Capacity -85°C Ultra-Low Freezer for High-Volume Laboratory Storage

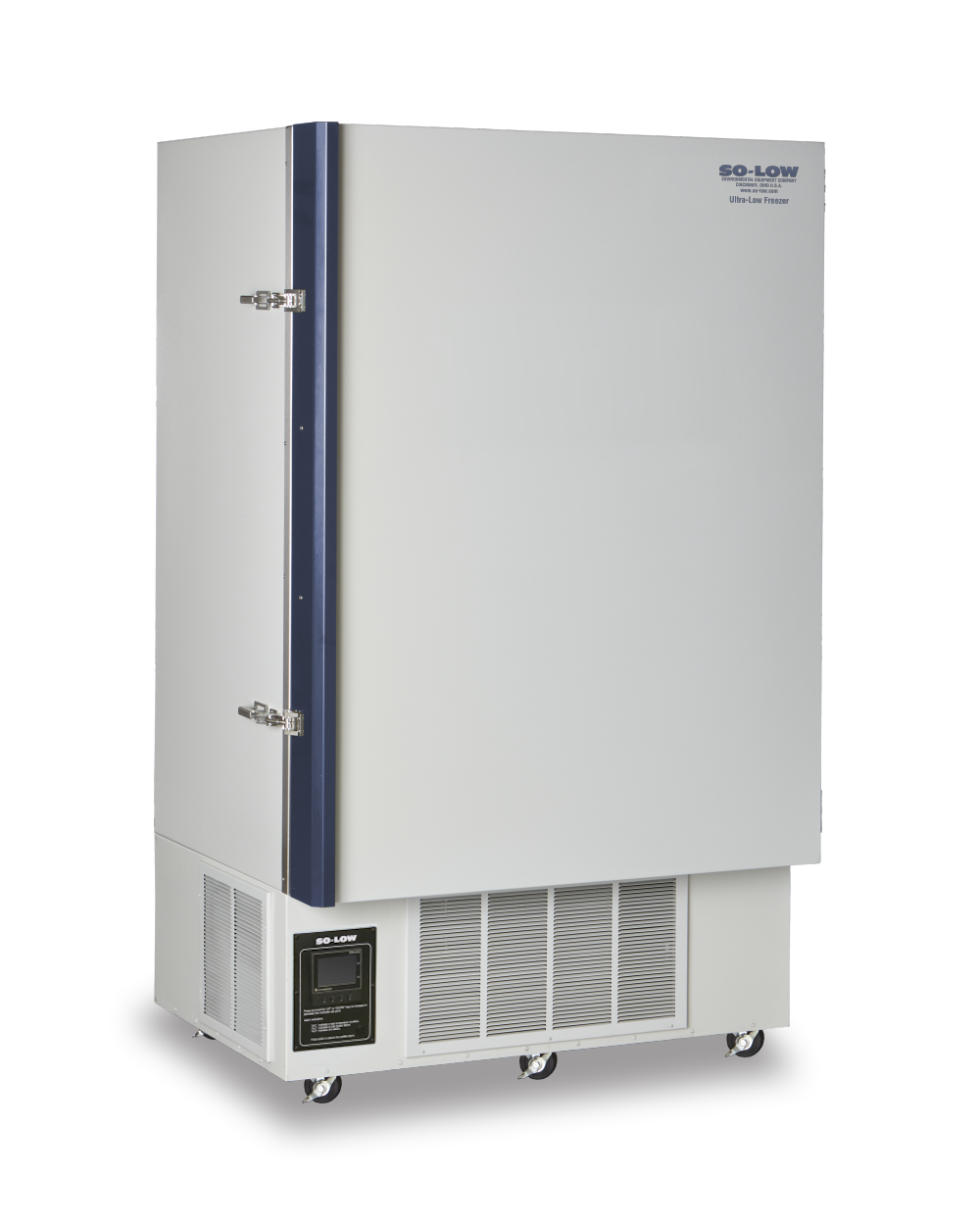

This 25 cubic foot ultra-low temperature freezer is built for laboratories and research facilities that require maximum storage capacity without sacrificing temperature stability. Featuring a cascade-type hermetic compressor system, digital dual-display controls, and a comprehensive alarm package, this unit provides dependable long-term storage down to -85°C (-120°F) for critical samples.
Key Features & Benefits
-
Ultra-Low Temperature Range: Adjustable from -40°C to -85°C (-40°F to -120°F)
-
Extra-Large Storage Capacity: 25 cu. ft. (710 liters) for high-density sample storage
-
Digital Dual Display Controller: Precise temperature control with continuous monitoring
-
Comprehensive Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Battery-Backed Alarm System: Ensures alarm operation during power interruptions
-
Cascade Refrigeration System: Dual hermetic compressors for consistent ultra-low performance
-
Environmentally Friendly Refrigeration: HCFC & CFC-free refrigerants
-
Secure Sample Storage: Lockable front door with stainless steel inner doors to reduce cold loss
-
Heavy-Duty Mobility: Six lockable casters for enhanced stability and easy relocation
Capacity & Dimensions
Storage Capacity
-
25 Cubic Feet (710 Liters)
Exterior Dimensions
-
48.75" W x 37" D x 79.5" H
-
124 x 93 x 201 cm
Interior Dimensions
-
34" W x 25" D x 51.25" H
-
86 x 63 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls & Alarm System
-
Temperature Control: Digital dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Backup Battery: Yes (alarm-only operation)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-

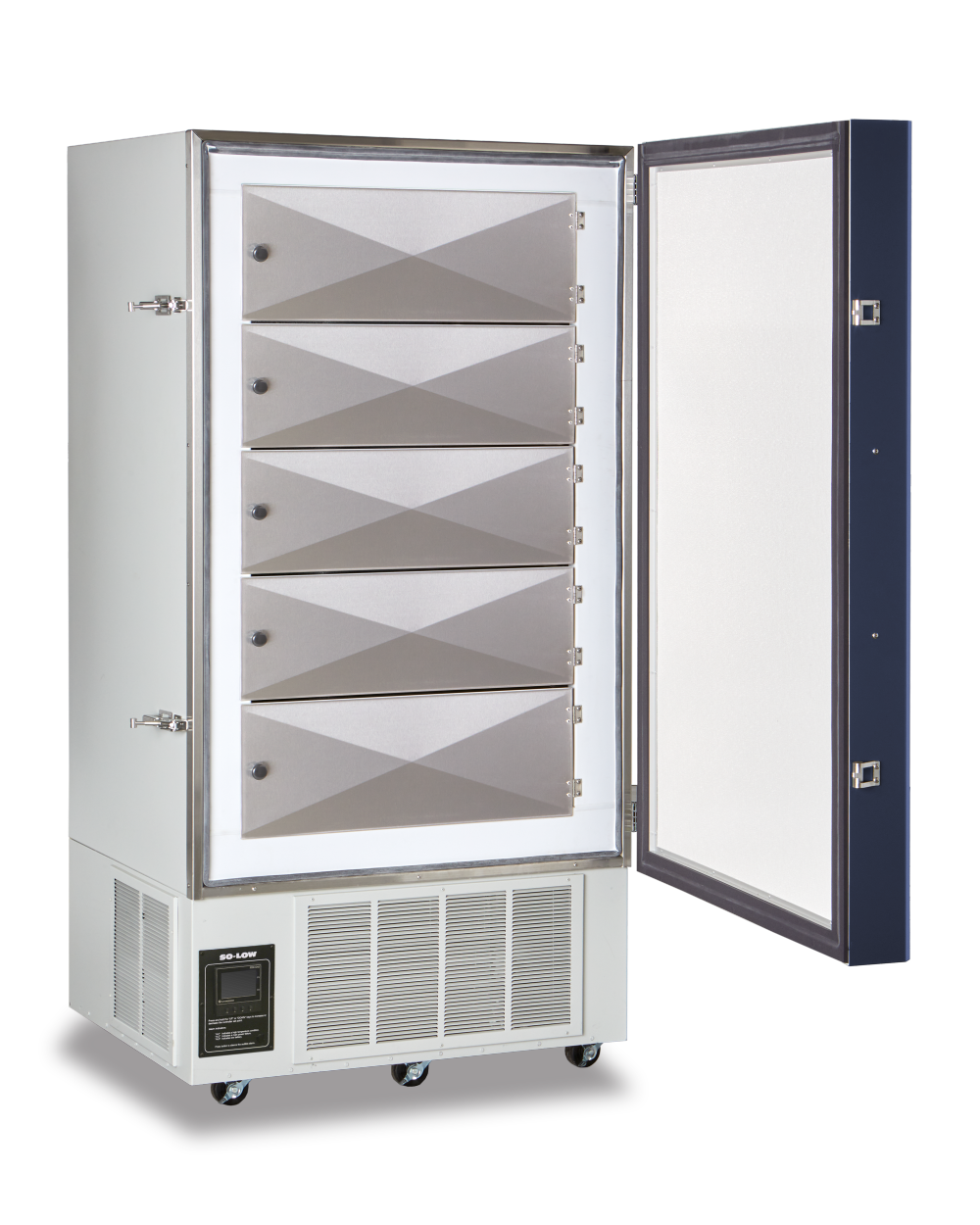

Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 30 inventory / drawer racks
-
Casters: 6 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
Vaccine and biological sample storage
-
Universities and government research labs
-
High-volume life science and industrial labs
Note: Specifications subject to change without notice.
