Description
High-Capacity -85°C Ultra-Low Freezer for Laboratories, Pharma & Research
This 22 cubic foot ultra-low temperature freezer is designed for laboratories and research facilities requiring maximum storage capacity with consistent -85°C performance. Featuring cascade-type hermetic compressors, digital dual-display temperature control, and comprehensive alarm protection, this unit provides secure, long-term storage for critical biological and pharmaceutical materials.
Key Features & Benefits
-
Ultra-Low Temperature Range: Adjustable from -40°C to -85°C (-40°F to -120°F)
-
High-Capacity Storage: 22 cu. ft. (626 liters) for large sample inventories
-
Digital Dual Display Controller: Precise temperature control with clear monitoring
-
Advanced Alarm Protection: Audible high/low temperature alarms with power failure and low-battery alerts
-
Battery-Backed Alarm System: Maintains alarm functionality during power interruptions
-
Cascade Refrigeration System: Dual hermetic compressors for stable ultra-low temperature operation
-
Environmentally Responsible Refrigeration: HCFC & CFC-free refrigerants
-
Secure Storage Design: Lockable front door with stainless steel inner doors to minimize cold loss
-
Heavy-Duty Mobility: Lockable casters for easy positioning and service access
Capacity & Dimensions
Storage Capacity
-
22 Cubic Feet (626 Liters)
Exterior Dimensions
-
41.25" W x 37" D x 79.5" H
-
105 x 93 x 201 cm
Interior Dimensions
-
28.5" W x 26" D x 51.25" H
-
72 x 66 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls & Alarm System
-
Temperature Control: Digital dual display
-
Temperature Alarm: Audible high/low
-
Additional Alarms: Power failure, low battery
-
Backup Battery: Yes (alarm only)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-

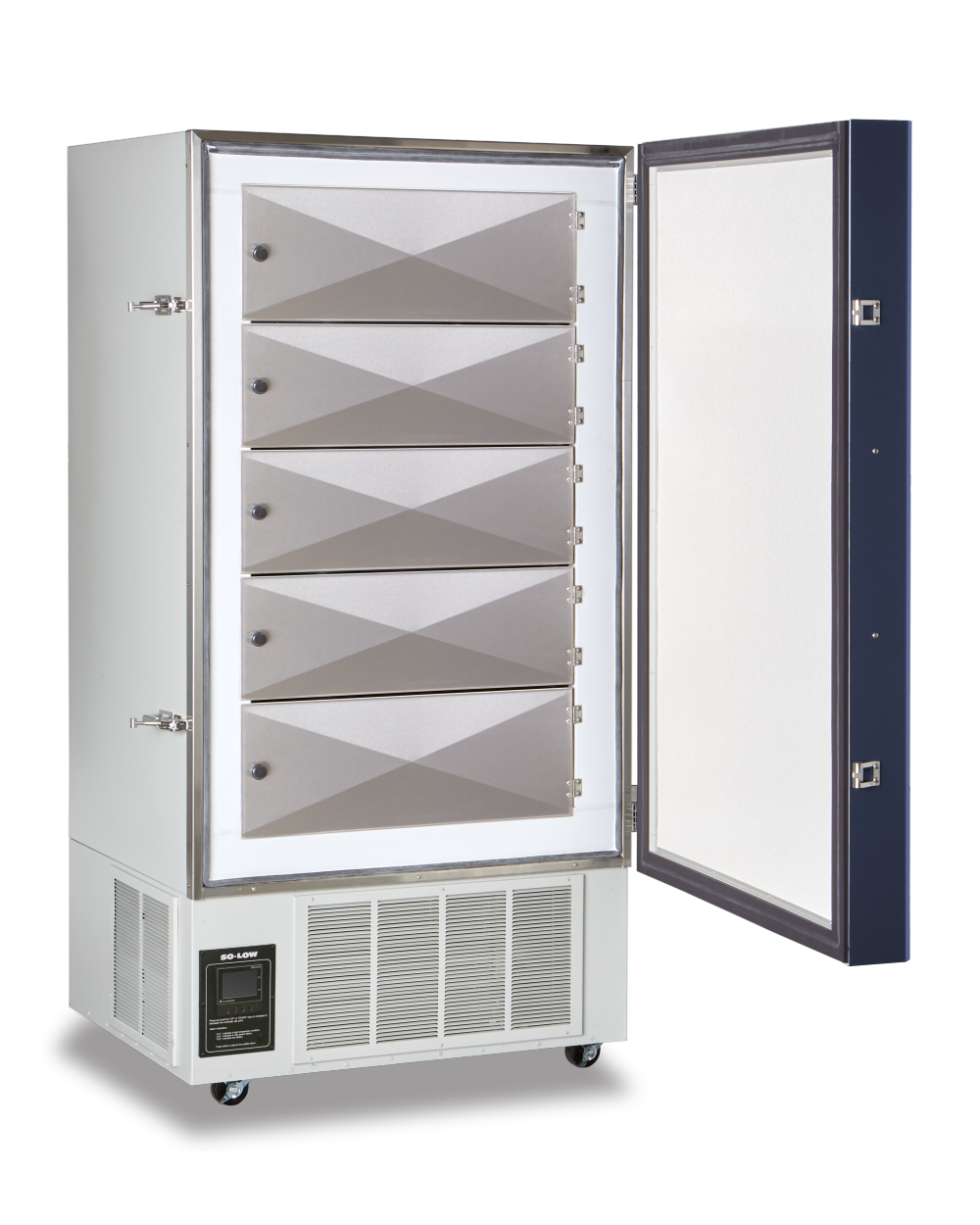

Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 25 inventory / drawer racks
-
Casters: 4 heavy-duty lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Medical and clinical laboratories
-
Pharmaceutical and biotech research
-
Vaccine and specimen storage
-
Universities and research institutions
-
High-volume life science laboratories
Note: Specifications subject to change without notice.
