Description

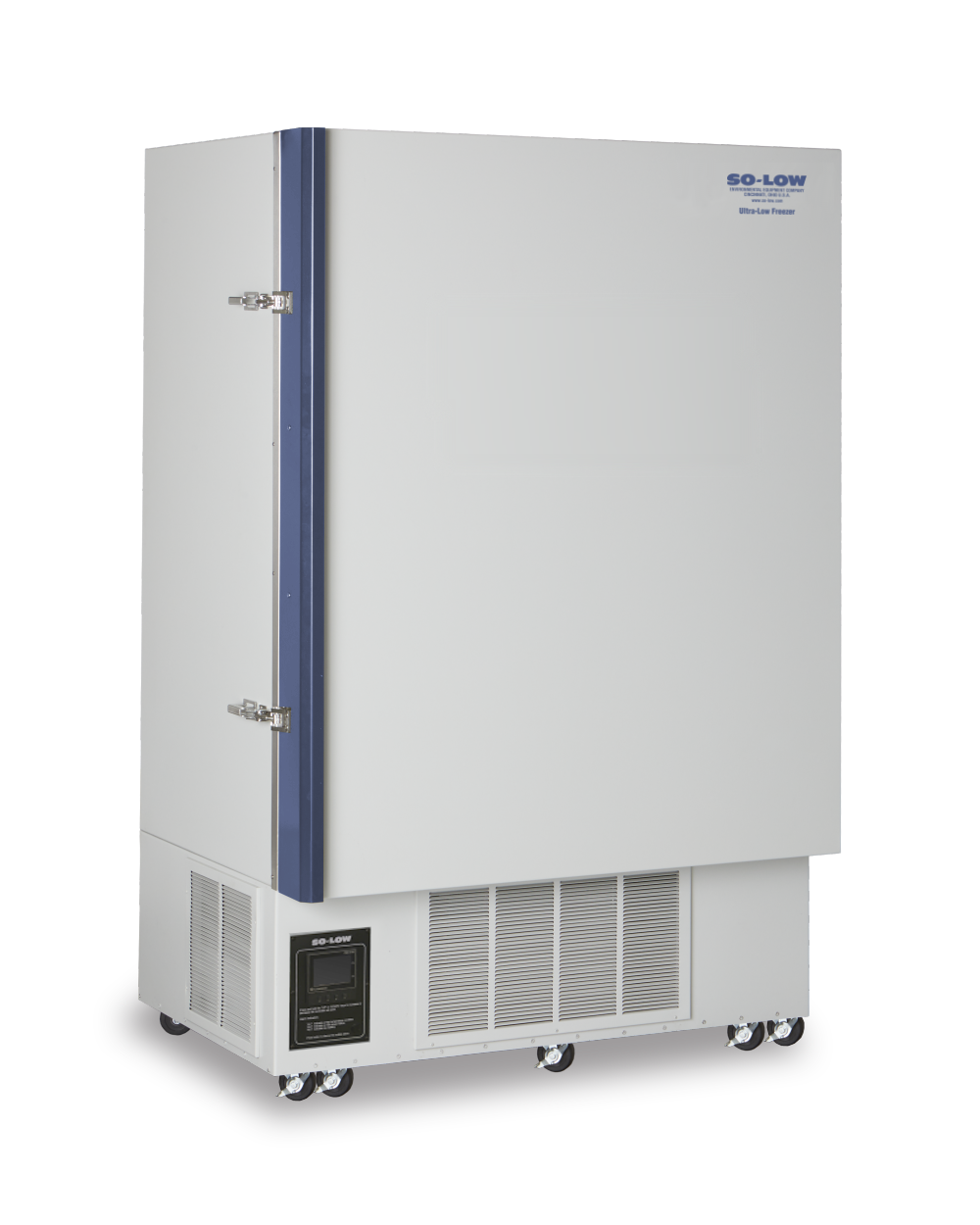

Maximum-Capacity -80°C Ultra-Low Freezer for High-Volume Laboratory Storage
This 31 cubic foot ultra-low temperature freezer is engineered for laboratories that require exceptional storage capacity with dependable -80°C performance. Built with cascade-type hermetic compressors, digital dual-display temperature controls, and a comprehensive alarm system, this unit delivers reliable long-term storage for critical biological and pharmaceutical materials.
Key Features & Benefits
-
Ultra-Low Temperature Range: Adjustable from -40°C to -80°C (-40°F to -112°F)
-
Maximum Storage Capacity: 31 cu. ft. (877 liters) for large-scale sample inventories
-
Digital Dual Display Controller: Precise temperature control with continuous monitoring
-
Advanced Alarm Protection: Audible high/low temperature alarms with power failure and low-battery alerts
-
Battery-Backed Alarm System: Ensures alarms remain active during power outages
-
Cascade Refrigeration System: Dual hermetic compressors for stable ultra-low temperature operation
-
Environmentally Responsible Refrigeration: HCFC & CFC-free refrigerants
-
Secure Sample Storage: Lockable front door with stainless steel inner doors to reduce temperature loss
-
Heavy-Duty Mobility & Stability: Ten lockable casters for safe movement and positioning
Capacity & Dimensions
Storage Capacity
-
31 Cubic Feet (877 Liters)
Exterior Dimensions
-
59.25" W x 37" D x 79.5" H
-
150 x 93 x 201 cm
Interior Dimensions
-
42" W x 25" D x 51.25" H
-
106 x 63 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls & Alarm System
-
Temperature Control: Digital dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Backup Battery: Yes (alarm-only operation)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-

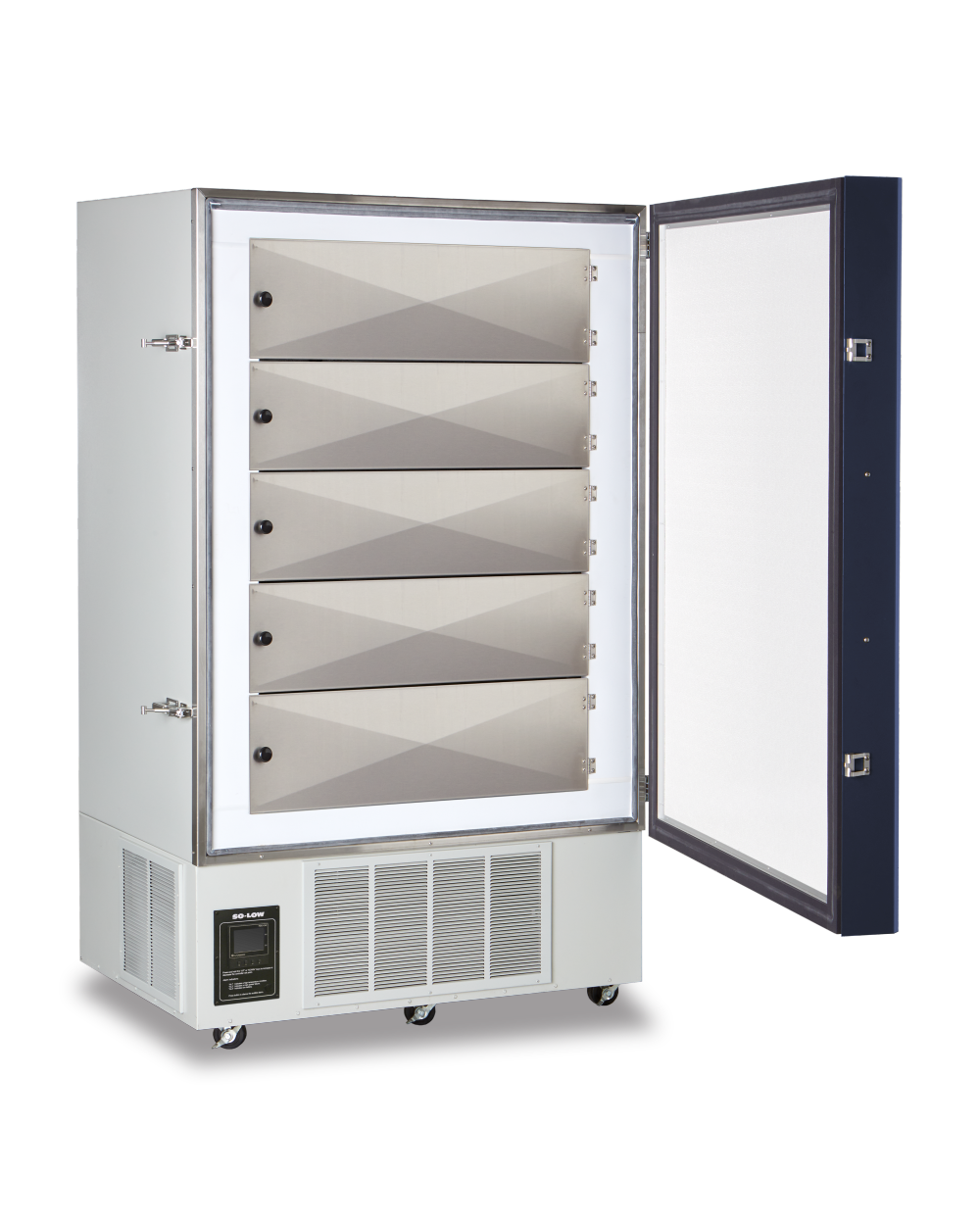

Inner Doors: 5 stainless steel inner doors
-
Shelving: 5 fixed shelves
-
Rack Capacity: Up to 35 inventory / drawer racks
-
Casters: 10 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
Vaccine and biological sample storage
-
Universities and government research institutions
-
High-volume life science laboratories
Note: Specifications subject to change without notice.
