Description

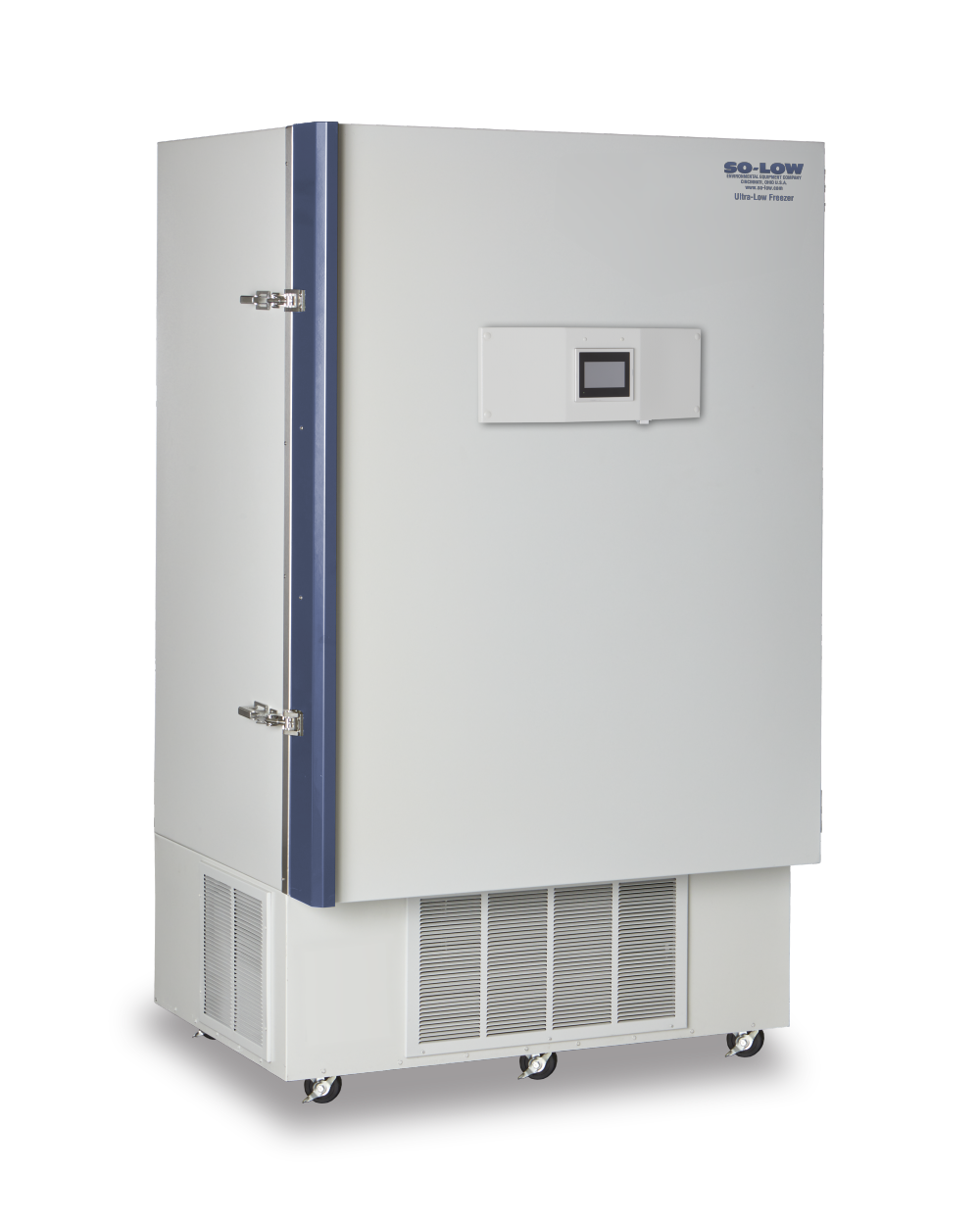

The 25 cubic foot laboratory upright freezer offers high-capacity -40°C (-40°F) cold storage with advanced temperature control, monitoring, and security features. Designed for laboratories, pharmaceutical facilities, and research environments, this freezer delivers reliable performance for long-term storage of temperature-sensitive materials.
Key Features
-
Temperature Range: Maintains 0°C to -40°C (32°F to -40°F)
-
Touchscreen Dual Display: Intuitive interface with real-time temperature monitoring
-
Advanced Alarm System: Audible high/low temperature alarms with power failure notification
-
Remote Monitoring: SMS and email alerts with VNC remote access via local network*
-
Temperature Recorder: Viewable temperature graph with USB or FTP data download
-
Multi-Level Control Security: Prevents unauthorized setting changes
-
Manual Defrost: Reliable and easy to maintain
-
Secure Storage: Lockable front door with stainless steel inner doors
-
ETL Listed: Certified for safety and compliance
Capacity & Dimensions
-
Capacity: 25 cubic feet (710 liters)
-
Exterior Dimensions (W × D × H): 48.75" × 37" × 79.5"
-
Interior Dimensions (W × D × H): 34" × 25" × 51.25"
Electrical Specifications
-
Voltage Options:
-
115V / 60Hz / 1 Phase (NEMA 5-15)
-
208V / 60Hz / 1 Phase (NEMA 6-15)
-
230V / 60Hz / 1 Phase (NEMA 6-15)
-
-
Other voltages available upon request
-
Certification: ETL Listed
Construction & Storage
-
Compressor: Hermetic compressor with energy-efficient variable speed
-
Refrigeration: CFC & HCFC-free
-
Insulation: Polyurethane foam
-
Air Circulation: Gravity flow
-
Defrost: Manual
-
Interior Configuration:
-
5 stainless steel inner doors
-
4 adjustable shelves plus 1 base shelf
-
Rack Capacity: 30 inventory racks
-
-
Exterior: Powder-coated steel
-
Interior: Galvanized steel
-
Mobility: 6 lockable casters
Warranty
-
1 Year Parts and Labor Warranty
Ideal Applications
-
Medical and clinical laboratories
-
Pharmaceutical and biotech storage
-
Research institutions and universities
-
Industrial and scientific cold storage
*Network features require local network access. Battery backup powers alarm and recorder only.
