Description

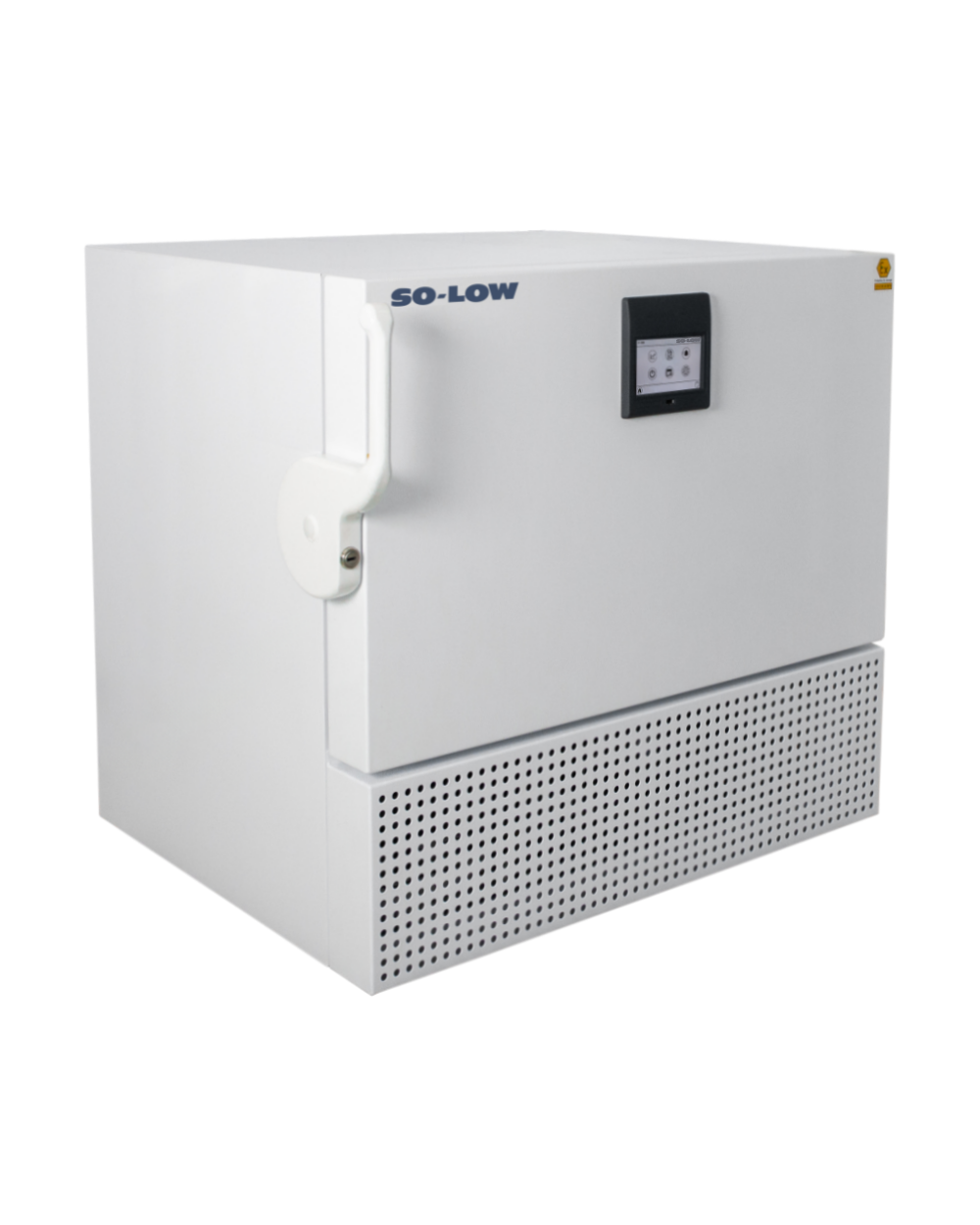

Compact -85°C Ultra-Low Freezer with Data Logging for Benchtop & Undercounter Use
This 3.21 cubic foot (91 liter) ultra-low temperature freezer delivers reliable -85°C performance in a compact, space-efficient footprint, making it ideal for laboratories that need high-performance ultra-low storage without sacrificing floor space. Equipped with a variable-speed compressor, digital controls, and integrated data logging, this unit is well suited for point-of-use storage, backup capacity, or mobile lab environments.
Key Features & Benefits
-
Ultra-Low Temperature Range: -20°C to -85°C (-4°F to -129°F)
-
Compact High-Capacity Design: Larger internal volume than standard benchtop ULT freezers
-
Digital Temperature Control: Easy-to-read display with min/max temperature recording
-
Integrated Data Logging: Adjustable logging intervals with interactive temperature graph
-
USB Data Export: Download temperature data in CSV format
-
Advanced Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Backup Battery: Maintains alarm function during power interruptions
-
Energy-Efficient Variable-Speed Compressor: Optimized cooling with low energy use and quiet operation
-
Environmentally Responsible Refrigeration: HCFC & CFC-free system
-
Secure Storage: Insulated steel door with keyed lock
Capacity & Dimensions
Storage Capacity
-
3.21 Cubic Feet (91 Liters)
Exterior Dimensions
-
37.5" W x 28.5" D x 33" H
-
95 x 72 x 84 cm
Interior Dimensions
-
25.25" W x 17.5" D x 12.25" H
-
64 x 45 x 31 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase
-
230V / 50Hz / 1 Phase
-
230V / 60Hz / 1 Phase
-
Amperage: 15A dedicated line
-
3 running amps (1.5A @ 230V)
-
-
NEMA Configuration: NEMA 5-15
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Digital display
-
Min / Max Temperature: Display and reset
-
Temperature Alarm: Audible high / low
-
Alarm Types: Power failure, low battery
-
Data Logging: Adjustable intervals
-
Data Display: Interactive graph
-
Data Download: USB (CSV format)
-
Backup Battery: Alarm only
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Variable-speed compressor
-
Insulation: Polyurethane, CFC-free
-

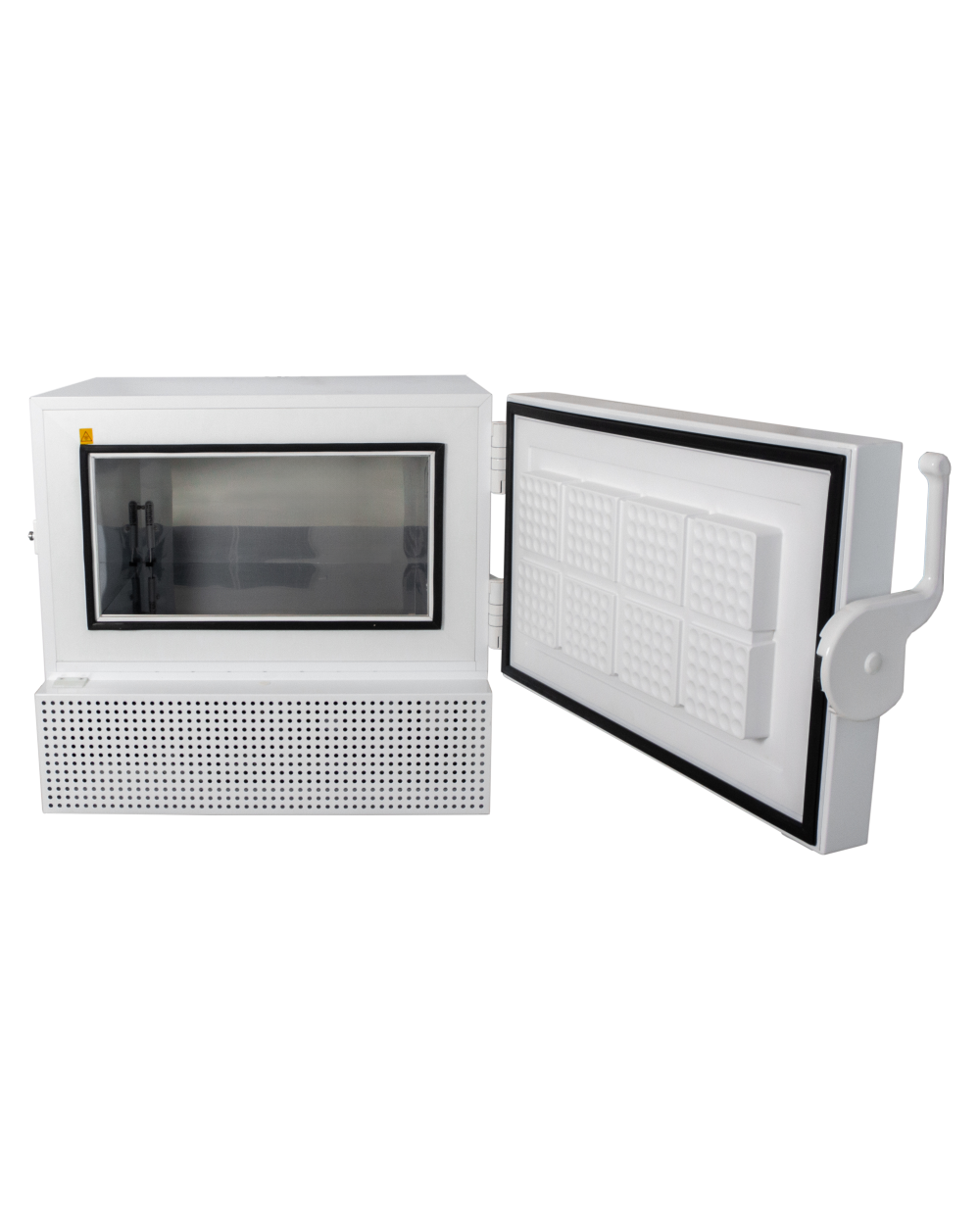

Door Configuration: Hinged front door
-
Door Material: Insulated steel
-
Locking Mechanism: Keyed lock
-
Access Ports: Two access portholes
-
Shelving: 1 base shelf
-
Box Capacity: Holds up to 36 two-inch boxes (not included)
-
Exterior Finish: Steel
-
Interior Finish: Stainless steel
-
Mobility: 2 leveling legs and 2 rollers
Warranty
-
3-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
Sample aliquots, reagents, and enzymes
-
Backup ultra-low temperature storage
-
Universities and research institutions
-
Mobile or space-constrained labs
Note: Specifications subject to change without notice.
