Description

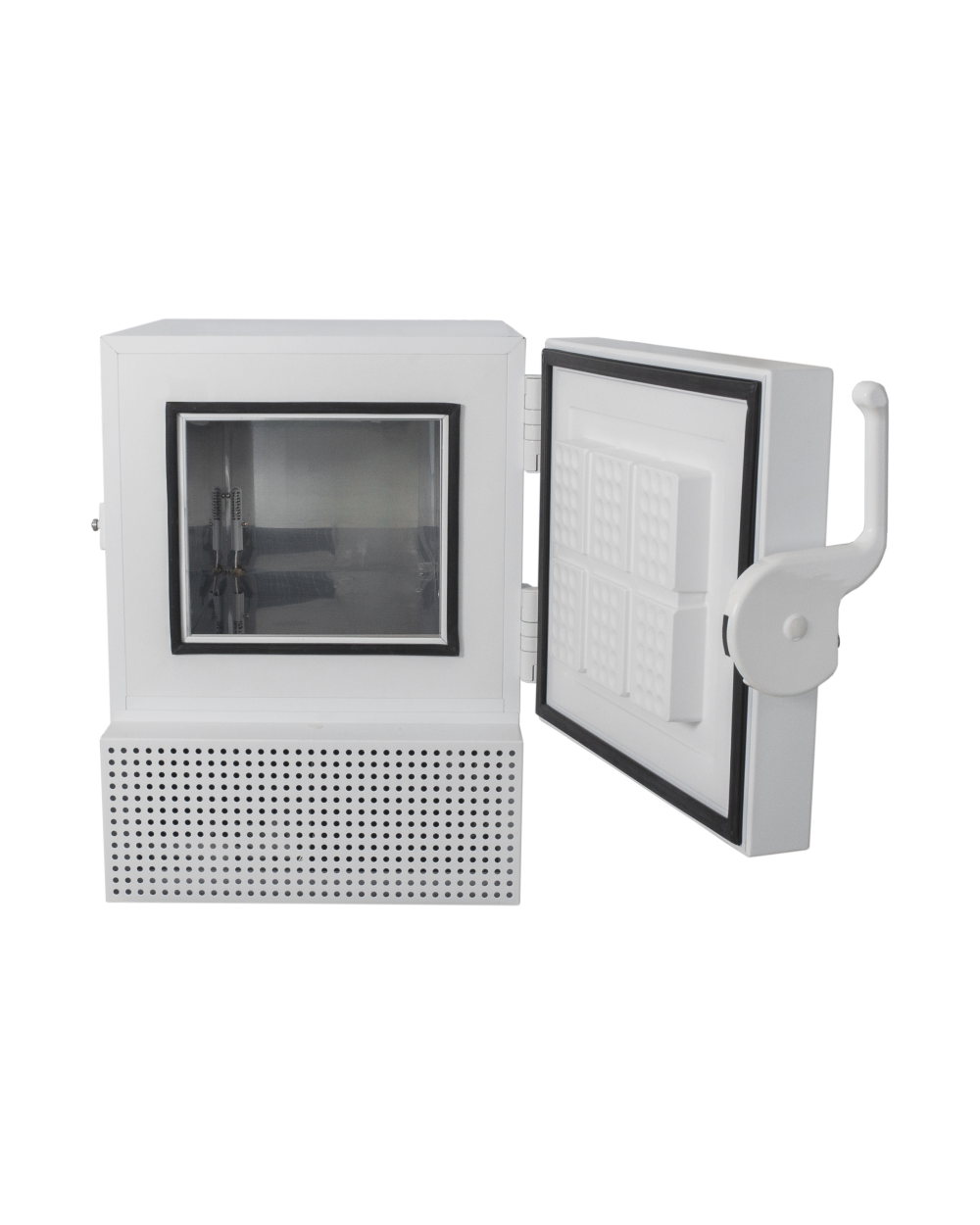

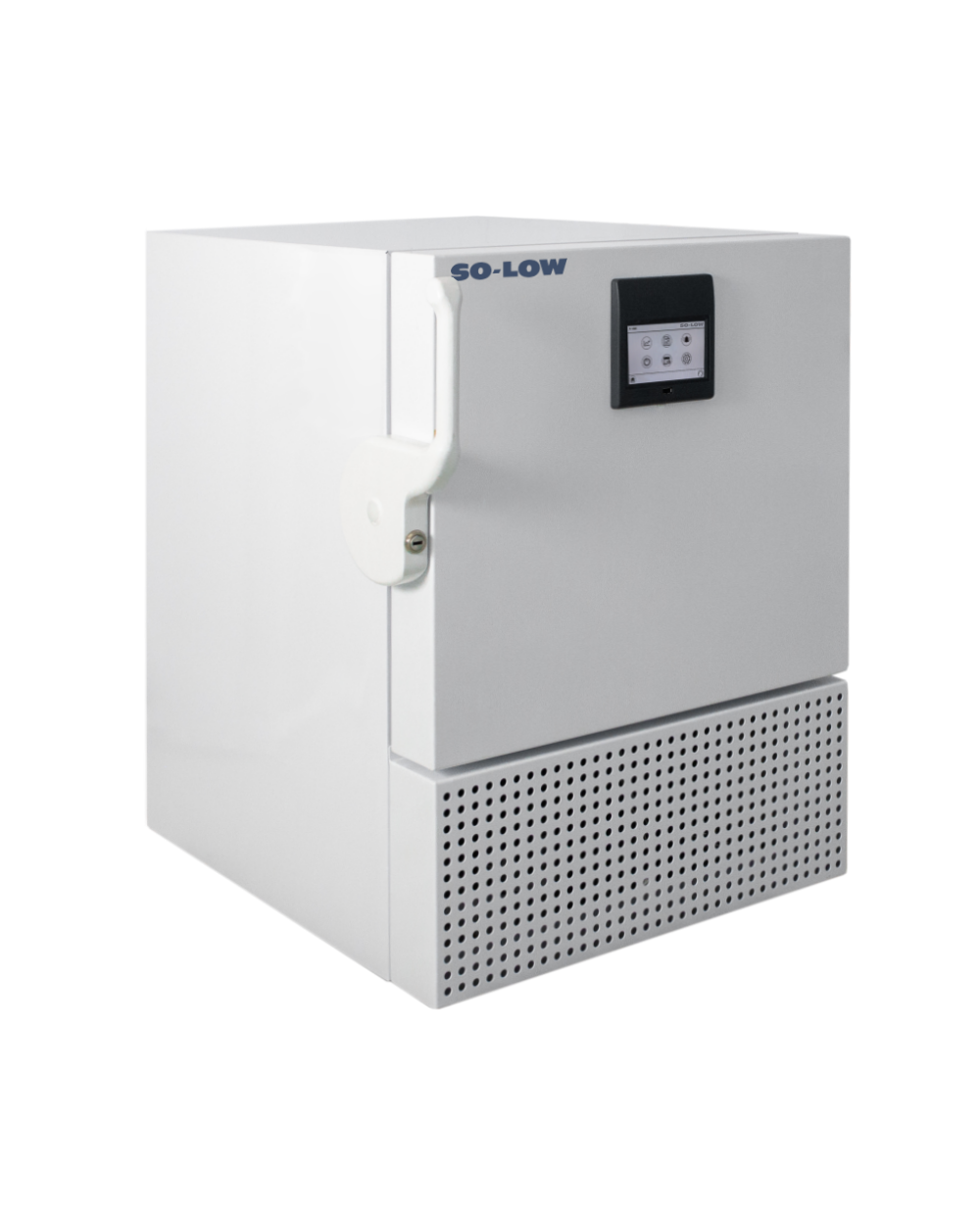

Compact -86°C Ultra-Low Freezer with Data Logging for Labs & Research Facilities
This 1.77 cubic foot (50 liter) ultra-low temperature freezer delivers true -86°C performance in a compact, space-saving design, making it ideal for benchtop, undercounter, or point-of-use applications. Featuring a variable-speed compressor, natural R2 refrigerant, and integrated data logging, this unit is designed for laboratories that require precision, efficiency, and reliability in a small format.
Key Features & Benefits
-
Ultra-Low Temperature Range: -20°C to -86°C (-4°F to -129°F)
-
Compact Footprint: Ideal for benchtop, undercounter, or space-limited lab environments
-
Digital Temperature Control: Clear digital display with min/max temperature recording
-
Integrated Data Logging: Adjustable logging intervals with interactive temperature graph
-
USB Data Export: Download temperature data in CSV format
-
Advanced Alarm Protection: Audible high/low temperature alarms with power failure and low-battery alerts
-
Backup Battery: Powers alarms during power interruptions
-
Energy-Efficient Variable-Speed Compressor: Optimized performance with reduced noise and energy use
-
Eco-Friendly Refrigeration: Uses natural R2 refrigerant
-
Secure Storage: Keyed lock with insulated steel door
Capacity & Dimensions
Storage Capacity
-
1.77 Cubic Feet (50 Liters)
Exterior Dimensions
-
26" W x 30.63" D x 33" H
-
68 x 78 x 84 cm
Interior Dimensions
-
14" W x 17.33" D x 12" H
-
36 x 44 x 31 cm
Electrical Specifications
-
110V / 60Hz / 1 Phase
-
230V / 50Hz / 1 Phase
-
230V / 60Hz / 1 Phase
-
Amperage: 15A dedicated line
-
3 running amps (1.5 amps @ 230V)
-
-
NEMA Configuration: NEMA 5-15
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Digital display
-
Min / Max Temperature: Display and reset
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Data Logging: Adjustable intervals
-
Data Display: Interactive graph
-
Data Download: USB (CSV format)
-
Backup Battery: Alarm only
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Variable-speed compressor
-
Insulation: Polyurethane, CFC-free
-
Door Configuration: Hinged front door
-
Door Material: Insulated steel
-
Locking Mechanism: Keyed lock
-
Access Ports: Two access portholes
-
Storage Configuration: Base shelf
-
Box Capacity: Holds up to 23 two-inch boxes (not included)
-
Exterior Finish: Steel
-
Interior Finish: Stainless steel
-
Mobility: 2 leveling legs and 2 rollers
Warranty
-
3-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
Sample aliquots and reagents
-
Backup or point-of-use ultra-low storage
-
Universities and research institutions
Note: Specifications subject to change without notice.
