Description
High-Capacity, Energy-Efficient -85°C Ultra-Low Freezer with Advanced Monitoring & Data Logging

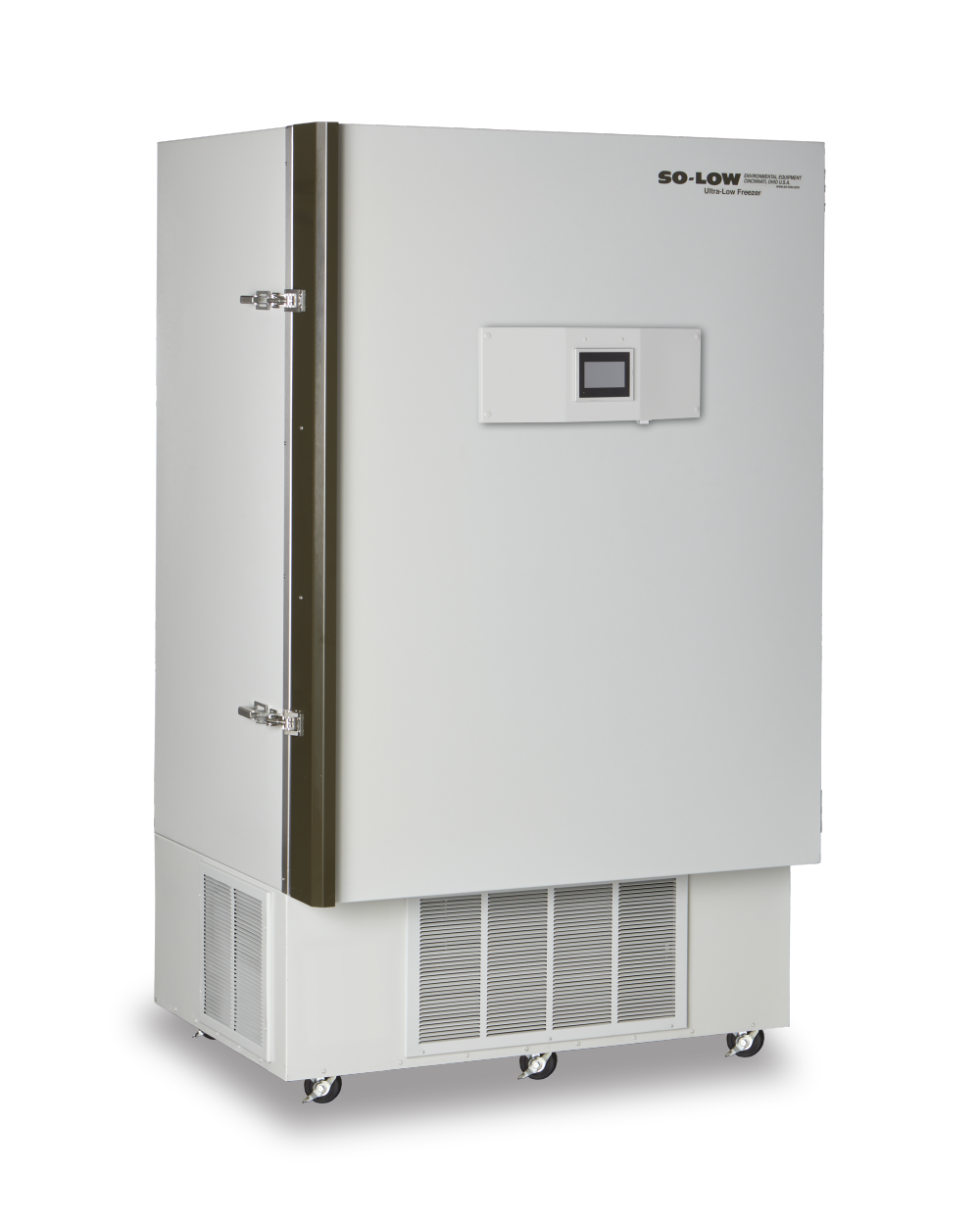

This 25 cubic foot ultra-low temperature freezer combines reliable -85°C performance with ENERGY STAR® certified efficiency and advanced touchscreen controls. Designed for laboratories seeking lower operating costs, regulatory compliance, and secure monitoring, this unit is ideal for pharmaceutical, biotech, and clinical research environments.
Key Features & Benefits
-
Ultra-Low Temperature Performance: Adjustable from -40°C to -85°C (-40°F to -120°F)
-
High-Capacity Storage: 25 cu. ft. (710 liters) for large sample inventories
-
ENERGY STAR® Certified: Reduced energy consumption and operating costs
-
Touchscreen Dual Display Controller: Intuitive interface for precise control and real-time monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph with historical data visibility
-
Data Export Options: Download temperature logs via USB or FTP
-
Multi-Level Control Security: User-based access management for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms and power failure alerts*
-
Cascade Refrigeration System: Hermetic compressor design for stable ultra-low temperature operation
-
Environmentally Responsible Refrigeration: CFC & HCFC-free refrigerants
Capacity & Dimensions
Storage Capacity
-
25 Cubic Feet (710 Liters)
Exterior Dimensions
-
48.75" W x 37" D x 79.5" H
-
124 x 93 x 201 cm
Interior Dimensions
-
34" W x 25" D x 51.25" H
-
86 x 63 x 130 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-15
-
208V / 60Hz / 1 Phase – NEMA 6-15
-
230V / 60Hz / 1 Phase – NEMA 6-15
Certifications: ETL Listed, ENERGY STAR® Certified
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure*
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Insulation: High-density polyurethane foam
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Door Configuration: 1 front door, lockable with padlock
-
Inner Doors: 5 stainless steel inner doors
-
Shelving: 4 adjustable shelves plus 1 base shelf
-
Rack Capacity: Up to 30 inventory racks
-
Casters: 6 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Medical and clinical research facilities
-
GMP / GLP environments
-
Vaccine and biological sample storage
-
Universities and research institutions
-
Sustainability-focused laboratory operations
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
