Description
Mid-Large Capacity -40°C Laboratory Freezer with Advanced Controls, Data Logging & Energy-Efficient Operation

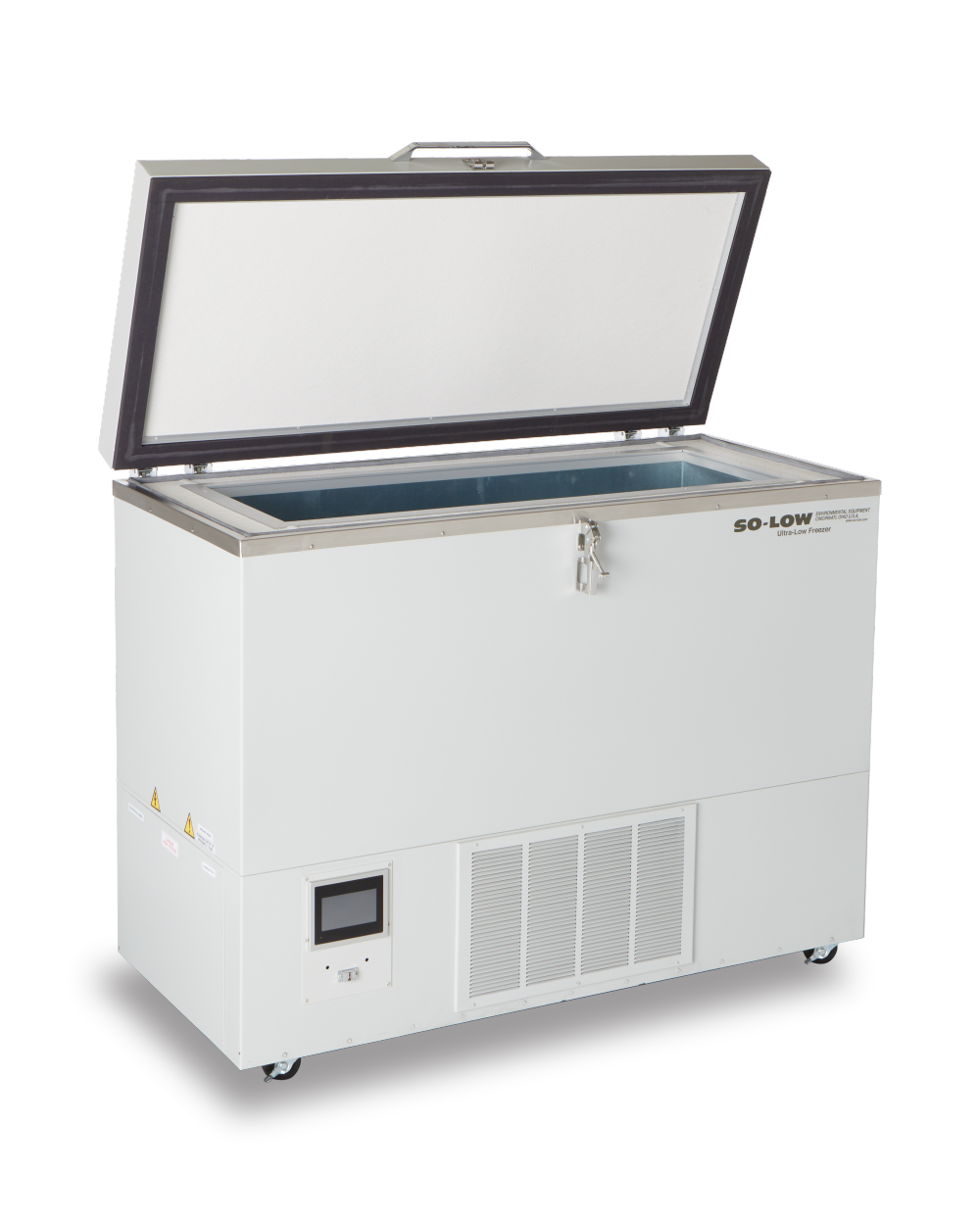

This 9 cubic foot laboratory chest freezer delivers dependable -40°C (-40°F) performance combined with advanced touchscreen controls, remote monitoring, and integrated temperature recording. Designed for laboratories that require secure sample storage, regulatory compliance, and operational efficiency, this unit features an energy-efficient variable-speed compressor and a compact footprint for flexible placement.
Key Features & Benefits
-
Temperature Range: 0°C to -40°C (32°F to -40°F)
-
Storage Capacity: 9 cu. ft. (255 liters)
-
Touchscreen Dual Display Controller: Intuitive, easy-to-read temperature interface
-
Energy-Efficient Variable-Speed Compressor: Improved temperature stability, lower energy use, reduced noise
-
Remote Monitoring & Alerts:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph for audits and compliance
-
Data Export: USB or FTP download
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User access management
-
Comprehensive Alarm Protection: Audible high/low temperature alarms with power-failure alerts*
-
Secure Storage: Lockable top-opening lid with padlock provision
-
Eco-Friendly Refrigeration: CFC & HCFC-free
Capacity & Dimensions
Storage Capacity
-
9 Cubic Feet (255 Liters)
Exterior Dimensions
-
57.5" W x 29" D x 46.5" H
-
146 x 73 x 116 cm
Interior Dimensions
-
45.5" W x 16" D x 20" H
-
115 x 40 x 50 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-15
-
208V / 60Hz / 1 Phase – NEMA 6-15
-
230V / 60Hz / 1 Phase – NEMA 6-15
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure*
-
Alarm Notifications: SMS / Email*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic, energy-efficient variable-speed
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Rack Capacity: 16 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 4 heavy-duty lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Clinical and diagnostic facilities
-
Research sample and reagent storage
-
GMP / GLP regulated environments
-
Long-term frozen sample preservation
Alarm & Network Operation Disclaimer
* Battery backup powers only alarm and recording systems. Network devices (routers/switches) require independent backup power for remote alerts during outages.
Specifications subject to change without notice.
