Description
Mid-Capacity -40°C Laboratory Freezer with Advanced Controls, Data Logging & Energy-Efficient Operation

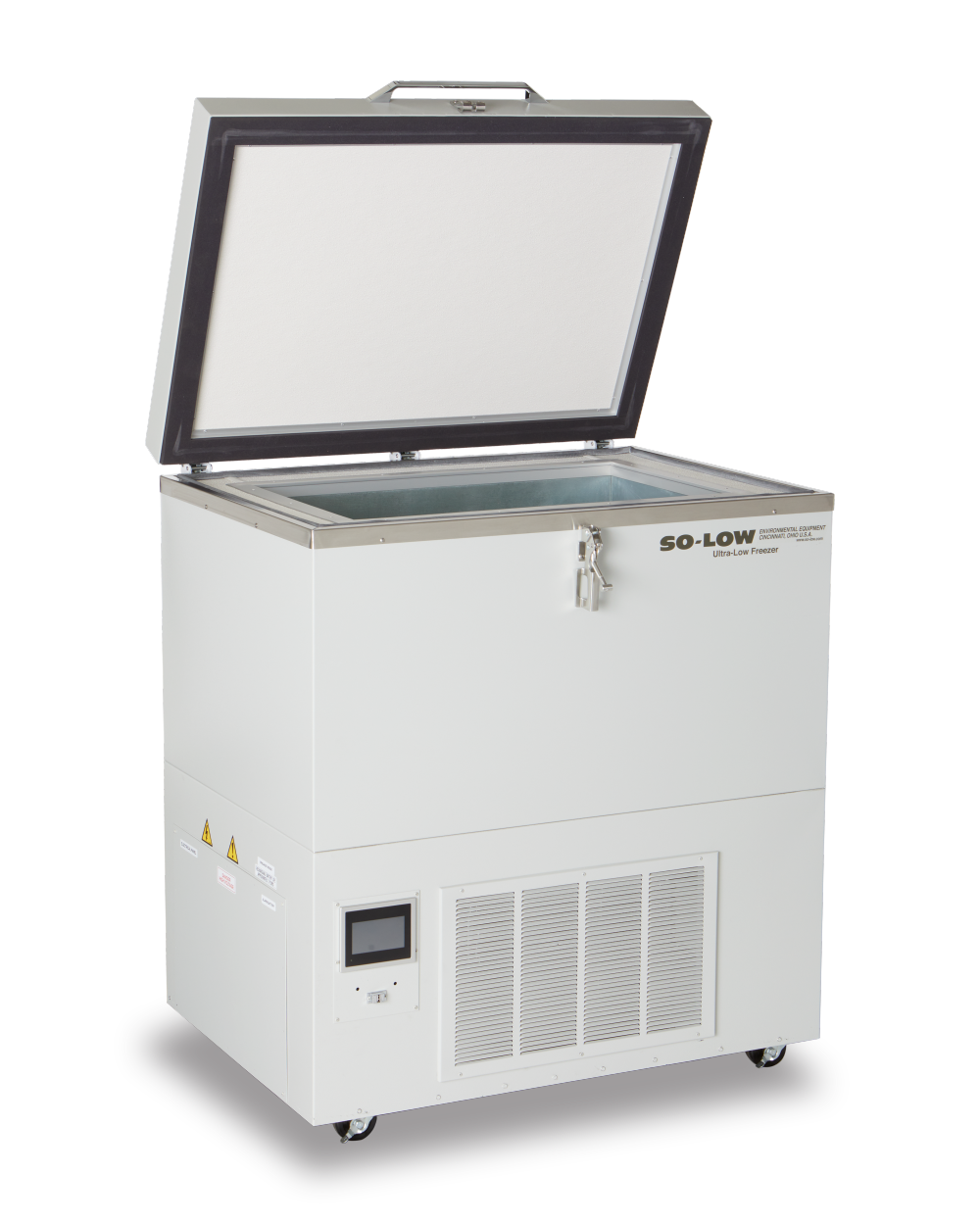

This 5 cubic foot laboratory chest freezer provides reliable -40°C (-40°F) performance with advanced touchscreen controls, remote monitoring, and integrated temperature recording. Featuring an energy-efficient variable-speed compressor, this model is ideal for laboratories requiring precision temperature control, compliance documentation, and flexible installation in a compact mid-capacity footprint.
Key Features & Benefits
-
Temperature Range: 0°C to -40°C (32°F to -40°F)
-
Usable Storage Capacity: 5 cu. ft. (142 liters)
-
Touchscreen Dual Display Controller: Clear, intuitive temperature monitoring
-
Energy-Efficient Variable-Speed Compressor: Improved stability, lower power consumption, reduced noise
-
Remote Monitoring & Alerts:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: On-screen temperature graph for compliance and audits
-
Data Export: USB or FTP download
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Security: User-controlled access levels
-
Comprehensive Alarm Protection: Audible high/low temperature alarms with power-failure alerts*
-
Secure Storage: Lockable top lid with padlock provision
-
Environmentally Responsible Refrigeration: CFC & HCFC-free
Capacity & Dimensions
Storage Capacity
-
5 Cubic Feet (142 Liters)
Exterior Dimensions
-
40.5" W x 31" D x 43.75" H
-
102 x 81 x 111 cm
Interior Dimensions
-
30" W x 18" D x 16" H
-
76 x 46 x 40 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-15
-
208V / 60Hz / 1 Phase – NEMA 6-15
-
230V / 60Hz / 1 Phase – NEMA 6-15
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure*
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic, energy-efficient variable-speed
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Rack Capacity: 15 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 4 heavy-duty lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Clinical and diagnostic facilities
-
Research sample and reagent storage
-
GMP / GLP regulated environments
-
Backup or departmental cold storage
Alarm & Network Operation Disclaimer
* Battery backup powers only the alarm and recording systems. Network devices (routers/switches) require independent backup power for remote notifications during outages. Consult your IT department for network continuity planning.
Specifications subject to change without notice.
