Description

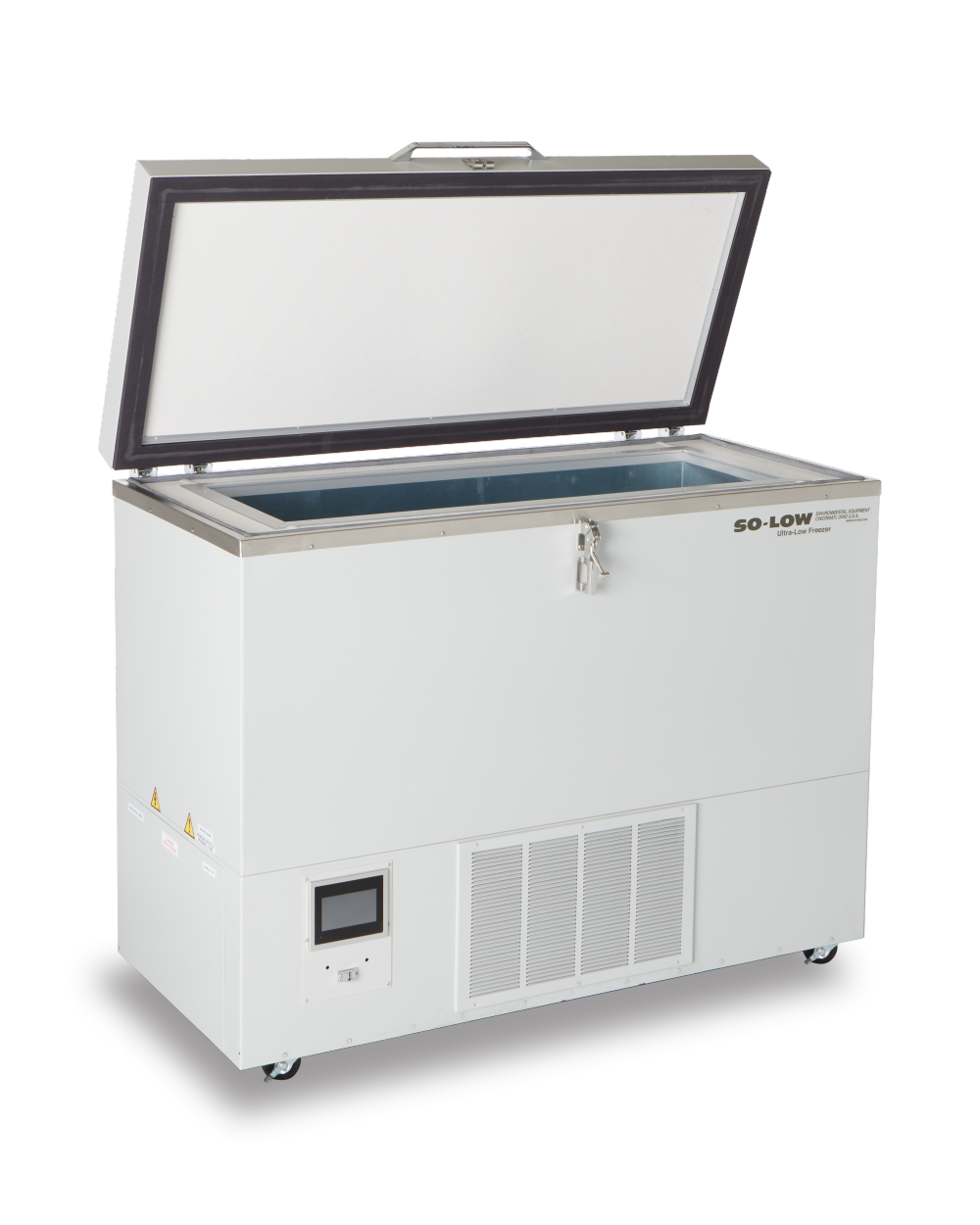

High-Capacity -40°C Laboratory Freezer with Advanced Monitoring, Alarms & Data Logging
This 9 cubic foot laboratory chest freezer delivers stable -40°C (-40°F) performance in a mid-to-large capacity, top-opening design, while incorporating advanced touchscreen controls, remote monitoring, and integrated data logging. Designed for laboratories that require greater storage capacity without compromising compliance or control, this unit is ideal for pharmaceutical, clinical, and research environments.
Key Features & Benefits
-
Low-Temperature Performance: Adjustable range from 0°C to -40°C (32°F to -40°F)
-
High-Capacity Storage: 9 cu. ft. (255 liters) for expanding sample inventories
-
Touchscreen Dual Display Controller: Intuitive interface for precise temperature control and visibility
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: Viewable temperature graph for audit-ready documentation
-
Data Export Options: USB or FTP download for long-term record keeping
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User-based access management for regulated environments
-
Comprehensive Alarm Protection: Audible high/low temperature alarms with power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Secure Storage: Lockable lid with padlock provision
-
Environmentally Responsible Refrigeration: CFC & HCFC-free system
Capacity & Dimensions
Storage Capacity
-
9 Cubic Feet (255 Liters)
Exterior Dimensions
-
57.5" W x 29" D x 46.5" H
-
146 x 73 x 116 cm
Interior Dimensions
-
45.5" W x 16" D x 20" H
-
115 x 40 x 50 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic compressor
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Rack Capacity: Up to 16 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 4 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Clinical and diagnostic facilities
-
Research sample and reagent storage
-
GMP / GLP regulated environments
-
Departmental or shared laboratory cold storage
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for continuity planning.
Note: Specifications subject to change without notice.
