Description

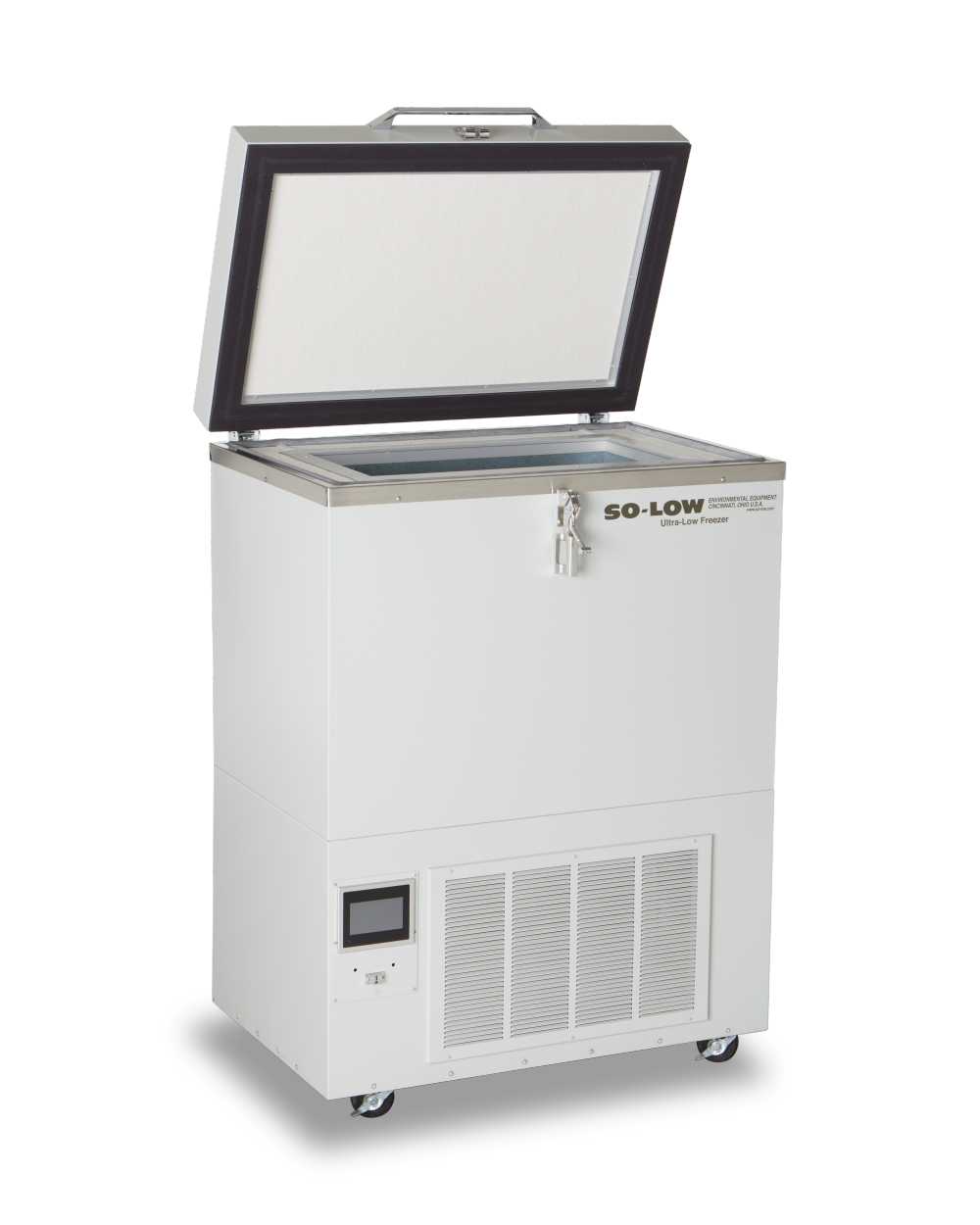

Compact -40°C Laboratory Freezer with Advanced Controls, Alarms & Data Logging
This 3 cubic foot laboratory chest freezer delivers reliable -40°C (-40°F) performance in a compact, top-opening design, while offering advanced touchscreen controls, remote monitoring, and data logging. Designed for laboratories that require secure temperature control, compliance-ready monitoring, and efficient use of space, this unit is ideal for clinical, pharmaceutical, and research applications.
Key Features & Benefits
-
Low-Temperature Performance: Adjustable range from 0°C to -40°C (32°F to -40°F)
-
Compact Storage Capacity: 3 cu. ft. (83 liters) for small or point-of-use lab storage
-
Touchscreen Dual Display Controller: Intuitive interface for precise temperature control and monitoring
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: Viewable temperature graph for historical tracking
-
Data Export Options: Download temperature data via USB or FTP
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User-based access control for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Secure Storage: Lockable lid with padlock provision
-
Environmentally Responsible Refrigeration: CFC & HCFC-free system
Capacity & Dimensions
Storage Capacity
-
3 Cubic Feet (83 Liters)
Exterior Dimensions
-
34.5" W x 25.25" D x 48" H
-
87 x 64 x 121 cm
Interior Dimensions
-
24" W x 12" D x 18" H
-
61 x 31 x 46 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-15
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic compressor
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Rack Capacity: Up to 8 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 4 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Clinical and diagnostic facilities
-
Sample aliquots, reagents, and enzymes
-
GMP / GLP compliance environments
-
Backup or point-of-use cold storage
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for network continuity solutions.
Note: Specifications subject to change without notice.
