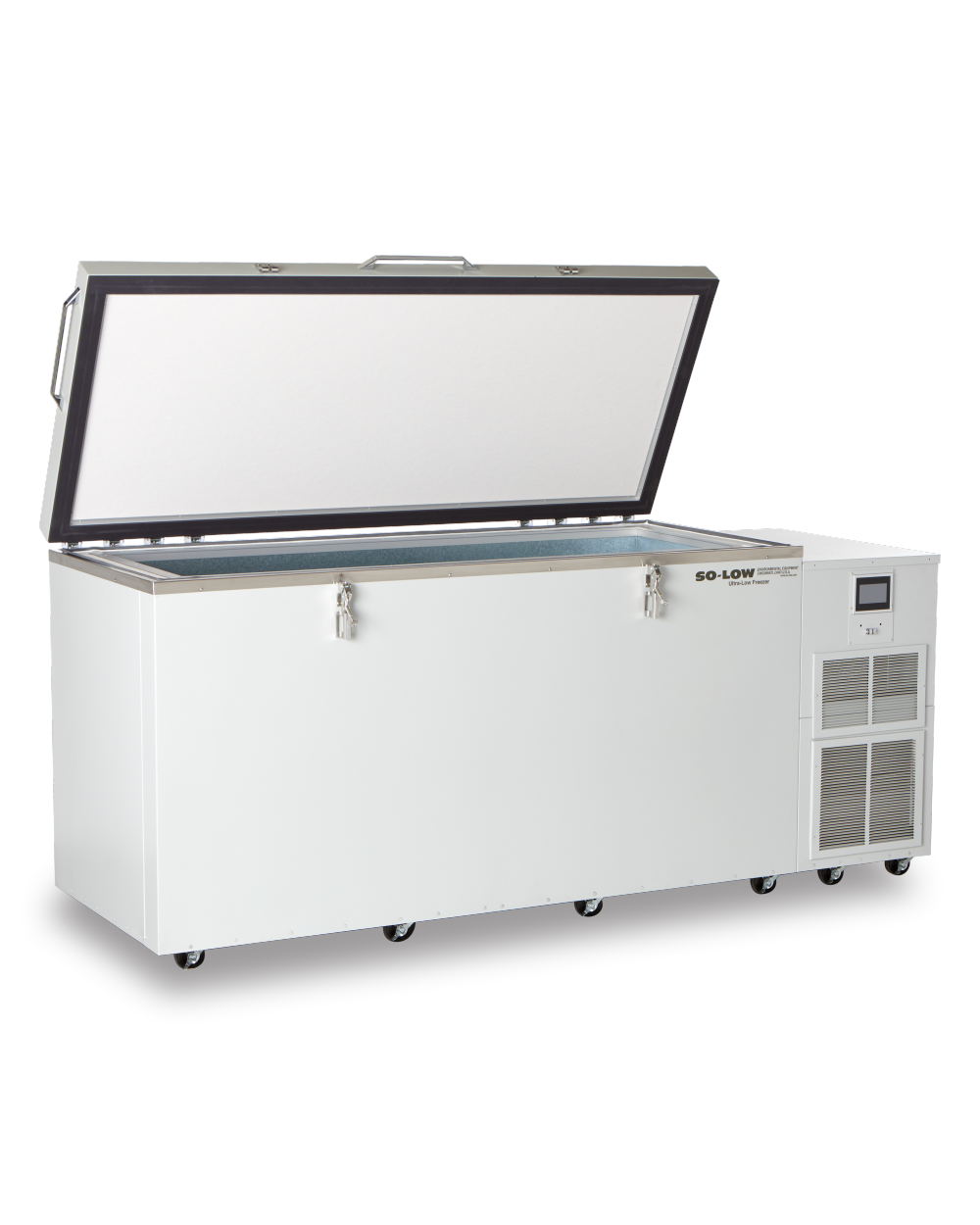

Extra-Wide -40°C Laboratory Freezer with Advanced Monitoring, Alarms & Data Logging
This 22 cubic foot laboratory chest freezer provides reliable -40°C (-40°F) performance in an extra-wide, top-opening design, making it ideal for laboratories that need high-capacity storage with improved horizontal access. Featuring advanced touchscreen controls, remote monitoring, and integrated data logging, this freezer is built for compliance-driven, high-volume laboratory operations.
Key Features & Benefits
-
Low-Temperature Performance: Adjustable range from 0°C to -40°C (32°F to -40°F)
-
Extra-Wide Storage Capacity: 22 cu. ft. (626 liters) for large sample and reagent inventories
-
Touchscreen Dual Display Controller: Intuitive interface for precise temperature control and clear visibility
-
Remote Monitoring & Control:
-
SMS & Email alarm notifications*
-
VNC remote access via local network*
-
-
Integrated Temperature Recorder: Viewable temperature graph for audit-ready documentation
-
Data Export Options: USB or FTP download for long-term compliance records
-
Network Connectivity: Hardwired Ethernet (RJ45)
-
Multi-Level Control Security: User-based access management for regulated environments
-
Comprehensive Alarm Protection: Audible high/low alarms with power failure and low-battery alerts
-
Battery-Backed Alarm & Recorder: Maintains monitoring during power interruptions*
-
Secure Storage: Lockable lid with padlock provision
-
Environmentally Responsible Refrigeration: CFC & HCFC-free system
Capacity & Dimensions
Storage Capacity
-
22 Cubic Feet (626 Liters)
Exterior Dimensions
-
98" W x 36" D x 43.5" H
-
248 x 91 x 110 cm
Interior Dimensions
-
67" W x 19" D x 30" H
-
170 x 48 x 76 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-20
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls, Monitoring & Alarms
-
Temperature Control: Touchscreen dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Alarm Notifications: SMS / Email alerts*
-
Remote Control: VNC via local network*
-
Temperature Recorder: Viewable temperature graph
-
Data Download: USB or FTP
-
Network Connection: Ethernet (RJ45)
-
Battery Backup: Alarm & recorder only*
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic compressor
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Rack Capacity: Up to 36 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 12 heavy-duty, lockable casters for stability and ease of movement
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Pharmaceutical and biotech laboratories
-
Clinical and diagnostic facilities
-
High-volume research sample storage
-
GMP / GLP regulated environments
-
Centralized or shared laboratory cold storage
Important Notes on Alarm & Network Operation
* Battery backup powers only the alarm and recording devices. Network equipment such as routers or switches must have independent backup power for remote alerts to function during a power outage. Consult your IT department or internet provider for continuity planning.
Note: Specifications subject to change without notice.
