Description

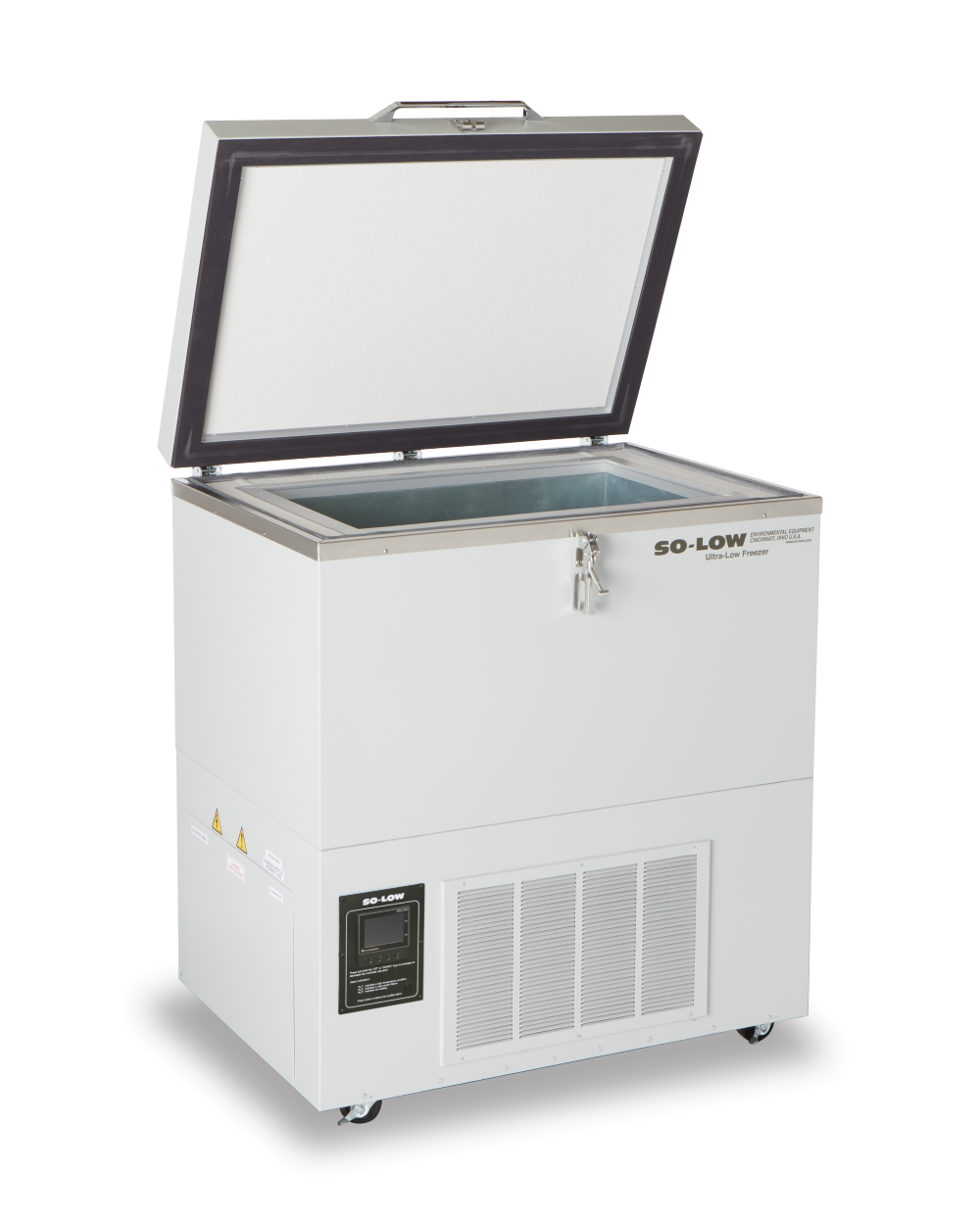

Mid-Capacity -40°C Laboratory Chest Freezer with Digital Controls & Alarms
This 5 cubic foot laboratory chest freezer provides reliable -40°C (-40°F) performance in a space-efficient, top-opening design, making it ideal for laboratories that need increased cold storage capacity while maintaining energy efficiency and temperature stability. Equipped with digital dual-display controls, integrated alarms, and a lockable lid, this unit is well suited for samples, reagents, and temperature-sensitive materials.
Key Features & Benefits
-
Low-Temperature Performance: Adjustable range from 0°C to -40°C (32°F to -40°F)
-
Mid-Capacity Storage: 5 cu. ft. (142 liters) for expanded laboratory storage needs
-
Top-Opening Lid Design: Minimizes cold air loss during access
-
Digital Dual Display Control: Accurate temperature monitoring and control
-
Comprehensive Alarm Protection: Audible high/low temperature alarms with power failure and low-battery alerts
-
Battery-Backed Alarm: Maintains alarm functionality during power interruptions
-
Secure Storage: Lockable lid with padlock provision
-
Environmentally Responsible Refrigeration: HCFC & CFC-free system
Capacity & Dimensions
Storage Capacity
-
5 Cubic Feet (142 Liters)
Exterior Dimensions
-
40.5" W x 31" D x 43.75" H
-
102 x 81 x 111 cm
Interior Dimensions
-
30" W x 18" D x 16" H
-
76 x 45 x 40 cm
Electrical Specifications
-
115V / 60Hz / 1 Phase – NEMA 5-15
-
208V / 60Hz / 1 Phase – NEMA 6-20
-
230V / 60Hz / 1 Phase – NEMA 6-20
-
Other voltages available upon request
Certifications: ETL Listed
Controls & Alarm System
-
Temperature Control: Digital dual display
-
Temperature Alarm: Audible high / low
-
Additional Alarms: Power failure, low battery
-
Backup Battery: Yes (alarm-only operation)
-
Alarm Relay: Dry contacts
Construction & Storage Details
-
Defrost Type: Manual
-
Air Circulation: Gravity flow
-
Compressor: Hermetic compressor
-
Insulation: High-density polyurethane foam
-
Opening Style: Top-opening lid
-
Locking Mechanism: Padlock compatible
-
Shelving: Base shelf
-
Rack Capacity: Up to 15 inventory racks
-
Exterior Finish: Powder-coated steel
-
Interior Finish: Galvanized steel
-
Mobility: 4 heavy-duty, lockable casters
Warranty
-
1-Year Parts & Labor Warranty
Ideal Applications
-
Laboratory sample storage
-
Reagents, enzymes, and media
-
Clinical and research laboratories
-
Universities and research institutions
-
Backup or overflow cold storage
Note: Specifications subject to change without notice.
