Description

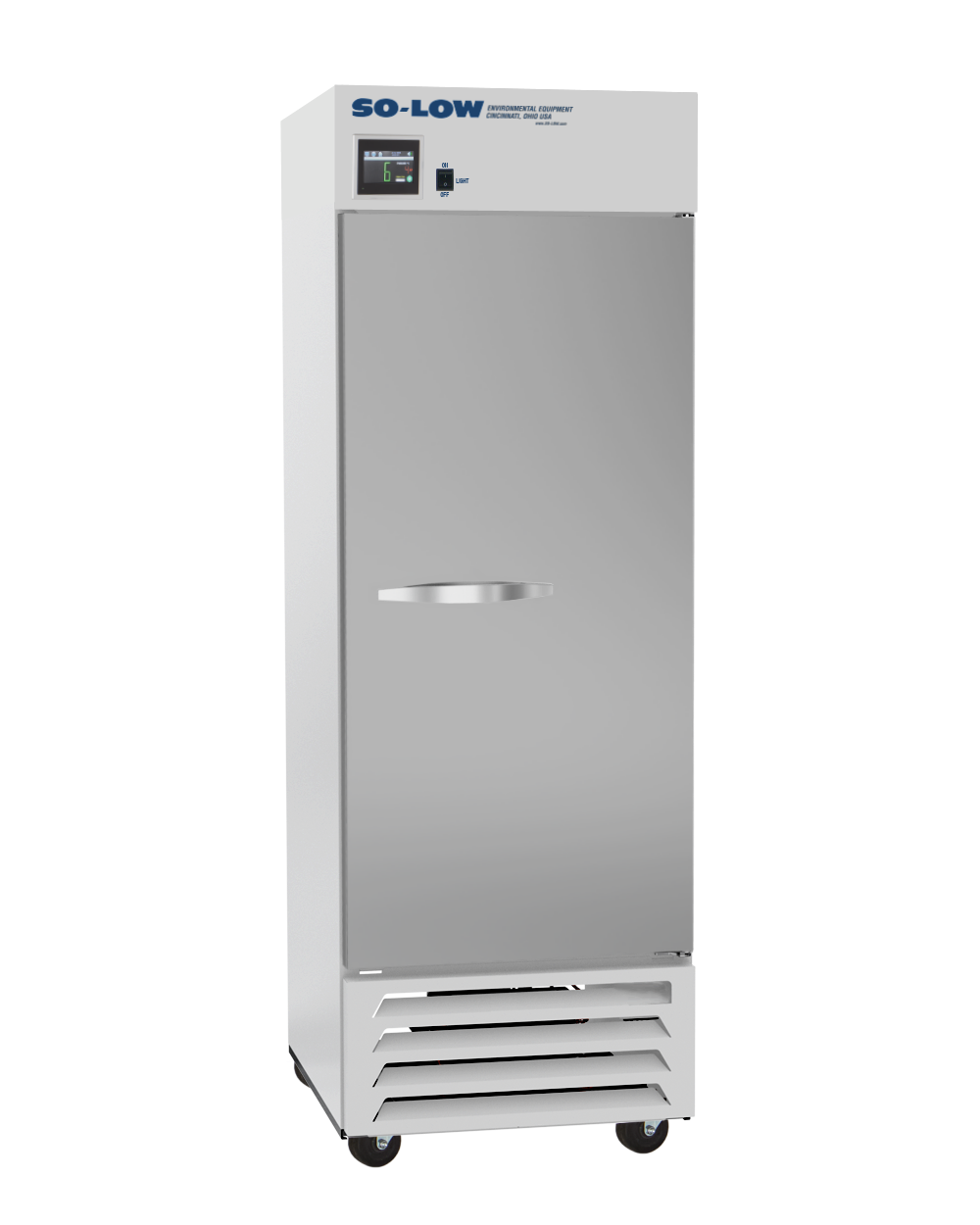

The 23 cubic foot laboratory refrigerator is engineered for medical, pharmaceutical, and laboratory environments that require precise temperature control, secure access, and advanced compliance monitoring. Equipped with a touchscreen digital controller, real-time data logging, and remote alert capabilities, this unit ensures reliable cold storage for sensitive materials.
Designed to maintain a consistent 2°C to 8°C temperature range, this refrigerator is ideal for vaccines, medications, reagents, and biological samples in regulated settings.
Key Features
-
Temperature Range: 2°C to 8°C (36°F to 46°F)
-
Touchscreen Digital Display: Intuitive interface with min/max display and reset
-
Audible High / Low Temperature Alarm
-
Alarm Types: Power failure and low battery alerts
-
Remote Alarm Notifications: SMS and email alerts*
-
Remote Control Access: VNC via local network*
-
Integrated Temperature Recorder: Viewable temperature graph
-
Data Logging: Adjustable intervals for compliance tracking
-
USB Data Download: CSV format for easy reporting
-
Battery Backup: Powers alarm and recorder during outages*
-
Insulated Steel Door: Enhanced thermal stability and durability
-
Forced Air Circulation: Uniform temperature distribution
Capacity & Dimensions
-
Total Capacity: 23 cubic feet (650 liters)
Exterior Dimensions (W × D × H):
-
27" × 34" × 81"
-
68 × 86 × 206 cm
Interior Dimensions (W × D × H):
-
24" × 28.5" × 55"
-
61 × 72 × 140 cm
Electrical Specifications
-
Voltage: 115V / 60Hz / 1 Phase
-
Amperage: 15 amp dedicated line
-
Running Amps: 3 amps
-
Plug Type: NEMA 5-15
-
Certification: UL Listed
Construction & Storage
-
Defrost Type: Cycle defrost
-
Air Circulation: Forced air
-
Compressor: Hermetic compressor
-
Refrigerant: R290 (environmentally friendly)
-
Insulation: Polyurethane
-
Door Type: 1 hinged insulated steel door
-
Lock: Keyed door lock
-
Access Porthole: ½" diameter
-
Shelving: 5 adjustable shelves
-
Exterior Finish: Painted steel
-
Interior Finish: Painted steel
-
Interior Lighting: Adjustable LED
-
Mobility: 4 locking casters
Warranty
-
7 Years Parts and Labor
Ideal Applications
-
Pharmaceutical and vaccine storage
-
Hospitals and medical clinics
-
Research and testing laboratories
-
Biotechnology and life science facilities
-
Regulatory and compliance-driven environments
Why Choose This Model
This refrigerator is ideal for facilities that require secure storage, digital documentation, and advanced alarm visibility. The insulated steel door improves temperature stability while the touchscreen monitoring system supports compliance with laboratory and healthcare standards.
