Description
High-Volume Ice Production with Water-Cooled Efficiency

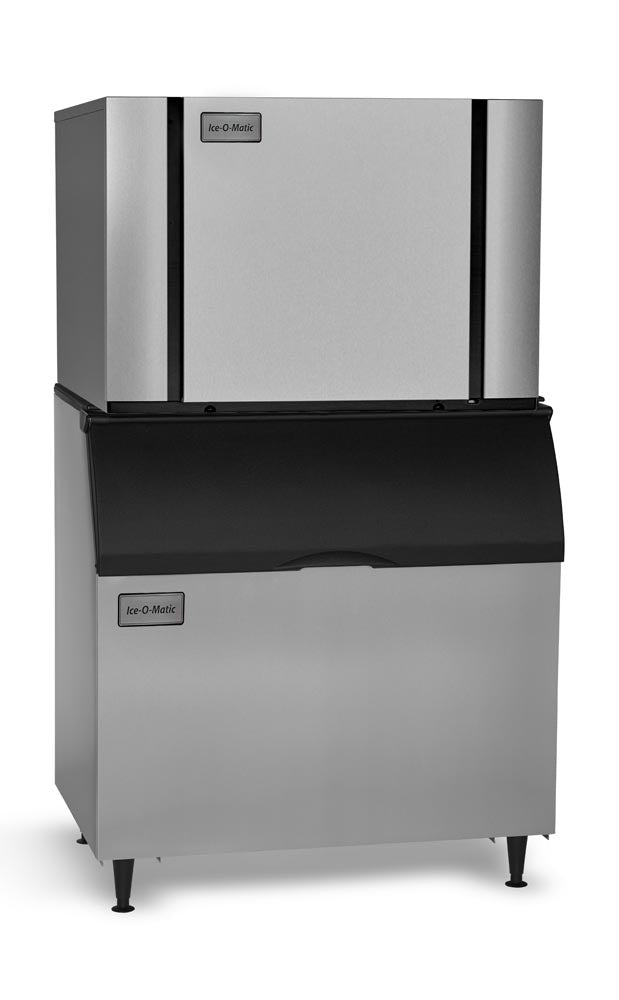

The Elevation Series™ Modular Cube Ice Maker (Water-Cooled) is built for high-demand commercial environments where consistent ice production and stable performance are essential. Producing up to 1,560 lbs of full-cube ice per day, this unit is ideal for restaurants, hotels, healthcare facilities, and institutional kitchens operating in warm or enclosed spaces.
With a self-contained water-cooled condenser, this model maintains reliable output regardless of ambient air temperature. Advanced sanitation features like PURE ICE® antimicrobial protection, one-touch sanitize/descale controls, and dishwasher-safe food zone components help ensure food-safe operation and simplified maintenance.
This model replaces ICE1407FW.
Key Features & Benefits
-
High-Capacity Ice Production
-
Produces up to 1,560 lbs/24 hours at 70°F/50°F
-
Produces 1,440 lbs/24 hours at 90°F/70°F
-
-
Water-Cooled, Self-Contained Condenser
-
Consistent performance in high-temperature environments
-
Ideal for locations with limited airflow
-
-
Full-Size Cube Ice
-
Perfect for beverage service, foodservice, and high-volume applications
-
-
Dual Exhaust Air Discharge (Top & Side)
-
Flexible installation options
-
-
PURE ICE® Antimicrobial Protection
-
Built-in antimicrobial technology for enhanced sanitation
-
-
One-Touch Sanitize & Descaling Controls
-
Simplifies cleaning and routine maintenance
-
-
LED Status Display
-
Clear, easy-to-read operational indicators
-
-
Dishwasher-Safe Food Zone Components
-
Faster cleaning with reduced downtime
-
Specifications
General
-
Series: Elevation Series™
-
Type: Modular Cube Ice Maker
-
Condenser Type: Water-Cooled
-
Cooling System: Self-Contained
-
Ice Type: Full Cube
-
Energy Star Rated: No
Ice Production
-
70°F / 50°F: 1,560 lbs per 24 hours
-
90°F / 70°F: 1,440 lbs per 24 hours
Electrical
-
Voltage / Phase / Hertz: 208–230V / 3 Phase / 60 Hz
Dimensions
-
Width: 48.25"
-
Depth: 24.25"
-
Height: 26.8"
-
Space Requirement (Domestic): 48"
Filtration
-
Recommended Water Filter: IOMQXL (Qty: 2)
Certifications
-
cULus
-
NSF
-
CE
Warranty
-
Ice Maker: 3-Year Parts & Labor
-
Evaporator & Compressor: 5-Year Parts
-
Evaporator: 7-Year Parts & Labor
(when enrolled in the manufacturer filter program)
Ideal Applications
-
High-volume restaurants & bars
-
Hotels & hospitality venues
-
Healthcare & institutional kitchens
-
Facilities with high ambient temperatures
-
Large beverage and ice distribution programs
