Description

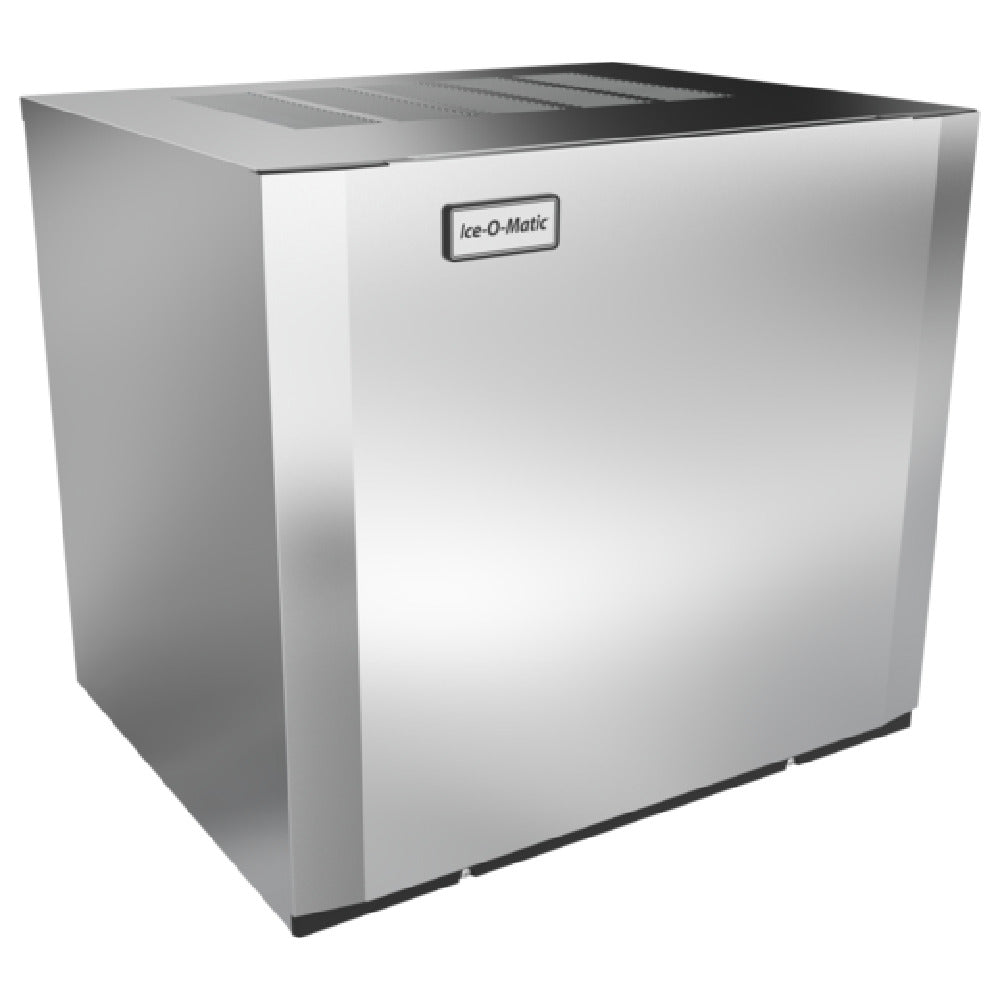

The Ice-O-Matic CIM1136HA90 Elevation Series™ Modular Cube Ice Maker is a compact, high-output ice machine head engineered for commercial environments that need reliable ice production with flexible installation. Featuring an air-cooled, self-contained condenser with dual exhaust top/side air discharge, this 30" wide unit delivers consistent half-size cube ice while supporting efficient operation in space-conscious layouts.
Powered by R290 refrigerant and designed with service-friendly features, the CIM1136HA90 provides dependable performance for professional foodservice operations.
Key Features
-
Brand: Ice-O-Matic
-
Model: CIM1136HA90
-
Series: Elevation Series™
-
Type: Modular cube ice maker (ice machine head)
-
Cooling Type: Air-cooled
-
Condenser: Self-contained
-
Air Discharge: Dual exhaust (top/side)
-
Refrigerant: R290
-
Width: 30"
-
Ice Production:
-
Approximately 1,000 lb per 24 hours at 70°/50°
-
Approximately 812 lb per 24 hours at 90°/70°
-
-
Ice Type: Half-size cubes
Built-In Technologies
-
LED status display for clear operational visibility
-
One-touch sanitize/descaling controls
-
Dishwasher-safe food zone components for easy cleaning and maintenance
Certifications
-
cULus
-
cUL Energy Verified
Important Note
Bin sold separately.

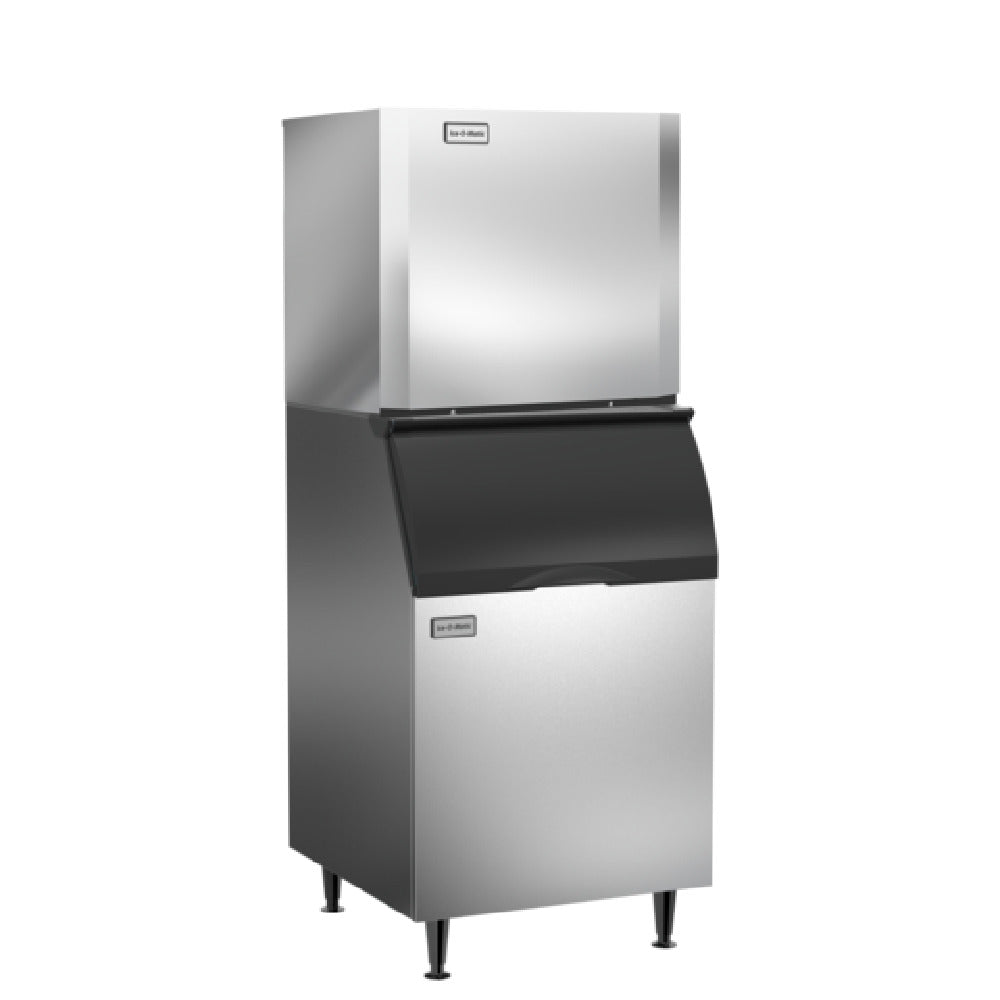

This unit is a modular ice machine head and requires a compatible ice storage bin or dispenser for operation.
Product Benefits
-
High-capacity half-size cube production in a compact 30" footprint
-
Dual exhaust configuration allows flexible placement
-
R290 refrigerant supports energy-efficient operation
-
Service-friendly controls and components reduce maintenance time
Applications
Ideal for:
-
Restaurants and bars
-
Hotels and hospitality venues
-
Healthcare and institutional foodservice
-
Cafeterias and beverage service operations
