Description

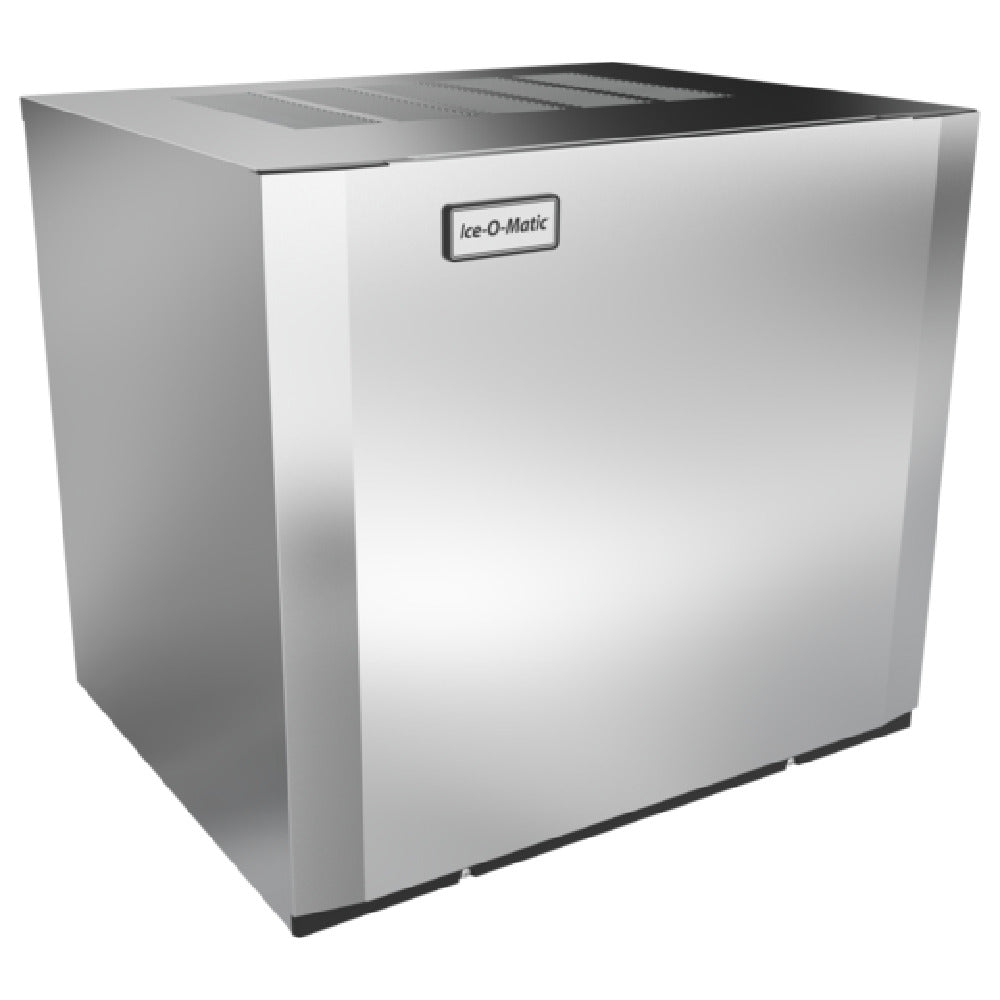

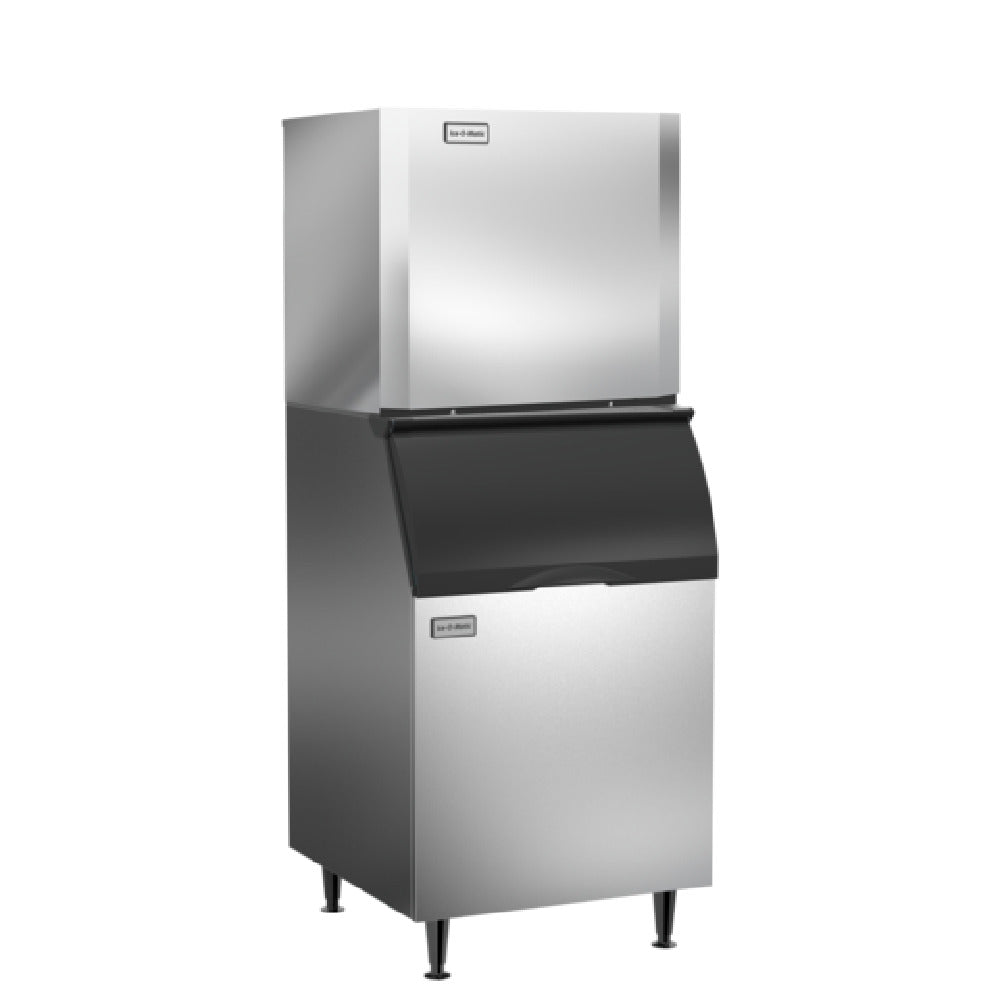

Air-Cooled, Full-Cube Ice Machine – 1,000 lbs/day (R290 Refrigerant)
The Ice-O-Matic CIM1136FA90 Elevation Series™ Modular Cube Ice Maker is a next-generation commercial ice machine engineered for maximum production, energy efficiency, and installation flexibility. Featuring an air-cooled, self-contained condenser and environmentally friendly R290 refrigerant, this 30" wide modular ice maker produces up to 1,000 lbs of full-size cube ice per day, making it an ideal solution for high-volume foodservice and institutional applications.
With intuitive controls, simplified maintenance, and ENERGY VERIFIED performance, the CIM1136FA90 delivers reliable ice production while helping operators reduce energy costs and meet sustainability goals.
Key Features & Benefits
Ultra-High Ice Production
-
Produces up to 1,000 lbs of ice per 24 hours at 70°F air / 50°F water
-
Produces 812 lbs per 24 hours at 90°F air / 70°F water
-
Designed for continuous, high-demand commercial environments
Full-Size Cube Ice
-
Produces clear, uniform full-cube ice
-
Slower melt rate for superior beverage quality and presentation
-
Ideal for bars, restaurants, hotels, and premium drink programs
Energy-Efficient Air-Cooled Design
-
Air-cooled, self-contained condenser for straightforward installation
-
Dual exhaust (top or side air discharge) allows flexible placement
-
Compact 30" wide footprint maximizes output while conserving space
Eco-Friendly R290 Refrigerant
-
Uses R290 natural refrigerant with low global warming potential
-
cUL Energy Verified for energy efficiency and performance
-
Helps meet sustainability and energy-reduction initiatives
Simple Operation & Easy Maintenance
-
LED status display provides clear, real-time operational feedback
-
One-touch sanitize and descaling controls streamline routine maintenance
-
Dishwasher-safe food zone components for fast, thorough cleaning
Product Specifications
-
Brand: Ice-O-Matic
-
Model: CIM1136FA90
-
Series: Elevation Series™
-
Ice Type: Full-size cubes
-
Cooling Type: Air-cooled
-
Condenser: Self-contained
-
Refrigerant: R290
-
Width: 30"
-
Daily Ice Production:
-
1,000 lbs @ 70°/50°
-
812 lbs @ 90°/70°
-
-
Controls: LED display with one-touch sanitize/descale
-
Food Zone Components: Dishwasher safe
-
Certifications: cULus, cUL Energy Verified
Ideal Applications
-
Restaurants & bars
-
Hotels & hospitality venues
-
Hospitals & healthcare facilities
-
Cafeterias & institutional kitchens
-
High-volume beverage programs
Why Choose the Ice-O-Matic CIM1136FA90?
The CIM1136FA90 delivers exceptional ice output, eco-conscious performance, and energy-verified efficiency in a compact, air-cooled design. For operators seeking maximum production with lower environmental impact and operating costs, this Elevation Series model is a smart, future-ready investment.
