Description

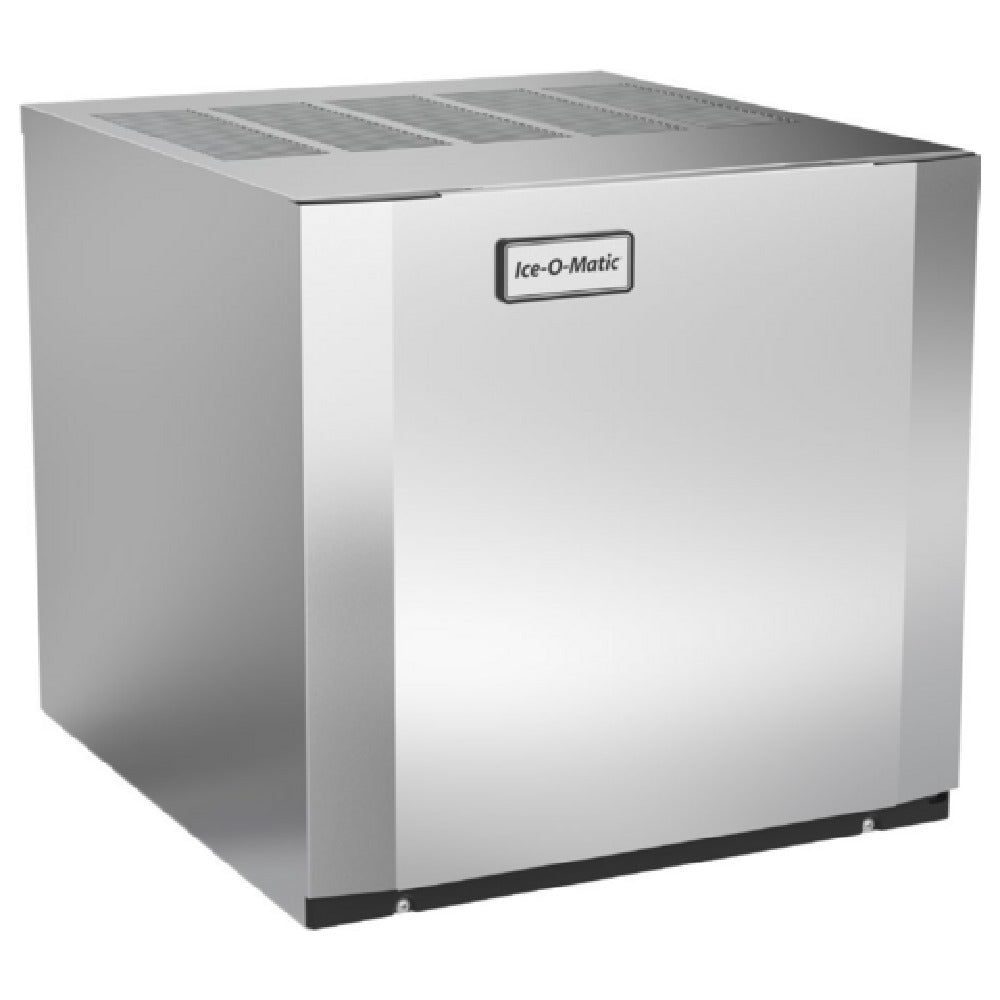

The Ice-O-Matic CIM0520HT90 Elevation Series™ Modular Cube Ice Maker is a compact, energy-efficient commercial ice machine designed for dependable ice production, simplified maintenance, and space-conscious installations.
This modular ice machine produces up to 525 lbs of half-size cube ice per 24 hours at 70°F air / 50°F water, and approximately 400 lbs per day at 90°F air / 70°F water. Featuring an air-cooled, self-contained condenser with top air discharge, the CIM0520HT90 is ideal for locations with limited side clearance while still delivering consistent performance.
Efficient Design & Easy Maintenance
The CIM0520HT90 includes one-touch sanitize and descaling controls, helping reduce routine maintenance time and extend equipment life. Dishwasher-safe food-zone components allow for thorough sanitation, while the LED status display provides clear diagnostics and system alerts to minimize downtime.
Energy-Efficient Operation
This model utilizes R290 natural refrigerant, offering excellent energy efficiency and environmentally responsible performance while meeting current regulatory standards.
Commercial Certifications
Built for professional foodservice use, the CIM0520HT90 is cULus listed, NSF certified, and CE compliant, ensuring safety, reliability, and regulatory compliance across commercial environments.
Key Features & Specifications
-
Model: Ice-O-Matic CIM0520HT90
-
Series: Elevation Series™
-
Ice Type: Half-size cube ice
-
Production Capacity:
-
~525 lbs/24 hrs at 70°F air / 50°F water
-
~400 lbs/24 hrs at 90°F air / 70°F water
-
-
Cooling Type: Air-cooled
-
Condenser: Self-contained
-
Air Discharge: Top air discharge
-
Width: 22 inches
-
Controls: One-touch sanitize & descaling
-
Display: LED status display
-
Food-Zone Components: Dishwasher safe
-
Refrigerant: R290 (eco-friendly)
-
Certifications: cULus, NSF, CE
Ideal Applications
-
Restaurants & bars
-
Cafés & coffee shops
-
Healthcare facilities
-
Convenience stores
-
Institutional foodservice operations
Note: This is a modular ice machine head. A compatible ice storage bin or dispenser is required and sold separately.
