Description

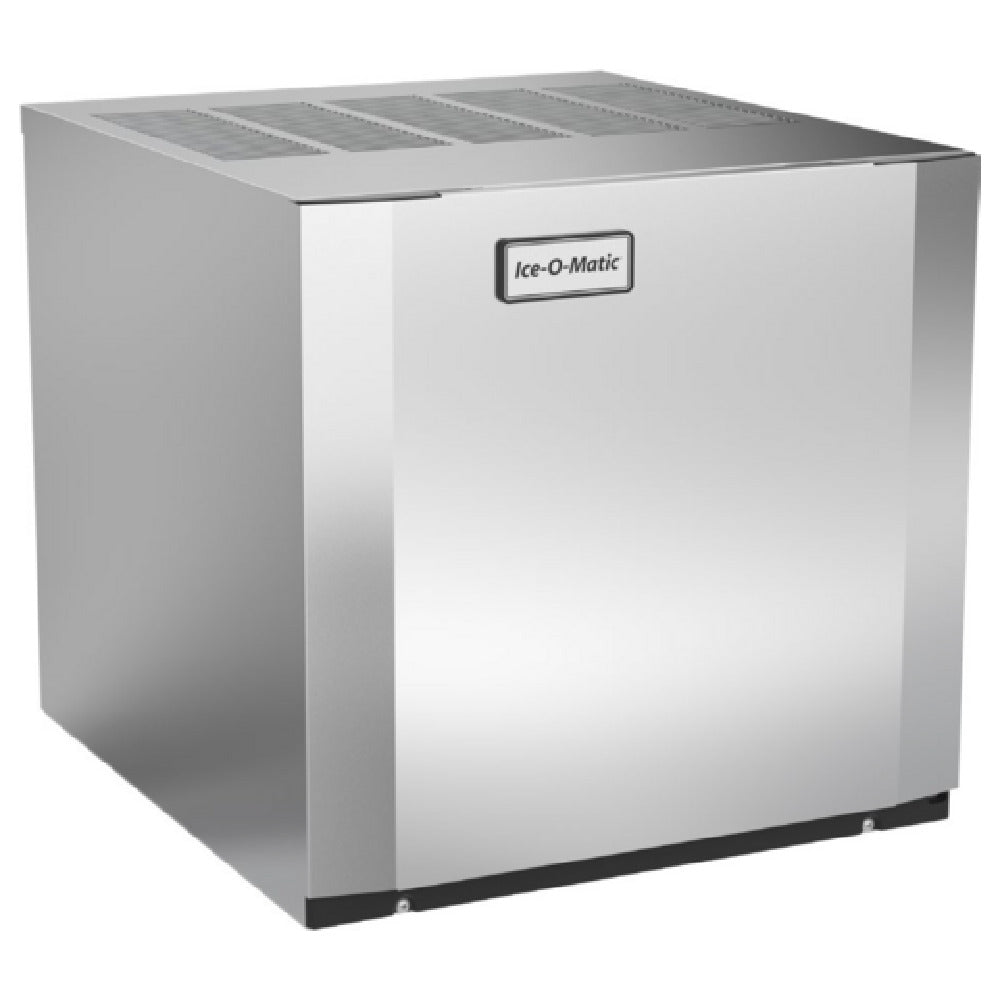

The Ice-O-Matic CIM0520HA90 Elevation Series™ Modular Cube Ice Maker is a high-efficiency, air-cooled commercial ice machine engineered for consistent ice production, advanced sanitation, and flexible installation in professional foodservice environments.
This modular ice machine produces up to 561 lbs of half-size cube ice per 24 hours at 70°F air / 50°F water, and approximately 432 lbs per day at 90°F air / 70°F water. Featuring a self-contained condenser with dual exhaust air discharge (top or side), the CIM0520HA90 installs easily in space-restricted kitchens while maintaining reliable, high-quality ice output.
Advanced Sanitation & Food Safety
The CIM0520HA90 includes PURE ICE® built-in antimicrobial protection, helping inhibit bacteria, slime, and mold growth on food-zone surfaces. One-touch sanitize and descaling controls simplify routine maintenance, while dishwasher-safe food-zone components ensure thorough cleaning and consistent food safety compliance. The unit is also BPA free, supporting higher hygiene standards in foodservice and healthcare applications.
Energy-Efficient & Operator-Friendly Design
This model utilizes R290 natural refrigerant for environmentally responsible, energy-efficient operation and is ENERGY STAR® certified, helping reduce utility costs without sacrificing performance. An intuitive LED status display provides real-time diagnostics and system alerts to minimize downtime and streamline servicing.
Commercial Certifications
Built for professional use, the CIM0520HA90 is cULus listed, NSF certified, and CE compliant, ensuring safety, reliability, and regulatory compliance across commercial foodservice environments.
Key Features & Specifications
-
Model: Ice-O-Matic CIM0520HA90
-
Series: Elevation Series™
-
Ice Type: Half-size cube ice
-
Production Capacity:
-
~561 lbs/24 hrs at 70°F air / 50°F water
-
~432 lbs/24 hrs at 90°F air / 70°F water
-
-
Cooling Type: Air-cooled
-
Condenser: Self-contained
-
Air Discharge: Dual exhaust (top or side)
-
Width: 22 inches
-
Sanitation: PURE ICE® built-in antimicrobial protection
-
Controls: One-touch sanitize & descaling
-
Display: LED status display
-
Food-Zone Components: Dishwasher safe
-
Refrigerant: R290 (eco-friendly)
-
Energy Efficiency: ENERGY STAR® certified
-
Construction: BPA free
-
Certifications: cULus, NSF, CE
Ideal Applications
-
Restaurants & bars
-
Hotels & hospitality
-
Healthcare facilities
-
Convenience stores
-
Institutional foodservice operations
Note: This is a modular ice machine head. A compatible ice storage bin or dispenser is required and sold separately.
