Description

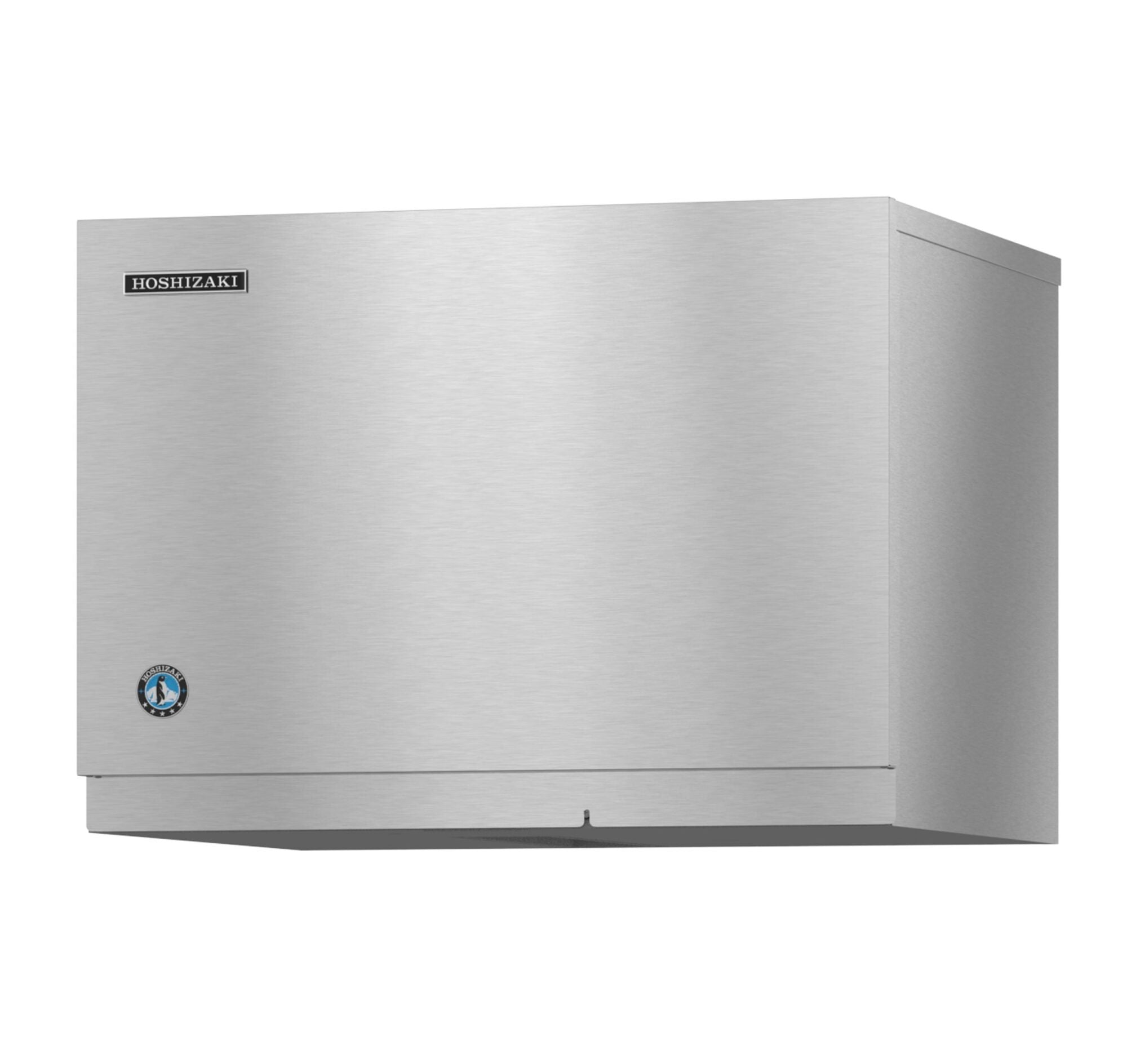

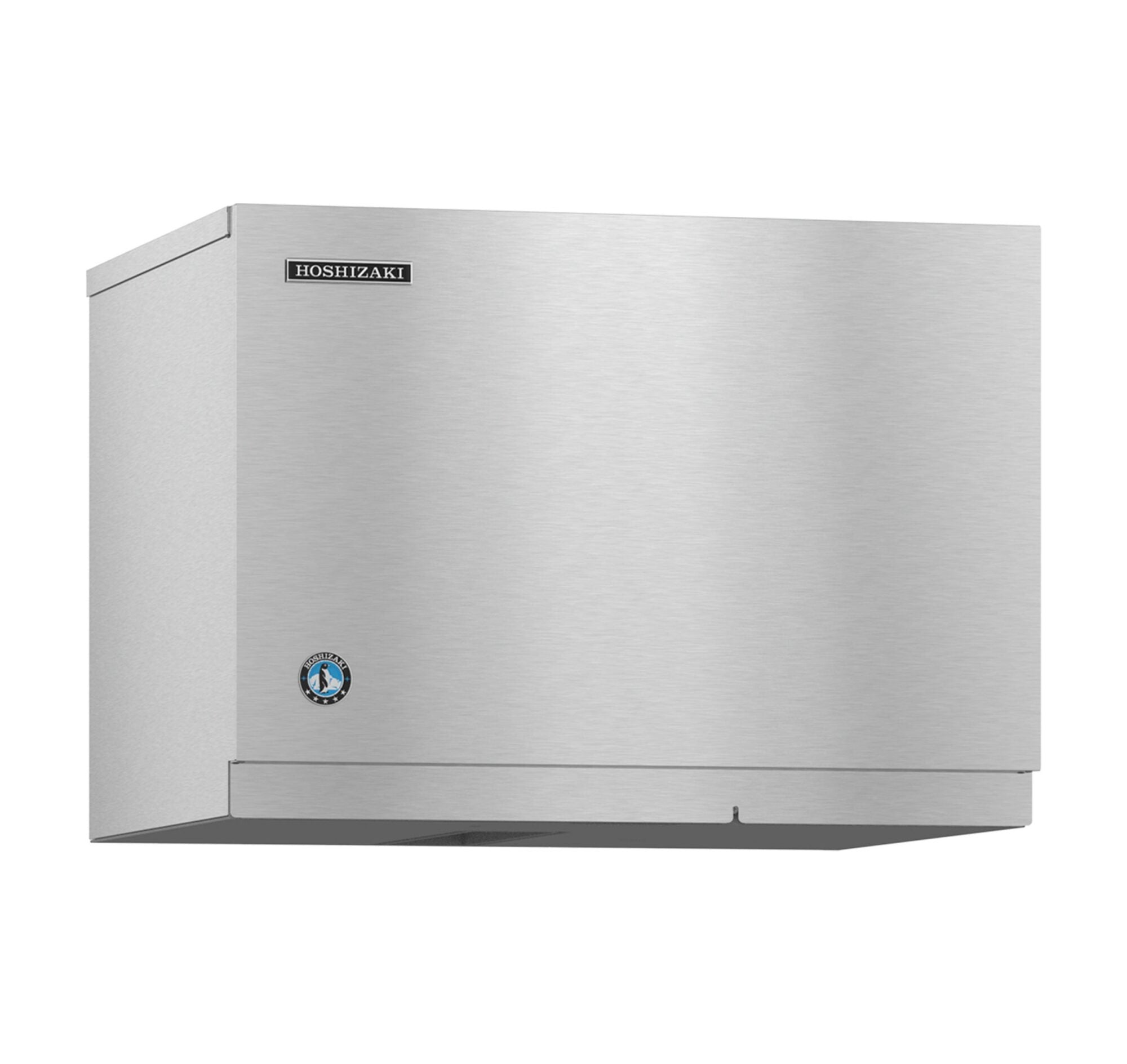

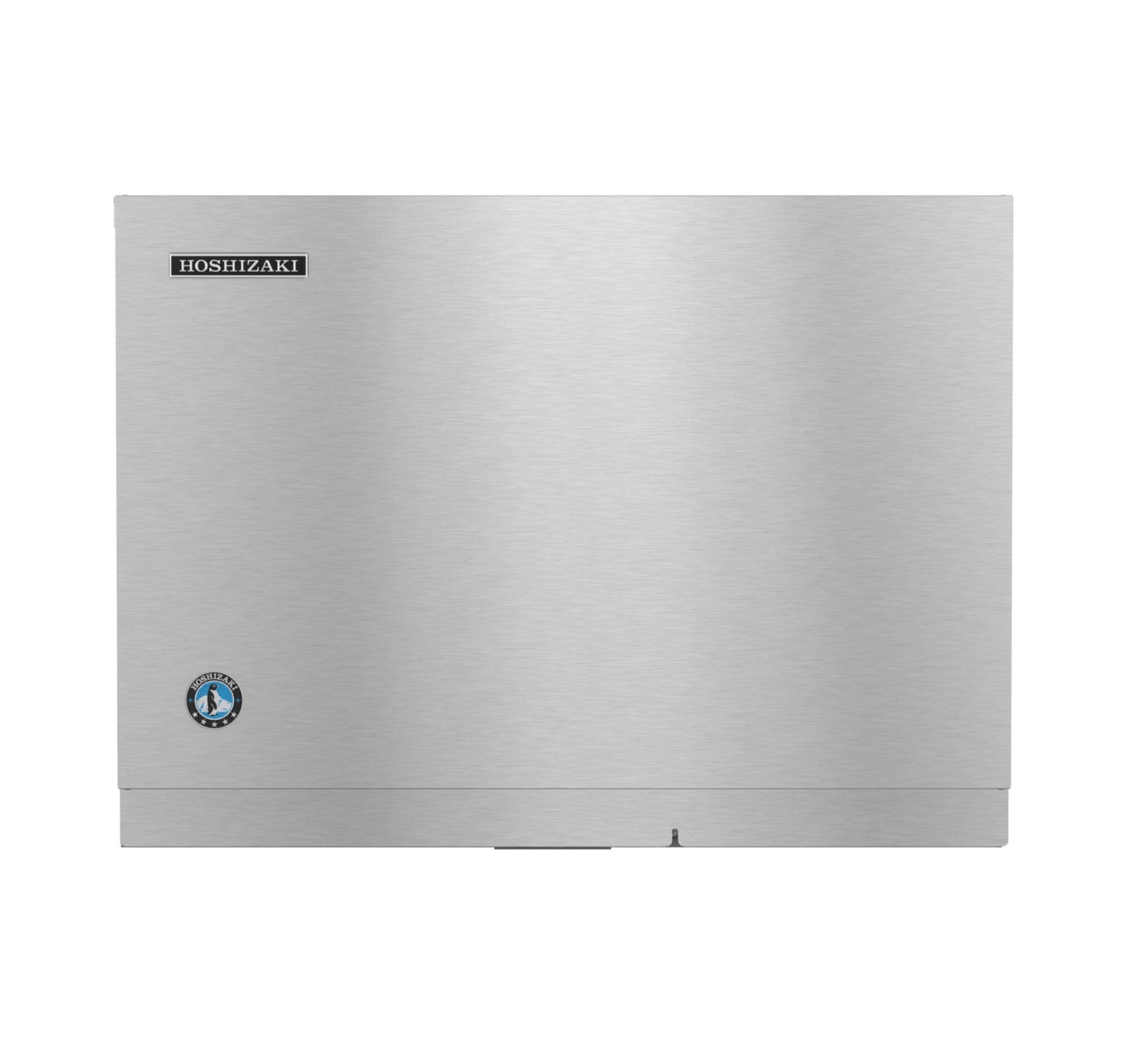

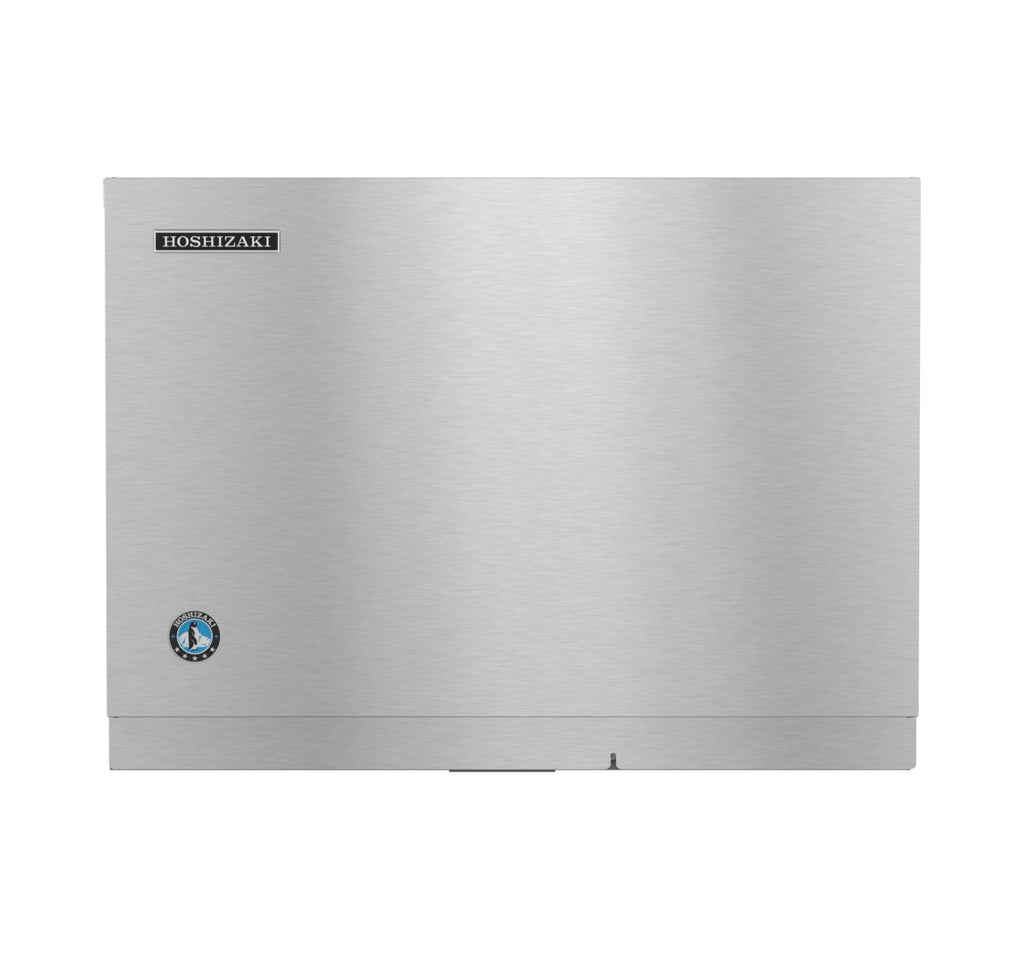

The Hoshizaki KMD-505MWJ is a high-performance, commercial cube-style ice maker engineered to deliver dependable, efficient ice production for restaurants, bars, hotels, and large beverage programs. This 30-inch, water-cooled model features a self-contained condenser, offering stable operation with minimal ambient heat—ideal for locations where consistent refrigeration performance is essential.
This model replaces the KMD-460MWJ, KMD-530MWJ, and KML-500MWJ, combining their capabilities into a more efficient and reliable updated design.
The KMD-505MWJ produces up to 592 lb. of crescent cube ice per 24 hours at 70°/50°, with 436 lb. AHRI-certified performance at 90°/70°. Its rugged stainless steel finish ensures long-term durability, while Hoshizaki’s signature crescent cube delivers excellent clarity, slow melt, and superior bin storage efficiency—perfect for high-volume beverage service and mixed drink applications.
Operating on R-404A refrigerant with 115V/60/1-phase power at 11 amps, this water-cooled unit offers powerful performance with straightforward electrical requirements. Fully NSF and UL certified, the KMD-505MWJ meets strict sanitation and safety standards, making it an ideal choice for commercial environments.
Specifications
-
Manufacturer: Hoshizaki
-
Model: KMD-505MWJ
-
Replaces: KMD-460MWJ, KMD-530MWJ, KML-500MWJ
-
Ice Type: Crescent cube
-
Style: Cube-style, commercial
-
Width: 30"
-
Cooling System: Water-cooled
-
Condenser: Self-contained
-
Production Capacity:
-
592 lb/24 hours at 70°F / 50°F
-
436 lb AHRI certified at 90°F / 70°F
-
-
Exterior Finish: Stainless steel
-
Refrigerant: R-404A
-
Electrical Requirements: 115V / 60Hz / 1-phase
-
Amps: 11
-
Certifications: NSF, UL
