Description

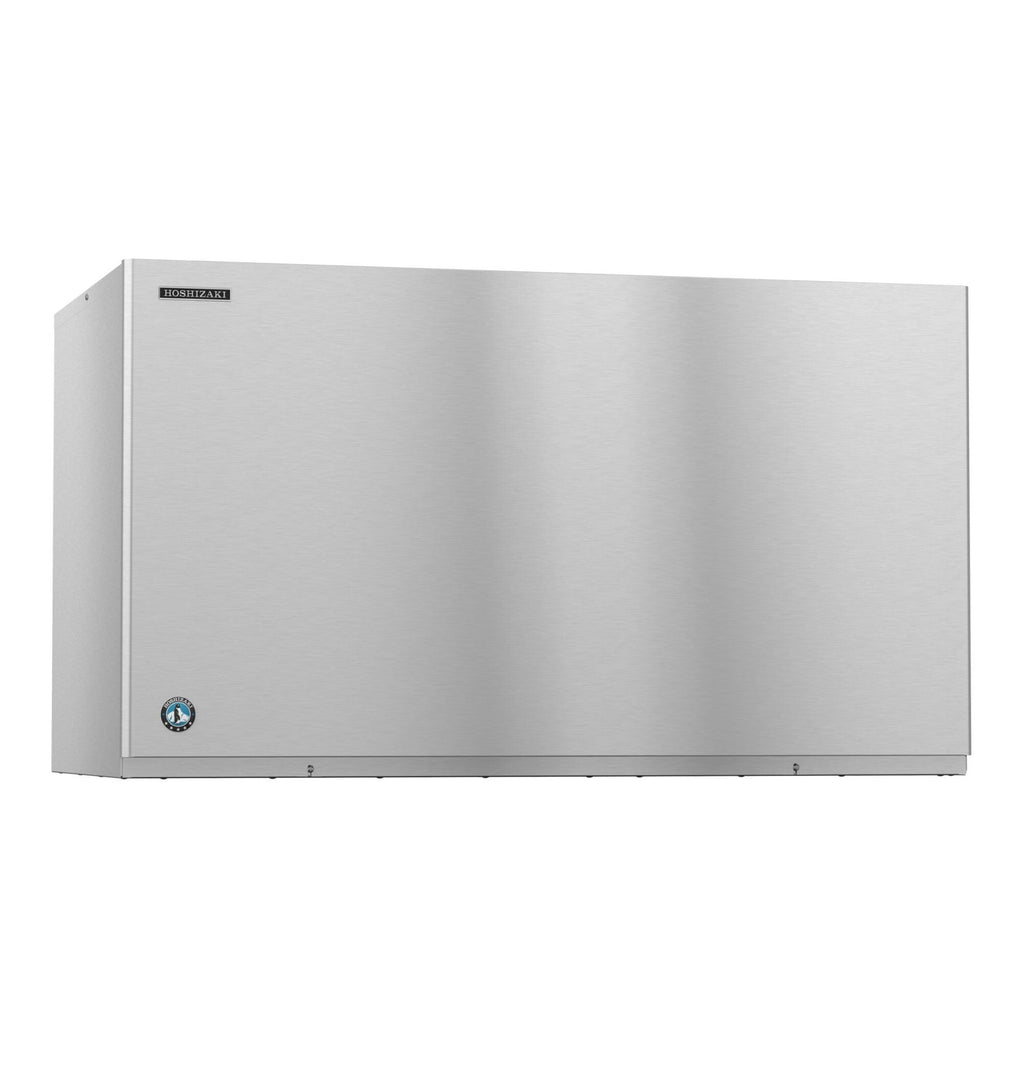

The Hoshizaki KM-1601SRJZ3 is a high-capacity, commercial cube-style ice maker engineered for superior performance in large-volume foodservice operations. This 48-inch, air-cooled model is designed for use with a matching “Z” model remote condenser (priced separately), offering enhanced heat dissipation, quieter operation, and improved efficiency in demanding environments.
Delivering exceptional ice output, the KM-1601SRJZ3 produces up to 1,635 lb. of ice per 24 hours at 70°/50°, with 1,600 lb. AHRI-certified production at 90°/70°. Its durable stainless steel finish and signature crescent cube design ensure optimal clarity, slow melt, and maximum storage efficiency. Equipped with H-GUARD Plus Antimicrobial Agent, this unit provides added protection against mold and bacteria growth on key components.
Operating on R-404A refrigerant and 208–230V/60/3-phase power at 12.8 amps, this ice maker is both powerful and energy efficient—earning the ENERGY STAR® certification. Designed to meet high standards, the KM-1601SRJZ3 is fully NSF and UL certified for sanitation and safety.
Note: Always pair “Z” model ice machines with their corresponding “Z” model remote condenser for proper operation.
Specifications
-
Manufacturer: Hoshizaki
-
Model: KM-1601SRJZ3
-
Ice Type: Crescent cube
-
Style: Cube-style, commercial
-
Width: 48"
-
Cooling System: Air-cooled
-
Condenser: Remote (sold separately; must use matching “Z” model)
-
Production Capacity:
-
1,635 lb/24 hours at 70°F / 50°F
-
1,600 lb AHRI certified at 90°F / 70°F
-
-
Exterior Finish: Stainless steel
-
Antimicrobial Protection: H-GUARD Plus Antimicrobial Agent
-
Refrigerant: R-404A
-
Electrical Requirements: 208–230V / 60Hz / 3-phase
-
Amps: 12.8
-
Energy Efficiency: ENERGY STAR® certified
-
Certifications: NSF, UL
-
Additional Note: Requires the appropriate “Z” model remote condenser.
