Description

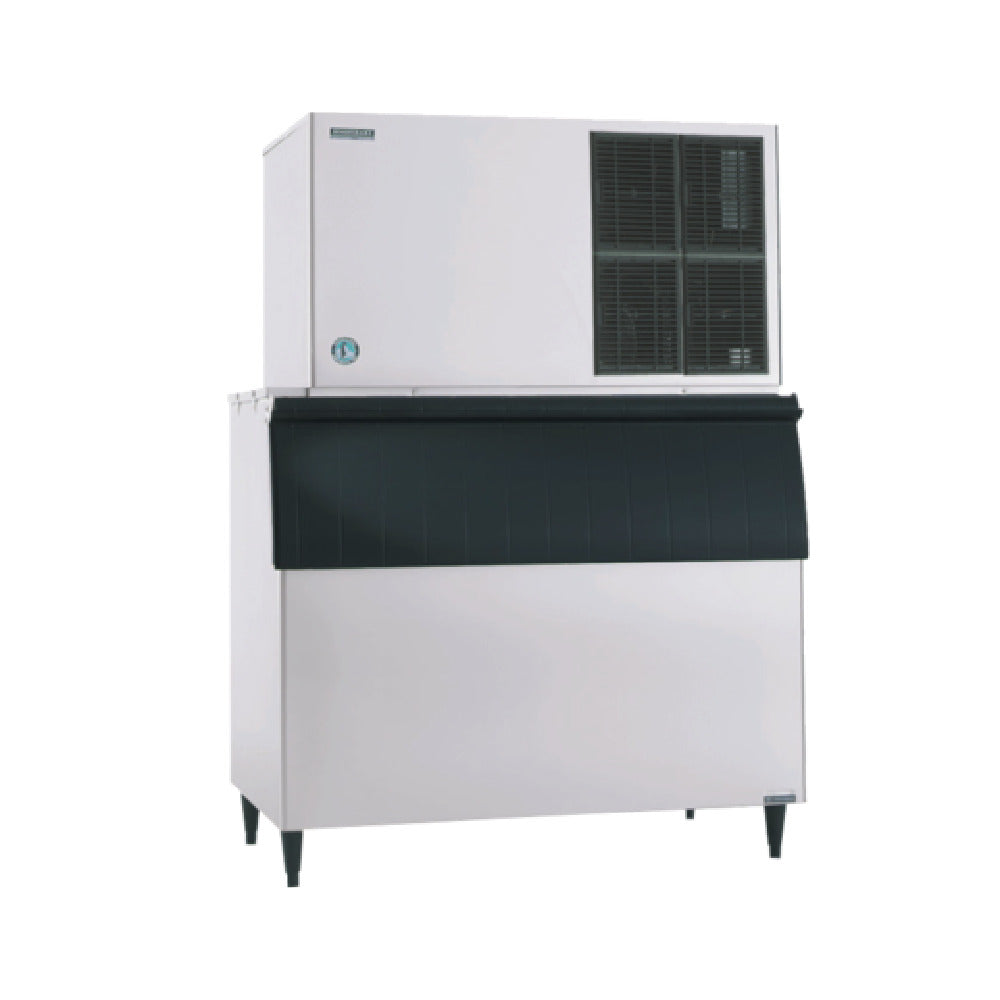

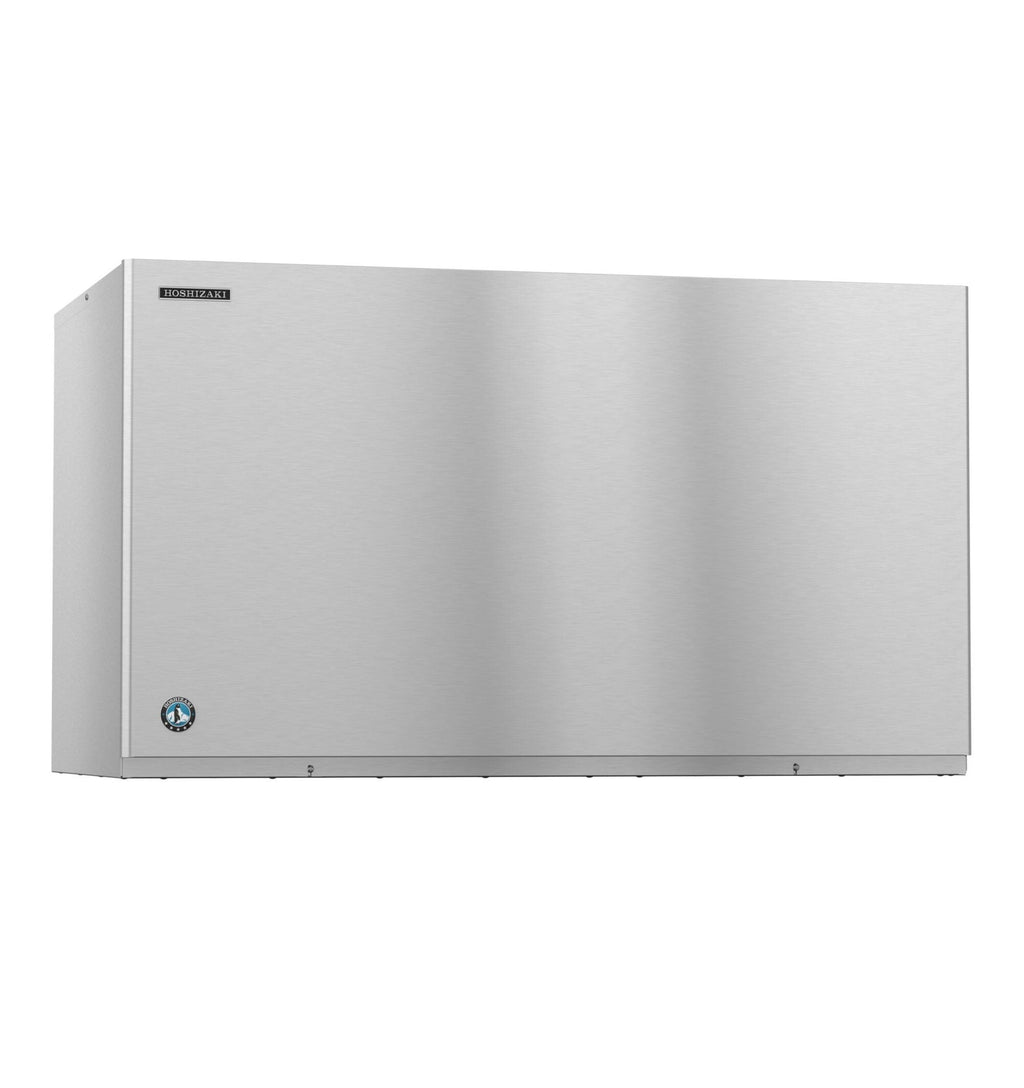

The Hoshizaki KM-1601SRJZ is a heavy-duty, commercial cube-style ice maker engineered for high-volume production and superior reliability in demanding foodservice environments. This 48-inch, air-cooled unit is designed for use with a matching “Z” model remote condenser (sold separately), allowing for quieter operation, reduced heat in the kitchen, and improved overall efficiency.
Capable of producing up to 1,640 lb. of ice per 24 hours at 70°/50°, with 1,600 lb. AHRI-certified output at 90°/70°, the KM-1601SRJZ delivers exceptional performance for large restaurants, hotels, banquet facilities, and institutional operations. Its durable stainless steel finish ensures long-term durability, while Hoshizaki’s signature crescent cube promotes efficient storage, slow melt, and consistent ice quality. The unit is further enhanced with H-GUARD Plus Antimicrobial Agent, providing added protection against bacteria and mold growth on key components.
Operating on R-404A refrigerant and 208–230V/60/1-phase power at 15.9 amps, this model delivers strong and dependable daily performance. Certified by NSF and UL, the KM-1601SRJZ meets stringent standards for sanitation and safety.
Note: Always pair “Z” model ice makers with the corresponding “Z” model remote condenser.
Specifications
-
Manufacturer: Hoshizaki
-
Model: KM-1601SRJZ
-
Ice Type: Crescent cube
-
Style: Cube-style, commercial
-
Width: 48"
-
Cooling System: Air-cooled
-
Condenser: Remote (sold separately; must use matching “Z” model)
-
Production Capacity:
-
1,640 lb/24 hours at 70°F / 50°F
-
1,600 lb AHRI certified at 90°F / 70°F
-
-
Exterior Finish: Stainless steel
-
Antimicrobial Protection: H-GUARD Plus Antimicrobial Agent
-
Refrigerant: R-404A
-
Electrical Requirements: 208–230V / 60Hz / 1-phase
-
Amps: 15.9
-
Certifications: NSF, UL
-
Additional Note: Requires proper “Z” model remote condenser pairing.
