Description

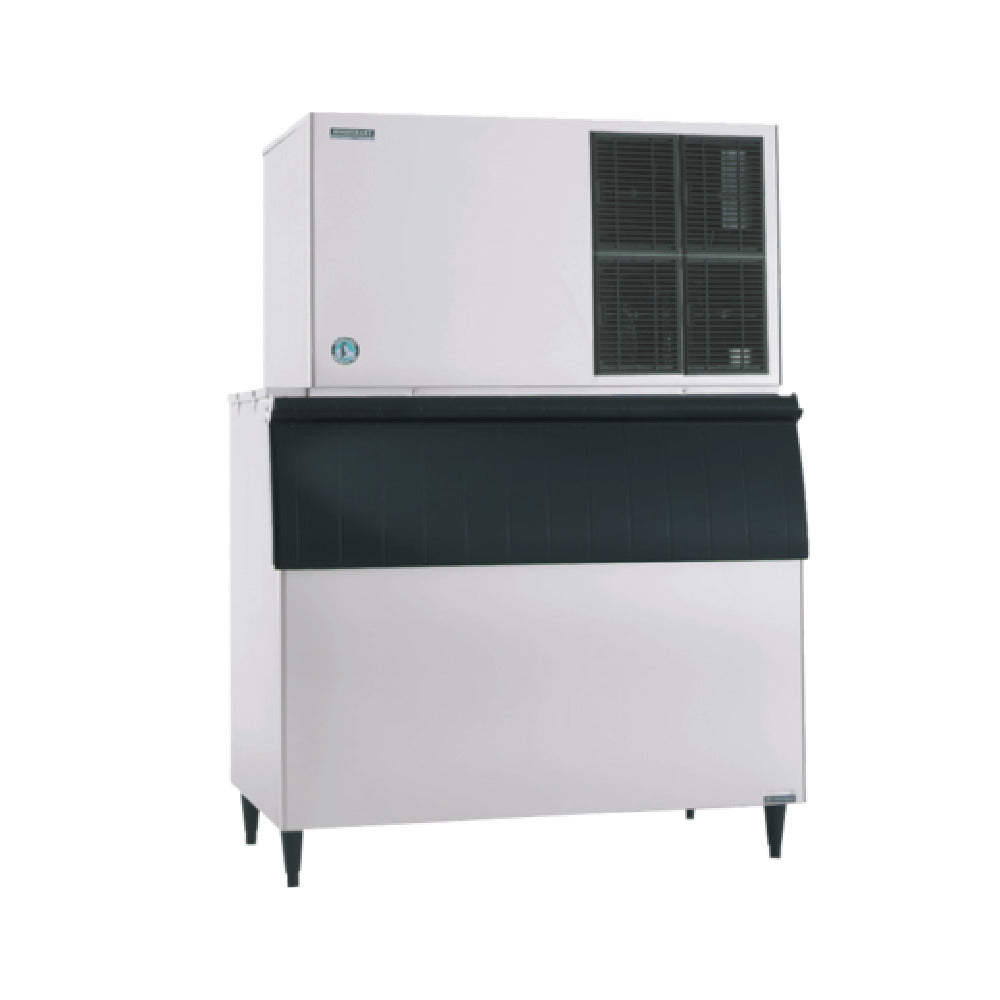

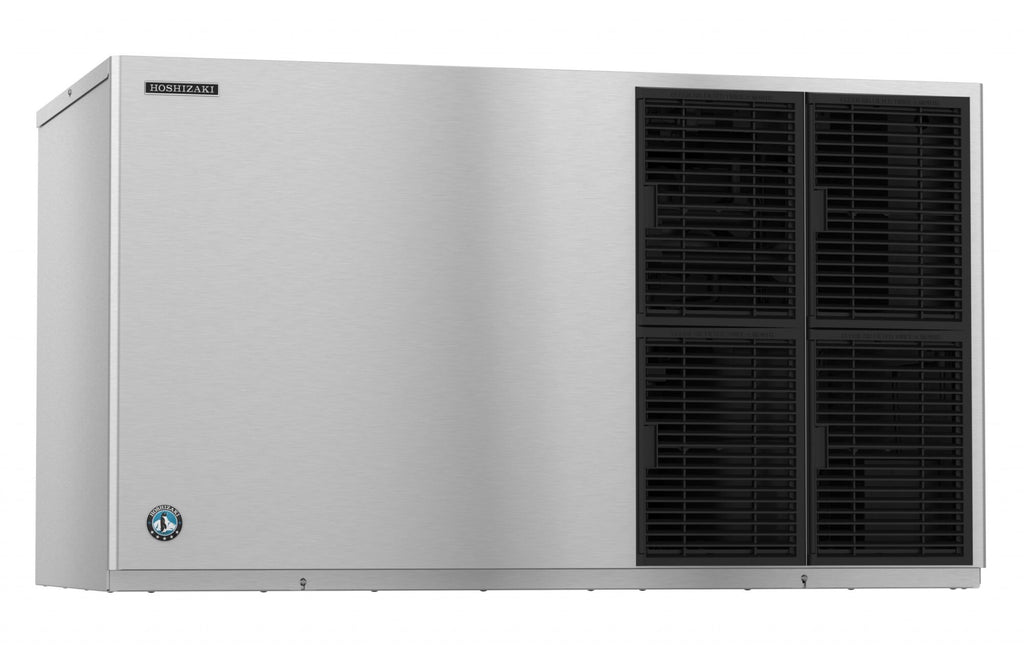

The Hoshizaki KM-1601SAJ3 is a high-capacity, commercial cube-style ice maker engineered for demanding foodservice and hospitality environments requiring dependable, large-volume ice production. This 48-inch, air-cooled model features a self-contained condenser and a stackable design, enabling operators to increase ice output significantly by adding a second unit vertically—ideal for hotels, banquet halls, stadiums, and institutional kitchens.
Delivering strong production performance, the KM-1601SAJ3 produces up to 1,513 lb. of ice per 24 hours at 70°/50°, with 1,414 lb. AHRI-certified output at 90°/70°. The unit’s durable stainless steel exterior ensures long-lasting operation, while Hoshizaki’s signature crescent cube provides excellent clarity, slow melt, and optimal storage efficiency. Operating on R-404A refrigerant with 208–230V/60/3-phase power at 12.9 amps, this model delivers powerful and efficient performance for continuous daily use.
Certified by NSF and UL, the KM-1601SAJ3 meets strict sanitation and safety standards, making it a trusted choice for high-volume commercial applications.
Specifications
-
Manufacturer: Hoshizaki
-
Model: KM-1601SAJ3
-
Ice Type: Crescent cube
-
Style: Cube-style, commercial
-
Width: 48"
-
Design: Stackable
-
Cooling System: Air-cooled
-
Condenser: Self-contained
-
Production Capacity:
-
1,513 lb/24 hours at 70°F / 50°F
-
1,414 lb AHRI certified at 90°F / 70°F
-
-
Exterior Finish: Stainless steel
-
Refrigerant: R-404A
-
Electrical Requirements: 208–230V / 60Hz / 3-phase
-
Amps: 12.9
-
Certifications: NSF, UL
