Description

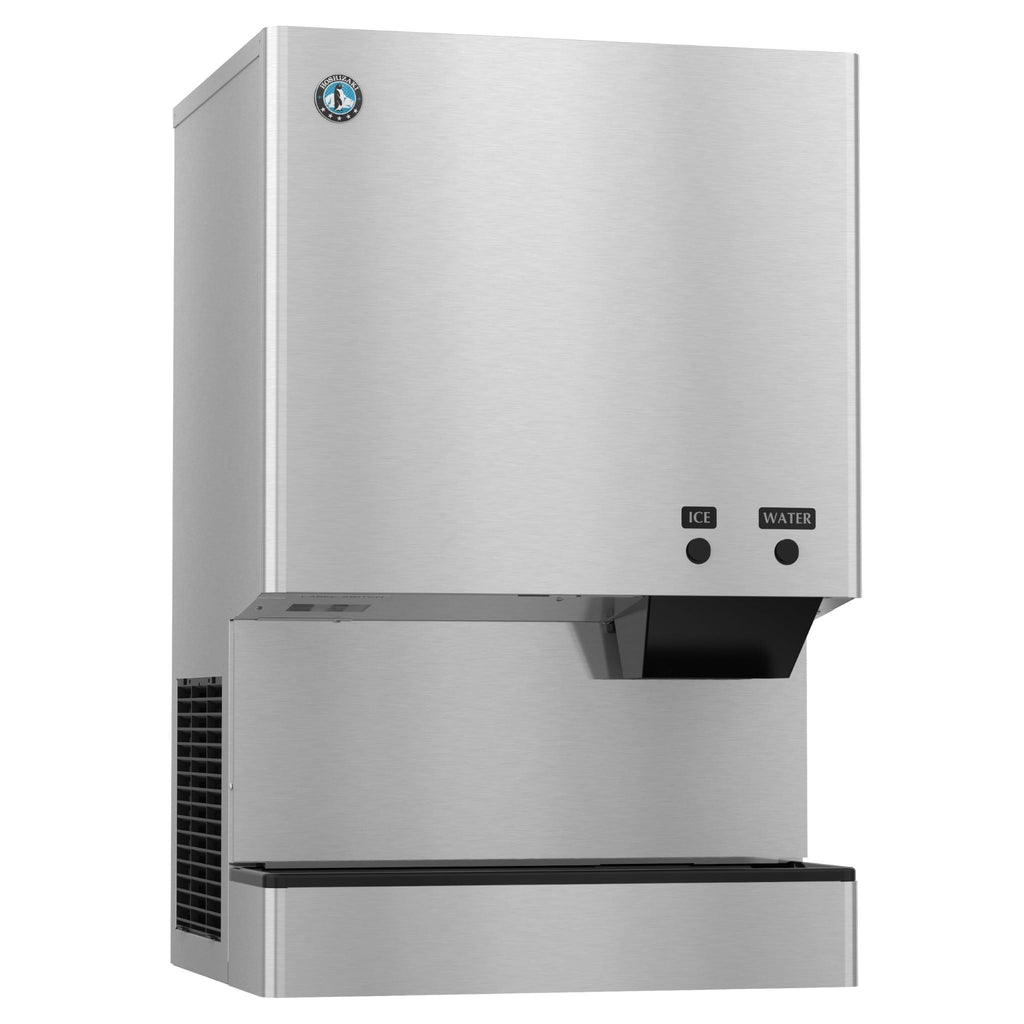

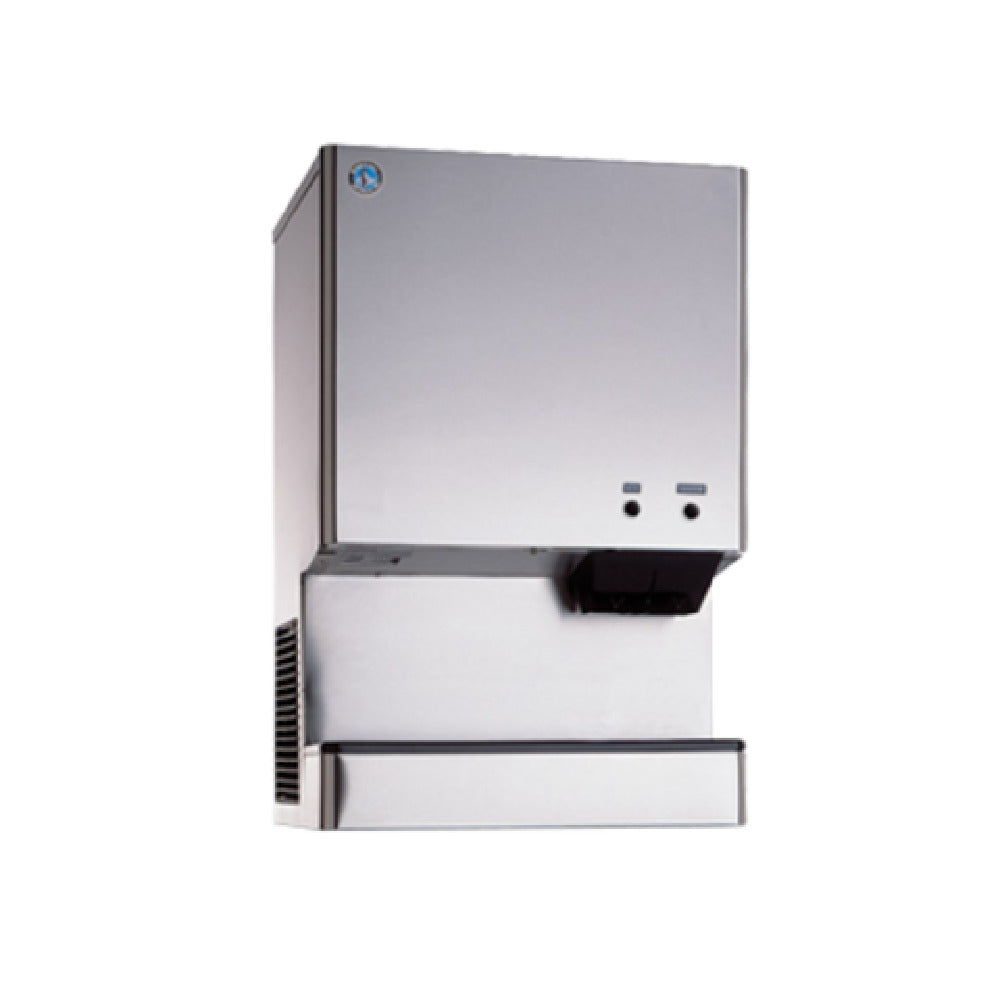

The Hoshizaki DCM-500BAH is a high-capacity cubelet ice maker and water dispenser designed for businesses that require dependable ice production paired with convenient, sanitary dispensing. Ideal for restaurants, healthcare facilities, hospitality venues, corporate offices, and institutional environments, this air-cooled, self-contained model ensures consistent output and long-term efficiency.
With the ability to produce up to 618 lb of cubelet-style ice per 24 hours at 70°/50° and 450 lb AHRI-certified at 90°/70°, the DCM-500BAH delivers reliable ice supply even during peak demand. Its 40 lb built-in storage bin ensures readily accessible ice without constant refilling.
User-friendly push-button dispensing allows quick access to ice and water, making it ideal for self-service environments or healthcare settings where touch points must be minimized. The stainless steel exterior and bin are protected with H-GUARD Plus Antimicrobial Agent, ensuring hygienic ice production and long-lasting durability.
Its air-cooled, self-contained condenser offers efficient operation without the need for external refrigeration components, simplifying installation and reducing maintenance. The compact countertop design integrates easily into existing workspace layouts.
Operating on 115v/60/1-ph power at 12.6 amps, the DCM-500BAH meets NSF and UL standards for sanitation and safety.
Key Benefits
High-Volume Cubelet Ice Production
-
Produces 618 lb/24 hr at 70°/50°
-
450 lb AHRI-certified output at 90°/70°
-
Cubelet ice is soft, chewable, and ideal for beverages and healthcare applications
Convenient, Easy Dispensing
-
Push-button dispensing enables quick, user-friendly access
-
Reduces labor and streamlines workflow
-
Supports both staff and customer self-service applications
Durable & Hygienic Construction
-
Stainless steel exterior and bin ensure long-lasting durability
-
H-GUARD Plus Antimicrobial Agent protects internal components
-
Easy to clean, reducing operational costs
Air-Cooled, Self-Contained System
-
No external condenser required
-
Reduces installation complexity
-
Provides reliable performance in a variety of ambient conditions
Specifications
| Category | Details |
|---|---|
| Manufacturer | Hoshizaki |
| Model | DCM-500BAH |
| Type | Ice Maker / Water Dispenser |
| Ice Style | Cubelet-style |
| Production Capacity | 618 lb/24 hr (70°F/50°F) |
| AHRI-Certified Output | 450 lb/24 hr (90°F/70°F) |
| Storage Capacity | 40 lb built-in |
| Condenser Type | Self-contained, air-cooled |
| Dispensing Method | Push-button |
| Construction | Stainless steel exterior & bin |
| Antimicrobial Protection | H-GUARD Plus |
| Refrigerant | R-404A |
| Installation Style | Counter model |
| Electrical Requirements | 115V / 60Hz / 1-phase |
| Amps | 12.6 A |
| Certifications | NSF, UL |
