Description

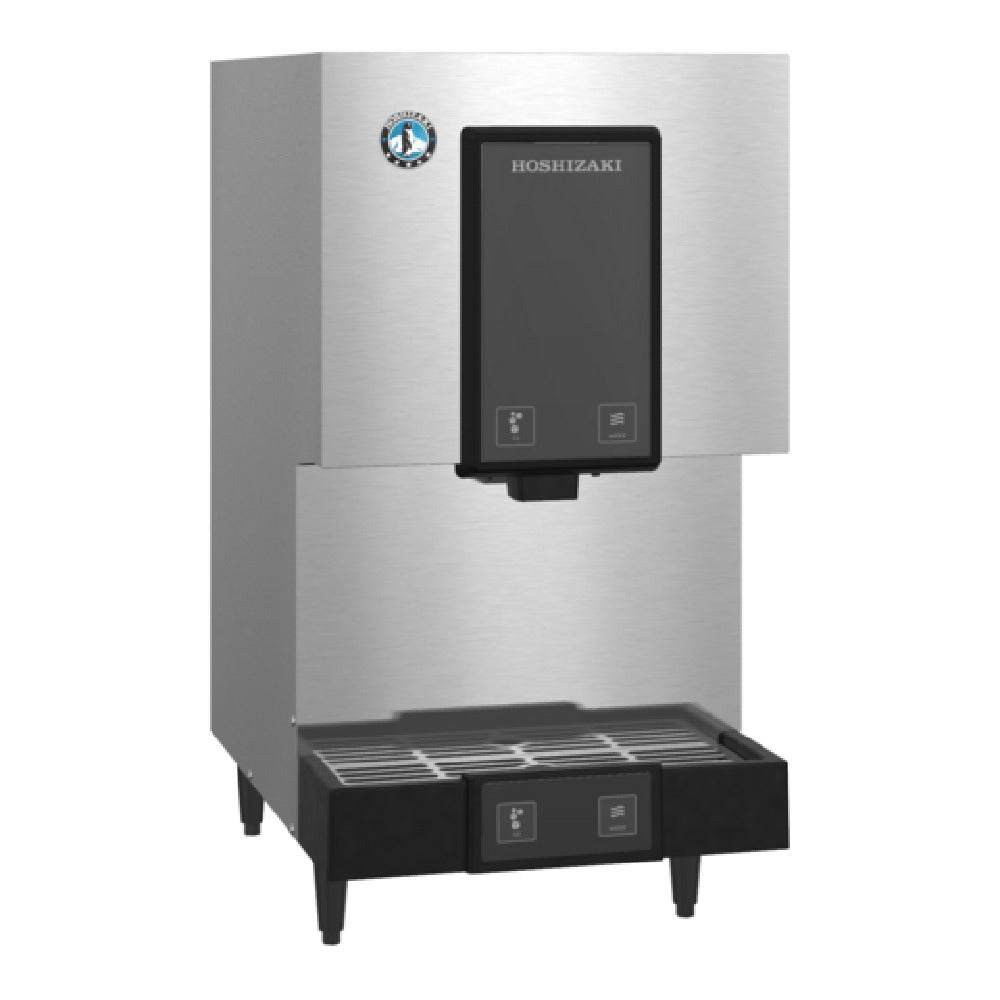

The Hoshizaki DCM-271BAK is a compact yet powerful cubelet-style ice maker and water dispenser designed for commercial environments that require hygienic, efficient, and user-friendly ice dispensing. Perfect for healthcare facilities, office breakrooms, hospitality stations, cafés, and nursing environments, this air-cooled, self-contained unit ensures reliable ice production with a small footprint.
Delivering up to 286 lb of cubelet ice per 24 hours at 70°/50° and 211 lb AHRI-certified output at 90°/70°, the DCM-271BAK supports continuous ice availability throughout the day. The 12 lb built-in storage bin is ideal for moderate-volume dispensing, making it a great countertop solution where space is limited but performance is essential.
This model features two sets of LED touch buttons—an upper and lower control panel—providing easy access for both standing and seated users. With 10-1/4" cup clearance and ADA compliance, the DCM-271BAK enhances accessibility while maintaining sanitary, touch-responsive operation.
Built with commercial durability in mind, the unit includes a stainless steel exterior, R290 refrigerant for energy-efficient cooling, and 4" legs for sanitation clearance. It operates on 115v/60/1-ph power at 6.4 amps and includes a cord with NEMA 5-15P plug, making installation fast and simple. Certified by NSF and UL, it meets high standards for safety and sanitation.
Key Benefits
Reliable Cubelet Ice Production
-
Produces 286 lb/24 hr under standard conditions
-
211 lb AHRI-certified for higher-temperature environments
-
Soft, chewable cubelet ice ideal for healthcare, beverages, and hydration programs
ADA-Friendly & User-Friendly Operation
-
Dual LED touch-button sets for accessible dispensing
-
10-1/4" cup clearance accommodates cups and bottles
-
Fully ADA compliant for inclusive use
Compact, Durable Countertop Design
-
Small footprint ideal for breakrooms, nurse stations, and beverage stations
-
Stainless steel exterior ensures durability and easy cleaning
-
4" legs for proper sanitation spacing
Efficient, Air-Cooled Performance
-
Self-contained condenser simplifies installation
-
Uses R290 refrigerant for improved efficiency and environmental responsibility
-
Consistent performance with low energy consumption
Specifications
| Category | Details |
|---|---|
| Manufacturer | Hoshizaki |
| Model | DCM-271BAK |
| Type | Ice Maker / Water Dispenser |
| Ice Style | Cubelet-style |
| Production Capacity | 286 lb/24 hr (70°F/50°F) |
| AHRI-Certified Output | 211 lb/24 hr (90°F/70°F) |
| Storage Capacity | 12 lb built-in |
| Condenser Type | Self-contained, air-cooled |
| Dispensing Controls | (2) sets of LED touch buttons (upper & lower) |
| Cup Clearance | 10-1/4" |
| Refrigerant | R290 |
| Legs | 4" included |
| Electrical Requirements | 115V / 60Hz / 1-phase |
| Amps | 6.4 A |
| Plug Type | NEMA 5-15P (cord included) |
| Certifications | NSF, UL |
| Accessibility | ADA Compliant |
| Installation Style | Countertop |
