Description

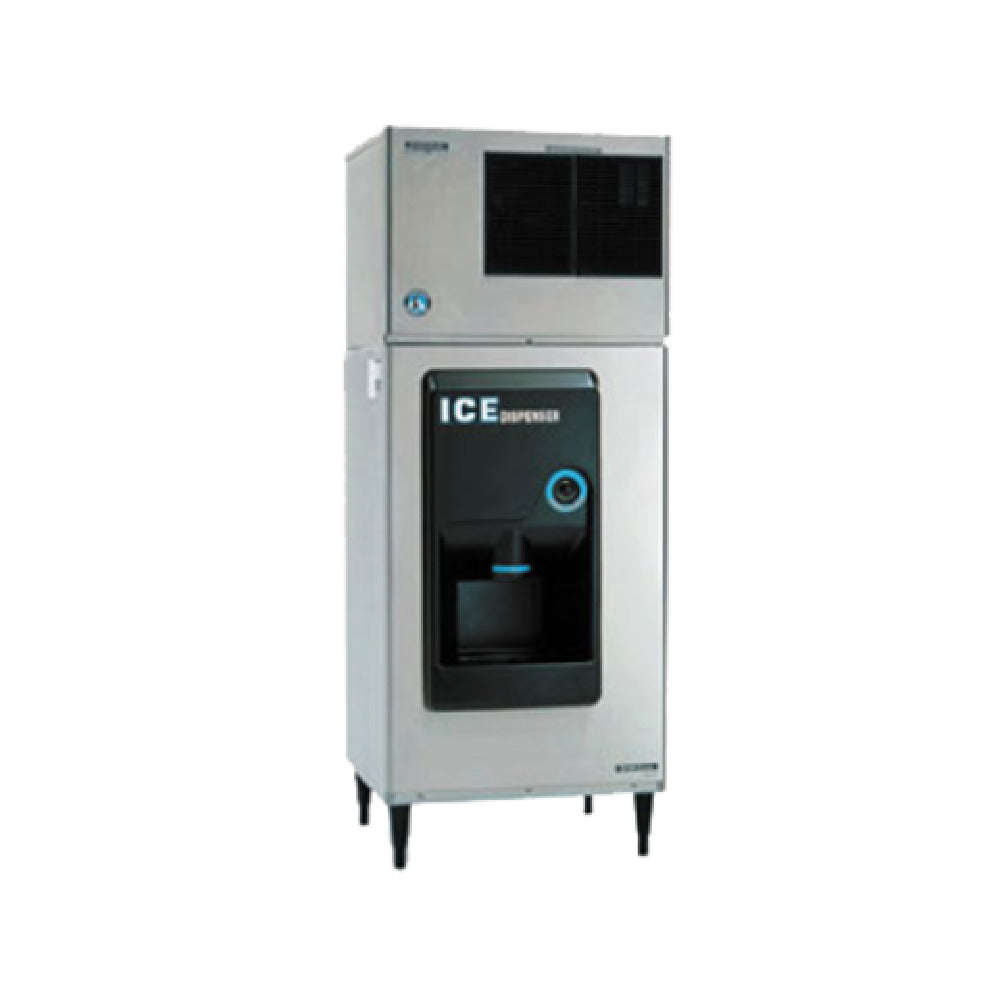

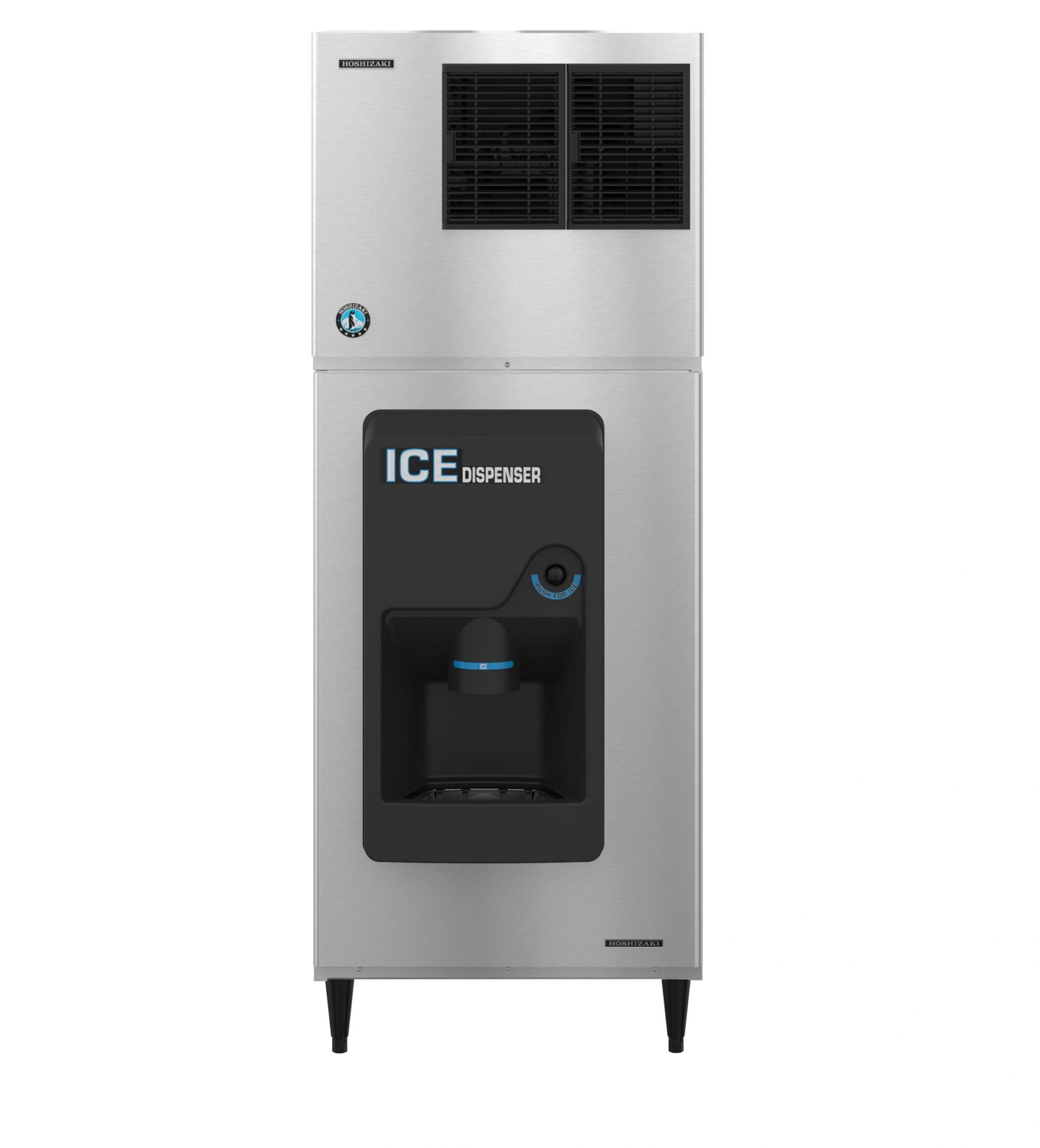

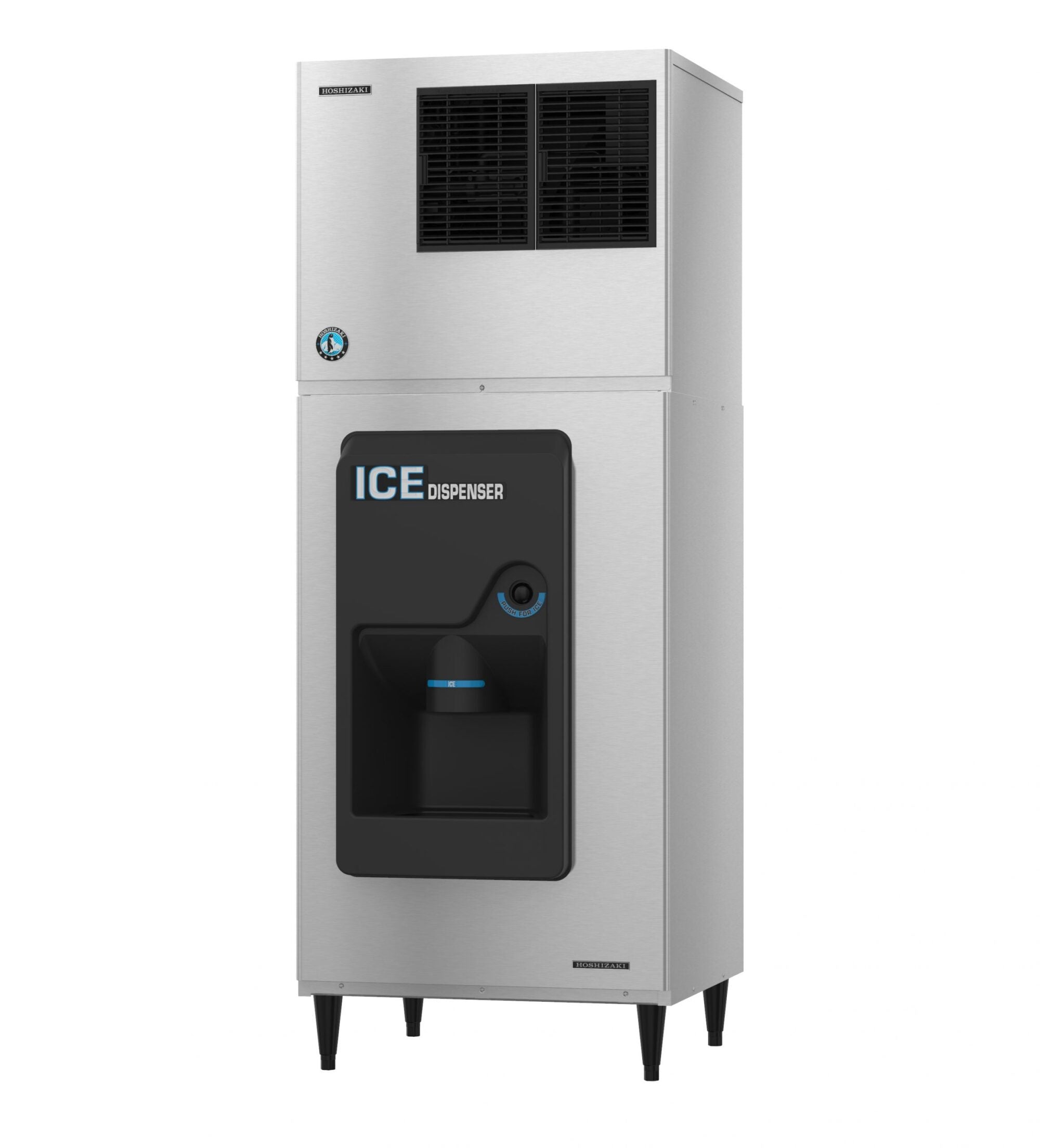

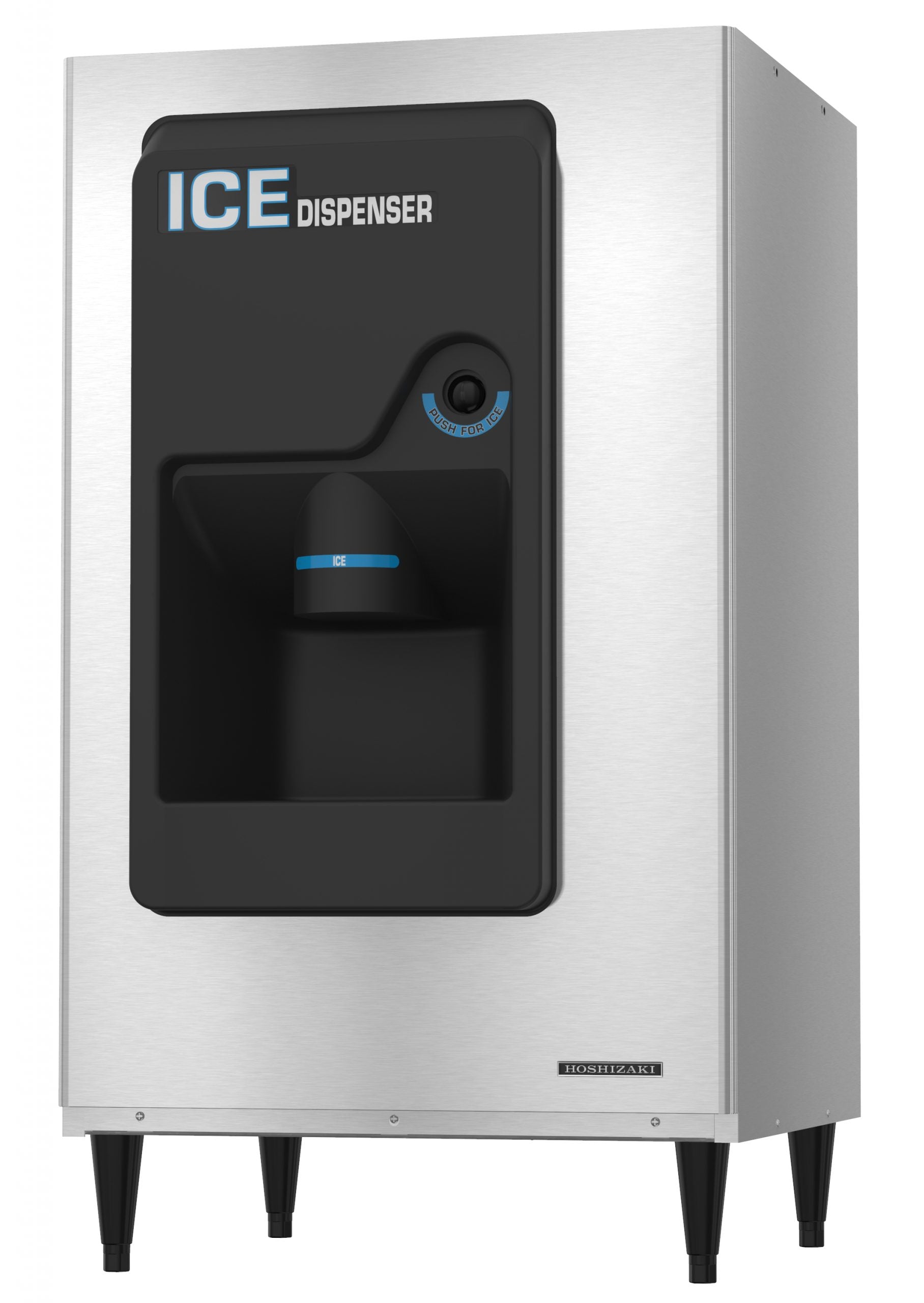

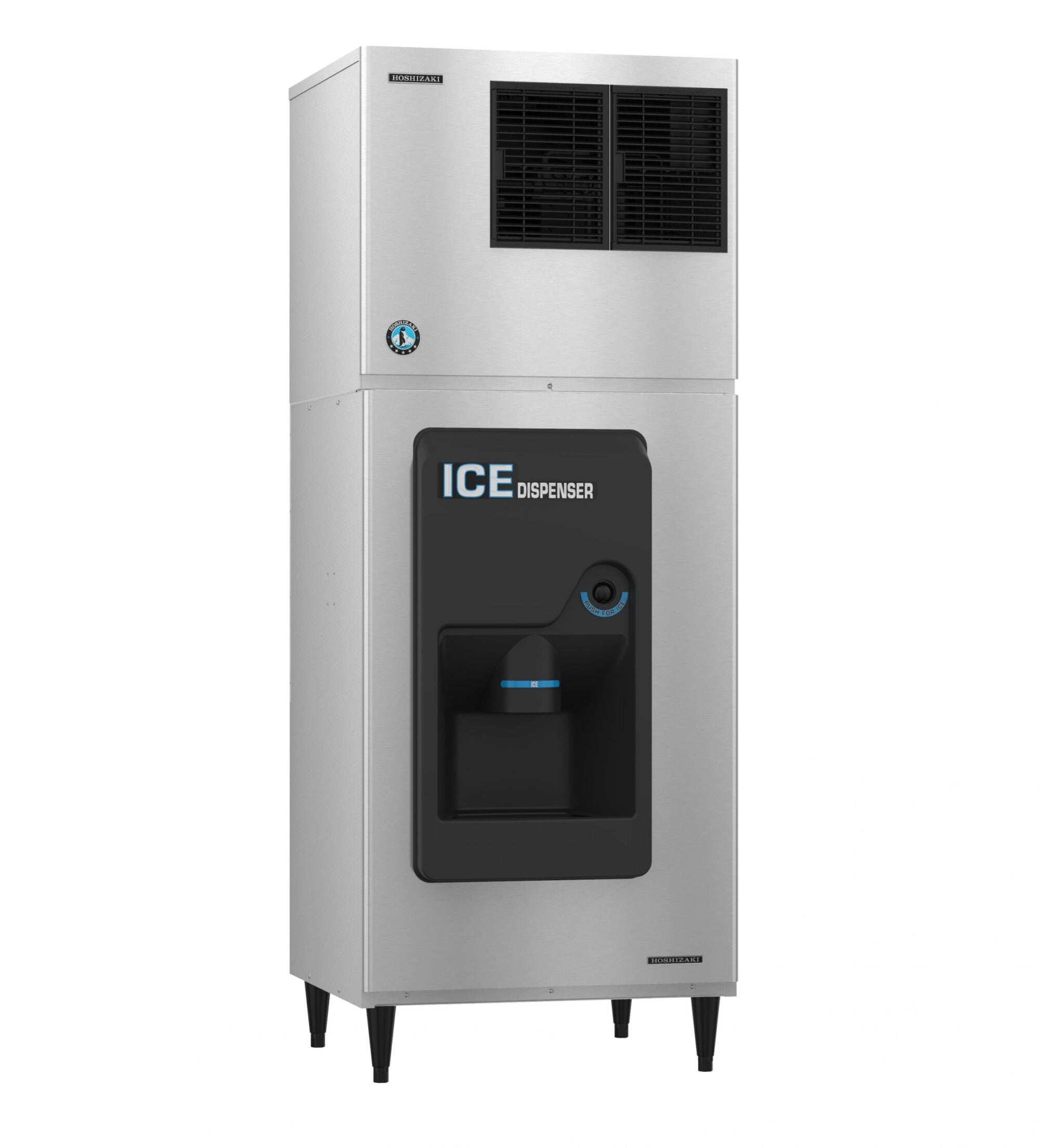

The Hoshizaki DB-200H is a high-capacity, commercial-grade ice dispenser engineered for clean, efficient, and reliable ice delivery in high-traffic environments. With a 200 lb built-in storage capacity, this 30-inch-wide dispenser is ideal for hotels, cafeterias, healthcare facilities, office break rooms, and self-service beverage stations requiring a consistent and sanitary ice supply.
Designed for versatility, the DB-200H accommodates several Hoshizaki ice machine series—including KM-340/350, KM-515/520, KM-650/660, and KML Series cubers—making it suitable for both new installations and system upgrades. The ADA-compliant dispensing area ensures accessibility for all users, supporting inclusive and customer-friendly operations.
Built with an ABS molded front panel and vinyl-covered steel side panels, this dispenser offers long-lasting durability, easy cleaning, and a sleek, professional appearance. Supported by 6-inch painted legs, it maintains proper sanitation clearance and stability in commercial environments.
Energy-efficient operation is another key feature. Running on only 60 watts and 1.4 amps at 115V/60/1-ph, the DB-200H delivers dependable performance with minimal energy consumption. Fully certified by cULus and ETL-Sanitation, it meets rigorous safety and hygiene standards.
Key Benefits
High-Capacity, Reliable Ice Dispensing
-
Stores up to 200 lb of ice, ideal for heavy-use applications
-
Provides consistent, sanitary ice access throughout the day
-
ADA-compliant dispensing ensures accessibility
Compatible with Multiple Ice Makers
-
Accommodates:
-
KM-340/350 Series
-
KM-515/520 Series
-
KM-650/660 Series
-
KML Series
-
-
Offers flexibility for equipment upgrades or replacements
Durable Construction for Long-Term Use
-
ABS molded front resists wear and impact
-
Vinyl-coated steel side panels enhance longevity
-
6" painted legs provide stability and easy floor cleaning access
Energy-Efficient & Low Maintenance
-
Uses just 60 watts and 1.4 amps, keeping energy costs low
-
Simple, reliable dispensing mechanism minimizes downtime
-
Ideal for high-traffic, self-service applications
Specifications
| Category | Details |
|---|---|
| Manufacturer | Hoshizaki |
| Model | DB-200H |
| Type | Ice Dispenser |
| Width | 30" |
| Storage Capacity | 200 lb |
| Compatible Ice Makers | KM-340/350, KM-515/520, KM-650/660, KML Series |
| Front Panel | ABS molded |
| Side Panels | Vinyl-covered steel |
| Legs | 6" painted legs |
| ADA Compliance | ADA-compliant dispensing area |
| Power Usage | 60 watts |
| Electrical Requirements | 115V / 60Hz / 1-phase |
| Amps | 1.4 A |
| Certifications | cULus, ETL-Sanitation |
