Description
High-Capacity Precision Balance for Laboratory and Industrial Weighing

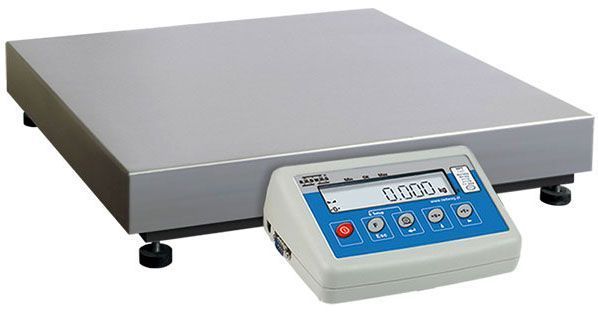

The Radwag WLC-60-C2-R Precision Balance is a high-performance laboratory balance designed for fast and accurate mass determination in laboratory and industrial environments. With a 60 kg maximum capacity and 1 g readability, this precision balance is ideal for weighing larger samples while maintaining reliable measurement accuracy.
The balance features a durable stainless steel weighing pan, backlit LCD display, RS232 connectivity, and an internal rechargeable battery, allowing operation even in environments where access to mains power is limited.
Engineered by Radwag, a global leader in precision weighing technology, the WLC series balances provide advanced weighing functions such as parts counting, percent weighing, totalizing, and checkweighing, making them suitable for laboratories, production facilities, and quality control environments.
Key Features of the Radwag WLC-60-C2-R Precision Balance
High Capacity with Precise Readability
Supports up to 60 kg maximum capacity with 1 g readability, providing accurate measurement for large samples.
Large Stainless Steel Weighing Platform
The 15.7 × 19.7 inch stainless steel weighing pan provides ample space for weighing bulky items.
Backlit LCD Display
High-contrast backlit LCD screen ensures clear reading of measurement results in laboratory or industrial lighting conditions.
Internal Rechargeable Battery
Integrated sealed lead-acid (SLA) battery allows operation for up to 10 hours without mains power.
RS232 Connectivity
Built-in RS232 interface enables communication with computers, printers, and laboratory data systems.
Optional Wi-Fi Connectivity
Optional Wi-Fi communication module allows wireless integration with laboratory networks.
Durable Industrial Design
Rated IP43 protection class, offering protection against dust and light moisture exposure.
Advanced Weighing Functions
The WLC series balances include several professional weighing modes designed for laboratory and industrial applications.
Checkweighing (Plus/Minus Control)
Allows sample mass verification using defined MIN and MAX thresholds. A visual bar graph indicator shows whether the measured weight falls within acceptable limits.
Percent Weighing
Enables comparison of measured samples to a reference mass standard (100%), displaying results as a percentage relative to the reference value.
Totalizing
Allows multiple measurements to be added together automatically, useful for determining the total mass of mixtures composed of several components.
Parts Counting
Calculates the number of items based on total weight and known individual item mass. The system includes automatic accuracy correction to improve counting precision.
Peak Hold
Captures and displays the highest weight reading during the weighing process, commonly used in medical or dynamic weighing applications.
Ideal Applications
The Radwag WLC-60-C2-R balance is commonly used for:
-
Laboratory sample weighing
-
Industrial quality control
-
Parts counting in manufacturing
-
Batch formulation
-
Material verification and inspection
-
Chemical and pharmaceutical weighing
-
Educational laboratory environments
Technical Specifications
Model
WLC-60-C2-R
Part Number: WL-206-0063
Weighing Capacity
Maximum capacity:
60 kg
Minimum load:
50 g
Readability:
1 g
Tare range:
-60 kg
Accuracy
Repeatability:
1 g
Linearity:
±2 g
Stabilization time:
3 seconds
Display
Backlit LCD display
Weighing Platform
Material:
Stainless steel
Dimensions:
15.7 × 19.7 inches
Connectivity
Standard interface:
-
RS232
Optional interface:
-
Wi-Fi
Optional additional RS232 connector available
Power Requirements
Power supply:
100–240 VAC, 50/60 Hz
Battery:
Internal sealed lead-acid battery
Battery operating time:
Approx. 10 hours
Environmental Conditions
Operating temperature:
15°C – 30°C
Relative humidity:
10% – 85% RH (non-condensing)
Protection Rating
IP43
Dimensions & Weight
Package dimensions:
28 × 23 × 8.5 inches
Unit weight:
27.5 lbs
Shipping weight:
33 lbs
Certification
NTEP Certified: Not available
Warranty
2-Year Manufacturer Warranty
