Reliable Precision Balance for Laboratory and Industrial Weighing

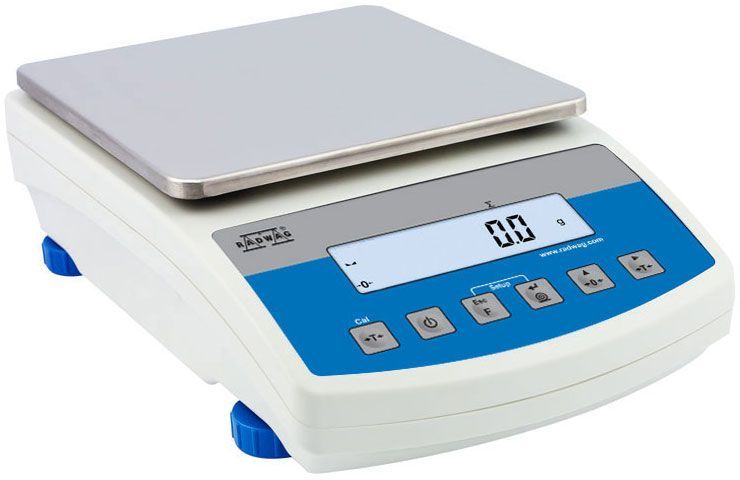

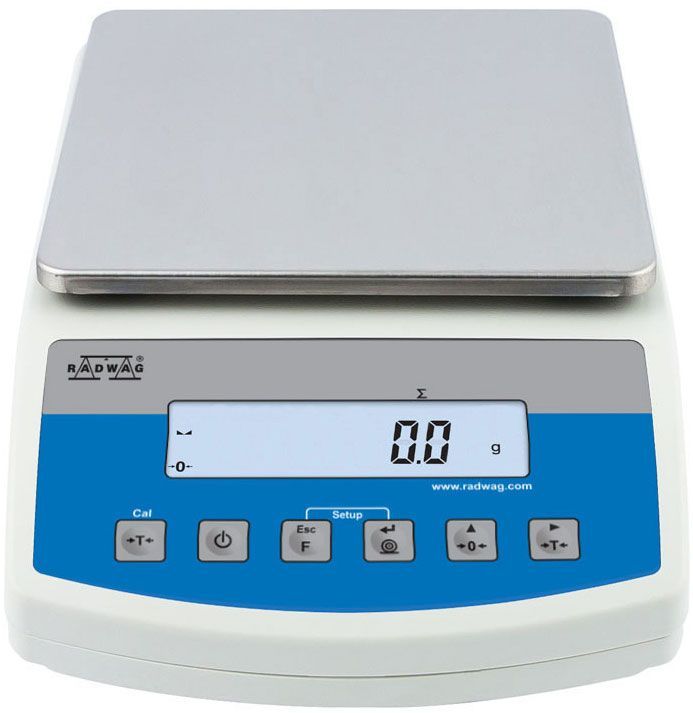

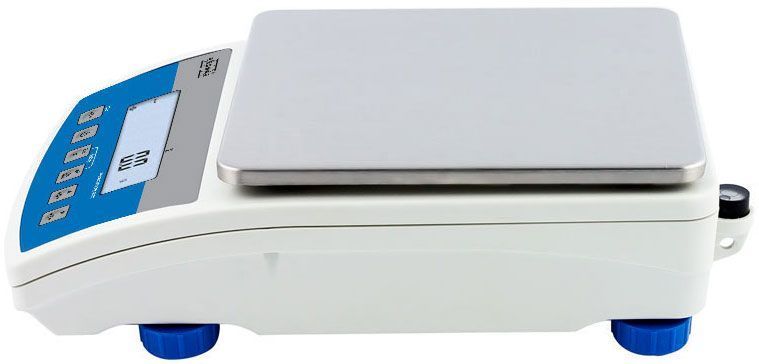

The Radwag WLC 6/A2 Precision Balance is a versatile laboratory and industrial weighing solution designed for fast and accurate mass determination up to 6000 g with 0.1 g readability. Built for both laboratory and production environments, this precision balance combines reliable weighing performance with advanced data management and connectivity features.

The balance includes a stainless steel weighing pan, backlit LCD display, multiple communication interfaces, and an internal rechargeable battery, allowing operation even in locations where mains power is unavailable.

Equipped with RS232 and USB connectivity, ALIBI memory, and advanced weighing functions such as parts counting and checkweighing, the WLC 6/A2 balance integrates easily into laboratory workflows, quality control processes, and industrial weighing applications.

---

Key Features of the Radwag WLC 6/A2 Precision Balance

High Capacity with Fine Readability

Provides 6000 g maximum capacity with 0.1 g readability, ideal for weighing laboratory samples, production components, and bulk materials.

Stainless Steel Weighing Platform

Durable 7.7 × 7.7 inch stainless steel weighing pan offers corrosion resistance and easy cleaning.

Backlit LCD Display

Large backlit LCD screen ensures clear visibility of measurement results in various lighting environments.

Internal Rechargeable Battery

Integrated sealed lead-acid (SLA) battery enables up to 15 hours of operation without mains power.

Advanced Connectivity

Communication interfaces include:

• 2 × RS232

• USB Type A

• USB Type B

• Optional Wi-Fi

These allow connection to printers, computers, USB drives, and additional displays.

ALIBI Memory System

Integrated ALIBI memory records and securely stores weighing data, ensuring reliable documentation and traceability.

Optional Industrial I/O

The system can optionally support 4 IN / 4 OUT connections for integration with industrial automation systems.

Under-Pan Weighing

Includes underhook weighing adapter, allowing suspended weighing of irregular or oversized items.

---

Advanced Weighing Functions

The WLC series balances provide multiple professional weighing modes suitable for laboratory and industrial workflows.

Checkweighing (Plus/Minus Control)

Allows verification of sample mass against predefined MIN and MAX thresholds, with visual feedback displayed as a bar graph indicator.

Percent Weighing

Compares sample weight with a reference mass standard, displaying the result as a percentage relative to the standard value.

Totalizing

Adds multiple weighing results together to determine the total mass of mixtures or batches.

Parts Counting

Determines the quantity of items based on total mass and known individual item weight. Includes automatic accuracy correction for improved counting precision.

Peak Hold

Captures and holds the highest temporary weight reading during dynamic weighing processes.

---

Ideal Applications

The Radwag WLC 6/A2 precision balance is widely used in:

• Laboratory sample weighing

• Industrial quality control

• Manufacturing parts counting

• Material inspection

• Packaging verification

• Chemical and pharmaceutical laboratories

• Educational laboratories

---

Technical Specifications

Model

WLC 6/A2

Part Number: WL-206-0003

---

Weighing Capacity

Maximum capacity:
6000 g

Minimum load:
5 g

Readability:
0.1 g

Tare range:
−6 kg

---

Accuracy

Repeatability:
0.1 g

Linearity:
±0.2 g

Stabilization time:
3 seconds

---

Display

Backlit LCD display

---

Weighing Platform

Dimensions:
7.7 × 7.7 inches

Material:
Stainless steel

---

Connectivity

Communication interfaces:

• 2 × RS232

• USB-A

• USB-B

• Optional Wi-Fi

Optional 4 IN / 4 OUT industrial interface

---

Power Requirements

100–240 VAC, 50/60 Hz

Battery operation time:

Approx. 15 hours

---

Environmental Conditions

Operating temperature:

15°C – 30°C

Relative humidity:

10% – 85% RH (non-condensing)

---

Protection Rating

IP43

---

Dimensions & Weight

Package dimensions:

18.5 × 15 × 13 inches

Unit weight:

5 lbs

Shipping weight:

9.5 lbs

---

Certification

NTEP Certified: Optional

---

Included Components

• Radwag WLC 6/A2 Precision Balance – 1

• Stainless Steel Weighing Pan – 1

• Grounding Foot (Spring Center) – 1

• Adjustable Feet – 3

• Underhook Weighing Adapter – 1

• Power Adapter – 1

• Plug Adapters – 4

• Start-Up Guide – 1

---

Warranty

2-Year Manufacturer Warranty
