Description

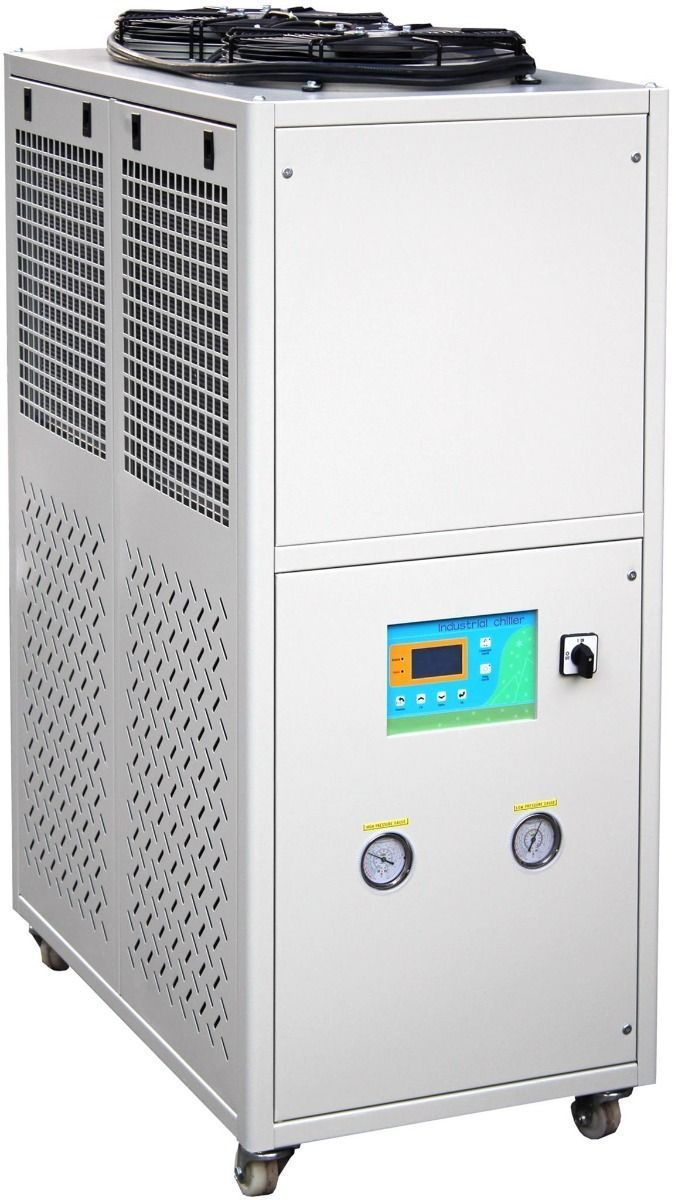

The Across International WAC-4 Recirculating Water Chiller is a heavy-duty industrial cooling system designed to provide stable temperature control for high-power induction heaters and industrial heating equipment. Featuring a digital micro-chip temperature controller, stainless steel reservoir, and high-flow recirculating pump, this closed-loop chiller delivers dependable cooling performance for demanding industrial applications.

Powered by a Danfoss compressor and high-capacity cooling system, the WAC-4 provides cooling capacity up to 10,198W, making it ideal for cooling high-frequency, mid-frequency, and low-frequency induction heating systems.

The system includes built-in swivel casters, stainless steel tank construction, and pre-installed water manifolds, allowing for quick installation and reliable long-term operation in industrial environments.

Key Features

Designed for Industrial Induction Heater Cooling

  • Engineered for Across International IH Series induction heaters

  • Suitable for high-power heating equipment and industrial process cooling

Closed Loop Cooling System

  • Eliminates tap water cooling

  • Reduces water consumption and operating costs

  • Provides stable temperature control for continuous operation

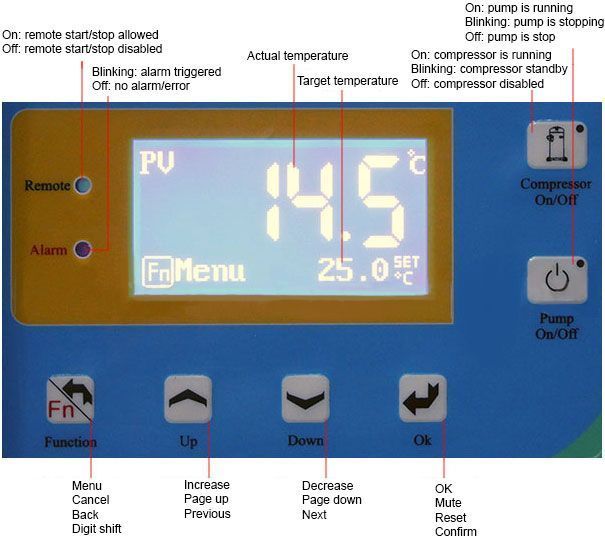

Digital Temperature Control

  • Micro-chip controlled digital temperature controller

  • LCD display with coolant level monitoring

  • Maintains consistent cooling temperatures

High Cooling Capacity

  • Cooling performance up to 10,198W

  • Designed for large industrial heating equipment

Heavy-Duty Industrial Construction

  • Stainless steel reservoir for corrosion resistance

  • Durable steel chassis

  • Built-in swivel casters for easy movement

High-Flow Industrial Pump

  • Powerful recirculating pump ensures continuous coolant circulation

  • Designed for long-term industrial operation

Plug-and-Play Installation

  • Pre-assembled system

  • Water manifolds included for immediate setup

Ideal Applications

  • Induction heating systems

  • Industrial metal processing

  • Laboratory heating equipment

  • Process cooling systems

  • Manufacturing equipment cooling

Technical Specifications

Electrical Requirements

  • Voltage: 480 VAC

  • Frequency: 60 Hz

  • Phase: Three Phase (3PH)

  • Power Consumption: 3.75 kW

Cooling Capacity

Nominal Cooling Capacity:

  • 10,366 kcal/h

Cooling capacity by temperature:

  • 8175W at 10°C

  • 10,198W at 15°C

Nominal capacity based on:

  • Inlet chilled fluid temperature: 12°C

  • Outlet chilled fluid temperature: 7°C

  • Inlet cooling air temperature: 30°C

  • Outlet cooling air temperature: 35°C

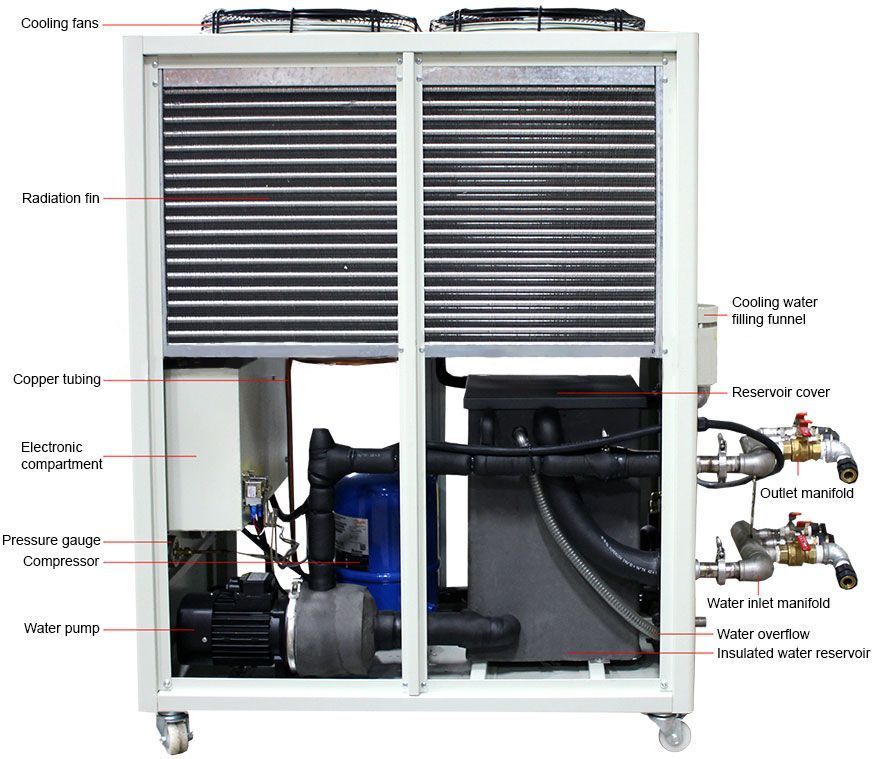

Compressor

  • Manufacturer: Danfoss (UL Listed)

  • Voltage: 460V 3-Phase

  • Current: 8A

  • Power: 3750 Watts

  • Locked Rotor Current: 25A

  • Refrigerant: R407C (2400g)

  • Maximum Pressure: 22.6 bar

  • Operating Temperature Range: -35°C to 50°C

  • Number of Compressors: 1

Water Pump

  • Manufacturer: LX

  • Model: CMF2-50T-A-W-G-BABE

  • Power: 550 Watts

  • Voltage: 480V 3-Phase

  • Speed: 3450 RPM

  • Protection Rating: IP55

Pump Performance:

  • Pumping Speed: 33 L/min

  • Maximum Pressure: 10 bar

  • Maximum Head: 64 meters

  • Rated Head: 51 meters

  • Maximum Liquid Temperature: 70°C

Reservoir

  • Capacity: 35 Liters

  • Material: Stainless Steel

Cooling Fan

  • Manufacturer: Weiguang

  • Model: YWF4D-350S-102/34-G

  • Power: 480V 60Hz

  • Power Consumption: 80 / 150 Watts

  • Speed: 1640 RPM

  • Airflow Rate: 142,000 cubic feet per hour

  • Number of Fans: 2

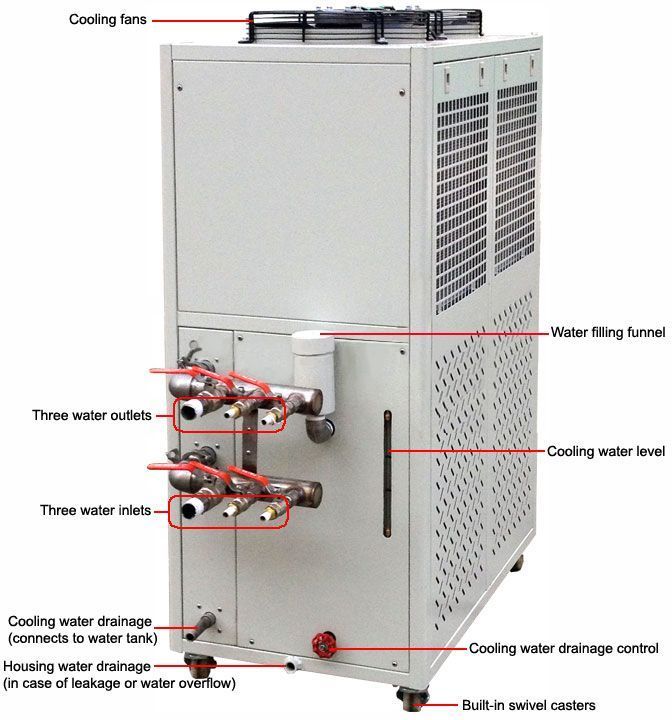

Cooling Connections

Chiller Inlet / Outlet

  • 1.5" Tri-Clamp connections

Water Manifold

  • Inlet: 1.5" Tri-Clamp

  • Manifold Outputs:

    • 1 × 1" outlet

    • 2 × 8mm quick-connect outlets with ball valves

Temperature Control

  • Temperature Accuracy: ±2°C

Recommended Coolant

  • Distilled Water

Operating Conditions

  • Chilled fluid temperature range: 5°C – 35°C

  • Temperature difference between inlet and outlet: 3°C – 8°C

  • Recommended ambient operating temperature: ≤ 35°C

Dimensions & Weight

  • Unit Dimensions: 41" × 22" × 54"

  • Shipping Dimensions: 50" × 25" × 61"

  • Unit Weight: 375 lbs

  • Shipping Weight: 485 lbs

Safety Features

  • Over-current protection

  • Compressor delay start protection

  • Water pump overload protection

  • Built-in fuse protection

  • Over-voltage protection

  • Under-voltage protection

  • Phase protection

  • Abnormal operation protection

Compatible Induction Heaters

Recommended for:

High Frequency

  • 10kW

  • 20kW

  • 30kW

Mid Frequency

  • 25kW

  • 35kW

  • 70kW

Low Frequency

  • 25kW

  • 35kW

What's Included

  • 1 × Across International WAC-4 Recirculating Water Chiller

  • 2 × Water Manifolds

  • 2 × KF40 Flanges

  • 1 × User Manual

Warranty

  • 1 Year Manufacturer Warranty

Compliance

  • CE Certified
