Description

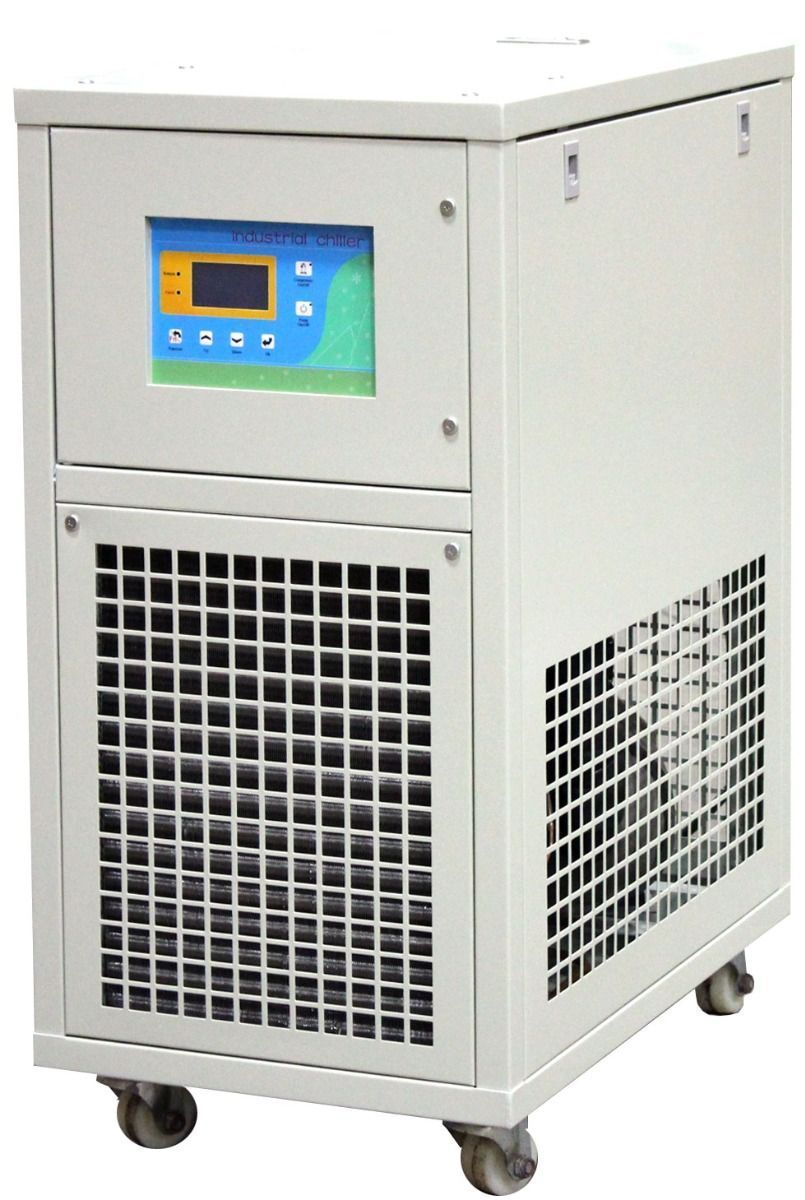

The Across International WAC-1 Recirculating Water Chiller is a high-performance closed-loop cooling system designed to provide reliable temperature control for induction heating equipment and industrial laboratory systems. Equipped with a digital temperature controller, built-in water pump, and stainless steel reservoir, this chiller delivers consistent cooling performance while eliminating the need for tap water cooling.
Designed for durability and ease of use, the WAC-1 features heavy-duty construction, a powerful compressor system, and built-in swivel casters for mobility. The integrated high-flow water pump and stainless steel tank ensure stable coolant circulation and long-term corrosion resistance.
This unit is specifically recommended for Across International IH Series Induction Heaters, providing dependable cooling for high-power heating equipment used in industrial and laboratory environments.
Key Features
Designed for Induction Heater Cooling
-
Optimized for Across International IH Series induction heaters
-
Supports high-power heating equipment cooling requirements
Closed Loop Water Cooling System
-
Eliminates tap water usage
-
Provides stable and controlled cooling
-
Reduces water consumption and operating costs
Digital Temperature Control
-
Accurate digital temperature control for reliable cooling performance
-
Maintains consistent coolant temperatures
High-Flow Recirculating Pump
-
Powerful industrial water pump for continuous coolant circulation
-
Ensures efficient heat removal from connected equipment
Stainless Steel Reservoir
-
Built-in corrosion-resistant tank
-
Designed for long-term durability and rust-free operation
Heavy-Duty Industrial Construction
-
Durable steel housing
-
Built-in swivel casters for easy mobility
-
Plug-and-play installation

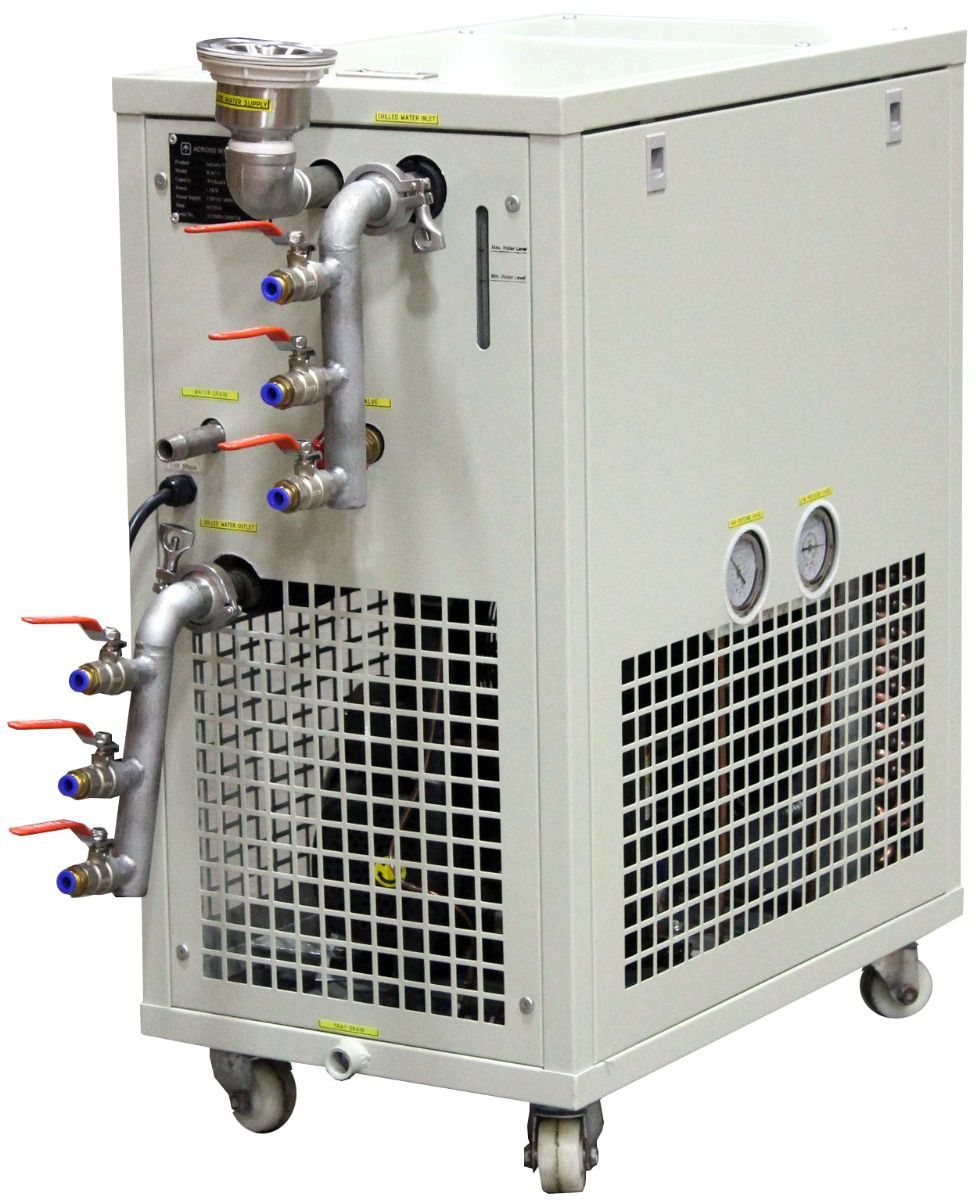

Dual Water Manifolds Included
-
Two water manifolds included for immediate installation
-
Quick-connect outlet ports with ball valves
Ideal Applications
-
Induction heating equipment
-
Industrial heating systems
-
Laboratory heating equipment
-
Process cooling systems
-
Equipment cooling for high-power electrical systems
Technical Specifications
Electrical Requirements
-
Voltage: 110 VAC
-
Frequency: 60 Hz
-
Phase: Single Phase
-
Power Consumption: 1460 Watts
Cooling Capacity
Nominal Cooling Capacity:
-
1935 kcal/h
Cooling Capacity by Temperature:
-
2300W at 10°C
-
2750W at 15°C
Nominal cooling capacity based on:
-
Inlet chilled fluid temperature: 12°C
-
Outlet chilled fluid temperature: 7°C
-
Inlet cooling air temperature: 30°C
-
Outlet cooling air temperature: 35°C
Compressor
-
Manufacturer: Panasonic (UL Listed)
-
Voltage: 110VAC 60Hz
-
Type: Thermally protected compressor
-
Refrigerant: R410A (800g)
-
Number of Compressors: 1

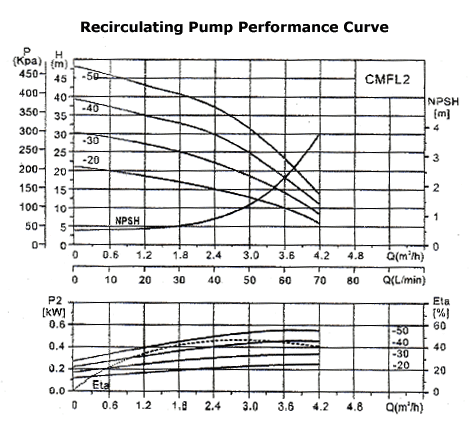

Water Pump
-
Manufacturer: LX
-
Model: CMFL2-20-A-W-G-BABE
-
Power: 370 Watts
-
Voltage: 110VAC 60Hz
-
Speed: 3450 RPM
-
Flow Rate: 528 gallons per hour
-
Maximum Pressure: 10 bar
-
Maximum Head: 20.5 meters
-
Rated Head: 16 meters
-
Protection Rating: IP55
Cooling Fan
-
Manufacturer: Kunli
-
Model: YWF A2S-300S-5DIIIA05
-
Power: 155 Watts
-
Voltage: 110VAC 60Hz
-
Speed: 2700 RPM
-
Flow Rate: 70,000 cubic feet per hour
-
Protection Rating: IP44
Reservoir
-
Capacity: 4.5 Gallons
-
Material: Stainless Steel
Cooling Connections
Chiller Connections
-
Water Inlet/Outlet: 1.5" Tri-Clamp Flange
Manifold
-
Inlet: 1.5" Tri-Clamp Flange with silicone gasket and clamp
-
Outlet: 8mm quick-connect fittings with ball valve
Temperature Control
-
Temperature Accuracy: ±2°C
Recommended Coolant
-
Distilled Water
Operating Conditions
-
Chilled fluid temperature range: 5°C – 35°C
-
Temperature difference between inlet and outlet: 3°C – 8°C
-
Recommended ambient operating temperature: ≤ 35°C
Dimensions & Weight
-
Unit Dimensions: 29" × 17" × 35"
-
Shipping Dimensions: 36" × 21" × 42"
-
Unit Weight: 200 lbs
-
Shipping Weight: 260 lbs
Safety Features
-
Over-current protection
-
Compressor thermal protection
Compatible Equipment
Recommended for use with:
Across International IH Series Induction Heaters
-
High Frequency 4kW
-
High Frequency 6.6kW
-
Mid Frequency 15kW
-
Mid Frequency 25kW
-
Low Frequency 15kW
What's Included
-
1 × Across International WAC-1 Recirculating Water Chiller
-
2 × Water Manifolds
-
2 × KF40 Clamps
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
Compliance
-
CE Certified
