Ultra-Precision Microbalance with ELLIPSIS Smart Technology and 10″ Touchscreen

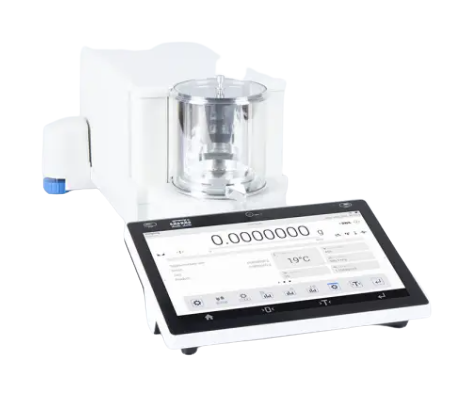

The Radwag UYA 2.5Y Ultra-Microbalance is an advanced laboratory weighing instrument designed for extremely precise microgram-level measurements. With 0.1 µg readability and 2.1 g maximum capacity, the UYA 2.5Y is ideal for demanding analytical applications including pharmaceutical research, nanotechnology, microchemical analysis, and metrology laboratories.

Part of the Radwag ELLIPSIS series, this ultra-microbalance incorporates intelligent technologies such as the Digital Weighing Auditor, ReflexLEVEL automatic leveling system, Smart Minimum Weight monitoring, and air buoyancy compensation. These features ensure optimal measurement conditions and help maintain consistent weighing accuracy.

The balance is equipped with a powerful 10-inch touchscreen interface that allows intuitive operation and displays detailed measurement data, graphs, and system status information. Advanced connectivity options including USB, Ethernet, Wi-Fi, and hotspot functionality allow seamless integration with modern laboratory information systems.

---

Key Features of the Radwag UYA 2.5Y Ultra-Microbalance

Ultra-High Precision Weighing

Provides 0.1 µg readability with 2.1 g capacity, enabling extremely precise measurements for micro-scale laboratory applications.

Digital Weighing Auditor

The built-in Digital Weighing Auditor continuously checks that the balance is ready for use. It performs real-time air buoyancy compensation and notifies users when inspection or calibration may be required.

10″ ELLIPSIS Touchscreen Display

The advanced touchscreen interface displays:

• Measurement graphs

• Process statuses

• System alerts

• Measurement history

• Customizable widgets and dashboards

Up to three information screens can be displayed simultaneously.

Advanced User Authentication

Supports multiple verification methods including:

• Password login

• RFID card

• Fingerprint recognition

• Facial recognition

• Multi-factor authentication

Ambient Light Status System

Integrated ambient lighting communicates balance status, measurement results, and alerts using color indicators.

ReflexLEVEL Automatic Leveling

The ReflexLEVEL system automatically levels the balance, eliminating manual adjustments and improving measurement precision.

Smart Minimum Weight Monitoring

Displays whether the current sample weight is above or below the required minimum weight threshold for accurate measurements.

RFID Integration

RFID tags can be used to identify users, samples, and formulation ingredients stored in the balance database.

Hotspot Connectivity

The balance can create its own Wi-Fi hotspot, allowing smartphones, tablets, or computers to connect directly.

Live Notes

Users can attach voice memos or text notes to measurement procedures or weighing reports.

Handy Library

Provides quick access to:

• Recent measurement series

• Reports ready for digital signature

• Documentation compliant with 21 CFR Part 11

Two-Point Adjustment

Calibration at two measurement points improves accuracy across the entire weighing range.

---

Advanced Weighing Functions

The UYA 2.5Y ultra-microbalance supports a wide range of professional weighing modes.

Autotest

Automatic diagnostics determine metrological parameters and optimize weighing time.

Dosing

Allows controlled dosing based on reference mass and defined tolerance limits.

Percent Weighing

Displays sample mass relative to a reference mass as a percentage.

Parts Counting

Determines quantity based on unit weight with automatic accuracy correction.

Formulation

Supports preparation of multi-component mixtures with tolerance monitoring.

Statistical Analysis

Provides measurement statistics including:

• Maximum and minimum values

• Mean value

• Standard deviation

• Variance

• Measurement range

Differential Weighing

Measures mass changes during manufacturing or processing operations.

Checkweighing

Indicates whether a sample falls within predefined tolerance limits.

IR Sensor Operation

Touch-free infrared sensors allow users to perform operations without physically touching the balance.

GLP Reporting

Supports Good Laboratory Practice documentation and reporting.

---

Ideal Applications

The Radwag UYA 2.5Y ultra-microbalance is commonly used in:

• Pharmaceutical laboratories

• Analytical chemistry laboratories

• Nanotechnology research

• Micro-sample weighing

• Metrology laboratories

• Biotechnology research facilities

---

Technical Specifications

Model

UYA 2.5Y

Part Number: WL-109-0001

---

Weighing Performance

Maximum capacity
2.1 g

Minimum load
0.01 mg

Readability
0.1 µg

Tare range
−2.1 g

---

Accuracy

Repeatability (5% Max)
0.15 µg

Repeatability (Max)
0.35 µg

Permissible repeatability (5% Max)
0.35 µg

Permissible repeatability (Max)
0.6 µg

Linearity
±1.5 µg

Eccentric load deviation
1.5 µg

Stabilization time
10–20 seconds

---

Calibration

Internal automatic adjustment

---

OIML Classification

Class I

---

Display

10-inch touchscreen

---

Connectivity

Communication interfaces include:

• USB-A ×2

• USB-C

• HDMI

• Ethernet

• Wi-Fi

• Hotspot connectivity

---

Operating Conditions

Operating temperature
10°C – 40°C

Temperature change rate
±0.3°C per hour

Relative humidity
40% – 80%

Humidity change rate
±1% per 8 hours

---

Weighing Chamber

Pan diameter
16 mm

Chamber dimensions
90 × 90 mm

---

Dimensions & Weight

Package dimensions
655 × 755 × 445 mm (26 × 30 × 18 inches)

Unit weight
23 lbs

Shipping weight
38 lbs

---

Power Requirements

100–240V AC, 50/60 Hz

---

Warranty

2-Year Manufacturer Warranty
