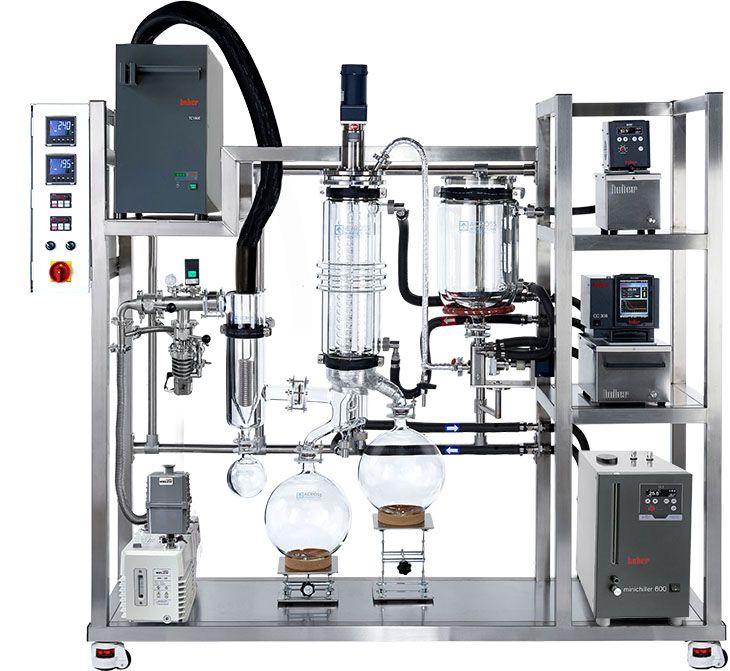

High-Performance Glass Thin Film Evaporator for Molecular Distillation

The Ai TG-6 Glass Thin Film Distillation System is a high-precision short path / wiped film molecular distillation system designed for efficient separation and purification of heat-sensitive compounds under high vacuum conditions.

Built with borosilicate glass 3.3, stainless steel components, and food-grade Viton gaskets, the TG-6 provides exceptional corrosion resistance while allowing full visibility of the distillation process through its transparent glass construction.

This advanced thin film evaporator system uses PTFE rollers or wiping blades to spread a uniform thin film across the heated evaporator surface, maximizing evaporation efficiency while minimizing thermal degradation of sensitive materials.

With a throughput of 2L–5L per hour, the TG-6 is ideal for pharmaceutical research, botanical extraction, cannabinoid distillation, essential oil purification, chemical processing, and laboratory-scale molecular distillation applications.

Pricing includes professional on-site installation within the contiguous United States, ensuring proper system setup and safe operation.

---

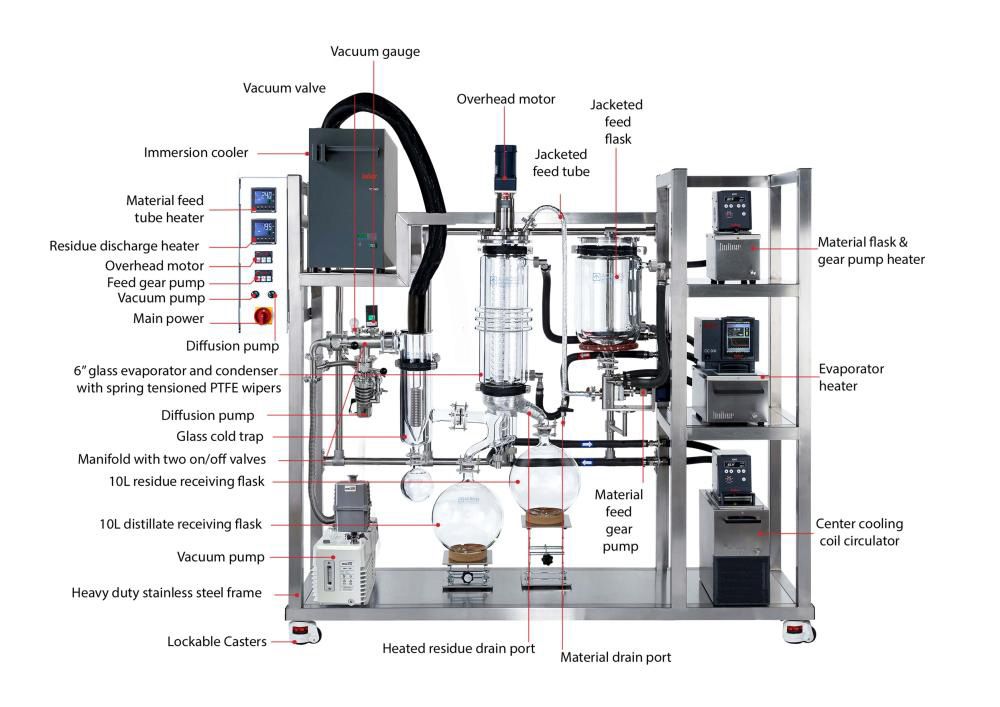

Key Features of the Ai TG-6 Glass Thin Film Distillation System

Complete Thin Film Distillation System with On-Site Installation

System price includes professional installation within the contiguous 48 United States.

High-Efficiency Thin Film Evaporation

Precision PTFE rollers or wiping blades create a uniform thin film across the heated evaporator surface for maximum evaporation efficiency and minimal residue buildup.

Transparent Borosilicate Glass System

Constructed with high-quality borosilicate glass 3.3, allowing operators to visually monitor the entire distillation process.

Magnetic Coupling Motor Drive

The magnetic coupling seal design eliminates shaft seals and enables extremely high vacuum levels while preventing leaks.

Agilent High Vacuum System

Equipped with Agilent diffusion pump and high-vacuum gauge, delivering excellent vacuum performance for molecular distillation.

Integrated Cooling & Heating System

Includes a PolyScience immersion cooler capable of reaching -80°C, eliminating the need for dry ice during operation.

Stainless Steel Structural Frame

Heavy-duty stainless steel mounting frame with swivel casters and leveling feet ensures mobility and stability.

Pre-Installed Tubing & Fluid Connections

Cooling and heating tubing comes pre-installed with clearly labeled fluid flow directions and M16 connection ports for simplified installation.

Auto Delay Safety Circuit

Protects the diffusion pump by allowing proper cooling before shutdown.

---

Typical Applications

The TG-6 Thin Film Distillation System is commonly used for:

• Cannabinoid distillation

• Pharmaceutical purification

• Essential oil processing

• Fine chemical distillation

• Botanical extraction refinement

• Heat-sensitive compound separation

• High-vacuum molecular distillation research

---

Important Safety Guidelines

⚠ Always follow proper operating procedures when using thin film distillation equipment.

• Never fill circulated heaters or chillers with water — always use recommended thermal fluids.

• Leave sufficient space in heater reservoirs to allow for thermal expansion.

• Always keep vacuum passage or drain valve open during heating cycles.

• Ensure vacuum pump oil and diffusion pump fluid are clean and within operational limits.

Cold traps should only be used with:

• Dry ice

• A cold finger chiller such as IP-80 or TC100/TC100E

Always wear proper PPE when handling dry ice.

---

Technical Specifications

Model

TG-6

---

Throughput Capacity

2L – 5L per hour
(depending on material and processing parameters)

---

Main Evaporator

Evaporating area:

~2,500 cm²

Material:

Borosilicate glass

Glass jacket volume:

Approx. 3L

Heated circulator:

• 3kW heater

• Maximum operating temperature 300°C

---

Main Condenser

Condensing area:

~4,000 cm²

Material:

Borosilicate glass

Style:

Coil condenser

Glass jacket volume:

Approx. 1.5L

Cooling/heated circulator:

• 2kW heater

• Operating temperature -25°C to 200°C

---

Wiping System

Style:

Roller or blade

Material:

PTFE

Drive motor:

• Speed adjustable

• Magnetic coupling sealing

Motor controller:

DELTA

---

Cold Trap System

Material:

Borosilicate glass with polyethylene lid

Depth:

17 inches

Receiving flask volume:

1L

Immersion cooler:

Huber TC100 (-100°C)

---

Feeding System

Gear Pump:

• Maximum speed 20L/hour

• 2.4 mL per turn

• 135 turns per minute

• Adjustable flow rate

Material:

Stainless steel body with Viton gaskets

Feeding Flask:

• 10L jacketed glass flask

• Refillable during operation

• Glass jacket volume ~4L

Heating controller:

OMRON

Circulator heater:

2kW heater

Maximum temperature:

200°C

Tubing:

Heated and insulated stainless steel tubing

---

Distillate Discharge

Receiving flask:

10L glass receiving flask

Drain passage:

Non-heated

Sealing gasket:

Viton

---

Residue Discharge

Receiving flask:

10L glass receiving flask

Drain passage:

Heated and insulated

Heating:

Heated tape with insulation

Controller:

Omron

Recommended fluid temperature:

80°C – 120°C

---

Vacuum System

Vacuum pump:

Welch CRVPro 30

• 22 CFM

• 0.3 micron filtration

• Includes oil mist exhaust filter

Diffusion pump:

Agilent AX-65 air-cooled diffusion pump

Vacuum gauge:

Agilent PCG-750 Pirani Capacitance Diaphragm Gauge

Manifold:

Stainless steel with valves and KF fittings

---

Sealing Gaskets

All food-grade Viton gaskets

---

Electrical Control Cabinet

Includes:

• Wiper motor controller

• Gear pump controller

• Feeding tubing heater controller

• Residue discharge heater controller

• Main power switch

• Vacuum pump switch

• Diffusion pump switch

---

Mounting Frame

Heavy-duty stainless steel frame with swivel casters and leveling feet

---

Electrical Requirements

230V ±5V

Single phase

60Hz

(50Hz version available for Europe and Asia)

---

Dimensions & Weight

Unit dimensions:

86 × 25 × 78 in

Weight:

1150 lbs

---

Shipping Information

Crate:

97 × 31 × 81 in – 1197 lbs

Pallet:

40 × 48 × 42 in – 450 lbs

---

Compliance

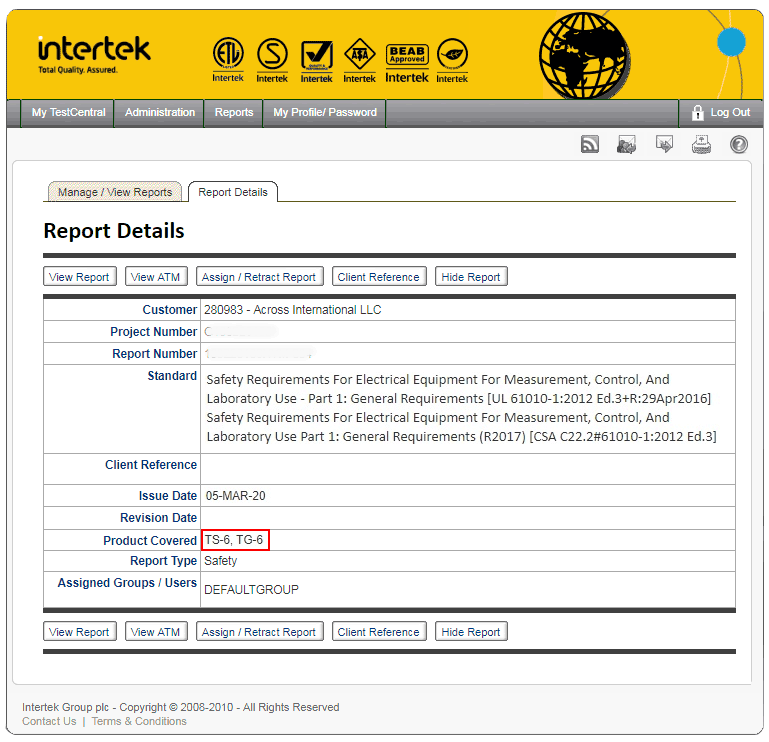

ETL tested to UL and CSA standards

---

Included Equipment

Chiller / Heater Systems

• Huber KISS 205B 200°C heater/chiller

• Huber CC-308B Pilot ONE 300°C heater

• Minichiller 600-H (-20°C to 100°C)

Vacuum System

• Welch CRVPro 30 vacuum pump

• Agilent AX-65 diffusion pump

• Agilent PCG-750 vacuum gauge

• Diffusion pump oil

Distillation Components

• TG-6 Thin Film Distillation System

• Glass cold trap

• Gear pump

• Stainless steel vacuum manifold

• KF fittings and tubing

Additional Accessories

• DURATHERM thermal transfer fluid (2 × 5-gallon)

• Antifreeze (3 × 1-gallon)

• 1L cold trap flasks (4)

• 10L receiving flasks (6)

• Viton gasket sets

• Needle valve

• Scissor jacks

• Flask clamps

• KF adapters and tubing

---

Warranty

1 Year Manufacturer Warranty
