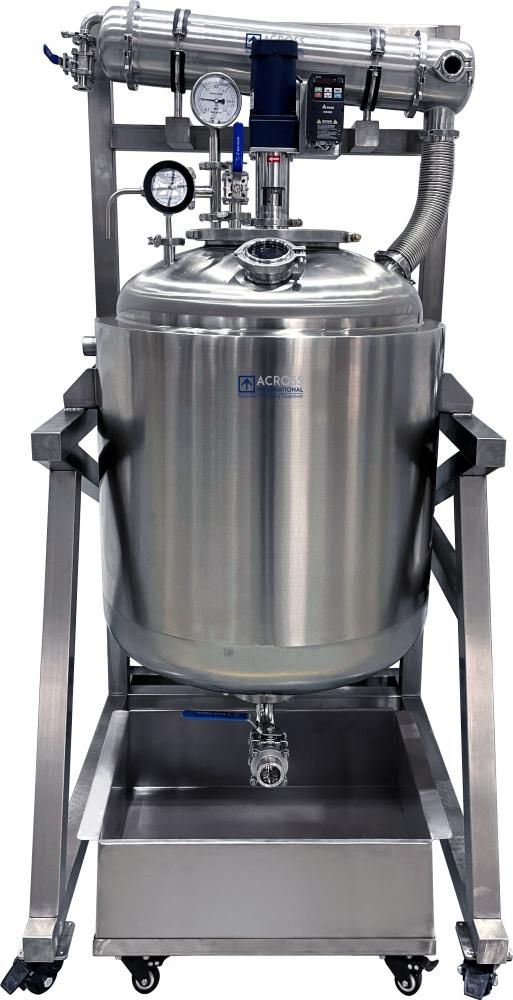

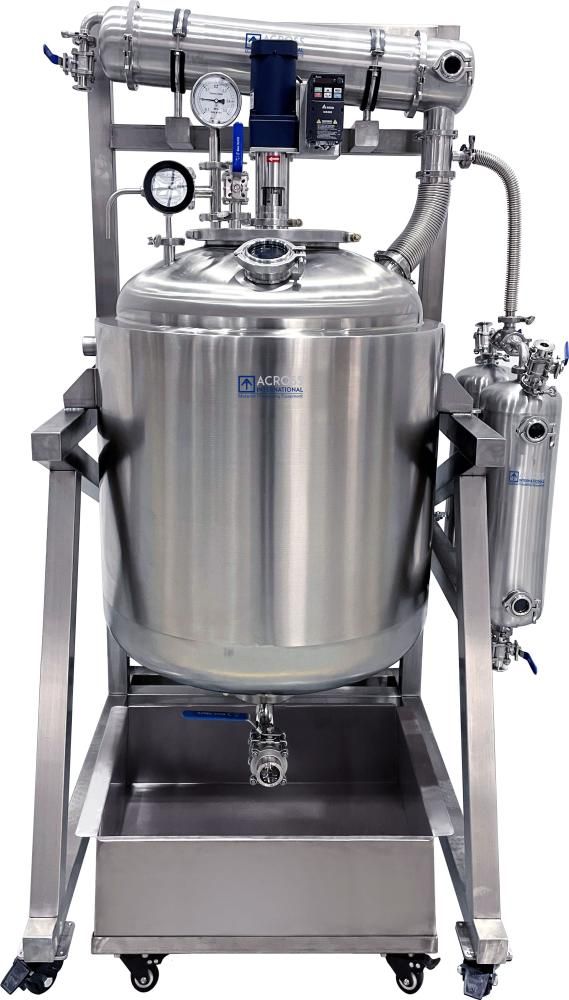

The Across International SR300 Stainless Steel Reactor is a large-scale industrial reactor system designed for pharmaceutical production, chemical synthesis, food processing, solvent recovery, and pilot-scale manufacturing.

Constructed with pharmaceutical-grade 316L stainless steel wetted components and an electropolished internal chamber, the SR300 provides exceptional durability, sanitary operation, and superior vacuum performance.

The system features a dual-jacket temperature control system, shell-and-tube condenser with 110 tubes, dual collection tanks, and a heavy-duty stainless steel frame, making it ideal for large-volume industrial processing environments.

Peer-reviewed models equipped with a pneumatic motor are approved for hazardous environments (C1D1).

---

Key Features

Pharmaceutical-Grade 316L Stainless Steel Construction

All wetted parts of the reactor vessel and lid are manufactured from 316L stainless steel, the industry standard for pharmaceutical and food processing.

Benefits include:

• Excellent corrosion resistance
• High chemical compatibility
• Long equipment lifespan
• Easy cleaning and sterilization

Structural components are manufactured from 304 stainless steel.

---

Electropolished Reactor Chamber

The reactor interior features an electropolished surface finish that improves sanitary performance and vacuum efficiency.

Electropolishing:

• Reduces surface roughness
• Smooths microscopic peaks and valleys
• Improves vacuum pressure performance
• Reduces out-gassing rates
• Improves pumping speed
• Reduces friction and wear
• Creates a semiconductor-grade sanitary surface

This finish is commonly required for pharmaceutical and food-grade processing applications.

---

Dual Jacket Temperature Control System

The SR300 reactor features a dual-jacket design with sealed insulation jacket.

Benefits include:

• Superior thermal efficiency
• Precise temperature control
• Reduced energy loss
• Consistent reaction performance

Center Fluid Jacket

• Capacity: 50 liters
• Pressure rating: 20 PSI

---

High-Efficiency Shell & Tube Condenser

The SR300 includes a shell-and-tube condenser with 110 tubes, designed for maximum condensation efficiency.

Specifications

• Condensing area: 1 m²
• Horizontally mounted condenser for lower center of gravity
• Top-mounted vacuum port for improved vapor flow

Flexible bellow connections reduce the risk of shipping damage.

---

Dual Collection Tank System

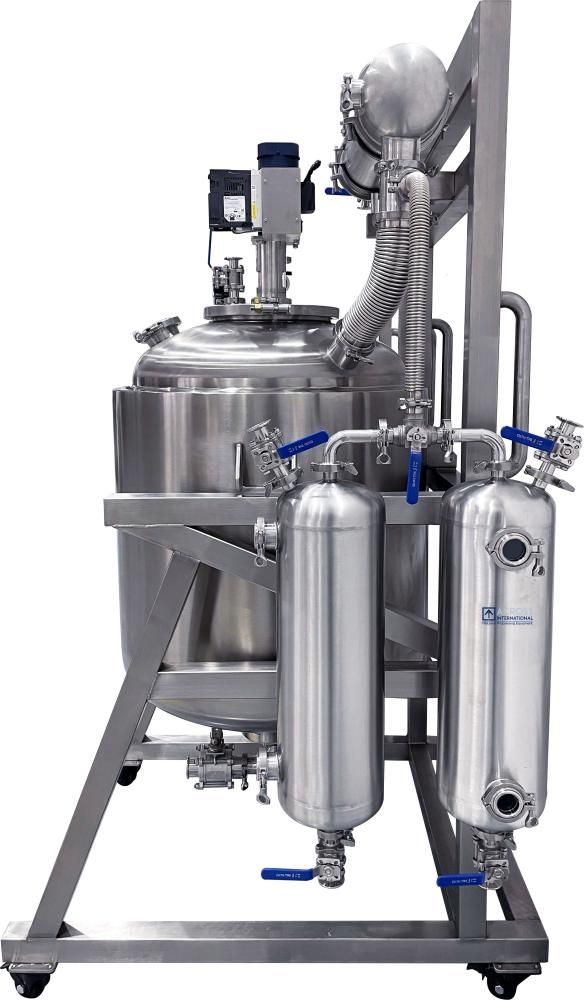

The system includes two 20L collection tanks with large sight glasses, allowing operators to drain condensate without breaking vacuum.

Collection Tank Options

• Option 1: 20L × 2 stainless tanks with manifold

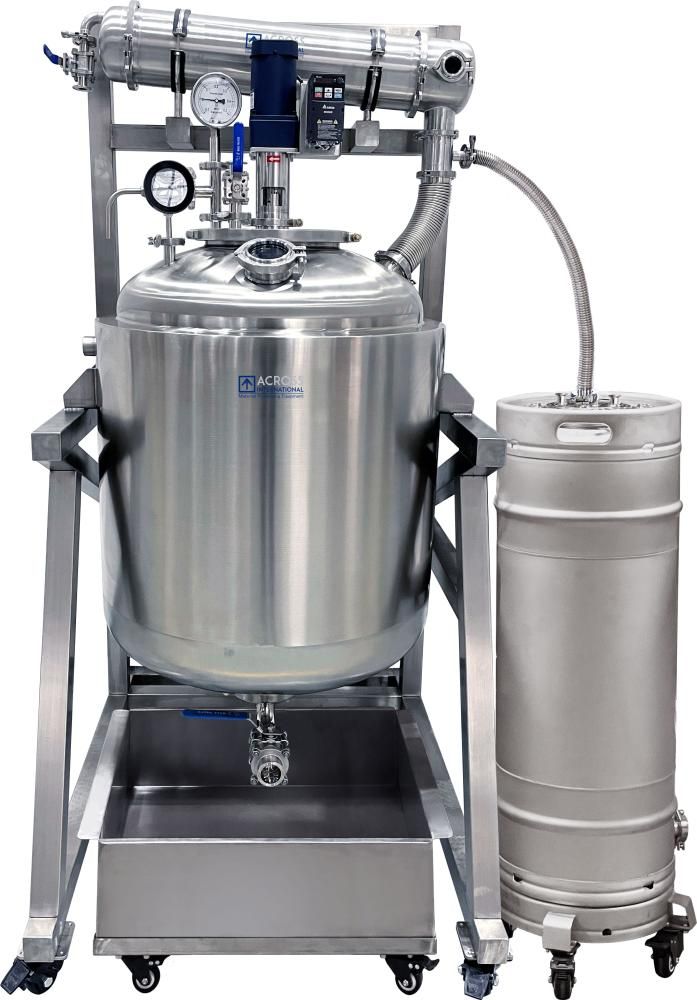

• Option 2: 50L stainless tank with dolly
• Option 3: 100L stainless tank with dolly

Large sight glasses allow process monitoring during operation.

---

Heavy-Duty Industrial Frame

The SR300 reactor is mounted on a 2.5 × 2.5 inch heavy-duty stainless steel frame with swivel casters for mobility.

Drain Port Clearance

• Drain port: 19.5 inches
• Drain valve: 14 inches

High clearance allows easy draining and filtration integration.

---

Stirring Motor Options

Electric Stirring Motor

• Voltage: 220V, 50/60Hz
• Power: 200W (1/4 HP)
• Maximum speed: 450 RPM
• Starting torque: 3.0 N·m
• Rated torque: 1.54 N·m

Controller

• Delta controller – UL listed

---

Pneumatic Stirring Motor (C1D1 Compatible)

Optional pneumatic motor configuration allows safe operation in hazardous environments.

Specifications

• Power: 1/4 HP
• Maximum speed: 450 RPM
• Air pressure: 30–80 PSI

Approved solvents include:

• Acetone
• Ethanol
• Heptane
• Hexane
• Isopropyl alcohol
• Methanol
• Pentane

---

Reactor Specifications

Main Vessel Volume

• 300 liters

Minimum Fill Volume

• 60 liters

Material

• 316L stainless steel (wetted components)

Interior Finish

• Electropolished

---

Agitator

Structure

• Dual-layer 3-blade propeller

Material

• 316L stainless steel

---

Temperature & Vacuum Performance

Temperature Range

• -55°C to +250°C
• -67°F to +482°F

Ultimate Vacuum Level

• 1 Torr

Sealing Gaskets

• Food-grade Viton

---

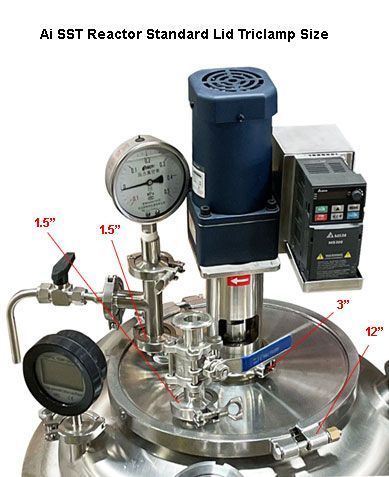

Port Configuration

Lid Port

• 12 inch tri-clamp

Motor Port

• 3 inch tri-clamp

Drain Port

• 6 inch tri-clamp

Drain Valve

• 2 inch tri-clamp

Vacuum Port

• 1.5 inch tri-clamp

Condenser Cooling Port

• 1/2 inch female NPT

Jacket Recirculation Port

• 1 inch female NPT

Collection Tank Lid

• 6 inch tri-clamp ×1
• 1.5 inch tri-clamp ×4

---

Dimensions

Without Receiving Flasks

• 38 × 47 × 81 inches

With Receiving Flasks

• 51 × 47 × 81 inches

---

Shipping Information

Shipping Dimensions

• 48 × 38 × 88 inches

Shipping Weight

• 770 lbs / 990 lbs

---

Certifications

• ETL tested to UL and CSA standards
• Optional C1D1 peer review by PSI

---

Ideal Applications

The SR300 reactor is commonly used for:

• Pharmaceutical production
• Chemical synthesis
• Cannabis extraction processing
• Food processing applications
• Petrochemical research
• Pilot-scale manufacturing
• Semiconductor and high-purity processing

---

What's Included

• SR300 stainless steel reactor base with vessel
• Electric motor with controller or pneumatic motor
• Compressed air regulator (pneumatic models)
• Battery-operated thermocouple
• Vacuum gauge
• Shell-and-tube condenser with sight glass
• Dual 20L collection tanks with sight glasses
• Stainless steel reactor frame with casters
• Tri-clamp adapters and bellows connectors
• Ball valves and elbows
• Reactor insulation jacket
• Sight glass assembly
• Tri-clamps and Viton gaskets
• User manual

---

Important Safety Notice

Across International is not responsible for damage caused by caustic chemicals affecting stainless steel components.

Always:

• Use manufacturer-recommended thermal fluids in heaters or chillers
• Allow sufficient expansion space in heating reservoirs
