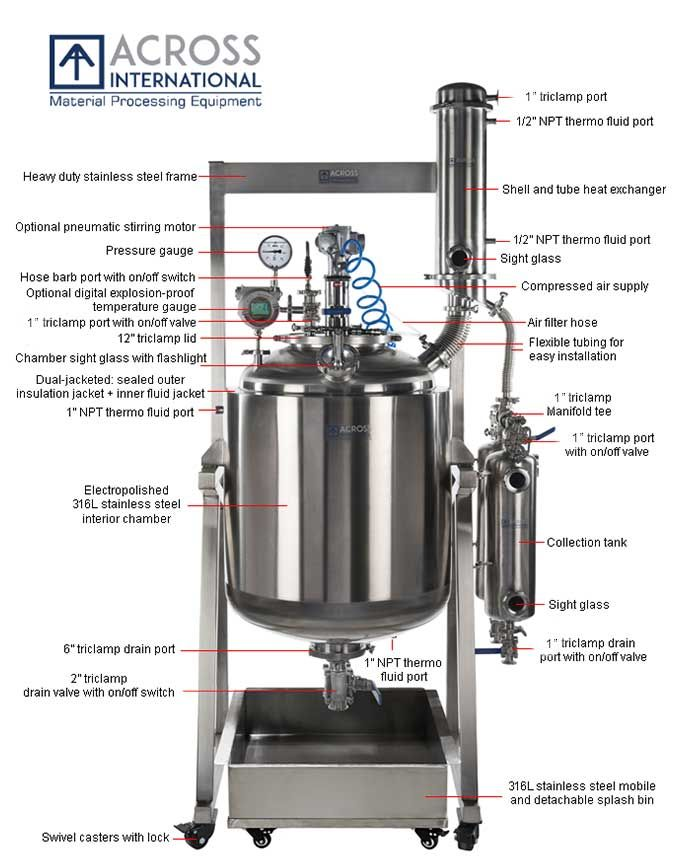

The Across International SR200 Stainless Steel Reactor is a large-capacity processing reactor designed for pharmaceutical production, chemical synthesis, cannabis extraction processing, food-grade processing, and pilot-scale manufacturing environments.

Built with pharmaceutical-grade 316L stainless steel wetted components and an electropolished internal chamber, the SR200 provides exceptional corrosion resistance, sanitary operation, and superior vacuum performance.

This reactor system features a dual-jacket temperature control system, shell-and-tube condenser with 70 tubes, and a heavy-duty stainless steel frame with integrated stirring motor controller, making it ideal for large-scale laboratory and industrial applications.

Peer-reviewed configurations are available for C1D1 hazardous environments when equipped with the pneumatic motor system.

---

Key Features

Pharmaceutical-Grade 316L Stainless Steel Construction

All wetted components of the main vessel and lid are constructed from 316L stainless steel, the industry standard for sanitary processing.

Benefits include:

• Excellent corrosion resistance
• Food and pharmaceutical compatibility
• Long equipment lifespan
• Easy sterilization and cleaning

Structural components are manufactured from 304 stainless steel.

---

Electropolished Internal Chamber

The reactor chamber features an electropolished interior surface.

Electropolishing:

• Reduces surface roughness
• Levels microscopic peaks and valleys
• Improves vacuum performance
• Reduces out-gassing rates
• Improves pumping speed
• Reduces friction and wear
• Creates a semiconductor-grade sanitary surface

This finish is essential for pharmaceutical and food processing applications.

---

Dual Jacket Temperature Control

The SR200 reactor includes a dual jacket system with sealed outer insulation jacket.

Benefits include:

• Superior thermal efficiency
• Improved temperature control inside the chamber
• Reduced energy loss
• Consistent reaction performance

---

High-Efficiency Shell & Tube Condenser

The reactor features a shell-and-tube condenser with 70 tubes, providing excellent vapor condensation performance.

Specifications:

• Condensing surface area: 0.89 m²
• Top-mounted vacuum port for improved vapor flow
• Flexible bellow connection reduces shipping damage

---

Dual Collection Tank System

The reactor includes dual collection tanks with large sight glasses, allowing operators to drain solvent without breaking vacuum.

Collection Tank Options

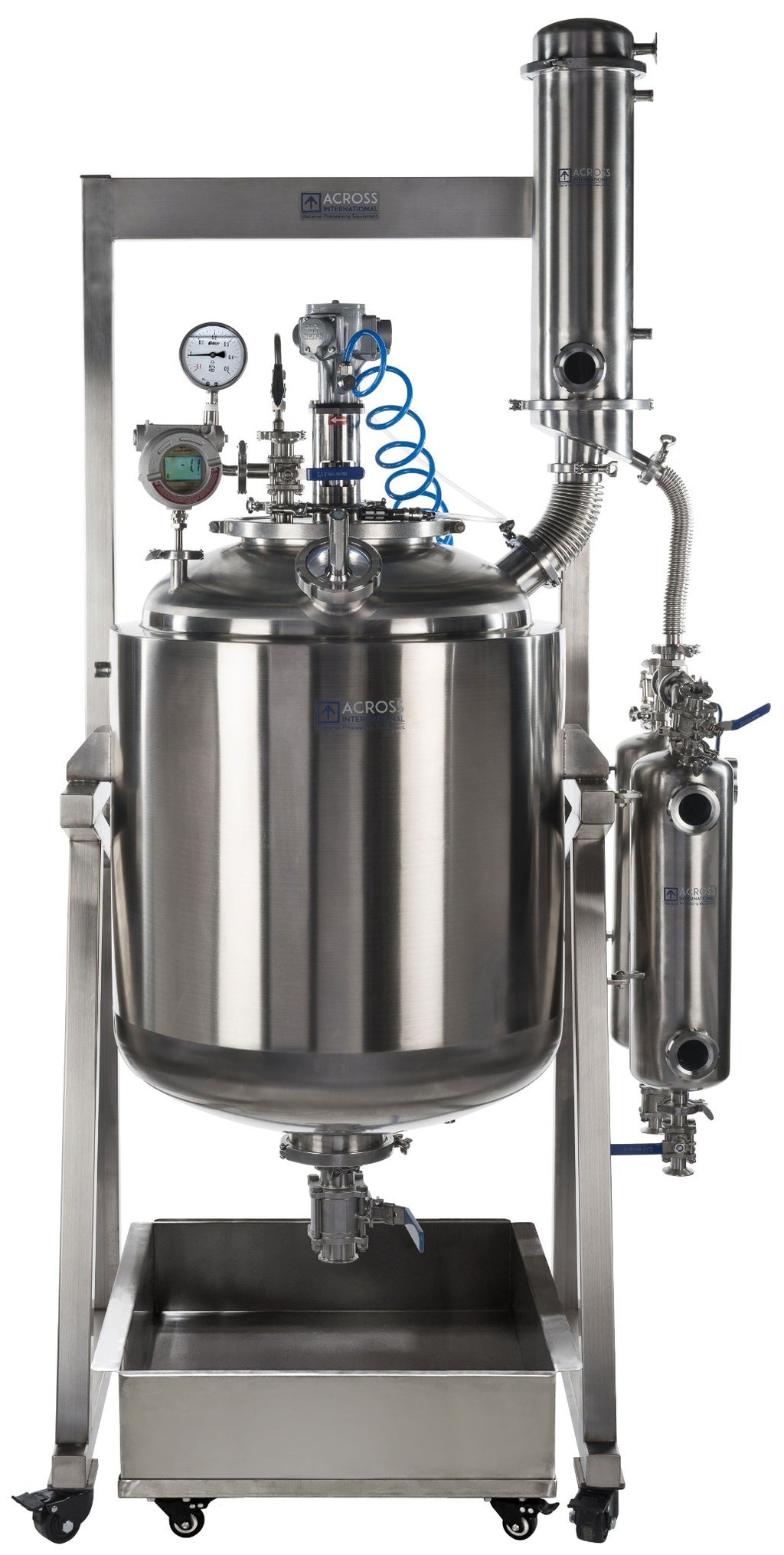

• Option 1: 10L × 2 stainless steel tanks with manifold

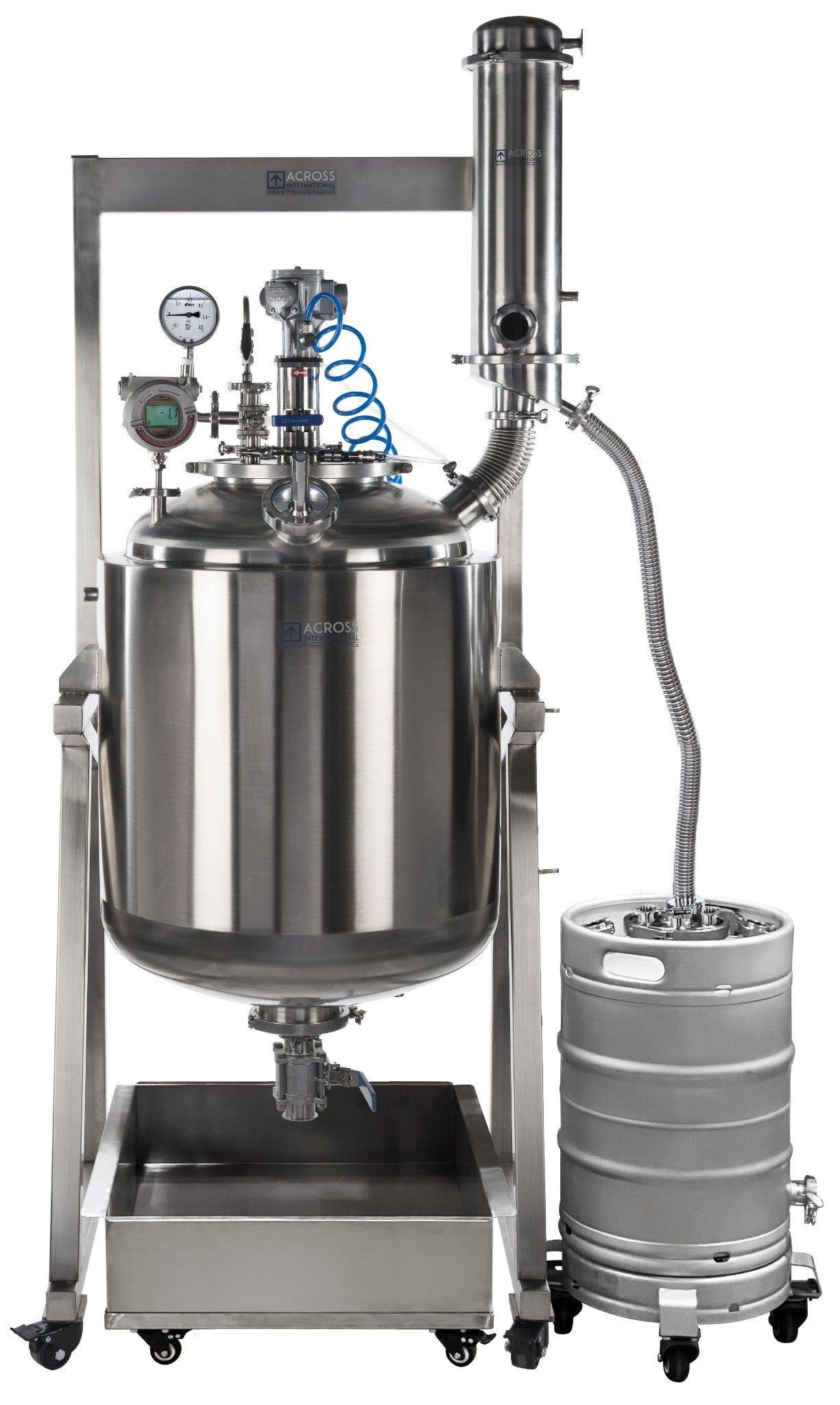

• Option 2: 50L tank with mobile dolly

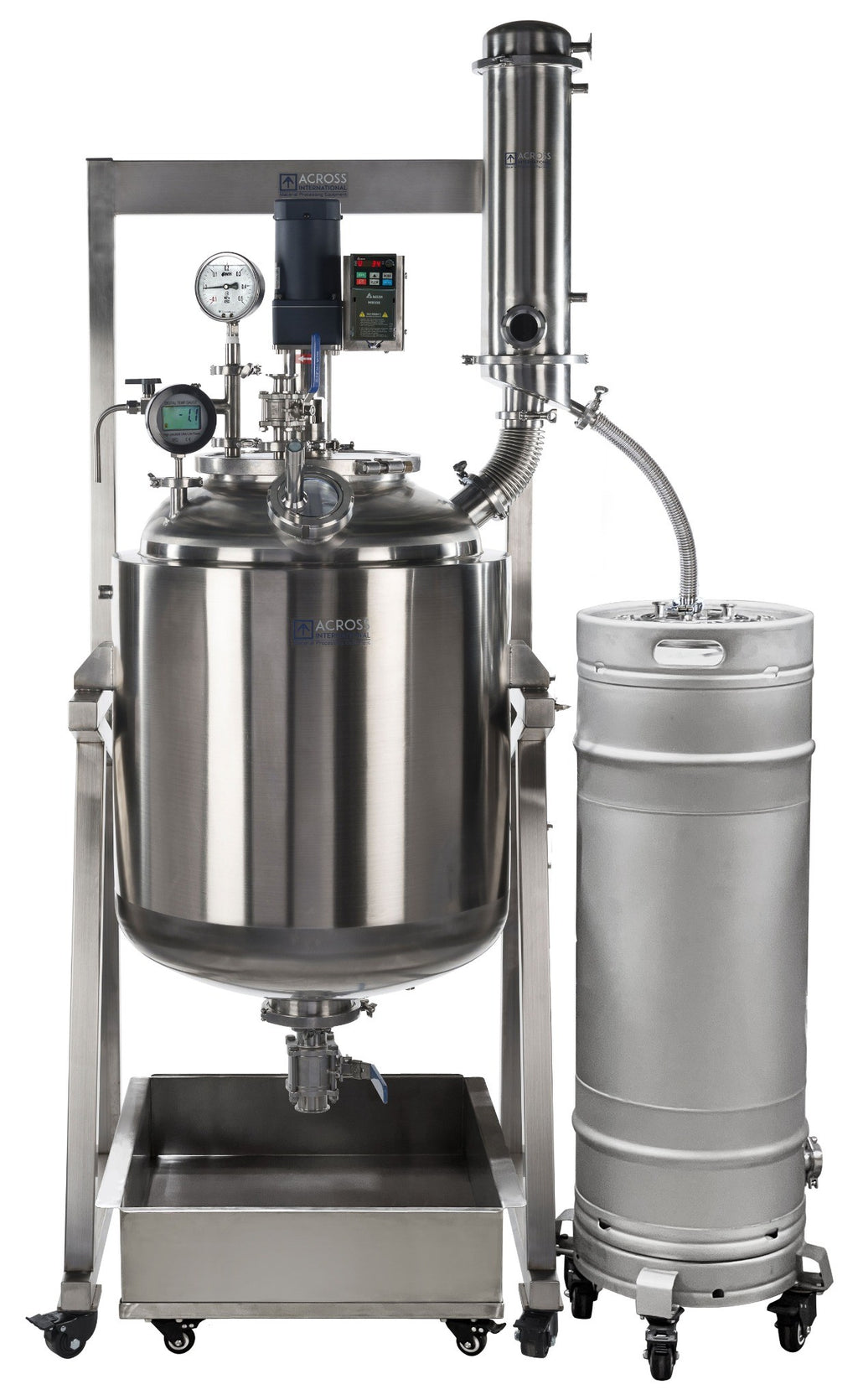

• Option 3: 100L tank with mobile dolly

Large sight glasses allow process monitoring during operation.

---

Integrated Stirring Motor Controller

The system includes a space-saving integrated motor controller, eliminating excess wiring and improving system organization.

---

Stirring Motor Options

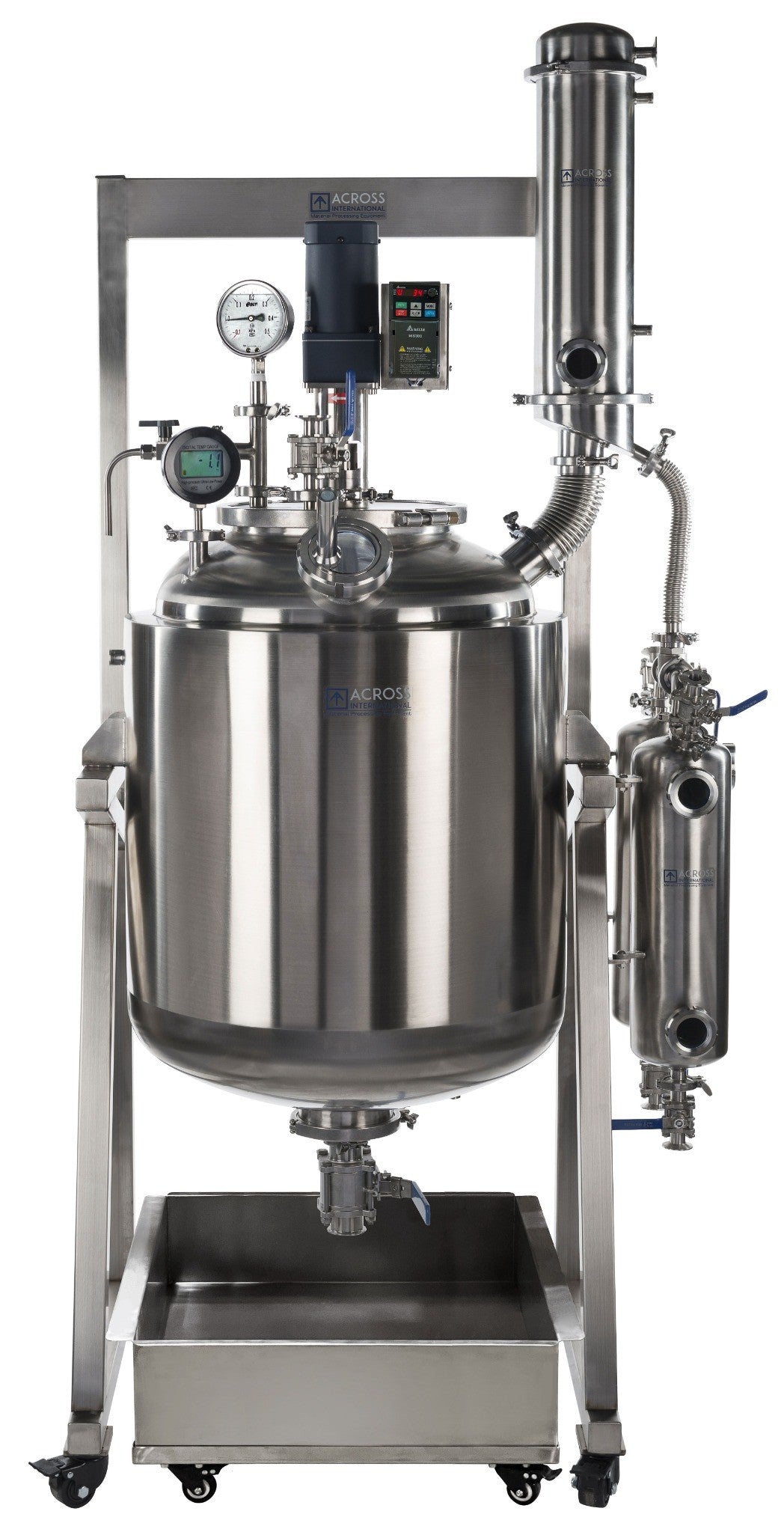

Electric Stirring Motor

• Voltage: 220V, 50/60Hz
• Power: 200W (1/4 HP)
• Maximum speed: 450 RPM
• Starting torque: 3.0 N·m
• Rated torque: 1.54 N·m

Controller:

• Delta controller – UL listed

---

Pneumatic Stirring Motor (C1D1 Compatible)

Optional pneumatic motors allow safe operation in hazardous environments.

Specifications:

• Power: 1/4 HP
• Maximum speed: 450 RPM
• Air pressure: 30–80 PSI

Peer-reviewed systems are approved for use with:

• Acetone
• Ethanol
• Heptane
• Hexane
• Isopropyl alcohol
• Methanol
• Pentane

Peer review lead time: 4 weeks

---

Reactor Specifications

Main Vessel Capacity

• 200 liters

Minimum Fill Volume

• 40 liters

Material

• 316L stainless steel (wetted components)

Interior Finish

• Electropolished

---

Agitator

Structure

• Dual-layer 3-blade propeller

Material

• 316L stainless steel

---

Jacket System

Center Fluid Jacket

• 35 liters

Material

• 304 stainless steel

Outer Insulation Jacket

• Sealed design
• 304 stainless steel

---

Temperature & Vacuum Performance

Temperature Range

• -55°C to +250°C
• -67°F to +482°F

Ultimate Vacuum Level

• 1 Torr

Sealing Gasket

• Food-grade Viton

---

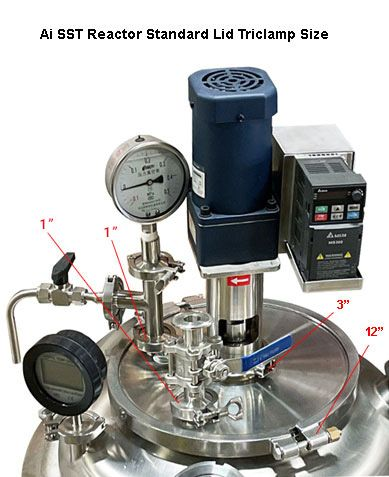

Port Configuration

Lid Port

• 12" tri-clamp

Motor Port

• 3" tri-clamp

Drain Port

• 6" tri-clamp

Drain Valve

• 2" tri-clamp

Vacuum Port

• 1" tri-clamp

Condenser Recirculation

• 1/2" female NPT

Jacket Recirculation

• 1" female NPT

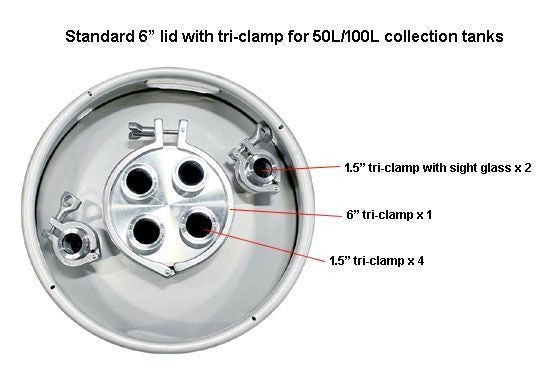

Collection Tank Lid

• 6" tri-clamp ×1
• 1.5" tri-clamp ×4

---

Dimensions

Without Condenser

• 34 × 32 × 80 inches

With Condenser

• 44 × 32 × 91 inches

---

Shipping Information

Shipping Dimensions

• 50 × 40 × 90 inches

Shipping Weight

• 570 lbs / 890 lbs

---

Frame Construction

Heavy-duty frame built from 2" × 2" 304 stainless steel, mounted on four swivel casters.

Drain Port Ground Clearance

• 19.5 inches

Drain Valve Clearance

• 14 inches

---

Certifications

• ETL tested to UL and CSA standards
• C1D1 peer review by PSI (optional)

---

Ideal Applications

Large stainless reactors are commonly used for:

• Pharmaceutical production
• Chemical synthesis
• Cannabis extraction processing
• Food processing applications
• Petrochemical research
• Pilot-scale manufacturing
• Semiconductor and high-purity processing

---

What's Included

• SR200 base with stainless steel reactor vessel
• Electric motor with controller or pneumatic motor
• Compressed air regulator (pneumatic models)
• Battery-operated thermocouple
• Vacuum gauge
• Shell-and-tube condenser
• Dual collection flasks with sight glasses
• Tri-clamp bellows connectors
• Tri-clamp ball valves
• Tri-clamp elbows and adapters
• Stainless steel frame with casters
• Tri-clamps and Viton gaskets
• Drain valve assembly
• User manual

---

Important Safety Notice

Across International is not responsible for damage caused by caustic chemicals affecting stainless steel components.

Always:

• Use manufacturer-recommended thermal fluids in heaters or chillers
• Allow sufficient expansion space in heating reservoirs
