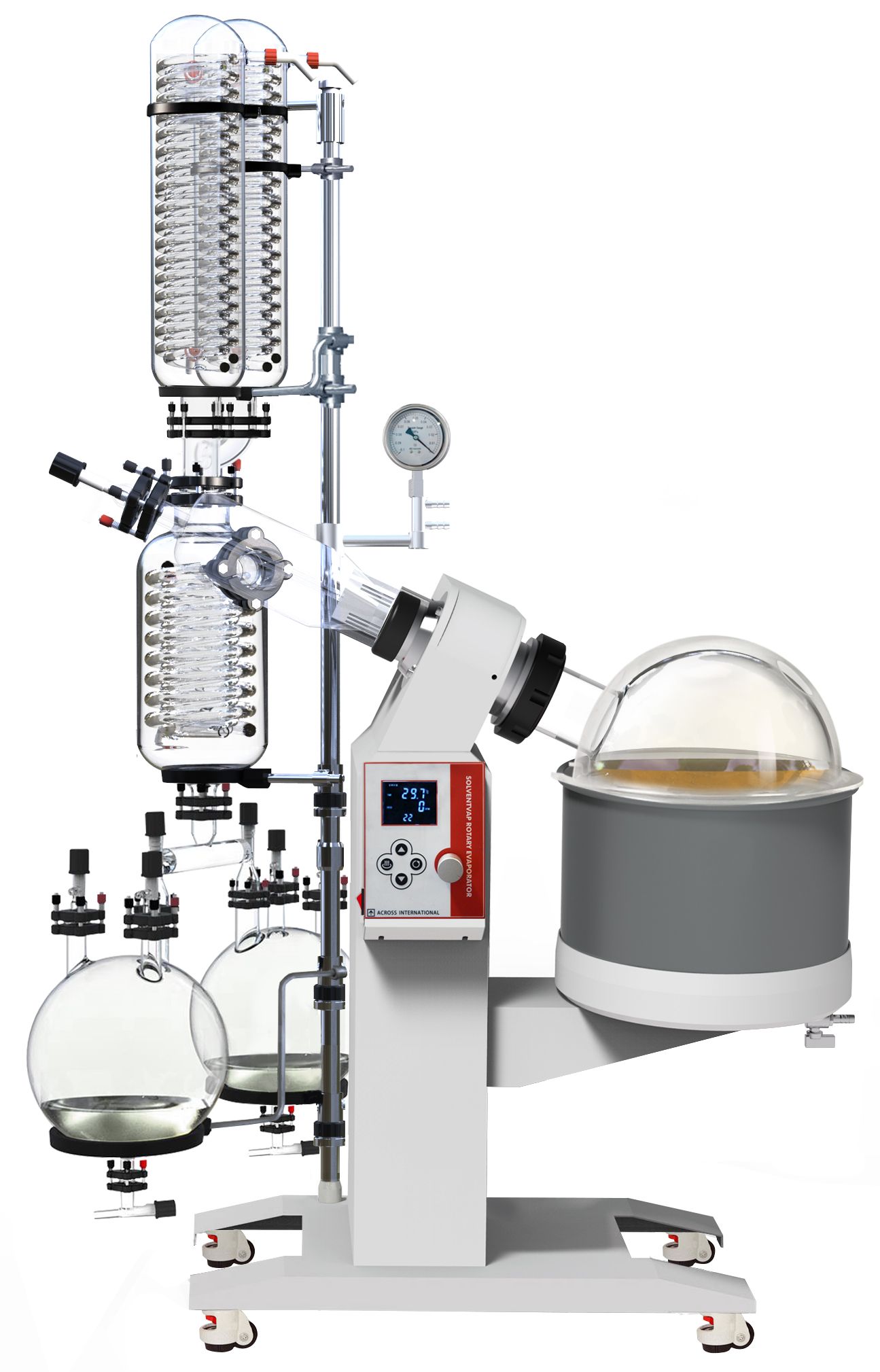

The Across International SolventVap 10L Rotary Evaporator is a large-capacity laboratory rotovap system designed for efficient solvent evaporation, distillation, and pilot-scale chemical processing. ETL tested to UL and CSA safety standards, this professional rotary evaporator delivers reliable performance and enhanced safety for laboratories and production environments requiring certified equipment.

Built with high borosilicate glass 3.3, solvent-resistant PTFE valves, and Viton sealing gaskets, the SolventVap 10L is engineered for long-term durability in demanding laboratory conditions. The system features digital temperature and rotation control, a motorized lifting water bath, and a dual vertical condenser system designed to maximize solvent condensation efficiency.

The condenser assembly includes both main and auxiliary triple-circulating condensers, providing an exceptionally large condensing surface area for efficient vapor recovery, even when processing higher boiling solvents or larger solvent volumes.

---

Key Features

Large Capacity 10L Rotary Evaporator

• Designed for medium-to-large scale solvent evaporation

• Ideal for extraction labs, pharmaceutical research, and chemical processing

• Handles significantly larger solvent volumes than standard benchtop rotovaps

---

ETL Tested to UL & CSA Standards

• Certified to UL 61010 laboratory equipment standards

• Meets safety requirements for many regulated laboratory environments

• Provides enhanced operational safety

---

Dual Condenser System

• Main + auxiliary triple-circulating condensers

• Maximizes condensation efficiency

• Ideal for high-volume solvent evaporation

Condensing Surface Area

• Main condenser: 3,900 cm² (4.2 sq ft)

• Auxiliary condenser: 2,530 cm² (2.7 sq ft)

---

Digital Temperature & Rotation Control

• Digital temperature control with PID controller

• Adjustable rotation speed

• Easy-to-read digital display

---

Motorized Water Bath Lift

• Motorized lifting mechanism for precise positioning

• Maximum lift distance: 4 inches

• Allows safe flask removal and adjustment

---

Solvent-Resistant Construction

• PTFE valves and seals

• Viton vacuum gaskets

• Chemical resistant glass components

---

Reduced Height Design

• Lower assembled height

• Easier installation and storage

• Improved laboratory ergonomics

---

Safety Features

• Dry-run protection

• Water bath over-temperature shutoff

• Built-in circuit breakers

• PTFE/Viton solvent-resistant sealing system

• Stable base with locking swivel casters

---

Ideal Applications

• Cannabis extraction labs

• Pharmaceutical research laboratories

• Chemical distillation

• Solvent recovery

• Pilot-scale chemical production

• Research and development laboratories

---

Electrical Requirements

Voltage

• 220V

Frequency

• 50 / 60 Hz

Power

• 3800 Watts

Current

• 17.3 Amps

Rotation Motor

• 300 Watts

Power Plug

• NEMA L6-30 30A 250V

---

Glassware Specifications

Glass Material

• High borosilicate glass 3.3

Evaporating Flask

• Capacity: 10 liters (2.6 gallons)

• Maximum load: 60% of flask capacity

• Sealing flange diameter: 4.9 inches

Receiving Flask

• 5 liters (1.3 gallons)

---

Rotation & Evaporation Performance

Rotation Speed

• 10 – 130 RPM

Evaporation Rate

• 0.75 gallon/hour (water)

• 1.5 gallon/hour (alcohol)

---

Condenser System

Condenser Type

• Vertical main and auxiliary triple-circulating condensers

Cooling Connections

• 3/8" hose barb × 4

  • 2 on main condenser

  • 2 on auxiliary condenser

---

Heating Bath

Temperature Range

• Ambient to 99°C (210°F)

Controller

• Digital PID controller

Bath Material

• Stainless steel

Bath Dimensions

• 12.5" diameter × 8.7" depth × 11" height

Heating Media

• Distilled water only

Maximum Water Level

• 1 inch below rim

Number of Heaters

• 2

Drain Port

• 1

---

Vacuum System

Vacuum Level

• < 3 torr

Connection

• 3/8" hose barb

Sealing System

• PTFE + Viton gaskets

---

Operating Environment

Recommended Temperature Range

• 5°F – 95°F

---

Dimensions & Weight

Unit Dimensions

• 36 × 22 × 67 inches

Shipping Dimensions

Evaporator

• 39 × 22 × 44 inches

Glassware

• 30 × 25 × 28 inches

Shipping Weight

Evaporator

• 200 lbs

Glassware

• 100 lbs

---

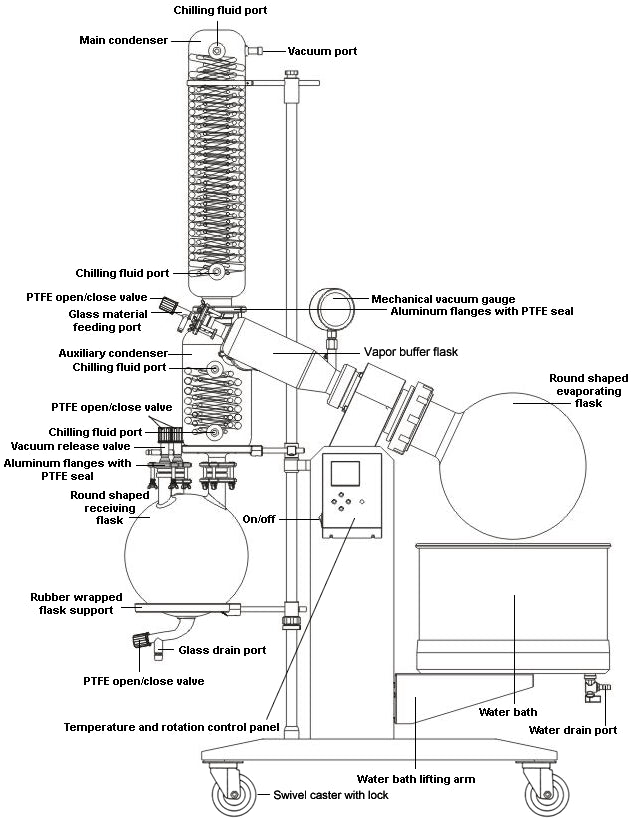

What's Included

• 1 × SolventVap 10L Rotary Evaporator with Water Bath

• 1 × Vapor Filtering Bottle

• 2 × Evaporation Flask Seal & Positioners

• 1 × Evaporation Flask Cap

• 2 × Vertical Condensers (Main + Auxiliary)

• 1 × 10L Evaporating Flask

• 1 × 5L Receiving Flask with Drain Port

• 1 × Three-Way Vapor Buffering Flask

• 1 × Three-Way Vapor Cap

• 1 × Glass Vapor Duct with Seal

• 2 × PTFE Vacuum Sealing Kits

• 2 × Receiving Flask Vacuum Ports with PTFE Valves

• 1 × Material Feeding Port with PTFE Valve

• 1 × PTFE Extension Feeding Hose

• 1 × Receiving Flask Drain Port with PTFE Valve

• 2 × Stainless Steel Support Poles

• 1 × Mechanical Vacuum Gauge

• 3 × Rubber-Wrapped Condenser Supports

• 1 × Receiving Flask Support

• 7 × Flask Quick Clamps with Centering Rings

• 8 × Centering Rings

• 5 × GL18 Connectors with Gaskets

• 1 × Evaporating Flask Cap Spanner

• 5 × Allen Keys and Screws

• 1 × Stainless Steel Flask Carrier

• 1 × Plexiglass Bath Cover

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

Warranty excludes glassware and sealing gaskets.

Glassware may contain minor cosmetic blemishes that do not affect functionality.
