Description

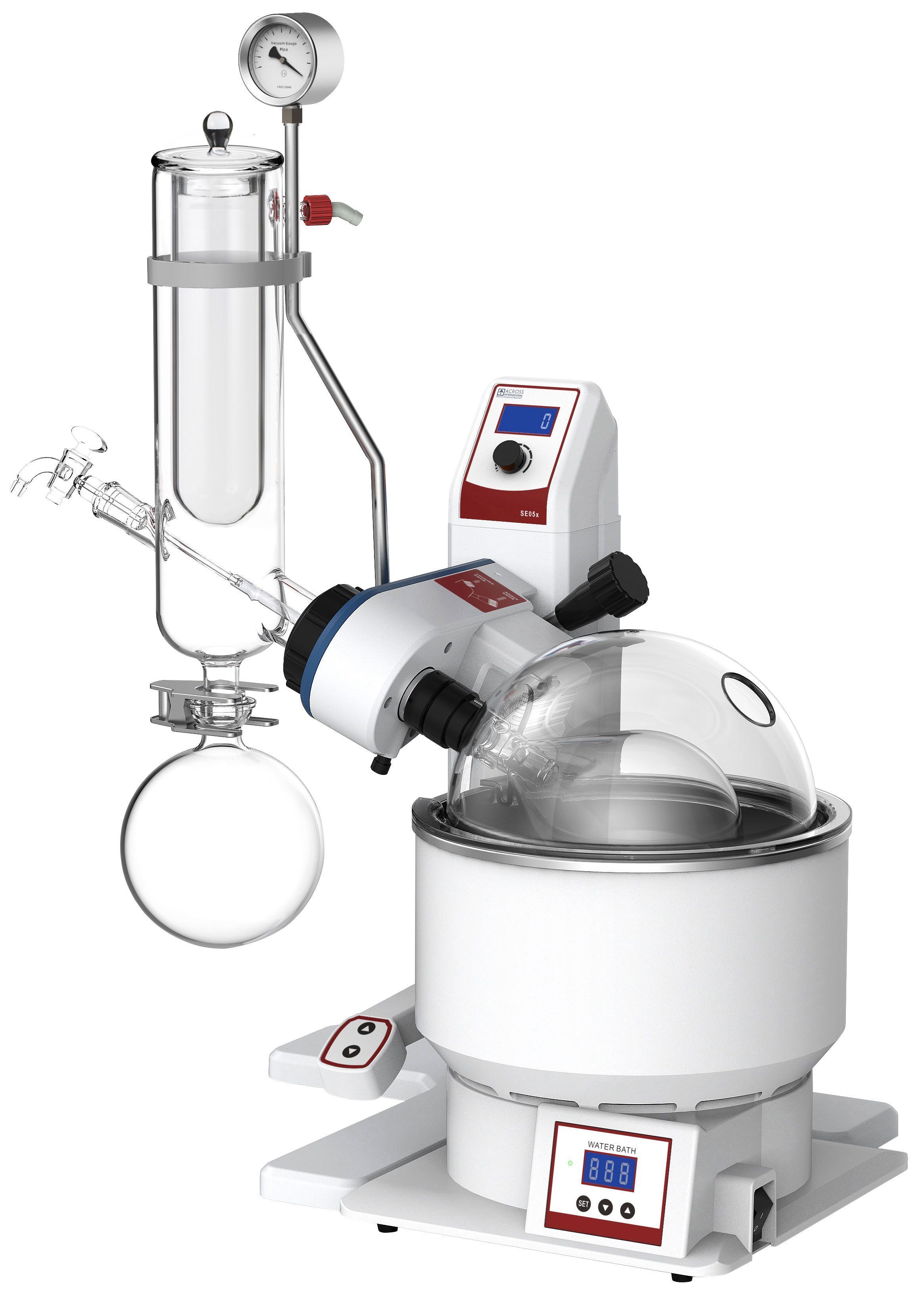

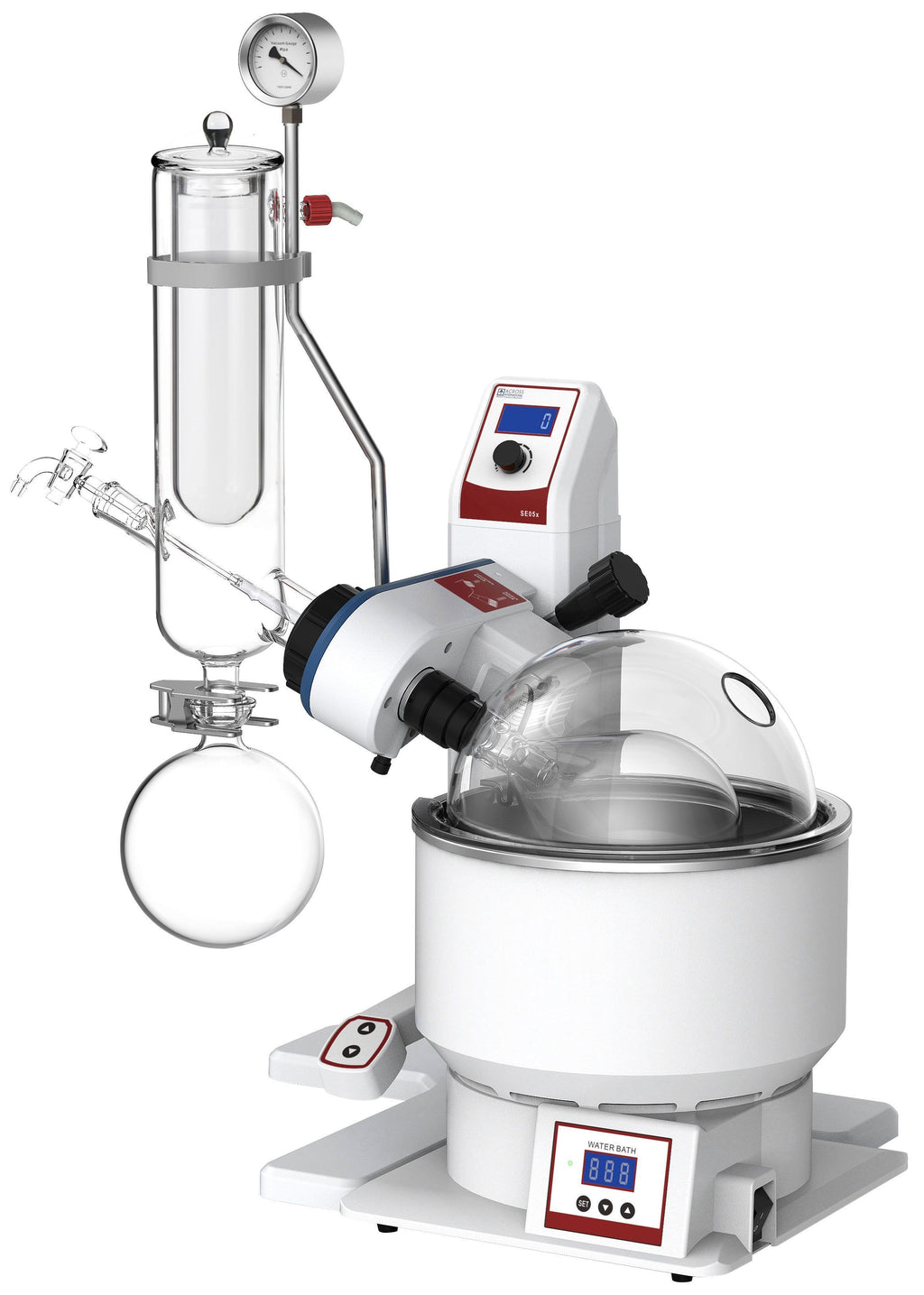

The Across International SolventVap 2L Rotary Evaporator is a high-performance laboratory rotovap system designed for efficient solvent removal and distillation. Featuring a digital temperature-controlled water bath, manual lift mechanism, and a vertical cold trap condenser, this system provides reliable and reproducible evaporation results while maintaining a compact benchtop footprint.
Unlike traditional condenser systems that require a recirculating chiller, the cold trap condenser design allows the use of dry ice, providing highly efficient condensation while reducing equipment costs and simplifying setup.
The SolventVap system is constructed with high borosilicate glass 3.3, providing excellent chemical resistance and durability for demanding laboratory environments. Safety features such as dry-run protection, water bath over-temperature shutoff, and fuse protection ensure safe operation during continuous laboratory use.
Key Features
Complete 2L Rotary Evaporator System
-
Compact benchtop rotovap system
-
Ideal for laboratory solvent evaporation and distillation
-
Designed for consistent and reproducible results
Cold Trap Condenser Design
-
Utilizes dry ice instead of a recirculating chiller
-
Reduces equipment cost and system complexity
-
Efficient vapor condensation
Digital Temperature & Speed Control
-
Digital heating bath temperature display
-
Adjustable rotation speed
-
Easy visual operation
Modular Design
-
Separate rotary evaporator and water bath modules
-
Easy upgrades and maintenance
-
Flexible laboratory configuration
Quiet, Stable Operation
-
Precision worm gear drive system
-
Extremely quiet motor
-
Low vibration operation
Safety Features
-
Dry-run protection
-
Water bath over-temperature shutoff
-
Electrical fuse protection
-
PTFE and Viton solvent-resistant sealing system
Important Safety Notice
Users must avoid contact with rotating parts during operation. Loose clothing, jewelry, or hair can become entangled in rotating components. Proper safety precautions should always be followed when operating glass reaction equipment.
What Is a Rotary Evaporator?
A rotary evaporator (rotovap) is a laboratory instrument used for the efficient removal of solvents from chemical samples through evaporation under reduced pressure. Rotary evaporation is commonly used to remove low boiling point solvents such as hexane, ethanol, or ethyl acetate from chemical mixtures.
The combination of rotation, controlled heating, and vacuum pressure allows solvents to evaporate quickly and gently without degrading temperature-sensitive compounds.
Ideal Applications
-
Solvent evaporation
-
Chemical distillation
-
Cannabis extraction labs
-
Pharmaceutical research
-
Academic chemistry laboratories
-
Sample concentration
Electrical Requirements
-
110V
-
60 Hz
-
Single Phase
-
1340 Watts
Power Breakdown:
-
Heater: 1300 watts
-
Rotation motor: 40 watts
Glassware Specifications
Glass Material:
-
High borosilicate glass 3.3
Evaporating Flask Options:
-
0.5L
-
1L
-
2L
Maximum Load:
-
Not to exceed 60% of flask capacity
Receiving Flask:
-
1L round-bottom receiving flask
Rotation & Evaporation Performance
Rotation Speed:
-
10 – 280 RPM
Evaporation Rate:
-
Up to 20 ml per minute
Lift System
Lift Type:
-
Manual weight-balancing lift
Maximum Lift Distance:
-
4 inches
-
Extendable to 10 inches
Condenser System
Type:
-
Vertical cold trap condenser
Cooling Method:
-
Dry ice
Vacuum Connection:
-
3/8" hose barb

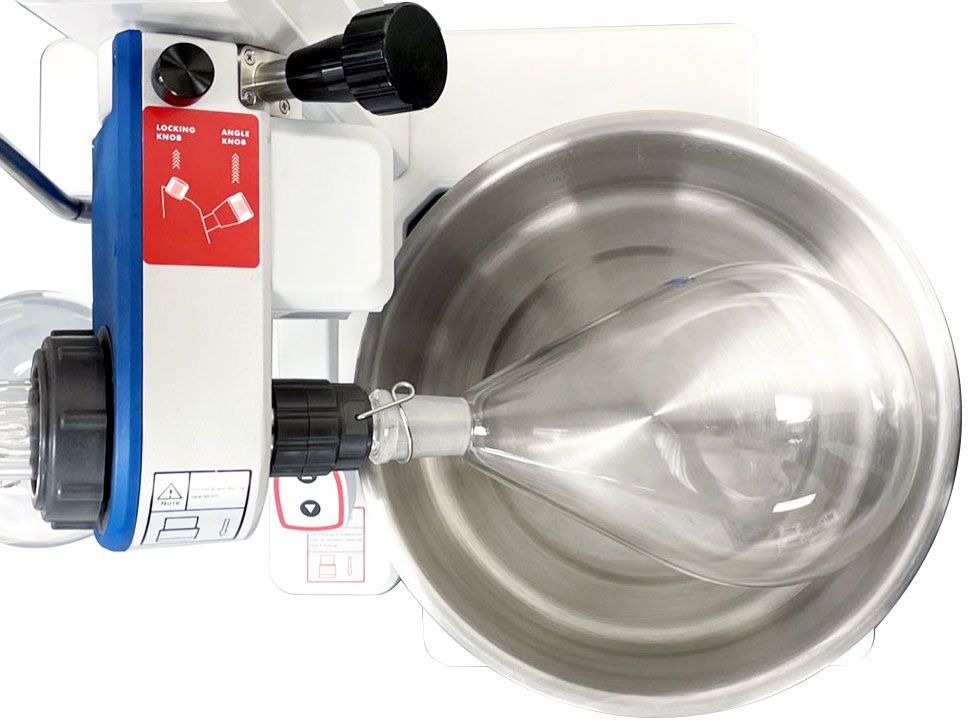

Heating Bath
Temperature Range:
-
Ambient to 95°C
Controller:
-
Digital PID controller
Capacity:
-
6.5 liters
Material:
-
Stainless steel
Bath Dimensions:
-
10" diameter × 5" depth × 9.75" height
Heating Media:
-
Distilled water only
Maximum Water Level:
-
1 inch below rim
Vacuum System
Vacuum Connection:
-
3/8" hose barb
Sealing System:
-
PTFE + Viton gaskets
Ultimate Vacuum:
-
< 3 torr
Operating Environment
Recommended Temperature Range:
-
5°F – 95°F
Dimensions & Weight
Unit Dimensions
-
22 × 12.5 × 26 inches
Shipping Dimensions
-
26 × 21 × 29 inches
Weight
-
Unit Weight: 21 lbs
-
Shipping Weight: 40 lbs
What's Included
-
1 × Rotary Evaporator Body with Electric Flask Lift
-
1 × Digital Water Bath
-
1 × Vertical Cold Trap Condenser with Lid
-
1 × 2L Pear-Shaped Evaporating Flask
-
1 × 1L Receiving Flask
-
1 × Glass Vapor Duct with Seal
-
1 × Material Feeding Tube with Valve
-
1 × PTFE Extension Feeding Hose
-
1 × PTFE Vacuum Sealing Kit
-
2 × Condenser Cap Kits
-
2 × Glass Shaft Caps and Flask Quick Release
-
1 × Condenser Support Bracket
-
1 × Condenser Support Screw
-
1 × Receiving Flask Ball Joint Clamp
-
1 × GL14 Connector
-
1 × Mechanical Vacuum Gauge
-
1 × Plexiglass Water Bath Cover
-
1 × 110V Power Cord
-
1 × Phillips Screwdriver
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
Warranty excludes glassware and sealing gaskets.
Minor cosmetic blemishes in glassware may occur but do not affect performance.
