Description

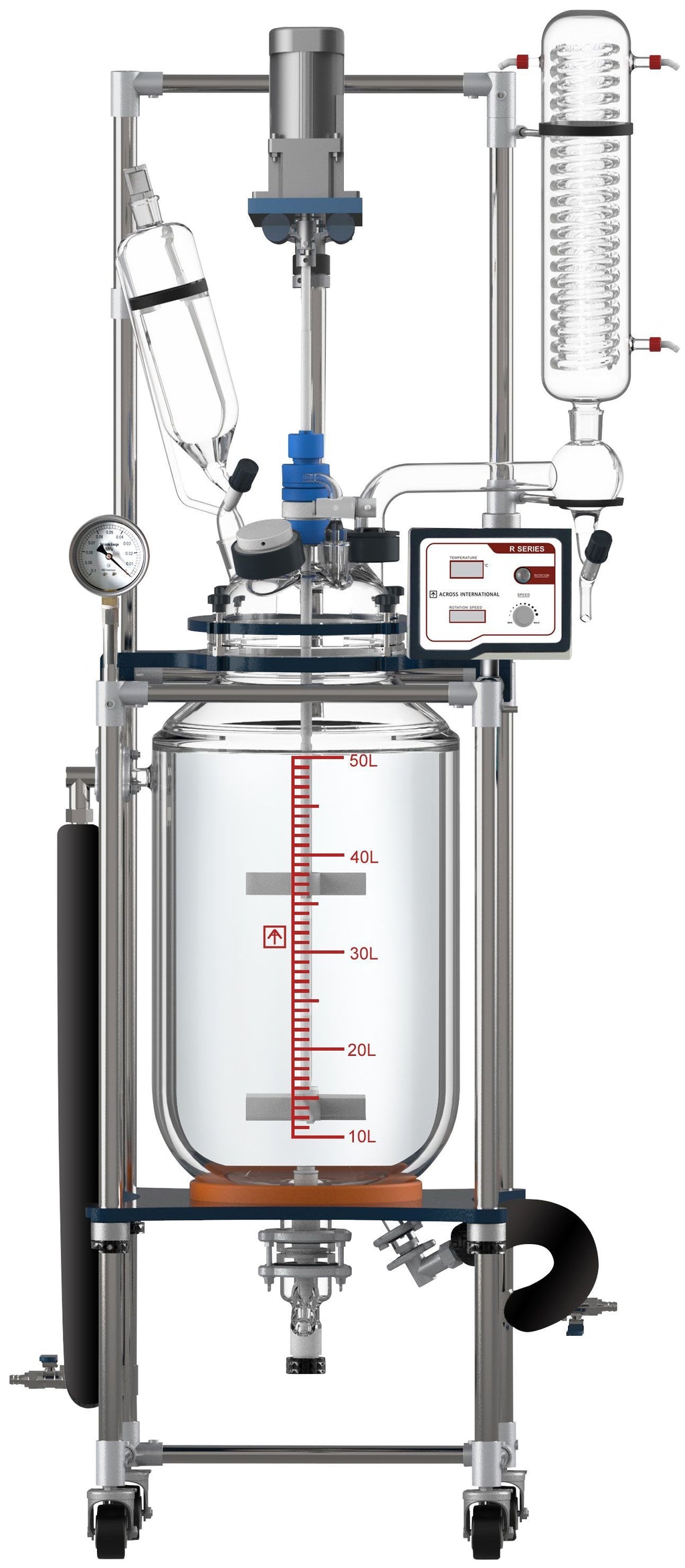

The Across International R-Series Jacketed Glass Reactors are designed for synthetic reactions involving a wide range of materials in controlled temperature and vacuum environments. These advanced laboratory reactor systems allow precise control of stirring speed, temperature, and pressure, making them ideal for chemical synthesis, pharmaceutical research, cannabis extraction, and pilot-scale chemical processing.
Each reactor features a pressure-equalizing feeding funnel for controlled material addition, along with a high-efficiency condenser that allows vapor recovery during reactions. Built from high borosilicate glass 3.3 with solvent-resistant PTFE components, the R-Series reactor provides exceptional durability and performance in demanding laboratory environments.
Key Features
Precision Reaction Control
R-Series reactors provide precise control over critical reaction parameters:
• Adjustable stirring speeds
• Controlled heating or cooling through the jacket
• Vacuum operation capability
• Controlled material addition via feeding funnel
These capabilities make the system ideal for synthetic chemistry, process development, and pilot-scale reactions.

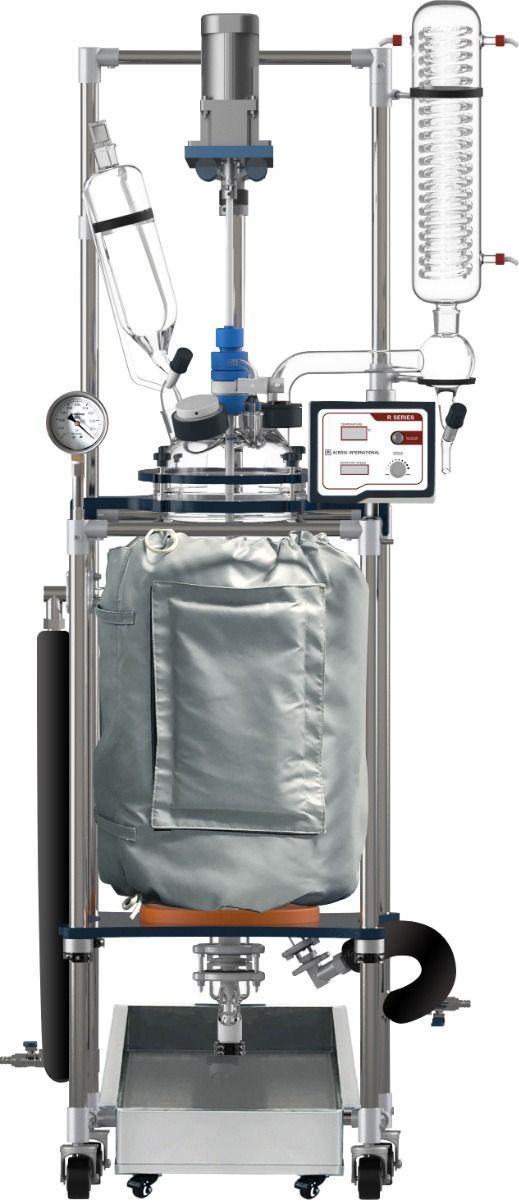

FREE Thermal Insulation Jacket Included ($699 Value)
Each reactor includes a custom thermo insulation jacket designed specifically for Ai glass reactors.
Benefits include:
• Extends recirculating chiller life
• Enables lower temperature operation
• Reduces energy consumption
• Viewing window allows observation of reaction material
Optional Dual-Jacket Reactor Design
Dual jacket models allow vacuum to be drawn from the outer jacket.
Benefits include:
• Improved temperature control
• Protection of recirculating fluid temperature
• Reduced frost formation on vessel exterior
• Clear visibility of reaction materials
High-Quality Borosilicate Glass Construction
All glass components are manufactured from high borosilicate glass 3.3, offering:
• Excellent chemical resistance
• High thermal shock resistance
• Long service life in laboratory environments
Powerful Adjustable Stirring System
The reactor includes a 304 stainless steel agitator with PTFE liner designed for reliable mixing of both low and high viscosity materials.
Features include:
• Adjustable stirring speeds
• High torque mixing capability
• Patented PTFE stirring rod bearing
• Quiet, stable operation
Optional multi-layer stirring blades are available for enhanced reaction performance.
Optional High-Power Motor Upgrade
For high-viscosity materials or demanding reactions, an optional upgraded controller and motor support system is available.
Upgrade Specifications
• 750W high power controller
• Improved motor support system
• Ideal for heavy mixing applications
Price
• $1,990
Lead Time
• 6 weeks
High-Efficiency Condenser System
The reactor includes a vertical condenser designed for efficient vapor condensation and solvent recovery.
Condenser Surface Area
• 50L: 0.4 m²
• 100L: 0.6 m²
Features include:
• Dual cooling coils
• Large condensation surface
• Vacuum connection for controlled reactions
Heavy-Duty Stainless Steel Frame
Each reactor is mounted on a reinforced stainless steel support frame with locking casters for stability and mobility.
The glass vessel and frame ship pre-assembled for simplified installation.
Available Reactor Sizes
| Reactor Size | Vessel Capacity | Jacket Capacity |
|---|---|---|
| 10L | 2.6 gallons | 3L |
| 20L | 5.3 gallons | 6L |
| 50L | 13 gallons | 16L |
| 100L | 26 gallons | 30L |
Electrical Requirements
Voltage Options
• 110V 60Hz
• 220V 50/60Hz
Phase
• Single phase
Motor Power
• 90W
• 140W
• 250W (depending on reactor size)
Stirring System
Controller
• Digital controller with variable frequency drive
Stirring Speed
• 50 – 500 RPM
Agitator
• Impeller style
• 304 stainless steel with PTFE liner
Reactor Vessel Specifications
Glass Material
• High borosilicate glass 3.3
Temperature Range
• -110°F to 400°F
Maximum Jacket Pressure
• 4.4 PSI (0.03 MPa)
Vacuum Level
• 20 Torr
Vacuum Sealing
• Glass and PTFE
Drain Valve
• Flush seal design
• Large opening flat flange clamp
Drain Port Ground Clearance
| Reactor Size | Clearance |
|---|---|
| 10L | 15 inches |
| 20L | 13 inches |
| 50L | 12.5 inches |
| 100L | 13.5 inches |
Unit Dimensions
| Reactor Size | Dimensions |
|---|---|
| 10L | 18 × 26 × 78 inches |
| 20L | 20 × 27 × 80 inches |
| 50L | 26 × 33 × 85 inches |
| 100L | 28 × 42 × 95 inches |
Shipping Dimensions
| Reactor Size | Shipping Size |
|---|---|
| 10L | 24 × 67 × 26 inches |
| 20L | 24 × 75 × 31 inches |
| 50L | 27 × 80 × 32 inches |
| 100L | 26 × 88 × 45 inches |
Shipping Weight
| Reactor Size | Weight |
|---|---|
| 10L | 240 lbs |
| 20L | 262 lbs |
| 50L | 330 lbs |
| 100L | 390 lbs |
Certifications
• ETL listed to UL and CSA standards (optional)
• CE certification available
Ideal Applications
R-Series jacketed glass reactors are commonly used for:
• Chemical synthesis
• Pharmaceutical research
• Cannabis extraction processing
• Material science research
• Polymer chemistry
• Petrochemical research
• Pilot-scale reaction development
What's Included
• Jacketed glass vessel with 6-port lid
• Heavy-duty stainless steel stand with casters
• Glass insulation jacket with viewing window
• Vertical condenser with dual cooling coils
• Glass condenser dispenser with PTFE valve
• Pressure-equalizing feeding funnel with PTFE valve
• Bottom drain port with PTFE valve
• Glass vacuum valve
• Stirring motor controller with temperature display
• Stirring motor and support assembly
• Mechanical vacuum gauge
• Temperature probe with PTFE seal
• PTFE stirring blades with PTFE-lined stainless rod
• Insulated hoses with valves
• Stainless steel hose barb adapters
• PTFE sealing tape
• Stirring rod bearing kit
• Condenser connection kit
• Large opening feeding port kit
• Bottom drain port clamp
• Condenser support brackets
• Chilling fluid connectors and vacuum connector
• Allen key hardware set
• Hose clamps
• Motor power cord
• Motor shaft universal joint
• User manual
Warranty
• 1 Year Manufacturer Warranty
• Lifetime US-based parts, service, and technical support
⚠️ Safety Notice
Operators must follow proper laboratory safety procedures when operating glass reaction equipment. Loose clothing, hair, or jewelry may become entangled in rotating components and cause serious injury.
