Description

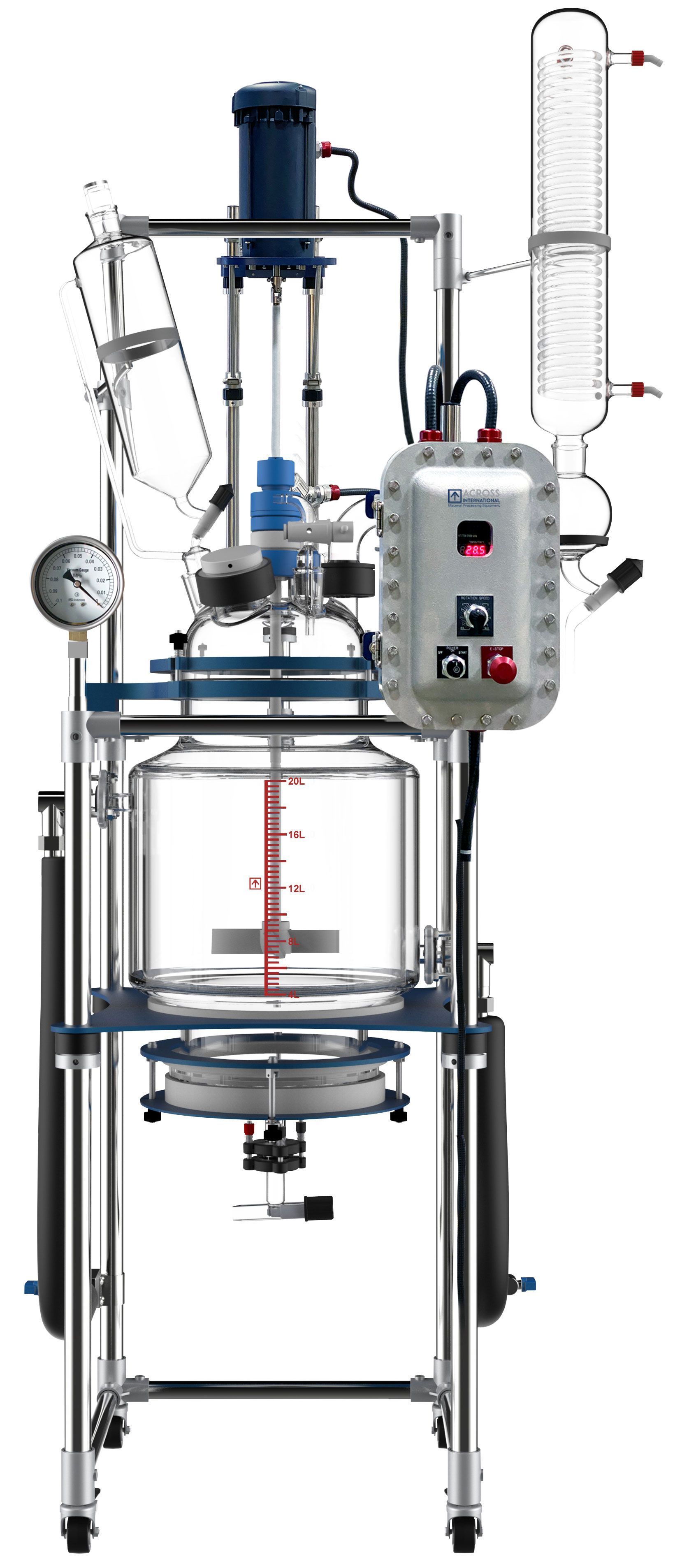

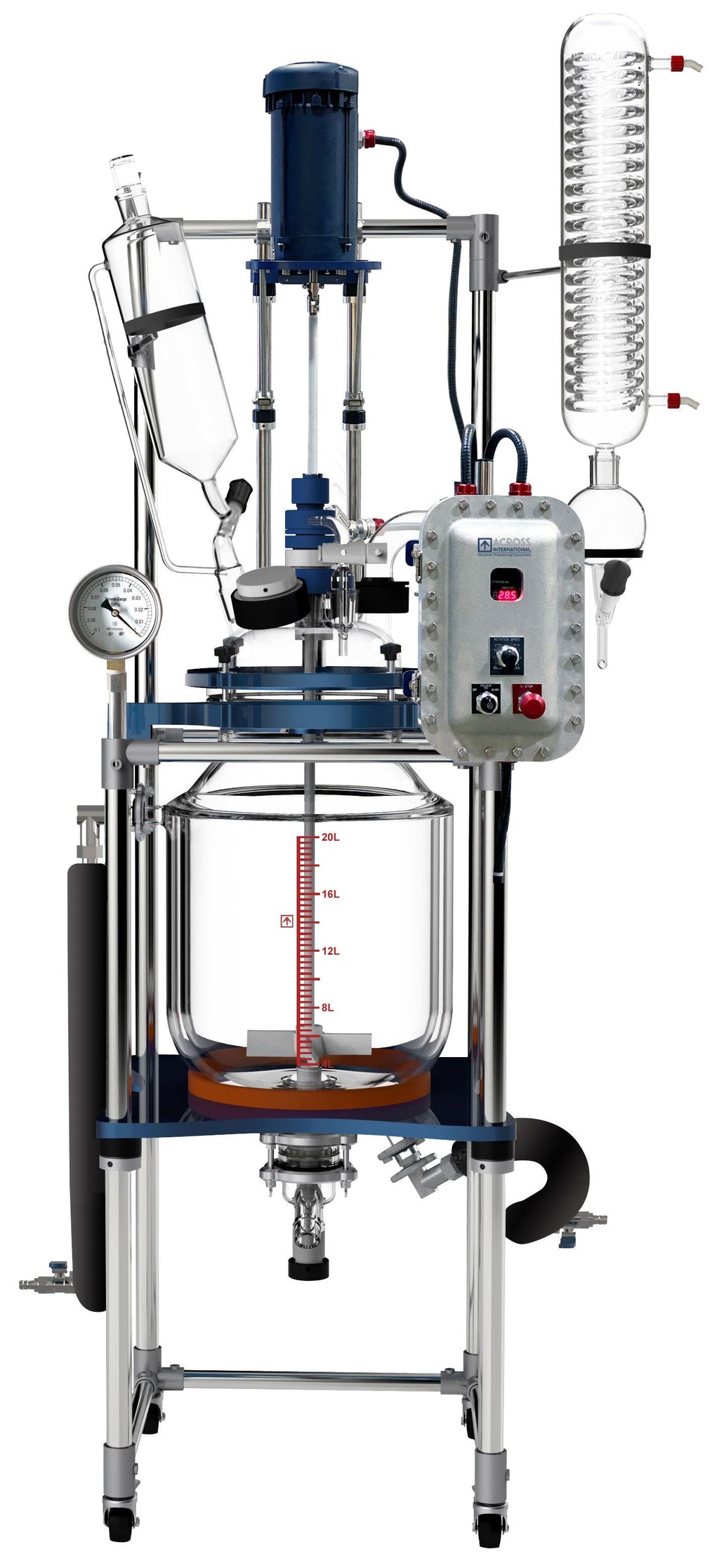

The Across International R20ex Explosion-Proof Jacketed Glass Reactor is designed for synthetic reactions involving flammable solvents and hazardous chemical environments. This advanced reactor system allows precise control of temperature, vacuum, and stirring speed, while maintaining safe operation in regulated laboratory environments.
The R20ex includes explosion-proof motor, controller, and power management systems manufactured in the USA, and is PSI peer reviewed for use in Class 1 Division 1 (C1D1) environments.
Built with high borosilicate glass 3.3, solvent-resistant PTFE sealing components, and a reinforced stainless steel frame, this reactor system is ideal for chemical synthesis, pharmaceutical research, cannabis extraction, and solvent recovery applications.
What Does Explosion-Proof Mean?
Explosion-proof equipment is designed to prevent sparks or internal explosions from igniting flammable gases or vapors in the surrounding environment.
Explosion-proof electrical enclosures are built to:
• Contain any explosion originating inside the enclosure
• Prevent sparks or flashes from igniting surrounding vapors or gases
• Maintain external surface temperatures that will not ignite flammable atmospheres
Explosion-proof does not mean the equipment can withstand an external explosion. Instead, it prevents internal ignition sources from causing a larger explosion in hazardous environments.
Key Features
Explosion-Proof Electrical System
The R20ex reactor includes explosion-proof electrical components designed for hazardous environments.
Explosion-Proof Components
• Explosion-proof motor (1/3 HP, 250W)
• Explosion-proof controller and enclosure
• Explosion-proof power connection and cable management
Manufactured in the United States.
C1D1 Hazardous Environment Compatible
The reactor is PSI peer reviewed for use in Class 1 Division 1 environments, making it suitable for operations involving flammable solvents.
Compatible solvents include:
• Ethanol
• Pentane
• Hexane
• Heptane
• Isopropyl alcohol
• Acetone
• Methanol

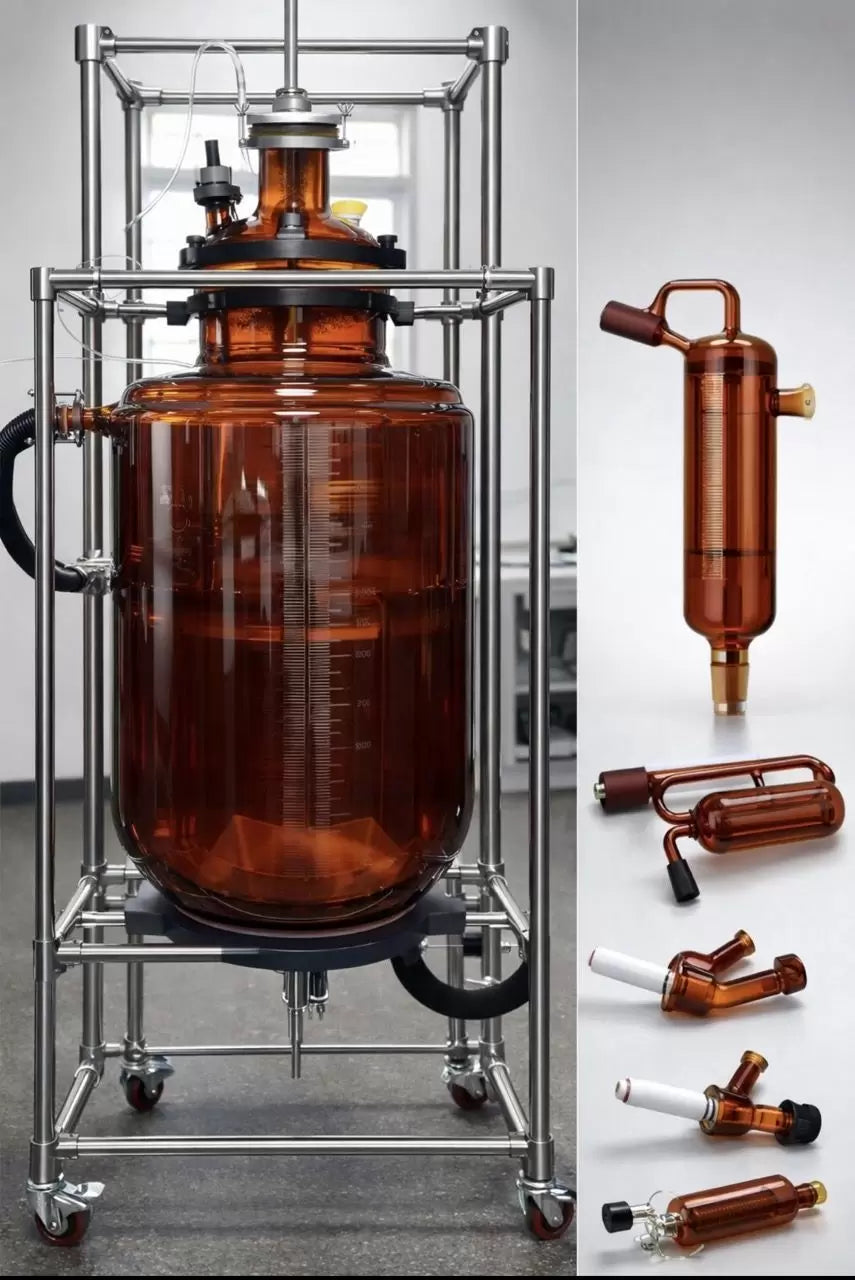

High-Quality Borosilicate Glass Reactor
All glass components are manufactured from high borosilicate glass 3.3, providing:
• Excellent chemical resistance
• High thermal shock resistance
• Long service life in laboratory environments

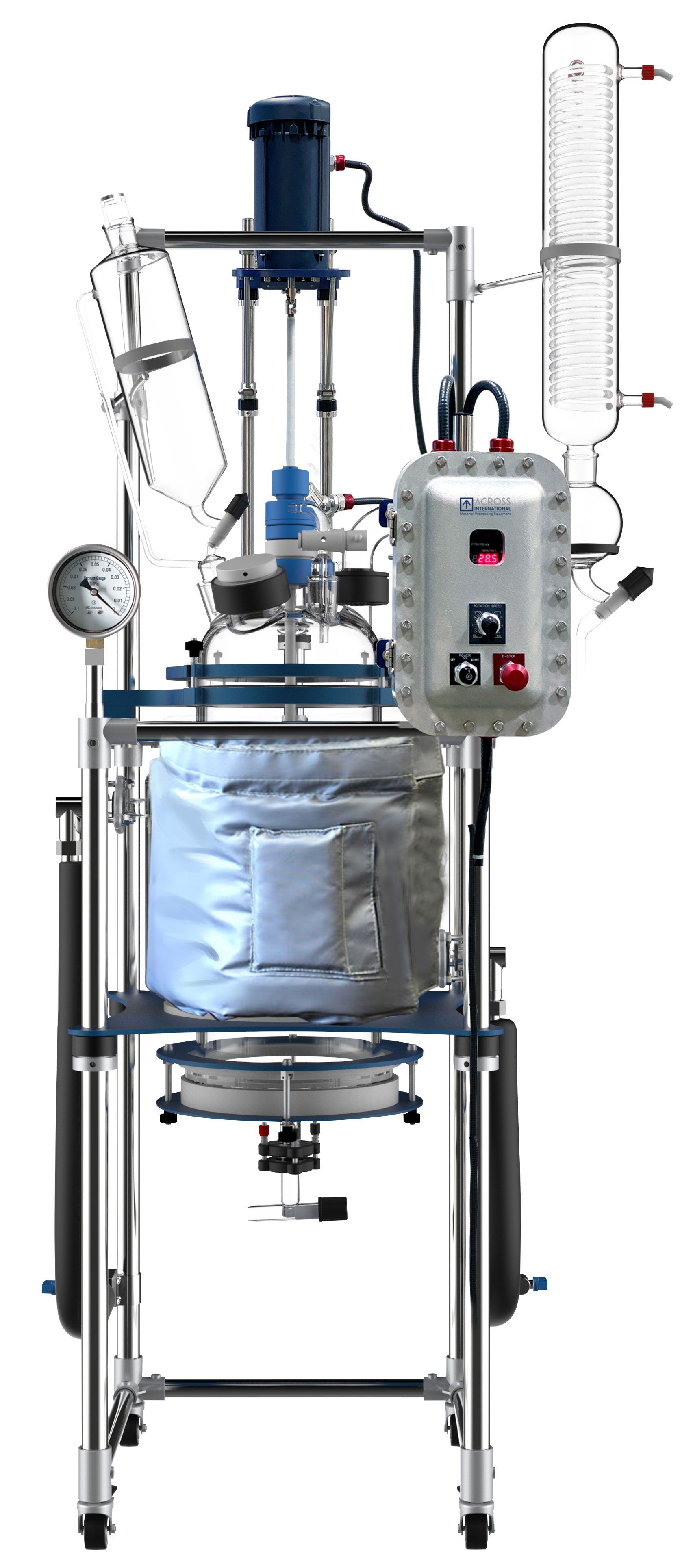

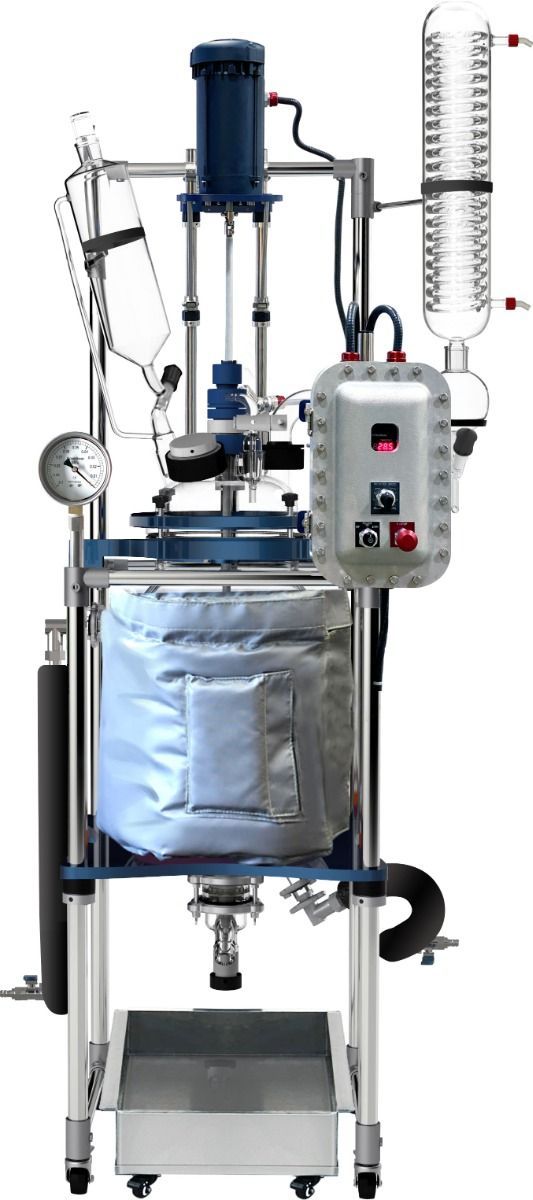

FREE Thermal Insulation Jacket
The reactor includes a custom thermal insulation jacket with viewing window designed specifically for Ai glass reactors.
Benefits include:
• Extends recirculating chiller lifespan
• Enables lower temperature operation
• Reduces energy consumption
• Allows visual monitoring of reaction materials
Dual Jacket Reactor Design
Dual-jacket models allow vacuum to be drawn from the outer jacket, which provides:
• Improved temperature stability
• Protection of circulating fluid temperature
• Reduced frost formation on vessel exterior
• Clear visibility of reaction material
Adjustable Stirring System
The reactor features a PTFE-lined stainless steel agitator capable of handling viscous materials.
Stirring system features:
• Adjustable stirring speeds
• High torque for viscous materials
• Patented PTFE stirring rod bearing for quiet operation
• Optional multi-layer stirring blades available
Efficient Condenser System
The integrated condenser allows efficient vapor cooling and solvent recovery.
• Large cooling surface area
• Dual cooling coils
• Vacuum connection for controlled pressure reactions
Heavy-Duty Stainless Steel Support Frame
The entire reactor system is mounted on a reinforced stainless steel frame with locking casters for mobility and stability.
The glass vessel and support structure ship pre-assembled for easier installation.
Reactor Specifications
Main Vessel Capacity
• 20 liters (5.3 gallons)
Jacket Capacity
• 6 liters (1.6 gallons)
Glass Material
• High borosilicate glass 3.3
Agitator Material
• 304 stainless steel with PTFE coating
Sealing Gaskets
• PTFE
Temperature & Vacuum Performance
Glass Vessel Temperature Range
• -80°C to +200°C
• -112°F to +400°F
Ultimate Vacuum Level
• 20 Torr
Vacuum Display
• Mechanical vacuum gauge
Maximum Jacket Pressure
• 4.4 PSI (0.03 MPa)
Electrical Requirements
Voltage
• 220V
Frequency
• 50 / 60 Hz
Phase
• Single phase
Explosion-Proof Motor
• 1/3 HP (250 watts)
Physical Dimensions
Unit Dimensions
• 20 × 27 × 80 inches
Drain Port Ground Clearance
• 13 inches
Shipping Dimensions
• 24 × 75 × 31 inches
Shipping Weight
• 280 lbs
Certifications
• PSI peer reviewed for C1D1 environment use
• ETL listed to UL and CSA standards (optional)
• CE certification available
Ideal Applications
Explosion-proof jacketed reactors are commonly used for:
• Cannabis extraction laboratories
• Chemical synthesis
• Pharmaceutical research
• Solvent recovery systems
• Petrochemical research
• Hazardous laboratory environments
• Flammable solvent processing
What's Included
• Jacketed glass vessel with lid and clamps
• Heavy-duty stainless steel stand with casters
• Glass insulation jacket with viewing window
• Vertical condenser with dual cooling coils
• Glass condenser dispenser with PTFE valve
• Bottom drain port with PTFE valve
• Glass vacuum valve
• Pressure-equalizing feeding funnel with PTFE valve
• Explosion-proof controller
• Explosion-proof stirring motor and support assembly
• Explosion-proof temperature probe
• Mechanical vacuum gauge
• PTFE stirring blades with PTFE-lined stainless rod
• Insulated hoses with valves
• Stainless steel hose barb adapters
• PTFE sealing tape
• Stirring rod bearing kit
• Condenser connection kit
• Large opening feeding port kit
• Drain port sealing flange
• Condenser support brackets
• Chilling fluid and vacuum connectors
• Allen keys and hardware set
• Hose clamps and zip clamps
• Motor guard cup
• Motor shaft universal joint
• Frame parts (for R10 & R20)
• Explosion-proof installation guide
• User manual
Warranty
• 1 Year Manufacturer Warranty
• Lifetime US-based parts and technical support
⚠️ Safety Notice
Operators must follow proper laboratory safety procedures when operating glass reaction equipment. Loose clothing, hair, or jewelry may become entangled in rotating components and cause serious injury.
