Description

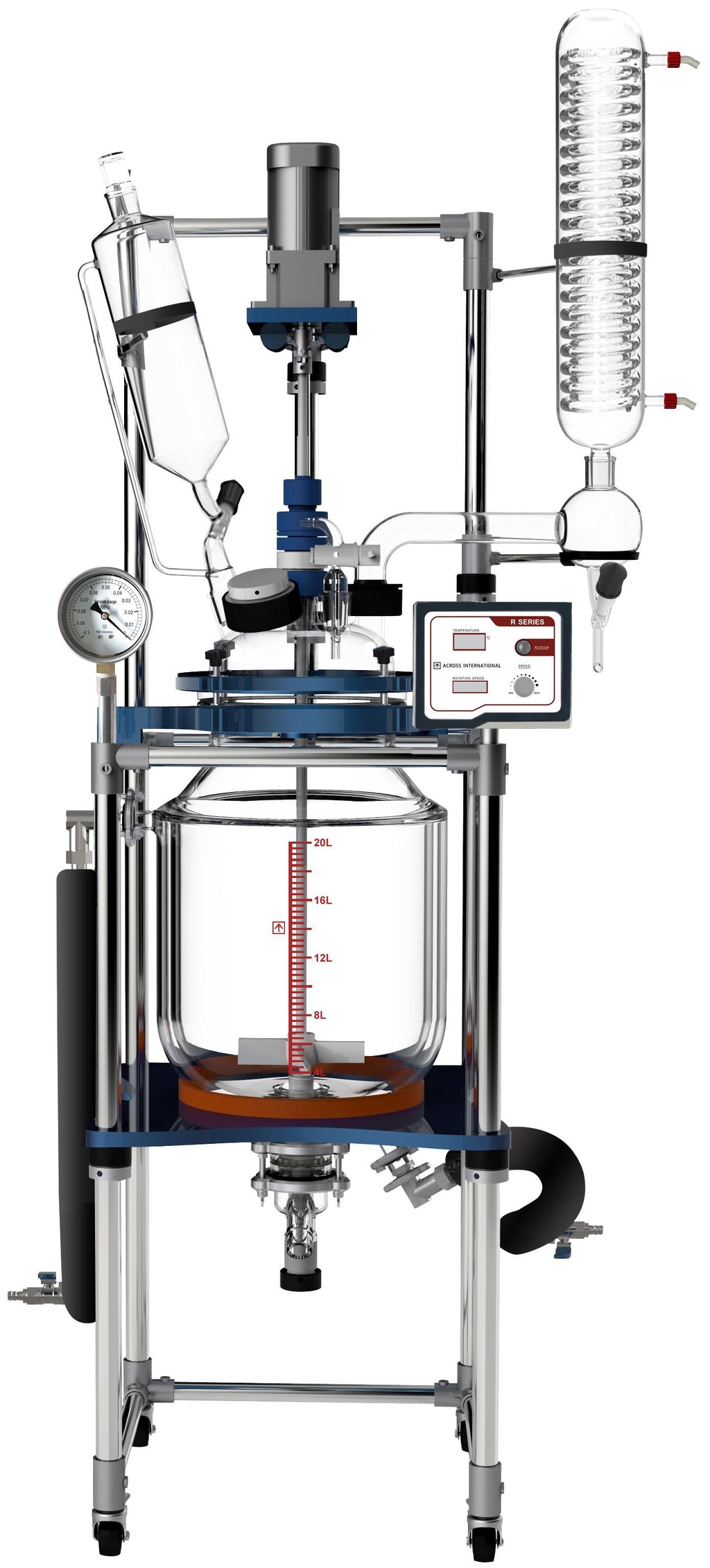

The Across International R-Series Jacketed Glass Reactors are engineered for synthetic reactions involving a wide range of materials in controlled temperature and vacuum environments. These reactor systems provide precise reaction control through adjustable stirring speeds, controlled material feeding, and efficient vapor condensation.
Each system includes a high borosilicate glass reactor vessel, a pressure-equalizing feeding funnel, and a large surface condenser designed for solvent recovery. With adjustable stirring speeds and durable PTFE sealing components, the R-Series reactor is ideal for laboratory research, chemical synthesis, pharmaceutical development, and pilot-scale production.
Key Features
Precision Reaction Control
R-Series reactors allow accurate control over multiple reaction variables:
• Adjustable stirring speeds
• Controlled temperature circulation through the jacket
• Vacuum operation capability
• Uniform material feeding through pressure-equalizing funnel
This allows precise optimization of chemical synthesis and laboratory reactions.

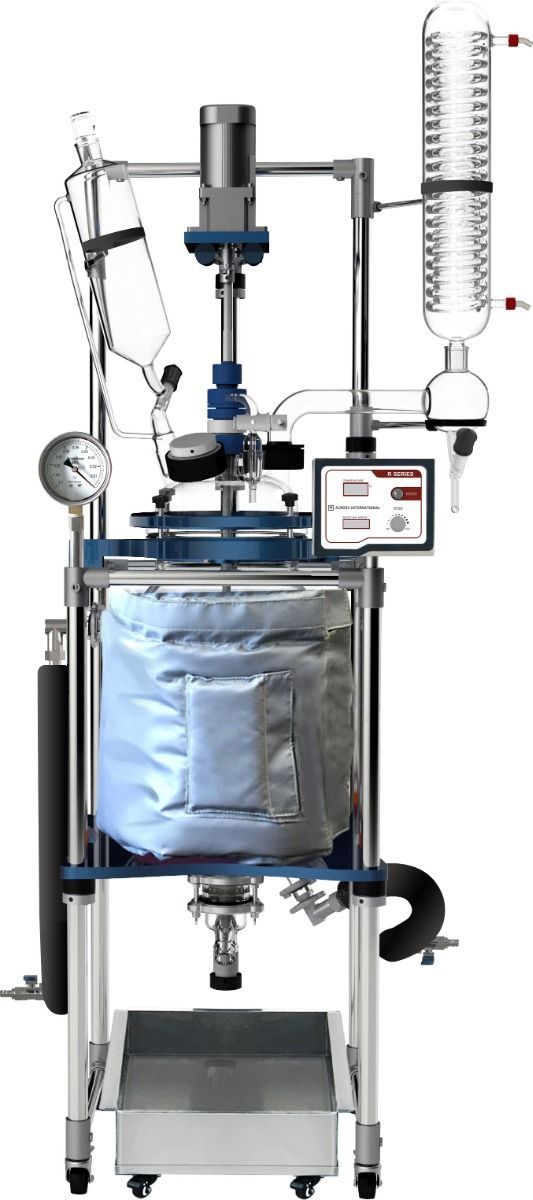

FREE Thermal Insulation Jacket Included ($459 Value)
Each reactor includes a custom thermo insulation jacket designed specifically for Ai glass reactors.
Benefits include:
• Extends recirculating chiller lifespan
• Allows lower temperature operation
• Reduces energy consumption
• Viewing window allows monitoring of reaction material
Optional Dual-Jacket Reactor Design
Dual jacket models allow vacuum to be drawn from the outer jacket, which provides:
• Improved temperature stability
• Protection of circulating fluid temperature
• Reduced frost formation on vessel exterior
• Clear visibility of reaction material
High-Quality Borosilicate Glass Construction
All glass components are manufactured from high borosilicate glass 3.3, providing:
• Excellent chemical resistance
• High thermal shock resistance
• Durability in laboratory environments
Adjustable Stirring System
The reactor includes a 304 stainless steel agitator with PTFE liner designed to handle a wide range of viscosities.
Features include:
• Adjustable stirring speeds
• High torque performance
• Patented PTFE stirring rod bearing
• Quiet and reliable operation
Optional multi-layer stirring blades are available for specialized reactions.
Large Condenser Cooling Surface
The vertical condenser provides efficient condensation and recovery of vapors.
• Dual cooling coils
• Large surface area for condensation
• Vacuum connection for controlled pressure reactions
Heavy-Duty Stainless Steel Support Frame
Each reactor system is mounted on a reinforced stainless steel frame with locking casters.
Benefits include:
• Excellent stability
• Easy mobility
• Pre-assembled glass vessel and frame for simplified installation
Available Reactor Sizes
| Reactor Size | Vessel Capacity | Jacket Capacity |
|---|---|---|
| 10L | 2.6 gallons | 3L |
| 20L | 5.3 gallons | 6L |
| 50L | 13 gallons | 16L |
| 100L | 26 gallons | 30L |
Electrical Requirements
Voltage Options
• 110V 60Hz
• 220V 50/60Hz
Phase
• Single phase
Motor Power
• 90W
• 140W
• 250W (depending on reactor size)
Stirring System
Controller
• Digital controller with variable frequency drive
Stirring Speed
• 50 – 500 RPM
Agitator
• Impeller style
• 304 stainless steel with PTFE liner
Reactor Vessel Specifications
Glass Material
• High borosilicate glass 3.3
Glass Temperature Range
• -110°F to 400°F
Maximum Jacket Pressure
• 4.4 PSI (0.03 MPa)
Vacuum Level
• 20 Torr
Vacuum Sealing
• Glass and PTFE
Drain Valve
• Flush seal design
• Large opening flat flange clamp
Drain Port Ground Clearance
| Reactor Size | Clearance |
|---|---|
| 10L | 15 inches |
| 20L | 13 inches |
| 50L | 12.5 inches |
| 100L | 13.5 inches |
Unit Dimensions
| Reactor Size | Dimensions |
|---|---|
| 10L | 18 × 26 × 78 inches |
| 20L | 20 × 27 × 80 inches |
| 50L | 26 × 33 × 85 inches |
| 100L | 28 × 42 × 95 inches |
Shipping Dimensions
| Reactor Size | Shipping Size |
|---|---|
| 10L | 24 × 67 × 26 inches |
| 20L | 24 × 75 × 31 inches |
| 50L | 25 × 83 × 42 inches |
| 100L | 26 × 88 × 45 inches |
Shipping Weight
| Reactor Size | Weight |
|---|---|
| 10L | 240 lbs |
| 20L | 262 lbs |
| 50L | 330 lbs |
| 100L | 390 lbs |
Certifications
• ETL listed to UL and CSA standards (optional)
• CE certification available
Ideal Applications
R-Series jacketed glass reactors are commonly used for:
• Chemical synthesis
• Pharmaceutical research
• Cannabis extraction processing
• Material science development
• Polymer chemistry
• Petrochemical research
• Pilot-scale reaction development
What's Included
• Jacketed glass vessel with 6-port lid
• Heavy-duty stainless steel stand with casters
• Glass insulation jacket with viewing window
• Vertical condenser with dual cooling coils
• Glass condenser dispenser with PTFE valve
• Pressure-equalizing feeding funnel with PTFE valve
• Bottom drain port with PTFE valve
• Glass vacuum valve
• Stirring motor controller with temperature display
• Stirring motor and support assembly
• Mechanical vacuum gauge
• Temperature probe with PTFE seal
• PTFE stirring blades with PTFE-lined stainless rod
• Insulated hoses with valves
• Stainless steel hose barb adapters
• PTFE sealing tape
• Stirring rod bearing kit
• Condenser connection kit
• Large opening feeding port kit
• Bottom drain port clamp
• Condenser support brackets
• Chilling fluid and vacuum connectors
• Allen key hardware set
• Hose clamps
• Motor power cord
• Motor shaft universal joint
• User manual
Warranty
• 1 Year Manufacturer Warranty
• Lifetime US-based parts and technical support
Safety Notice
Operators must follow proper laboratory safety procedures when operating glass reaction equipment. Loose clothing, jewelry, or hair may become entangled in rotating components and cause serious injury.
