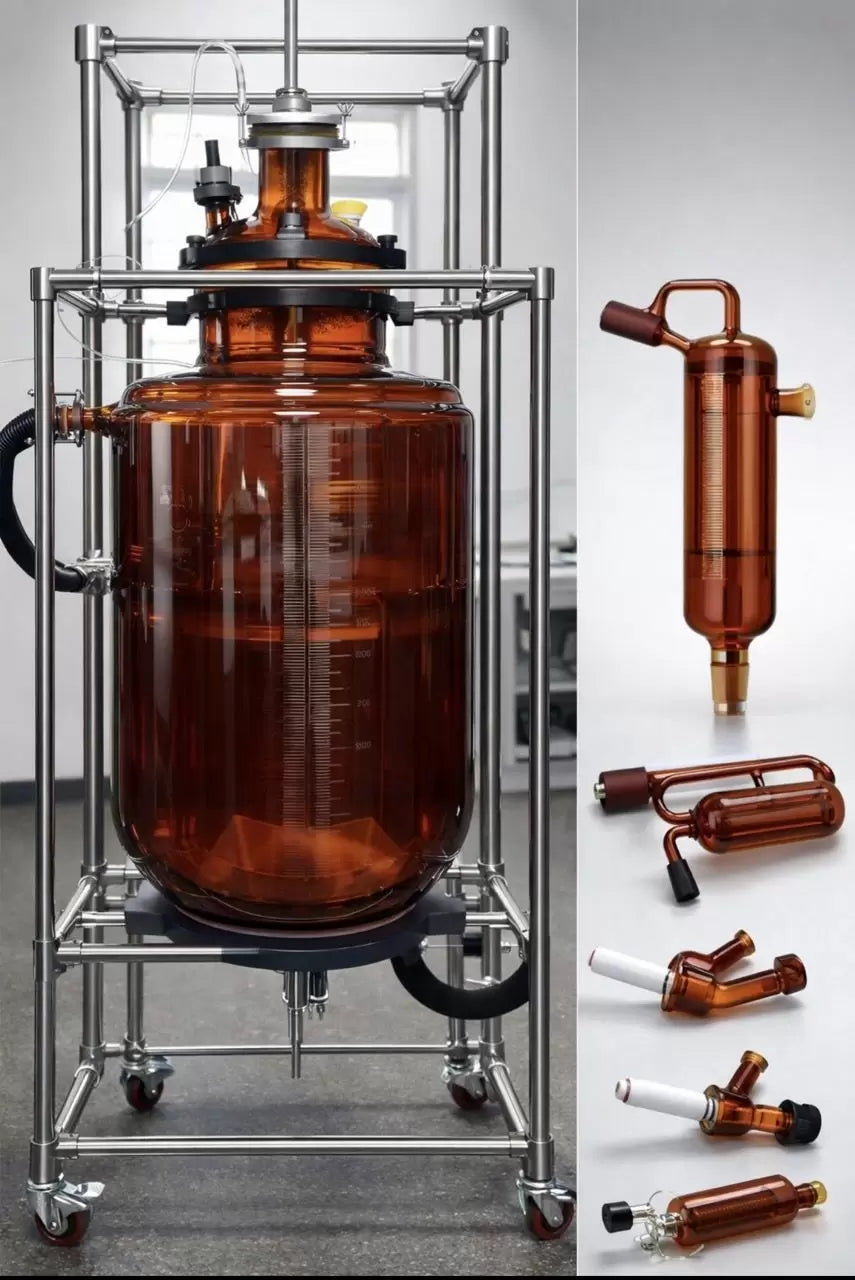

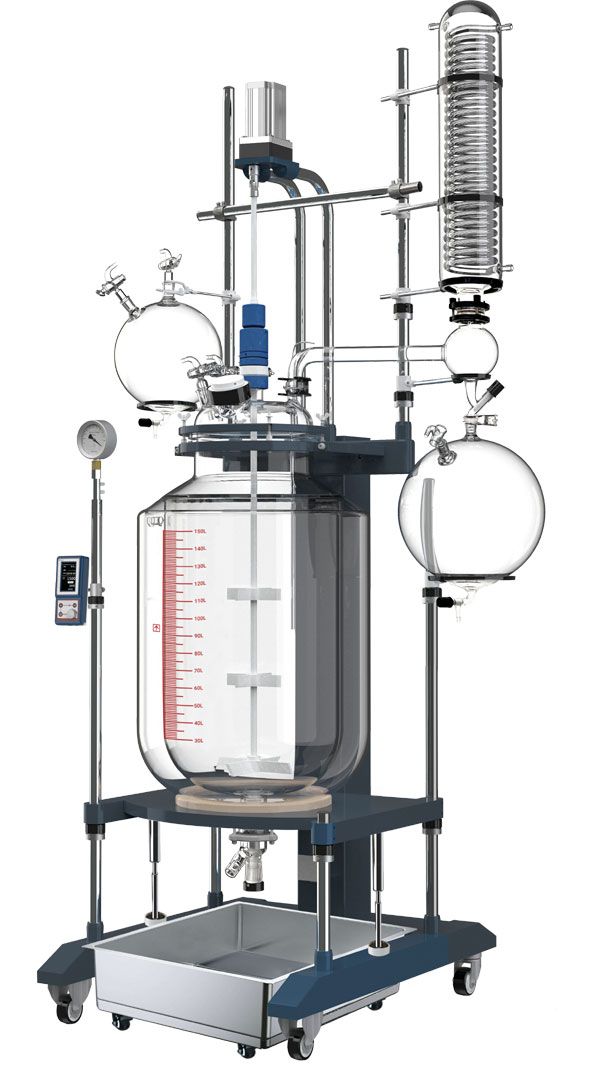

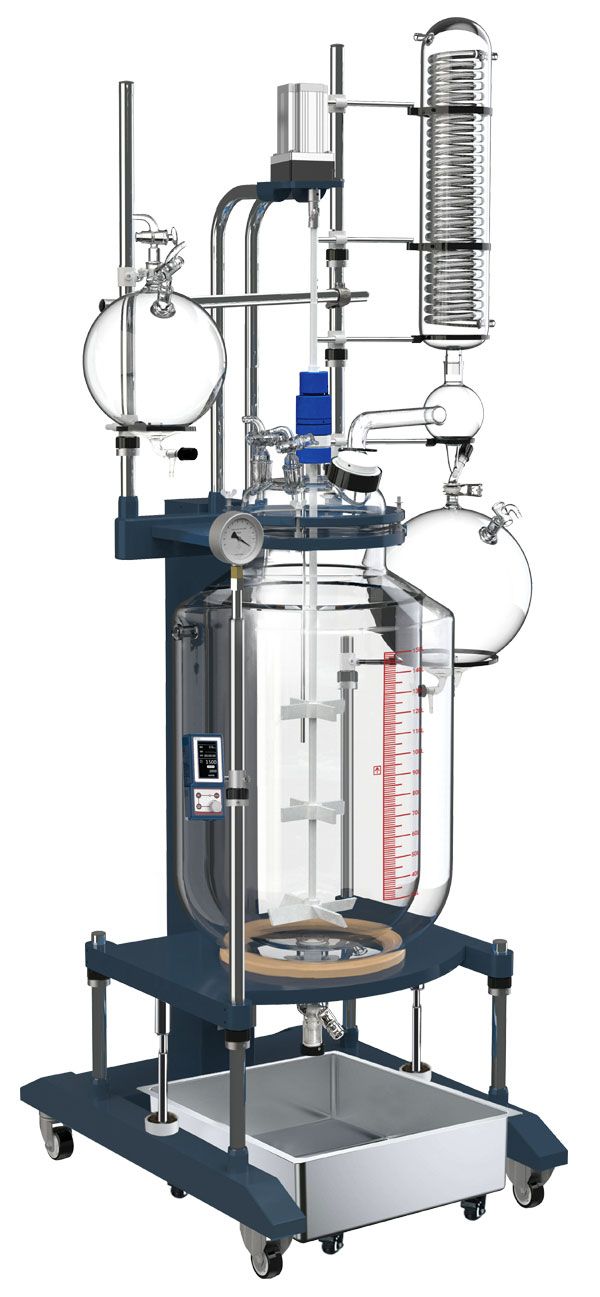

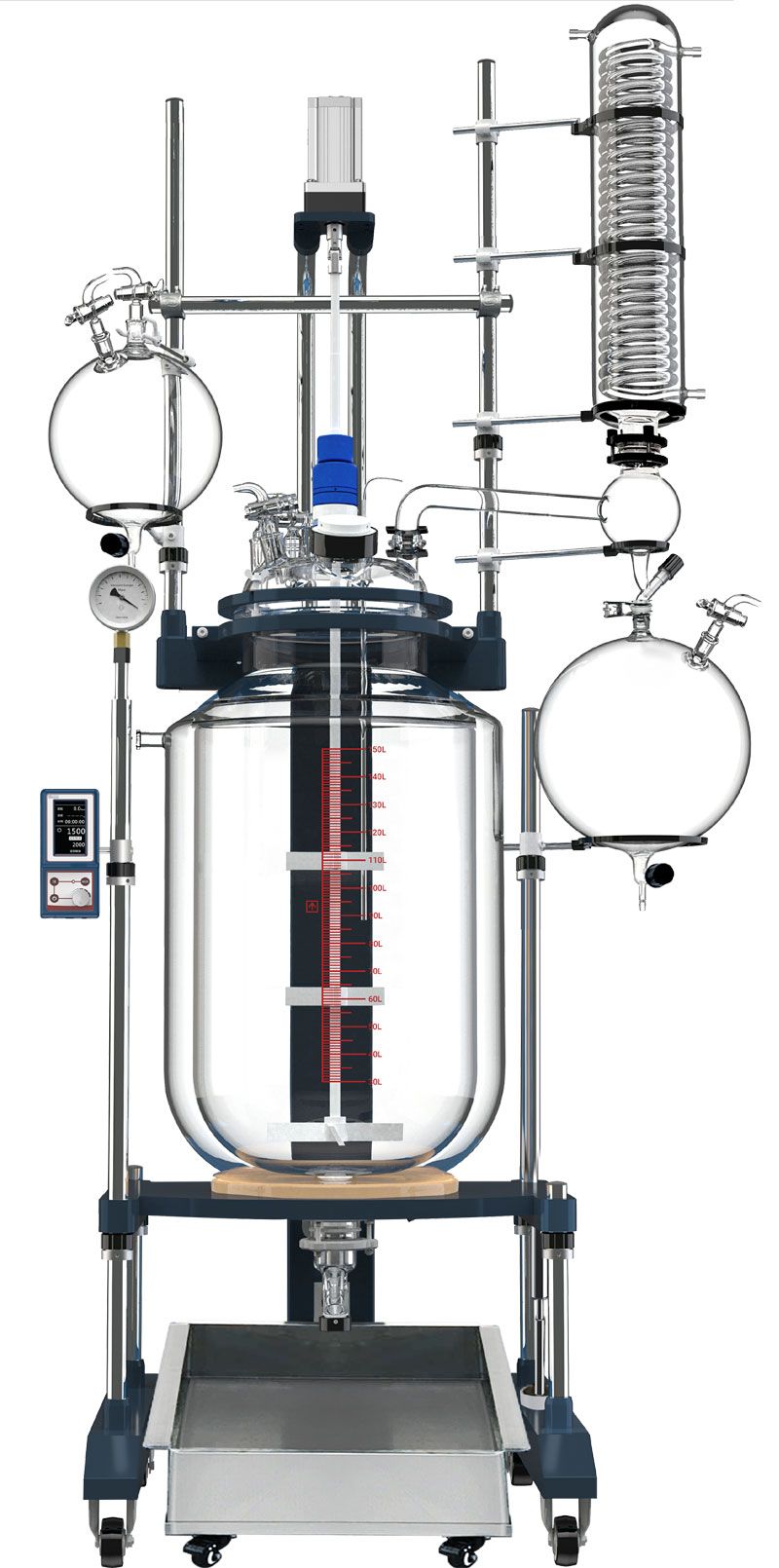

The Across International R150 Jacketed Glass Reactor is a large-capacity reaction system designed for pilot-scale chemical synthesis, pharmaceutical production, cannabis processing, and industrial laboratory research.

This reactor provides precise control over temperature, vacuum pressure, and stirring speed, allowing operators to safely process large volumes of materials in controlled environments. The system features a pressure-equalizing feeding funnel, high-efficiency condenser system, and heavy-duty mixing assembly for consistent and reliable reaction performance.

Constructed from high borosilicate glass 3.3 with solvent-resistant PTFE sealing components and mounted on a reinforced stainless-steel support frame, the R150 reactor delivers exceptional durability for demanding laboratory and industrial environments.

---

Key Features

Large-Scale Reaction Capacity

The R150 reactor is designed for large batch processing and pilot-scale reaction development.

• Reaction vessel capacity: 150 liters (40 gallons)
• Jacket capacity: 45 liters (12 gallons approx.)
• Feeding flask capacity: 10 liters
• Receiving flask capacity: 20 liters

---

FREE Thermal Insulation Jacket Included ($999 Value)

Each reactor includes a custom thermo insulation jacket with viewing window, specifically designed for Ai glass reactors.

Benefits include:

• Extends recirculating chiller lifespan
• Enables lower temperature operation
• Reduces energy consumption
• Allows visual monitoring of reaction materials

---

High-Torque Industrial Mixing System

The reactor features a high-performance 750W stirring motor designed for processing viscous materials and large reaction volumes.

Stirring Motor Specifications

• Power: 750 watts
• Maximum speed: 300 RPM
• Maximum torque: 14.7 N·m
• Protection rating: IP44
• Speed ratio: 1:3

The agitator includes PTFE-coated stainless steel stirring blades for chemical resistance and durability.

---

High-Efficiency Condenser System

The integrated condenser allows efficient vapor condensation and solvent recovery.

Condenser Surface Area

• 0.8 m²

Features include:

• Dual cooling coils
• Large condenser surface
• Vacuum connection for controlled reactions

---

High-Quality Borosilicate Glass Construction

All glass components are manufactured from high borosilicate glass 3.3, providing:

• Excellent chemical resistance
• High thermal shock resistance
• Long service life in laboratory environments

---

Optional Multi-Layer Stirring Blades

Optional multi-layer stirring blades are available for enhanced mixing efficiency when working with viscous materials or complex reactions.

---

Heavy-Duty Stainless Steel Frame

The reactor system is mounted on a reinforced stainless steel frame with locking swivel casters for mobility and stability.

The glass vessel and support frame ship pre-assembled for easier installation.

---

Optional Mobile Splash Bin

An optional detachable splash bin is available for additional containment and safety.

Splash Bin Specifications

• Material: 316L stainless steel
• Dimensions: 20.5 × 27 × 7 inches

---

Reactor Specifications

Reaction Vessel Capacity

• 150 liters (40 gallons)

Jacket Capacity

• 45 liters (12 gallons approx.)

Feeding Flask Capacity

• 10 liters

Receiving Flask Capacity

• 20 liters

Glass Material

• High borosilicate glass 3.3

Agitator Material

• 304 stainless steel with PTFE liner

---

Temperature & Vacuum Performance

Glass Vessel Temperature Range

• -110°F to 400°F

Ultimate Vacuum Level

• 20 Torr

Vacuum Gauge

• Mechanical

Maximum Jacket Pressure

• 4.4 PSI (0.03 MPa)

Vacuum Sealing

• Glass or PTFE

---

Vessel Lid Ports

• Stirrer: #60 flange ×1
• Temperature sensor: #35 flange ×1
• Condenser: #50 ball joint ×1
• Liquid feeding: #34 joint ×2
• Solid feeding: #95 flange ×1
• Feeding funnel port: #40 joint ×1

---

Electrical Requirements

Voltage

• 110V 60Hz
• 220V 50/60Hz

Phase

• Single phase

Power

• 750W

---

Dimensions

Unit Dimensions

• 48 × 41 × 109 inches

Drain Port Ground Clearance

• 17 inches

Shipping Dimensions

• 77 × 61 × 43 inches

---

Shipping Weight

• Unit weight: 650 lbs
• Shipping weight: 870 lbs

---

Certifications

• ETL certified to UL and CSA standards
• CE certification available

---

Ideal Applications

Large-scale jacketed reactors are commonly used for:

• Chemical synthesis
• Pharmaceutical production
• Cannabis extraction processing
• Solvent recovery systems
• Petrochemical research
• Pilot-scale manufacturing
• Material science research

---

What's Included

• Jacketed glass vessel with lid and clamps
• Heavy-duty stainless steel stand with casters
• Glass insulation jacket with viewing window
• Vertical condenser with dual cooling coils
• Glass condenser dispenser with PTFE valve
• Glass feeding funnel with PTFE valve
• Glass receiving flask with PTFE valve
• Glass bottom drain port with PTFE valve
• Glass vacuum valves
• Stirring motor controller with RPM and temperature display
• Stirring motor and motor support with shaft guard
• Mechanical vacuum gauge
• Temperature probe with PTFE seal
• PTFE stirring blades with PTFE-lined stainless rod
• Insulated hoses with valves
• Stainless steel hose barb adapters
• PTFE sealing tape
• Stirring rod bearing kit
• Condenser connection kit
• Large opening feeding port kit
• Bottom drain port sealing clamp
• Condenser support brackets
• Chilling fluid connectors and vacuum connector
• Allen key hardware set
• Hose clamps
• Stainless steel ball joint clamps
• Feeding funnel clamp
• Motor power cord
• Motor shaft universal joint
• NPT to barb fitting adapters
• Quick clamp and centering ring
• Metal support assemblies
• Motor support rods
• User manual

---

Warranty

• 1 Year Manufacturer Warranty
• Lifetime US-based parts and technical support

---

Safety Notice

Operators must follow proper laboratory safety procedures when operating glass reaction equipment. Loose clothing, hair, or jewelry may become entangled in rotating components and cause serious injury.
