Description

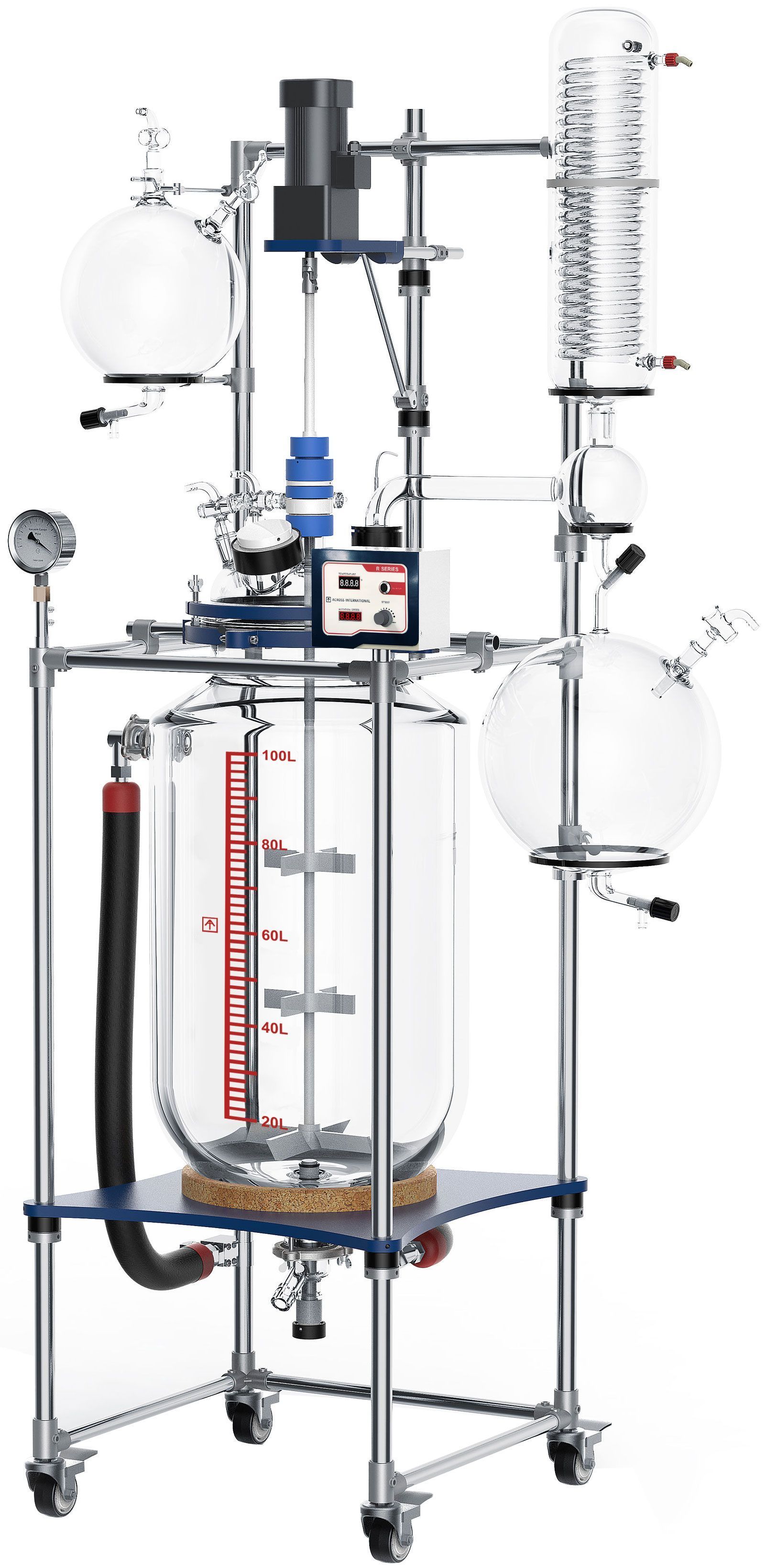

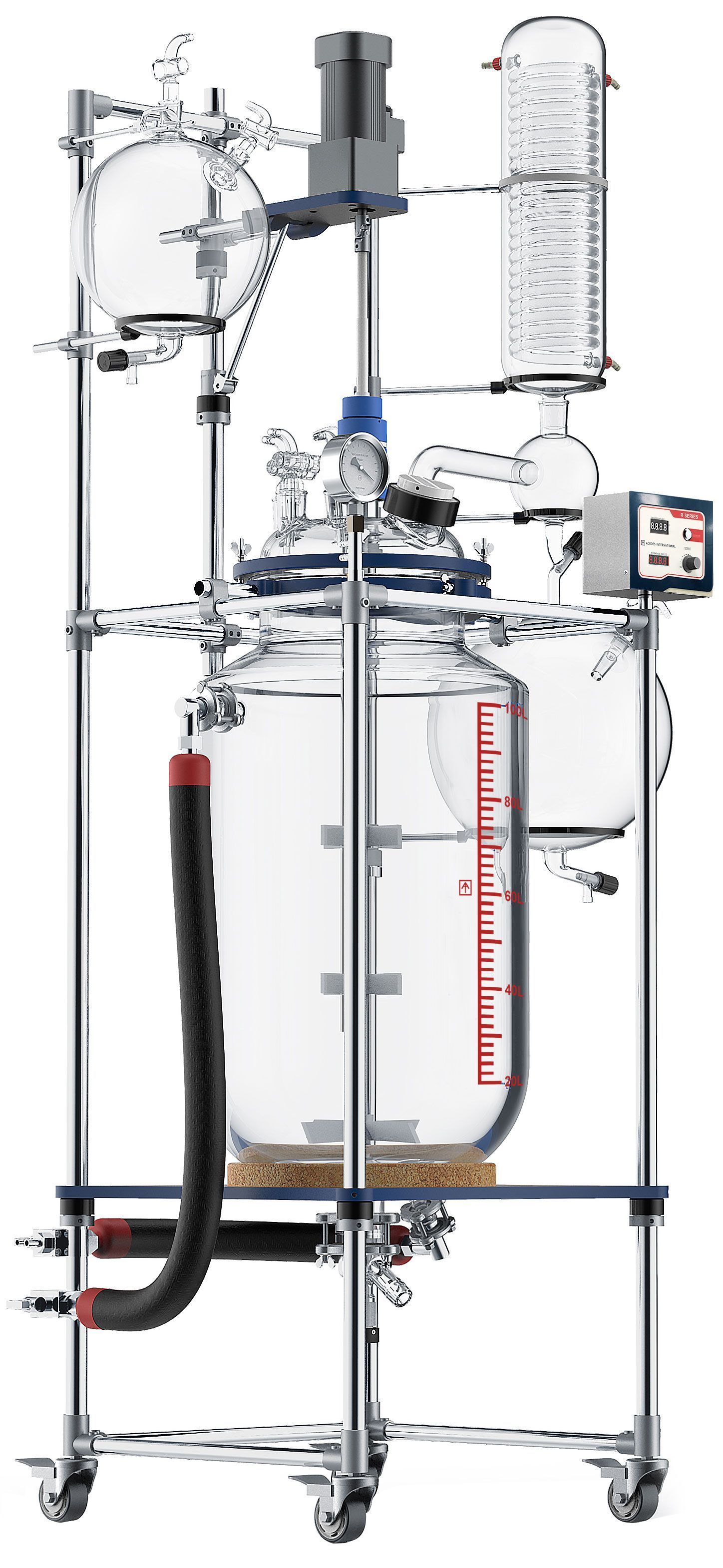

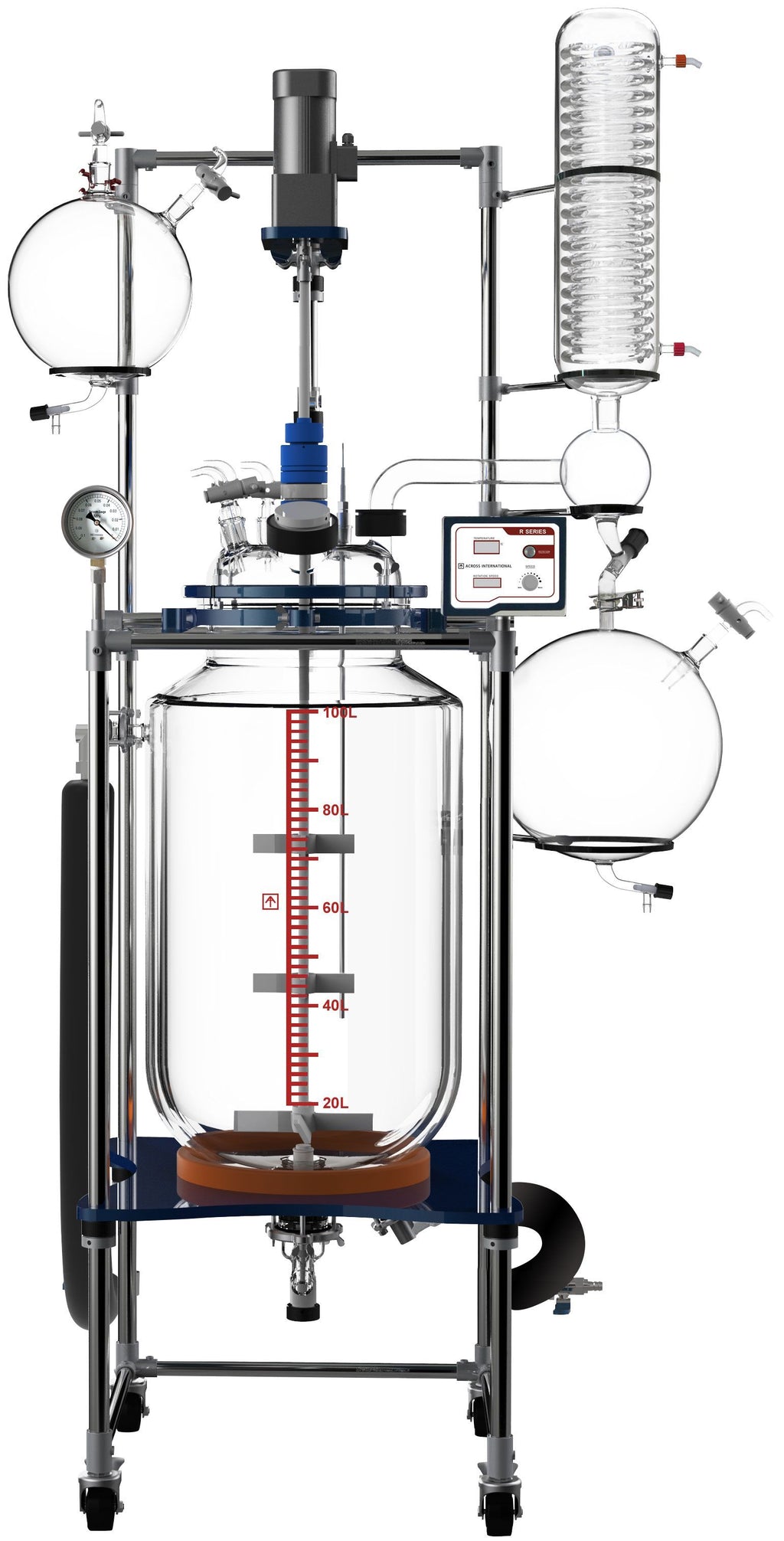

The Across International R100 Jacketed Glass Reactor is designed for large-scale synthetic reactions requiring precise control of temperature, vacuum pressure, and mixing speed. This high-capacity laboratory reactor is ideal for chemical synthesis, pharmaceutical research, cannabis processing, solvent recovery, and pilot-scale production environments.
The R100 reactor includes a pressure-equalizing feeding funnel for controlled material addition, along with a high-efficiency condenser system for solvent recovery. Built from high borosilicate glass 3.3 with solvent-resistant PTFE components and mounted on a heavy-duty stainless steel frame, this reactor provides reliable performance for demanding laboratory and industrial applications.
Key Features
Precise Reaction Control
The R100 reactor allows accurate control over critical reaction variables:
• Adjustable stirring speeds
• Controlled heating or cooling through the jacket
• Vacuum operation capability
• Controlled reagent addition through feeding funnel
This makes the system ideal for large-scale laboratory synthesis and pilot plant operations.
FREE Thermal Insulation Jacket Included ($779 Value)

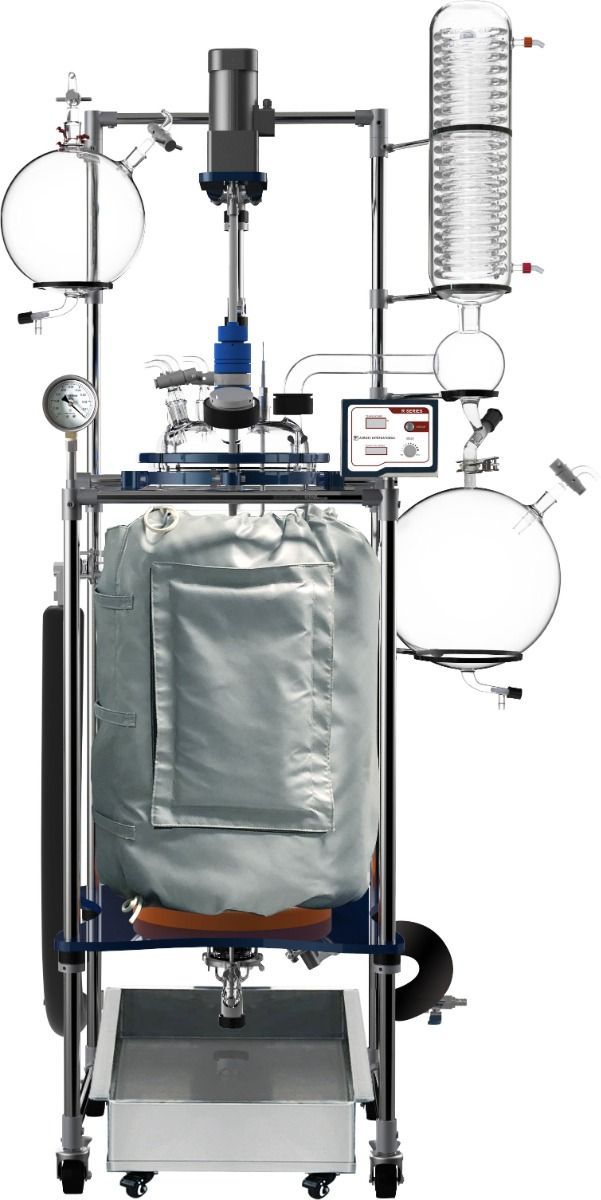

Each reactor includes a custom thermo insulation jacket designed specifically for Ai glass reactors.
Benefits include:
• Extends recirculating chiller lifespan
• Allows lower temperature operation
• Reduces energy consumption
• Viewing window enables monitoring of reaction materials
High-Quality Borosilicate Glass Construction
All glass components are manufactured from high borosilicate glass 3.3, offering:
• Excellent chemical resistance
• High thermal shock resistance
• Long service life in laboratory environments
High-Torque Stirring System
The reactor includes a 304 stainless steel agitator with PTFE liner, suitable for mixing both low and high-viscosity materials.
Features include:
• Adjustable stirring speeds
• High torque mixing capability
• Patented PTFE stirring rod bearing
• Quiet and stable operation
Optional multi-layer stirring blades are available for enhanced mixing performance.
Optional High-Power Motor Upgrade
For high-viscosity materials or demanding reactions, an optional upgraded motor system is available.
Upgrade Specifications
• 750W high-power controller
• Reinforced motor support assembly
Price
• $1,990
Lead Time
• 6 weeks
Efficient Condenser System
The R100 includes a large surface area condenser system for efficient vapor condensation and solvent recovery.
Condenser Surface Area
• 0.6 m²
Features include:
• Dual cooling coils
• Vacuum connection
• Efficient vapor condensation
Heavy-Duty Stainless Steel Support Frame
The reactor system is mounted on a reinforced stainless steel frame with lockable casters for mobility and stability.
The glass vessel and frame ship pre-assembled for easier installation.
Reactor Specifications
Vessel Capacity
• 100 liters (26 gallons)
Jacket Capacity
• 30 liters
Glass Material
• High borosilicate glass 3.3
Agitator
• 304 stainless steel with PTFE liner
Temperature & Vacuum Performance
Glass Vessel Temperature Range
• -110°F to 400°F
Ultimate Vacuum Level
• 20 Torr
Vacuum Gauge
• Mechanical
Maximum Jacket Pressure
• 4.4 PSI (0.03 MPa)
Vacuum Sealing
• Glass or PTFE
Electrical Requirements
Voltage Options
• 110V 60Hz
• 220V 50/60Hz
Phase
• Single phase
Standard Stirring Motor Power
• 90W / 140W / 250W (depending on reactor size)
Available Reactor Sizes
| Reactor | Vessel / Jacket |
|---|---|
| 10L | 10L / 3L |
| 20L | 20L / 6L |
| 50L | 50L / 16L |
| 100L | 100L / 30L |
Dimensions
| Reactor Size | Unit Dimensions |
|---|---|
| 10L | 18 × 26 × 78 in |
| 20L | 20 × 27 × 80 in |
| 50L | 26 × 33 × 85 in |
| 100L | 28 × 42 × 95 in |
Shipping Dimensions
| Reactor | Shipping Size |
|---|---|
| 10L | 24 × 67 × 26 in |
| 20L | 24 × 75 × 31 in |
| 50L | 25 × 83 × 42 in |
| 100L | 26 × 88 × 45 in |
Shipping Weight
| Reactor | Weight |
|---|---|
| 10L | 240 lbs |
| 20L | 262 lbs |
| 50L | 330 lbs |
| 100L | 460 lbs |
Certifications
• ETL listed to UL and CSA standards (optional)
• CE certification available
Ideal Applications
R100 jacketed reactors are commonly used for:
• Chemical synthesis
• Pharmaceutical research
• Cannabis extraction processing
• Solvent recovery systems
• Petrochemical research
• Pilot-scale production
• Material science research
What's Included
• Jacketed glass vessel with 7-port lid
• Heavy-duty stainless steel stand with casters
• Glass insulation jacket with viewing window
• Vertical condenser with dual cooling coils
• Glass condenser dispenser with PTFE valve
• Glass feeding funnel with PTFE valve
• Glass receiving flask with PTFE valve
• Glass bottom drain port with PTFE valve
• Glass vacuum valves (6 pieces)
• Stirring motor controller with temperature display
• Stirring motor and support assembly
• Mechanical vacuum gauge
• Temperature probe with PTFE seal
• PTFE stirring blades (3-blade system)
• Insulated hoses with valves
• Stainless steel hose barb adapters
• PTFE sealing tape
• Stirring rod bearing kit
• Condenser connection kit
• Large opening feeding port kit
• Bottom drain port clamp
• Condenser support brackets
• Chilling fluid and vacuum connectors
• Allen key hardware set
• Hose clamps
• Motor support rod
• Stainless steel ball joint clamp
• Feeding funnel clamp
• Motor power cord
• Motor shaft universal joint
• User manual
Warranty
• 1 Year Manufacturer Warranty
• Lifetime US-based parts, service, and technical support
⚠️ Safety Notice
Operators must follow proper laboratory safety procedures when operating glass reaction equipment. Loose clothing, hair, or jewelry may become entangled in rotating components and cause serious injury.
