Description

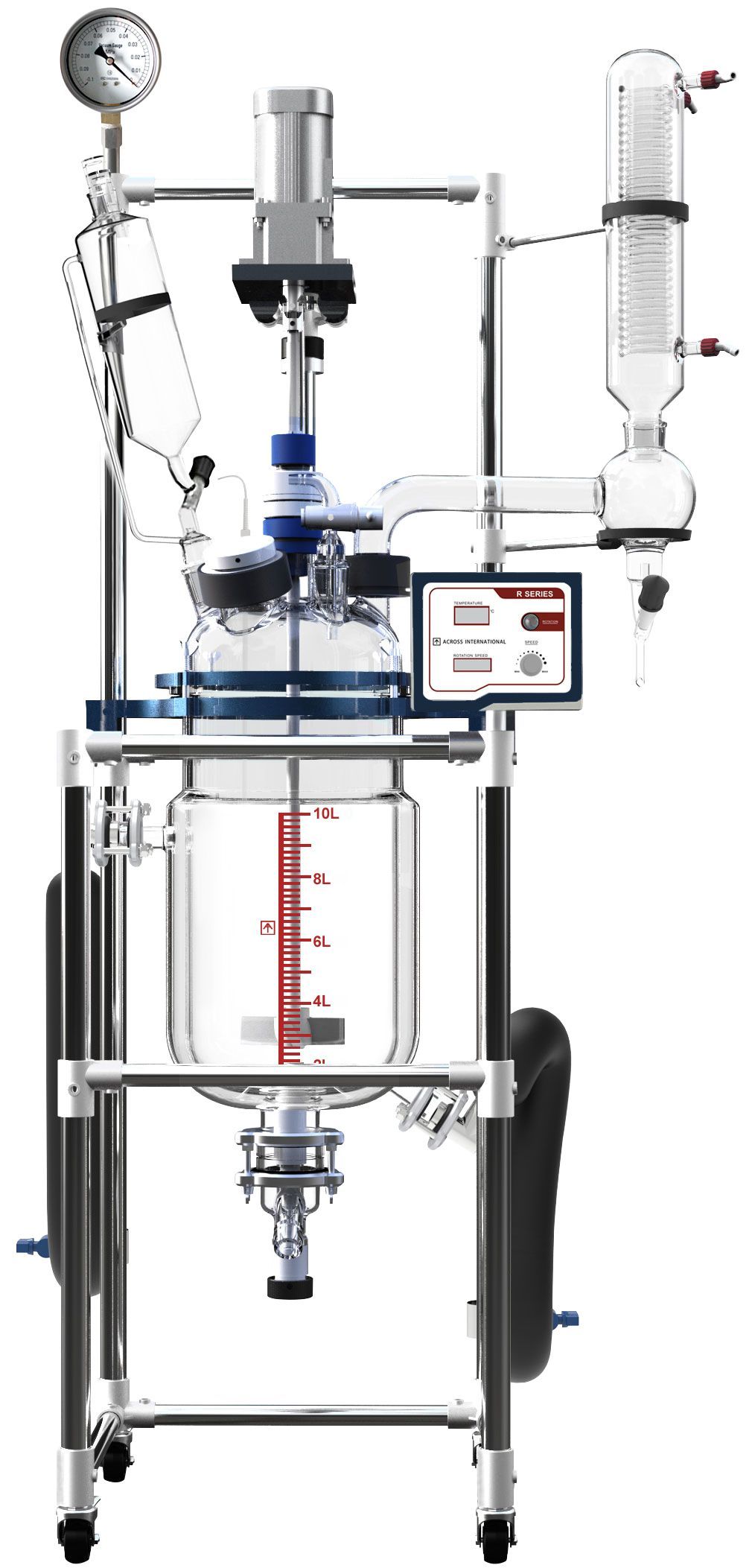

The Across International R-Series Jacketed Glass Reactors are designed for controlled synthetic reactions in laboratory and pilot-scale environments. These advanced reactor systems allow precise control of temperature, vacuum, and stirring speed, making them ideal for chemical synthesis, pharmaceutical development, material science research, and process chemistry applications.
Each R-Series reactor features a high borosilicate glass reaction vessel, solvent-resistant PTFE sealing components, and a heavy-duty stainless steel support structure. The integrated constant pressure feeding funnel enables controlled material addition, while the built-in vertical condenser system allows efficient condensation and recovery of reaction vapors.
These reactors support a wide temperature operating range from -110°F to 400°F, allowing use with both heating circulators and recirculating chillers.
Key Features
Precision Reaction Control
R-Series glass reactors provide precise control of key reaction variables:
-
Temperature regulation through jacketed vessel circulation
-
Adjustable stirring speed
-
Controlled material feeding
-
Vacuum operation for reduced pressure reactions
This makes them ideal for complex chemical synthesis and reaction optimization.
High-Quality Borosilicate Glass Construction
All glass components are hand-crafted from high borosilicate glass 3.3, providing:
-
Excellent chemical resistance
-
High thermal shock resistance
-
Exceptional durability in laboratory environments

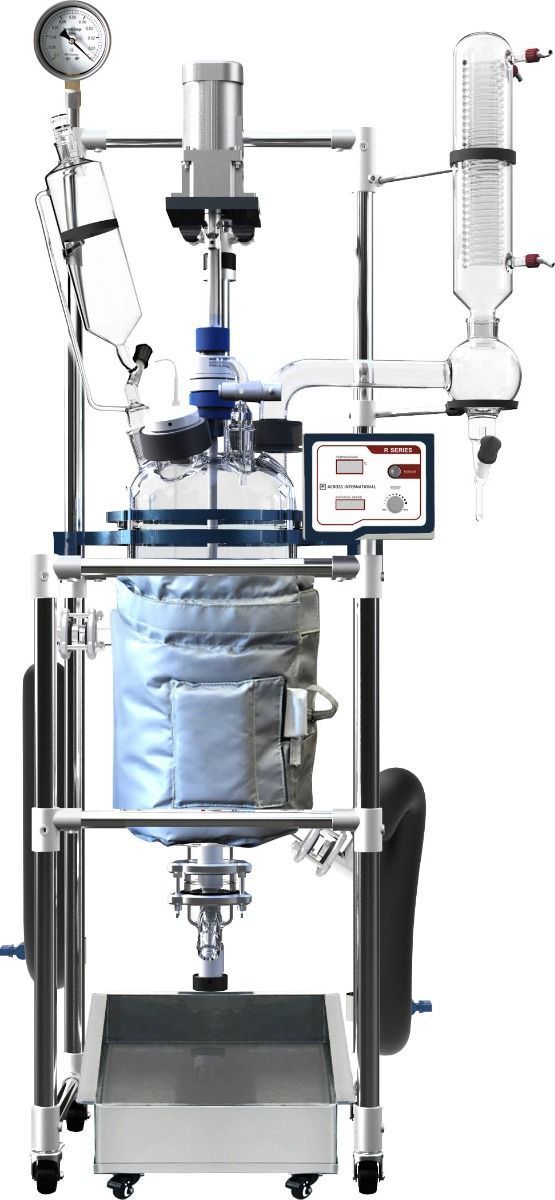

FREE Thermal Insulation Jacket Included
Each reactor now includes a high-quality insulation jacket (a $399 value) designed specifically for Ai jacketed reactors.
Benefits include:
-
Extends chiller lifespan
-
Improves low-temperature performance
-
Reduces energy consumption
-
Viewing window allows monitoring of reaction material
Optional Dual-Jacket Reactor Design
Dual-jacket models allow vacuum to be drawn from the outer jacket, providing:
-
Better temperature stability
-
Improved insulation performance
-
Reduced frost formation on vessel exterior
-
Clear visibility of reaction materials
Powerful Adjustable Stirring System
The reactor includes a stainless steel reinforced PTFE-lined agitator with an anchored impeller.
Features include:
-
Adjustable stirring speed
-
Excellent torque for viscous materials
-
Reliable PTFE stirring rod bearing system
-
Quiet and stable operation
Optional multi-layer stirring blades are available for specialized reactions.
Large Condenser Cooling Surface
The integrated condenser provides efficient vapor condensation and solvent recovery.
-
Large surface area for improved cooling
-
Dual cooling coil design
-
Vacuum connection for controlled pressure reactions
Heavy-Duty Stainless Steel Support Frame
The entire system is mounted on a reinforced stainless steel frame with locking casters for mobility and stability.
The frame and glass vessel ship pre-assembled for easier installation.
Available Reactor Sizes
| Model Capacity | Reactor Volume | Jacket Volume |
|---|---|---|
| 10L | 2.6 gallons | 3L |
| 20L | 5.3 gallons | 6L |
| 50L | 13 gallons | 16L |
| 100L | 26 gallons | 30L |
Electrical Requirements
Voltage Options
-
110V 60Hz
-
220V 50/60Hz
Phase
-
Single phase
Motor Power
-
90W
-
140W
-
250W (depending on reactor size)
Stirring System
Controller
-
Digital controller with variable frequency drive
Rotation Speed
-
50 – 500 RPM
Agitator
-
Impeller style
-
304 stainless steel with PTFE liner
Reactor Vessel Specifications
Glass Material
-
High borosilicate glass 3.3
Temperature Range
-
-110°F to 400°F
Maximum Jacket Pressure
-
4.4 PSI (0.03 MPa)
Vacuum Level
-
20 Torr
Vacuum Sealing
-
Glass or PTFE
Drain Valve
-
Flush seal design with large opening
-
Flat flange clamp connection
Physical Dimensions
| Capacity | Unit Dimensions |
|---|---|
| 10L | 18 × 26 × 78" |
| 20L | 20 × 27 × 80" |
| 50L | 26 × 33 × 85" |
| 100L | 28 × 42 × 95" |
Shipping Dimensions
| Capacity | Shipping Size |
|---|---|
| 10L | 24 × 67 × 26" |
| 20L | 24 × 75 × 31" |
| 50L | 25 × 83 × 42" |
| 100L | 26 × 88 × 45" |
Shipping Weight
| Capacity | Weight |
|---|---|
| 10L | 240 lbs |
| 20L | 262 lbs |
| 50L | 330 lbs |
| 100L | 390 lbs |
Certifications
-
ETL listed to UL and CSA standards (optional)
-
CE certification available
Ideal Applications
R-Series jacketed reactors are commonly used for:
-
Chemical synthesis
-
Pharmaceutical research
-
Material science development
-
Cannabis extraction processes
-
Polymer chemistry
-
Petrochemical research
-
Process scale-up and pilot plant production
What's Included
-
Jacketed glass vessel (single or dual jacket) with 6-port lid
-
Heavy-duty stainless steel stand with locking casters
-
Glass vessel insulation jacket with viewing window
-
Vertical condenser with dual cooling coils
-
Glass condenser dispenser with PTFE valve
-
Pressure equalizing feeding funnel with PTFE valve
-
Bottom drain port with PTFE valve
-
Glass vacuum valve
-
Stirring motor controller with temperature display
-
Stirring motor and support assembly
-
Mechanical vacuum gauge
-
PTFE-sealed temperature probe
-
PTFE stirring blades and PTFE-lined stainless rod
-
Insulated hoses with valves
-
Hose barb adapters
-
PTFE sealing tape
-
Stirring rod bearing kit
-
Condenser dispenser connection kit
-
Large opening feeding port kit
-
Drain port clamp
-
Condenser support brackets
-
Chilling fluid connectors
-
Allen keys and hardware set
-
Hose clamps
-
Motor power cord
-
Motor shaft universal joint
-
User manual
Warranty
-
1 Year Manufacturer Warranty
-
Lifetime US-based parts, service, and technical support
⚠️ Safety Notice
Operators must avoid contact with rotating parts and follow all laboratory safety procedures. Loose clothing, jewelry, or hair may become entangled in rotating equipment. Glass reaction equipment should only be operated by trained personnel using appropriate safety precautions.
