High-Resolution Precision Balance with MONOBLOCK Technology and Internal Calibration

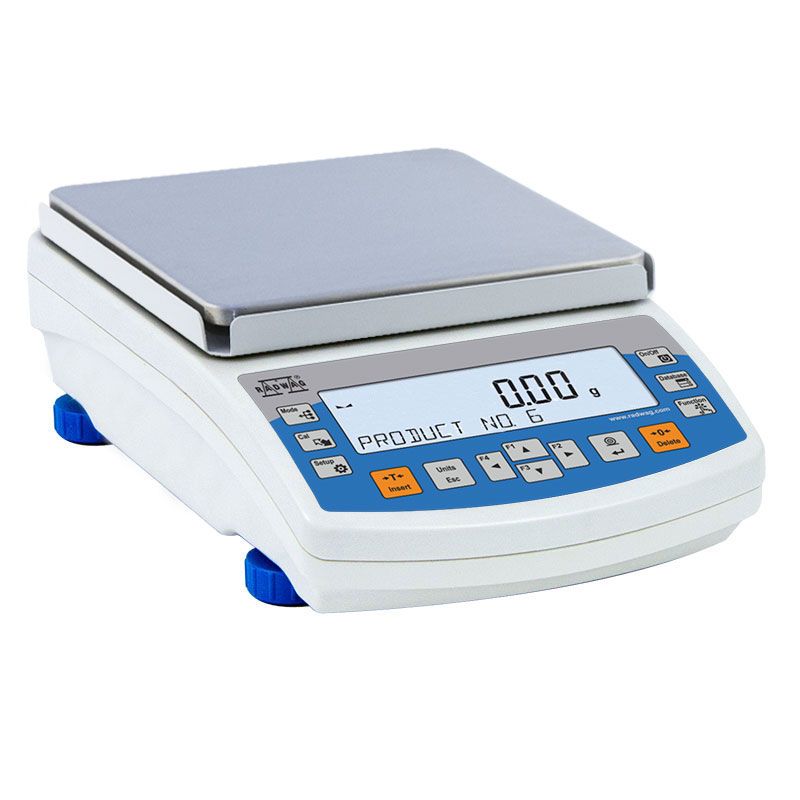

The Radwag PS 8100.R2.M Precision Balance is a high-resolution laboratory balance designed for accurate mass determination up to 8100 g with 0.01 g readability. Built using advanced RADWAG MONOBLOCK weighing technology, this precision balance delivers exceptional stability, measurement repeatability, and long-term reliability.

The innovative single-point weighing pan fastening system ensures optimal weighing geometry while minimizing eccentricity errors. Additionally, the labyrinth-style fastening design protects the weighing mechanism from contamination, increasing durability and ensuring consistent performance in demanding laboratory environments.

Equipped with automatic internal adjustment, the PS 8100.R2.M maintains high accuracy across the entire measuring range, compensating for environmental changes and ensuring reliable measurements.

With integrated databases, ALIBI memory, and multiple communication interfaces, this precision balance integrates easily with laboratory data management systems and industrial weighing workflows.

---

Key Features of the Radwag PS 8100.R2.M Precision Balance

High-Resolution Weighing Performance

Provides 8100 g maximum capacity with 0.01 g readability, making it suitable for precise laboratory measurements and industrial weighing applications.

MONOBLOCK Weighing Technology

Advanced MONOBLOCK load cell technology provides:

• Improved measurement stability

• High resistance to environmental conditions

• Long-term repeatability and accuracy

Internal Automatic Adjustment

Internal calibration using an integrated reference mass ensures accurate measurements across the full weighing range.

Durable Mechanical Design

The rigid base structure improves balance stability and resistance to shocks.

Contamination-Resistant Pan Mount

A labyrinth-style pan fastening system prevents contamination and protects the weighing mechanism.

Clear LCD Display

The balance features a backlit LCD display that provides clear and easy-to-read measurement results.

Quick Access Operation

Dedicated function keys allow fast access to commonly used weighing modes and database functions.

---

Integrated Data Management System

The PS R2.M precision balance series includes an internal data management system designed for laboratory and industrial workflows.

Database Capacity

• Operators: up to 100 users

• Products: up to 1,000 products

• Weighings: up to 5,000 records

• Tares: up to 100 tare values

ALIBI Memory

Integrated ALIBI memory stores up to 100,000 weighing records, ensuring secure measurement traceability and long-term data storage.

---

Communication & Connectivity

The PS 8100.R2.M balance supports multiple communication interfaces for integration with laboratory and industrial systems.

Communication interfaces include:

• 2 × RS232

• USB Type A

• USB Type B

• Optional Wi-Fi connectivity

The balance can connect to printers, computers, USB flash drives, and external displays.

---

Ideal Applications

The Radwag PS 8100.R2.M precision balance is commonly used in:

• Pharmaceutical laboratories

• Chemical analysis laboratories

• Industrial quality control

• Manufacturing environments

• Academic research facilities

• Material testing laboratories

---

Technical Specifications

Model

PS 8100.R2.M

---

Weighing Performance

Maximum capacity
8100 g

Minimum load
0.5 g

Readability
0.01 g

Verification scale interval (e)
0.1 g

Tare range
−8100 g

---

Accuracy

Repeatability (Max)
0.01 g

Repeatability (5% Max)
0.005 g

Linearity
±0.03 g

Stabilization time
1.5 seconds

---

Minimum Sample Weight

Minimum weight (USP)
10 g

Minimum weight (U = 1%, k = 2)
1 g

---

Adjustment

Internal automatic calibration

---

OIML Classification

Class II

---

Display

Backlit LCD display

---

Weighing Platform

Dimensions
195 × 195 mm (8 × 8 inches)

---

Connectivity

Communication interfaces:

• 2 × RS232

• USB-A

• USB-B

• Optional Wi-Fi

---

Environmental Conditions

Operating temperature
+10°C to +40°C

Storage temperature
−20°C to +50°C

Relative humidity
40% – 80%

Protection class
IP43

---

Dimensions & Weight

Device dimensions
333 × 206 × 107 mm

Packaging dimensions
470 × 380 × 336 mm

Net weight
4.5 kg

Shipping weight
6.1 kg

---

Power Requirements

Adapter
100–240V AC, 50/60 Hz

Balance input
12–15V DC

---

Included Components

• Radwag PS 8100.R2.M Precision Balance

• Stainless Steel Weighing Pan

• Weighing Pan Shield

• Power Supply Adapter

---

Warranty

2-Year Manufacturer Warranty
