Description
High-Resolution Precision Balance with RADWAG MonoBLOCK Technology

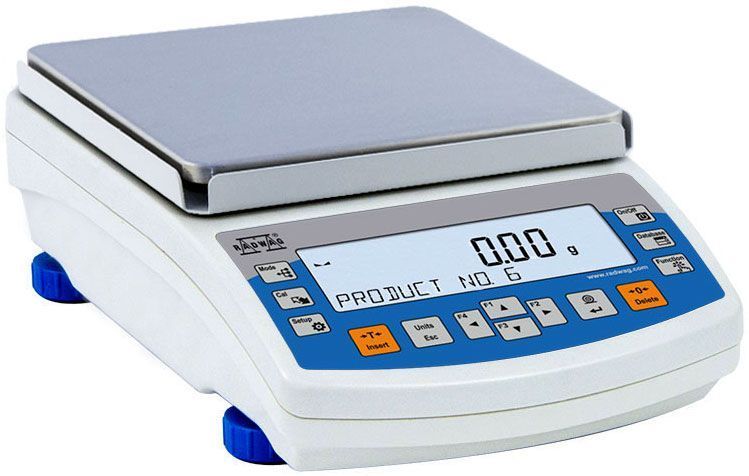

The Radwag RS 2100.R2.M Precision Balance is a high-resolution laboratory weighing instrument designed for accurate mass determination up to 2100 g with 0.01 g readability. Built using RADWAG MonoBLOCK technology, the RS R2.M series delivers exceptional measurement stability, repeatability, and resistance to environmental conditions.
The innovative single-point weighing pan fastening system ensures excellent weighing geometry while minimizing eccentricity errors. Additionally, the labyrinth-style fastening design protects the weighing mechanism from contamination, improving long-term durability and reliability.
An advanced internal automatic adjustment system continuously maintains precision across the entire measurement range, ensuring consistent results even under changing environmental conditions.
With integrated databases, ALIBI memory, and multiple communication interfaces, the RS 2100.R2.M precision balance integrates easily into laboratory data systems and quality control workflows.
Key Features of the Radwag RS 2100.R2.M Precision Balance
High Precision Measurement
Provides 2100 g capacity with 0.01 g readability, making it ideal for precision laboratory weighing tasks.
RADWAG MonoBLOCK Technology
Advanced MonoBLOCK weighing system improves:
-
Measurement stability
-
Shock resistance
-
Long-term repeatability
Internal Automatic Adjustment
Internal calibration ensures high accuracy and repeatability across the entire measuring range.
Durable Mechanical Design
Rigid base construction provides excellent stability and resistance to vibrations.
Contamination-Resistant Pan Mount
The labyrinth-style pan fastening system protects the weighing mechanism from contamination.

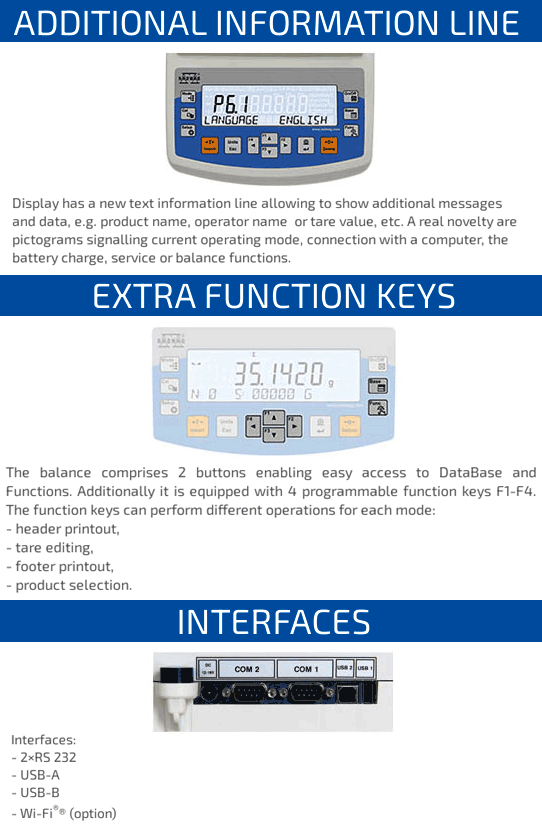

Backlit LCD Display
Large backlit LCD screen provides clear measurement results and intuitive data presentation.
Quick Access Operation
Dedicated function keys allow fast access to:
-
Balance functions
-
Databases
-
Measurement settings

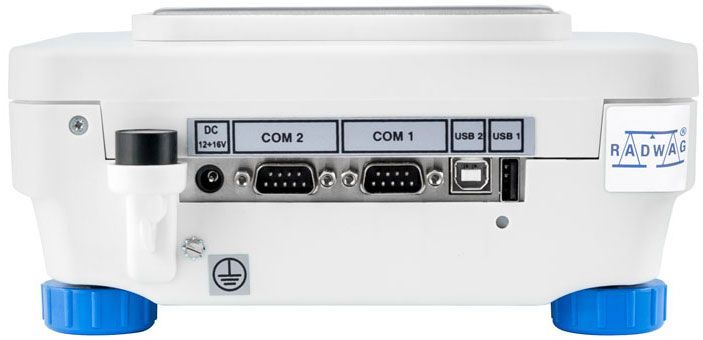

Advanced Connectivity
Communication interfaces include:
-
2 × RS232
-
USB Type A
-
USB Type B
-
Optional Wi-Fi connectivity
These allow connection to computers, printers, USB drives, and laboratory data systems.
Integrated Data Management System
The RS R2.M balance series includes an advanced internal database system for measurement tracking and analysis.
Database Capacity
-
Operators: up to 100 users
-
Products: up to 1000 products
-
Weighings: up to 5000 records
-
Tares: up to 100 tare values
ALIBI Memory
The built-in ALIBI memory securely records up to 100,000 weighments, ensuring reliable long-term data traceability and compliance with laboratory documentation standards.
Advanced Weighing Functions
The RS 2100.R2.M precision balance supports a wide range of professional weighing functions.
Autotest
Automatic diagnostic function that evaluates repeatability and metrological parameters based on real operating conditions.
Dosing
Allows precise dosing using a reference mass with tolerance settings, ideal for powders, liquids, and granular materials.
Percent Weighing
Compares measured samples to a reference mass and displays results as a percentage.
Totalizing
Adds multiple weighings together to determine the total mass of mixtures.
Parts Counting
Determines item quantity based on total weight and individual unit weight with automatic accuracy correction.
Peak Hold
Captures the highest temporary measurement value during dynamic weighing processes.
Statistics
Provides statistical analysis including:
-
Maximum and minimum values
-
Average value
-
Standard deviation
-
Variance
-
Measurement range
Checkweighing
Verifies whether sample weight falls within predefined tolerance limits.
Under-Pan Weighing
Allows suspended weighing of irregular or oversized objects.
Density Determination
Supports density measurement using Archimedes’ principle with an optional density kit.
GLP Reporting
Allows generation of GLP-compliant weighing reports for laboratory documentation.
Ideal Applications
The Radwag RS 2100.R2.M precision balance is commonly used in:
-
Pharmaceutical laboratories
-
Chemical analysis labs
-
Quality control testing
-
Material science research
-
Industrial laboratories
-
Academic research facilities
Technical Specifications
Model
RS 2100.R2.M
Part Number: WL-212-0170
Weighing Performance
Maximum capacity
2100 g
Minimum load
500 mg
Readability
0.01 g
Tare range
−2100 g
Accuracy
Repeatability (Max)
0.008 g
Repeatability (5% Max)
0.005 g
Linearity
±0.02 g
Stabilization time
1.5 seconds
Adjustment
Internal automatic calibration
Display
Backlit LCD display
Weighing Platform
Pan dimensions
7.7 × 7.7 inches
Material
Stainless steel
Connectivity
Communication interfaces:
-
2 × RS232
-
USB-A
-
USB-B
-
Optional Wi-Fi
Environmental Conditions
Operating temperature
10°C – 40°C
Relative humidity
10% – 85% RH (non-condensing)
Power Requirements
100 – 240 VAC, 50/60 Hz
Dimensions & Weight
Package dimensions
18.5 × 15 × 13 inches
Unit weight
9.5 lbs
Shipping weight
13 lbs
Certification
NTEP Certified
Warranty
2-Year Manufacturer Warranty
